2DOF separated axis outputs

[motiondave]

They are 24V(for trucks and buses), I think they should be fast enough also. But I'm not sure if they can move each one axis seperately, since they must move whole weight of the moving construction + person per axis.

What about using 4 standard car(eg. vw golf) 12V wipers, because I saw that wiper motor simulators are noticeably slower than actuator(SCN5) ones.

So you suggest pololu JRK , amc1.6 + h-bridge or New Arduino + h-bridge project?

I have attached screenshot from my (quick sketch)model in Catia, but I think there could be too much stress on motors or even frame if I cramp motors under the seat like that without much needed leverage.

What do you think? Maybe I should use 4 motors, each on opposite sides of one axis, to releave the stress a little?

Thank you for your answers, since I really must know that before I start buying materials.

consider 12v boat winch motors if you want lift on a frame.
With JRKS, they will work fine.

[Tyrion]

I was thinking more about around 150W each, which more or less equals truck wiper motor. The only thing I dont know yet if I'm going with two or four.

Is it much more hassle and trouble if you go with four motors?

Thanx!

[motiondave]

I was thinking more about around 150W each, which more or less equals truck wiper motor. The only thing I dont know yet if I'm going with two or four.

Is it much more hassle and trouble if you go with four motors?

Thanx!

No hassle going with 4 motors , just a matter of profile writing to suit each motor ,and more control boards.
The winch motors are 250 watts each and will lift 250 kg each , easy.

[Tyrion]

Could you maybe link me to winch motor your recommend. I was calling around for truck / bus wipers, but prices vary from 100 EUR (used) to 860 EUR (new bus wiper motor). So it's kinda of tough decision what to buy.

Probably if I go with 4 wipers, standard car motor should also do?

I'm pretty shure I will go in this kind of direction (http://www.youtube.com/watch?feature=pl ... jiLxx_bkrw). But does it mean I have to reprogram every .dll / game setup code to work like simulator in video or would default game profiles / setups in xsim work?

Thanx!

[motiondave]

I only have Australian links
12v winch motor
http://www.supercheapauto.com.au/online ... 0921#Cross
12v big worm gear motor
http://www.motiondynamics.com.au/worm-d ... -180w.html

id be very surprised if a car wiper could do , even 4 of them, consider bigger motors.

that ferns sim has an airbag under it with the wipers
he did a rebuild of the frame with 24v motors without an airbag. I reckon 12v motors would do just as well.

[yokoyoko]

I have attached screenshot from my (quick sketch)model in Catia

I really like your assembly design! Where do you gt the "seat catpart" from?

Perhaps this documents can help you to calculate your problem.


masse körper.PNG (59.84 KiB) Viewed 5813 times

[Tyrion]

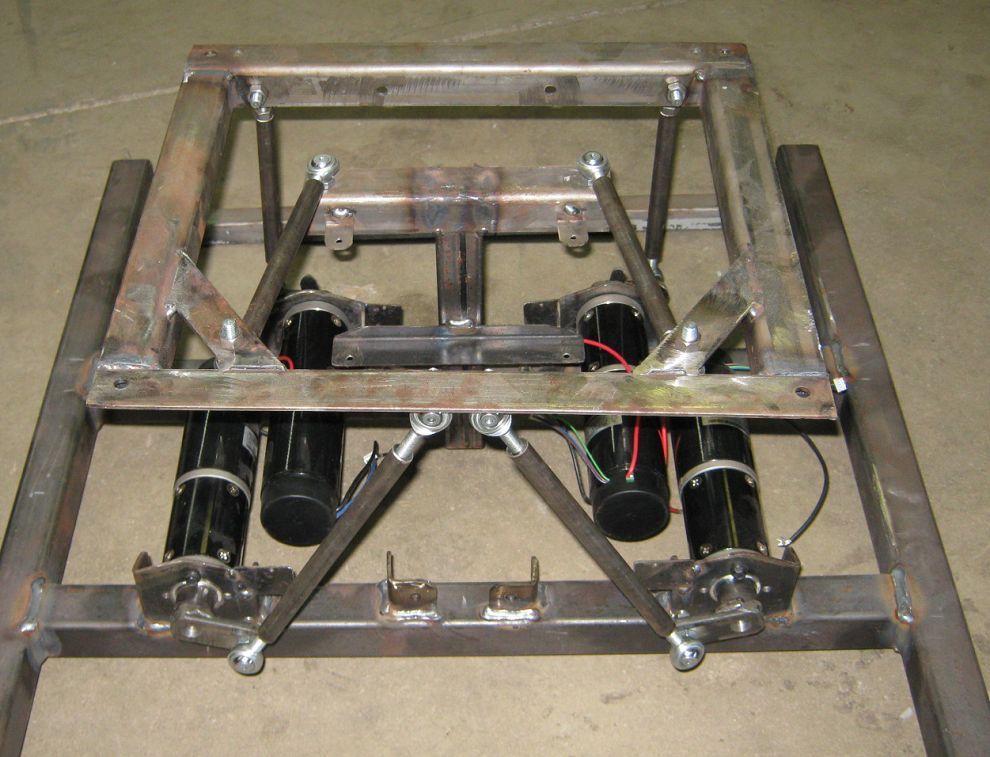

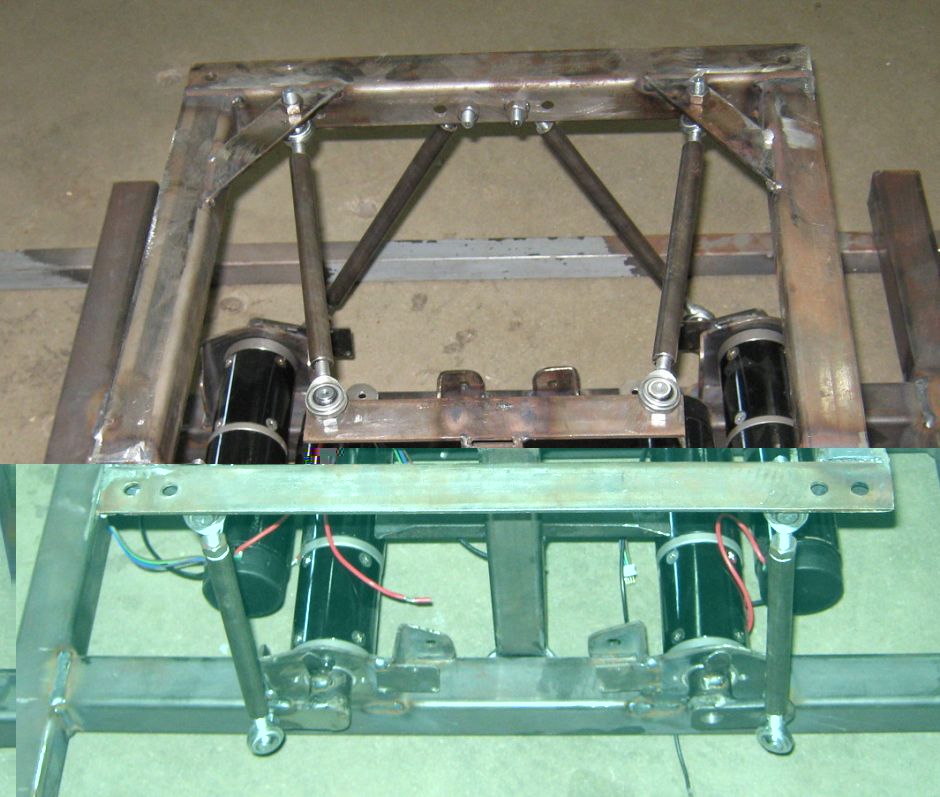

Thank you a lot motiondave. This design you sent me (in pictures) is really what I designed in Catia before I had any clue to start, but with four motors.

And yes you have that right car wipers couldn't do job properly I'm now going through catalogs for 24v industrial solution, I just need to find reductor that would fit them.

Great job man! Dave if you find yourself in Slovenia contact me, I owe you a beer:) Could you just please give me link to where you got pictures of the simulator in pictures you posted above. Thanx!

Thank you too yokoyoko for the chart!

I can start ordering parts *

GREAT SUPPORT GUYS AND XSIM FORUM!

[motiondave]

I cannot find the link, I saved the photos a while ago.

As for Slovenia, a mate of mine from there is in town (Sydney), if he goes back there, he can have my beer.

[Tyrion]

Shure, especially if he's also into simulator hobby, here's my mail tyrionulthuan@gmail.com:)

Is that fern's new simulator in pictures? I mean has anyone tested that design and can confirm it works.

Thanx!

[motiondave]

Shure, especially if he's also into simulator hobby, here's my mail tyrionulthuan@gmail.com:)

Is that fern's new simulator in pictures? I mean has anyone tested that design and can confirm it works.

Thanx!

I dont know if its tested, although I did see a video somewhere of 180kg on it and moved with ease, mind you, he had 2 rear hatch gas struts to help hold the load. Under 120kg, it seemed to do fine without them.
I am tempted to build a design like this myself, but with the other projects on the list, it will be a llllllloooooooooooooonnnngggggggggggg time before I get to this, maybe 6-7 months at least.
