Monster Sim - 2DOF Upgrade 4DOF

Postby kevin123 » Sun 26. Oct 2014, 20:01

3329

Hello everyone ;)
I took a bit of time to build this other sim (about 3 months in his spare time)
after I sold the other (only sruttura and electronics) I have left the G27 the
seat and seat belts ... for other things I bought back again.
My new sim is more or less built the foundations of the old one as
the lower structure cooling system electronic engines ....
I used wiper motors once again and I have to say
despite the extra weight ... they do their job egreggiamente and after 2 hours
of the race I noticed that the engines are pretty cool !! this means
that the cooling system works very well ... clearly I
also had to balance well the total weight !!!

https://www.youtube.com/watch?v=S_mkQ1MNyvc

This time, I cared too much aesthetics and tried to take care of even the smallest details.
Adhesives and lighting special effects and so on. wanted them to my son who is
amused to attack them everywhere :D

3356

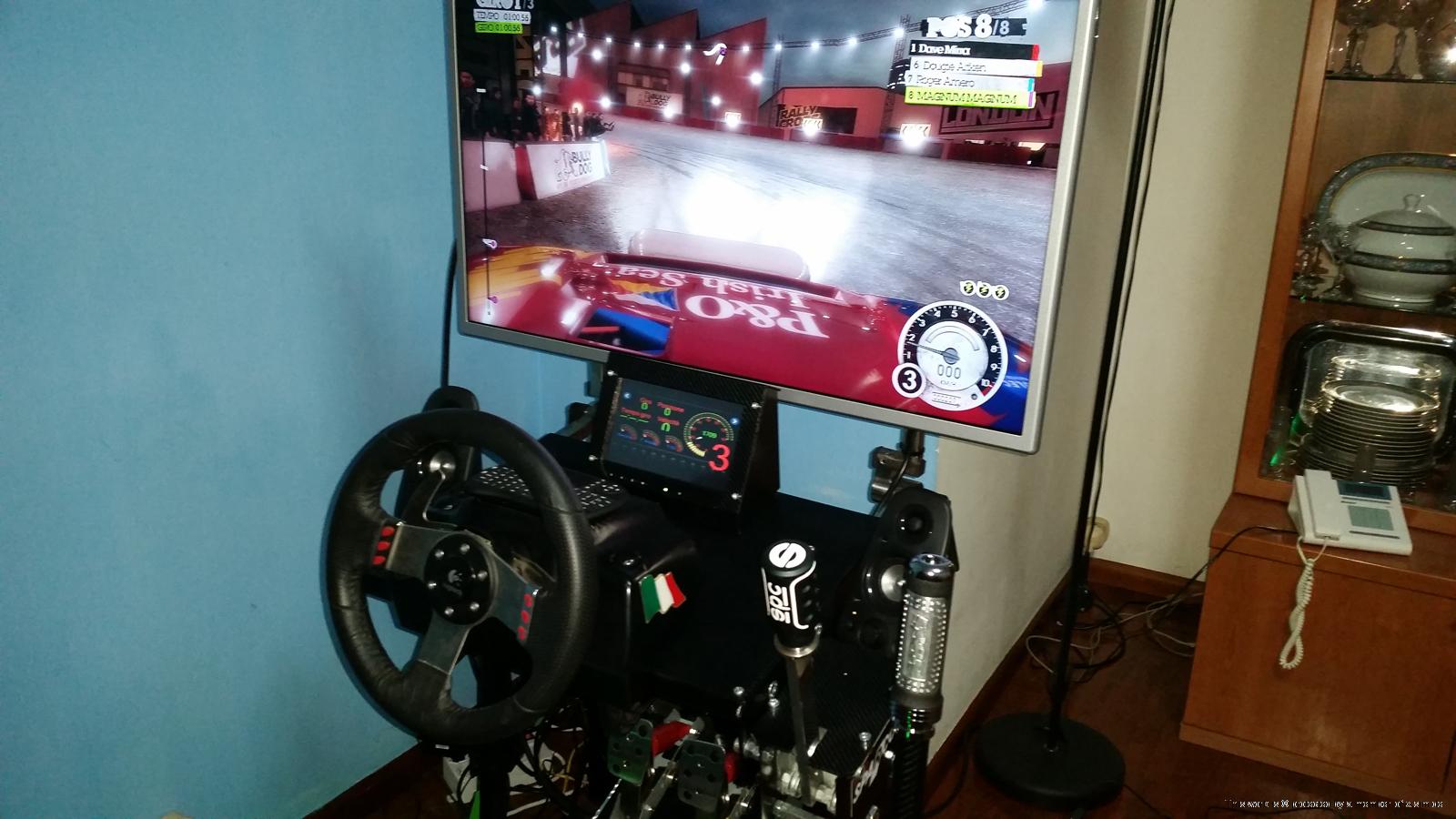

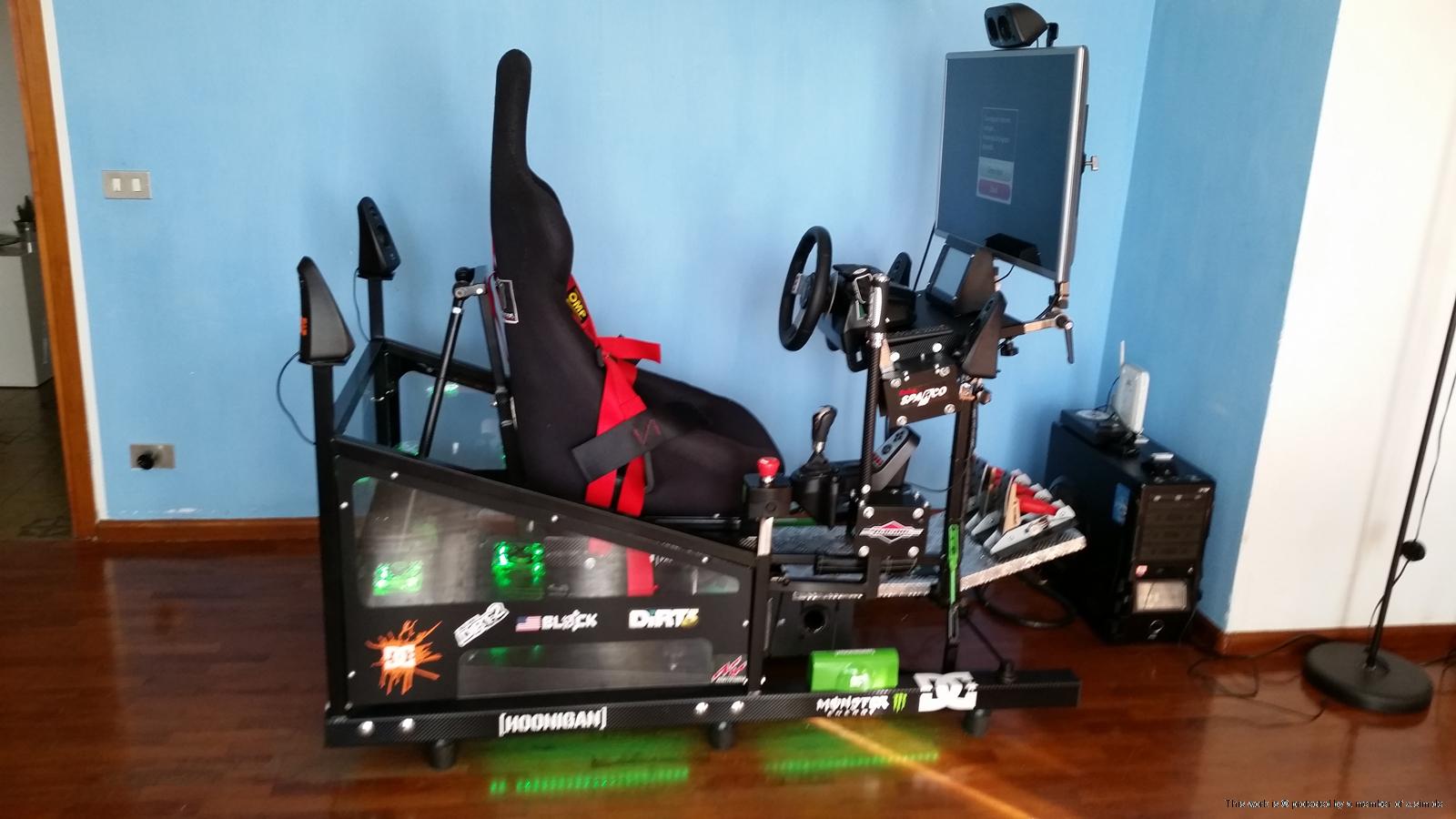

This time I installed the TV that moves with the upper structure
(Much better screen fixed) and the bracket adjustable in depth, height
I will modify the slope and then for a triple monitor.

3353

I used square tubular
60x60x3
40x40x3
30x30x3
25x25x3
and 20x20x3

Compared to before I used 2mm tube that is more robust.

3354

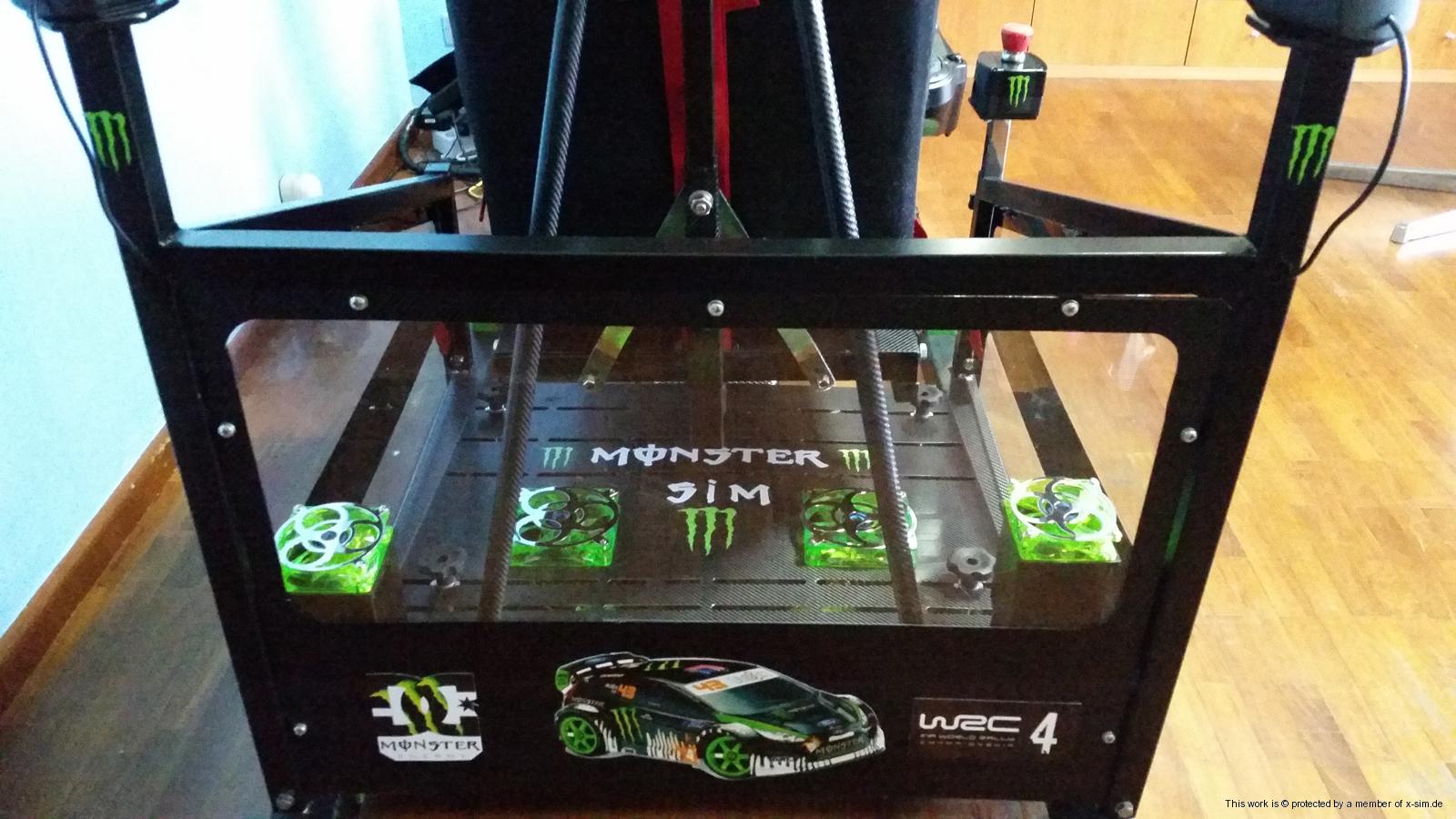

I added a 5.1 audio system and subwoofer and placed under
and some good vibrations to the structure as well as a fantastic sound

I used cooling fans 120x120 1200 rpm for electronics
and fans 80x80 2000 rpm for cooling the engines

3326

If you have any questions please reply as soon as you can

I'll reserve a post for upgrades that I'm going to add as every time I create something

The next upgrade include:
Sequential shift lever (already done)
Handbrake
Triple screen 22 inches or 24
Monitor 7-inch
Substitution of the seat and seat belts

Future upgrades for next summer (if I have time and money to spend) include:
4 DOF
replacement of

Adding a slide under the seat replacing the original binary engine
to simulate the acceleration and braking

Adding the motor to simulate the loss of grip + underlying structure

Video

https://www.youtube.com/watch?v=S_mkQ1MNyvc
Last edited by kevin123 on Sun 25. Sep 2016, 12:59, edited 7 times in total.
My Project 2 DOF :
Monster Sim viewtopic.php?f=37&t=1662
1° Prototype viewtopic.php?f=36&t=620

Oppure li trovate qui http://dynamic.simulator.italia.forumfree.it/
User avatar
kevin123
X-Sim Supporter

Posts: 196
Images: 132
Joined: Sat 14. Apr 2012, 09:15
Location: Italy
Has thanked: 15 times
Been thanked: 11 times

Re: Monster Sim - Carbon Loock By Kevin

Postby kevin123 » Sun 26. Oct 2014, 20:01

For Upgrade

Sequential gearbox homemade

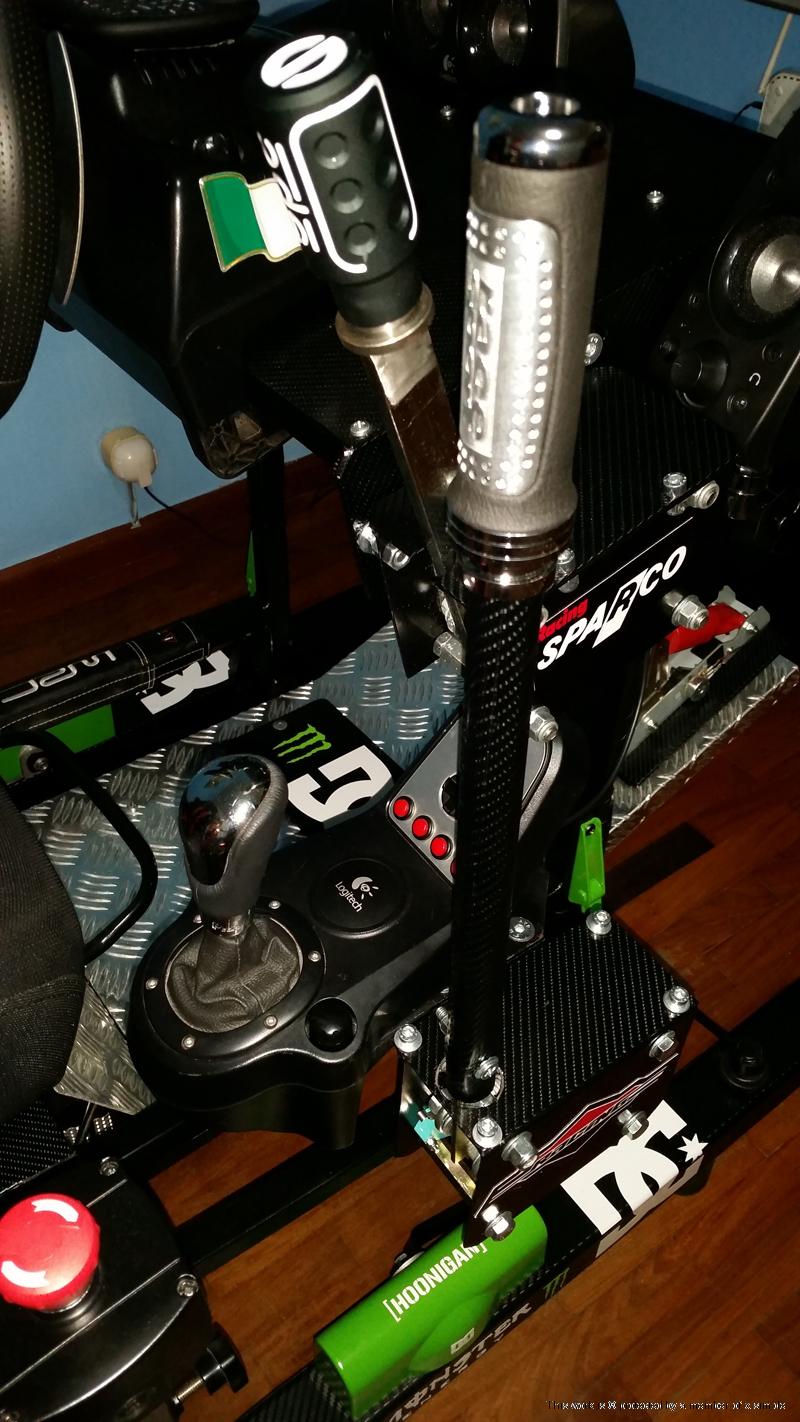

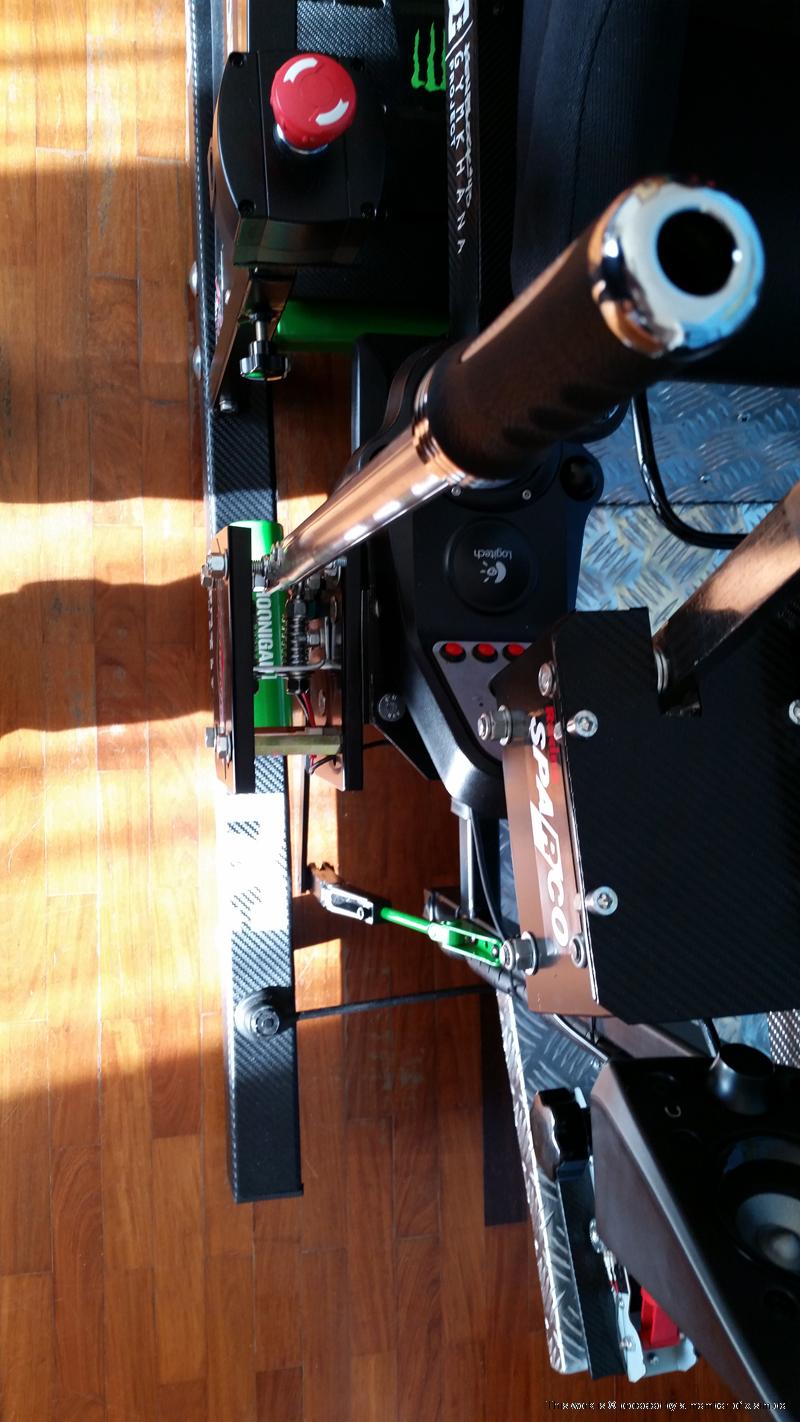

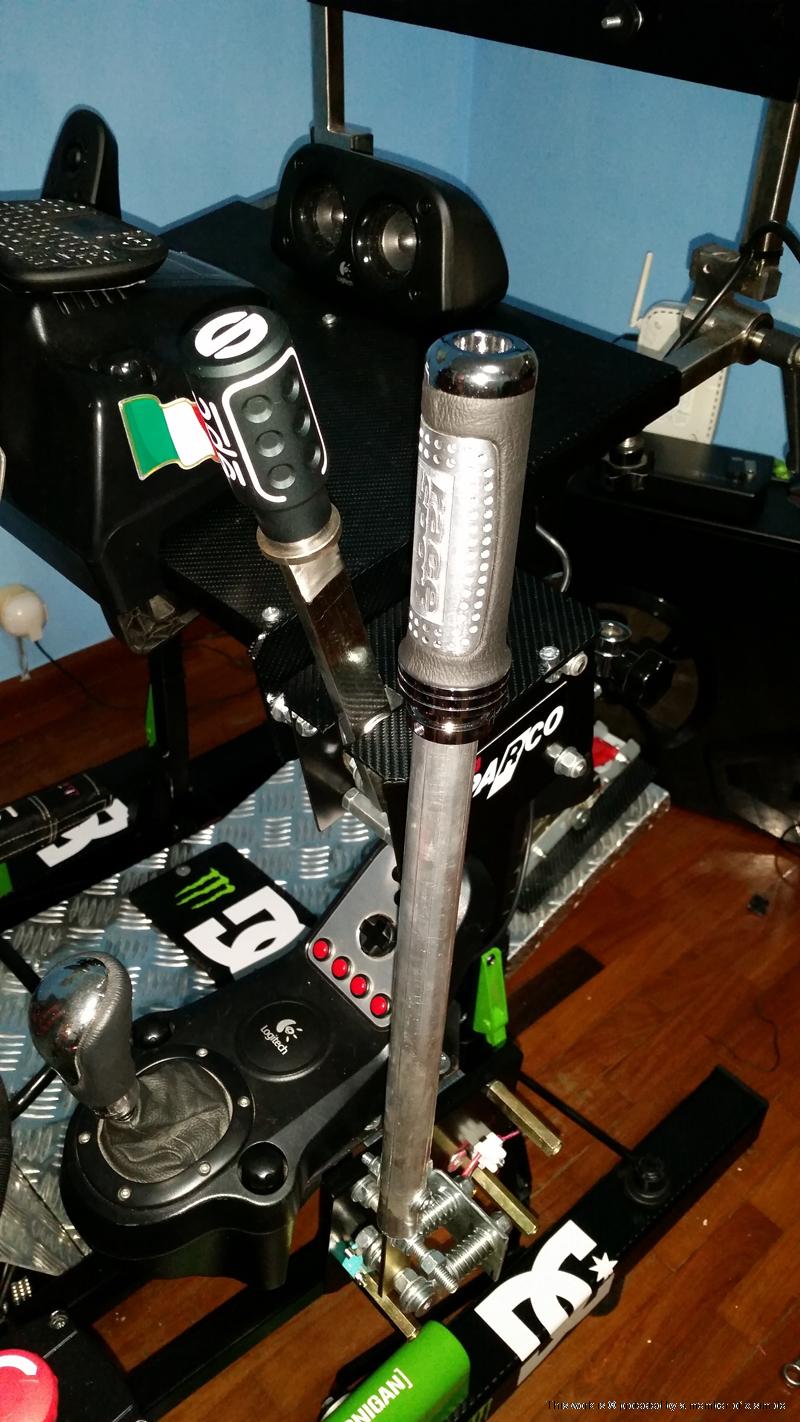

I also took the time to build my sequential gearbox
Here are some photos:

1° Upgrade

334733483328


2° Upgrade

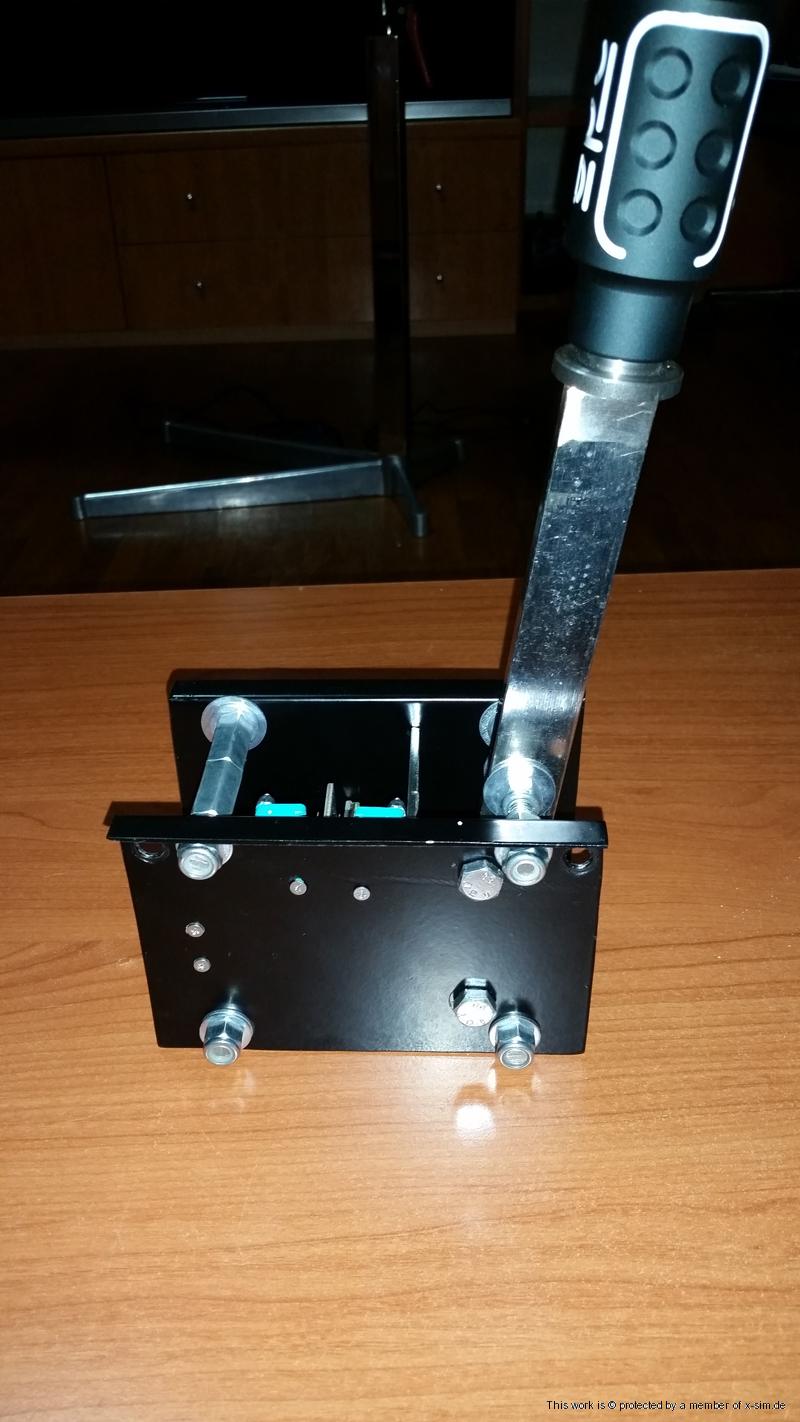

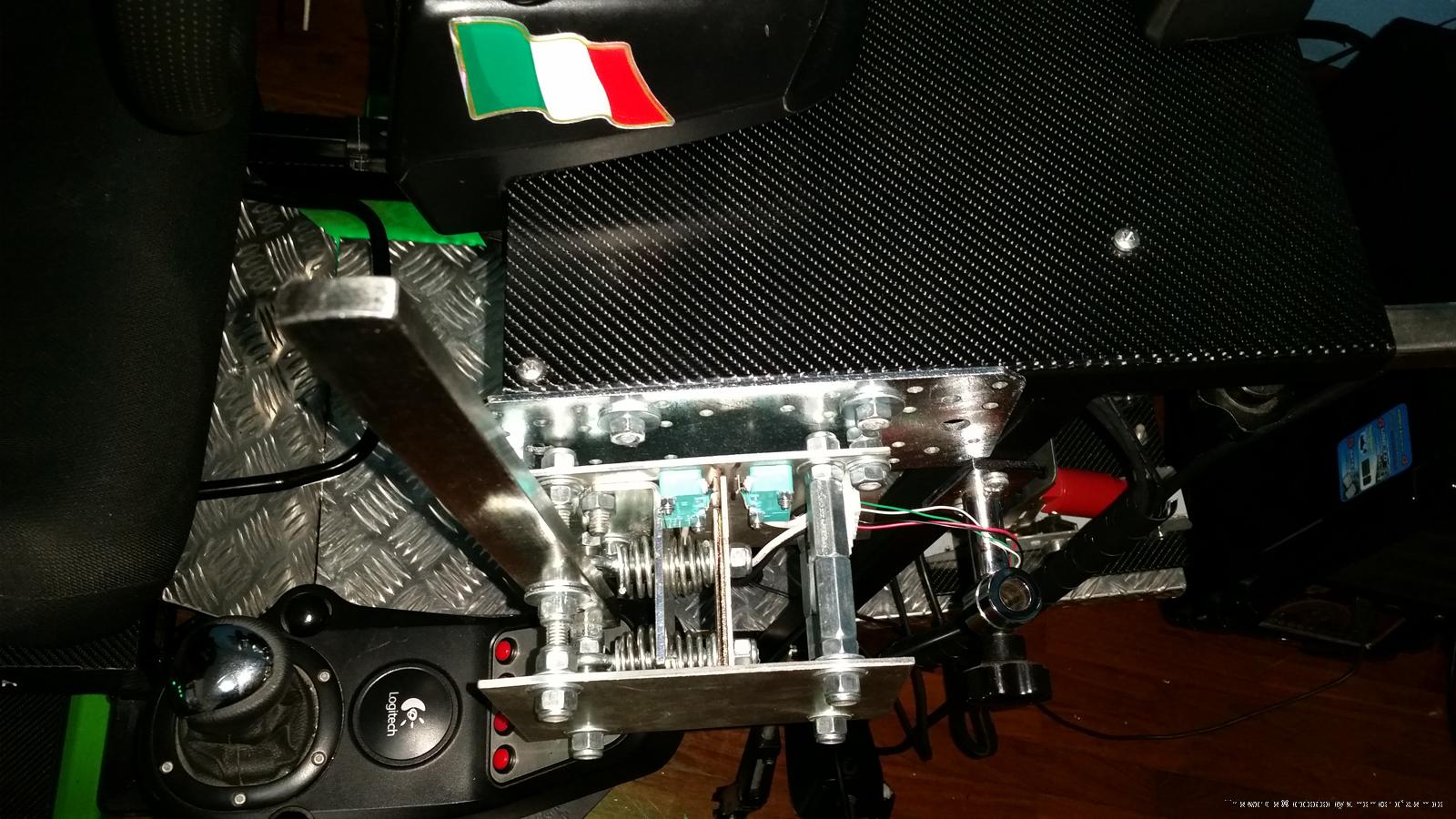

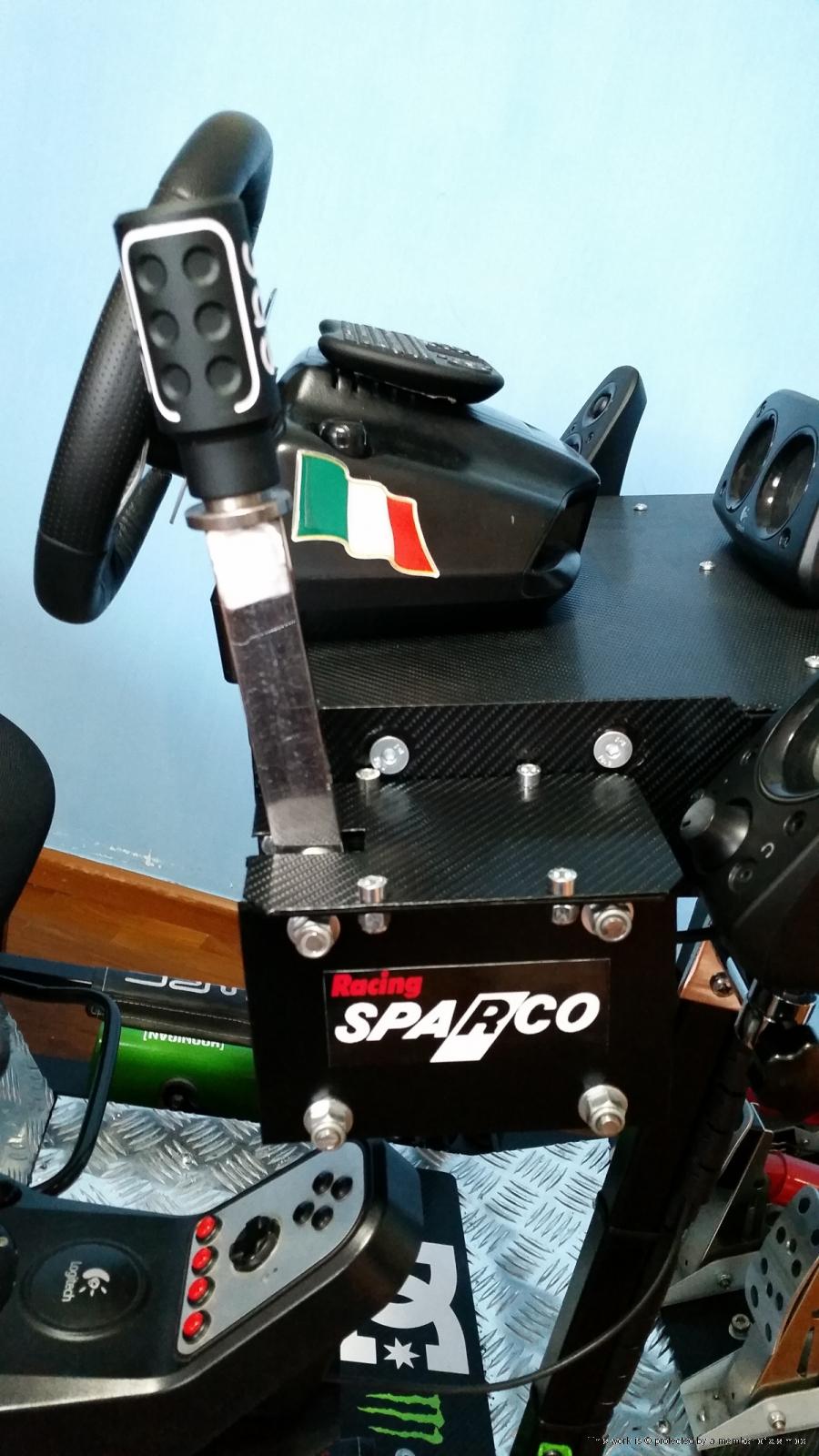

Handbrake Homemade

334933503351

[YouTube]https://www.youtube.com/watch?v=OooXNmfkKU0[/YouTube]

3° Upgrade

Monitor 7" Dashboard

3354

[YouTube]https://www.youtube.com/watch?v=zLC2SrRoay4[/YouTube]
Last edited by kevin123 on Mon 3. Nov 2014, 17:15, edited 3 times in total.
My Project 2 DOF :
Monster Sim viewtopic.php?f=37&t=1662
1° Prototype viewtopic.php?f=36&t=620

Oppure li trovate qui http://dynamic.simulator.italia.forumfree.it/
User avatar
kevin123
X-Sim Supporter

Posts: 196
Images: 132
Joined: Sat 14. Apr 2012, 09:15
Location: Italy
Has thanked: 15 times
Been thanked: 11 times

Re: Monster Sim - Carbon Loock By Kevin

Postby kevin123 » Thu 30. Oct 2014, 20:19

1° and 2° upgrade sequenzial shifter and handbrake .

33283351
Last edited by kevin123 on Mon 3. Nov 2014, 17:12, edited 1 time in total.
My Project 2 DOF :
Monster Sim viewtopic.php?f=37&t=1662
1° Prototype viewtopic.php?f=36&t=620

Oppure li trovate qui http://dynamic.simulator.italia.forumfree.it/
User avatar
kevin123
X-Sim Supporter

Posts: 196
Images: 132
Joined: Sat 14. Apr 2012, 09:15
Location: Italy
Has thanked: 15 times
Been thanked: 11 times

Re: Monster Sim - Carbon Loock By Kevin

Postby kevin123 » Mon 3. Nov 2014, 17:10

3° upgrade Dashboard

3354
My Project 2 DOF :
Monster Sim viewtopic.php?f=37&t=1662
1° Prototype viewtopic.php?f=36&t=620

Oppure li trovate qui http://dynamic.simulator.italia.forumfree.it/
User avatar
