[HCM-VN] Motion Simulator A-Z [2DOF]

[cubizme]

Hi everybody

First I'm very sorry for my bad English .
I'm Trung, from Vietnam, Ho Chi Minh city . I known this forum 3 years ago, I tried once time but I failed in 2012 ( because the country did not have enough parts to build ) but now I could !

My motion simulator work with 2 wiper motor like RacingMat's projects !

*Update 1st May 2015 :



*Update 26th May 2015 :



<<<<<<DASHBOARD(finished)>>>>>

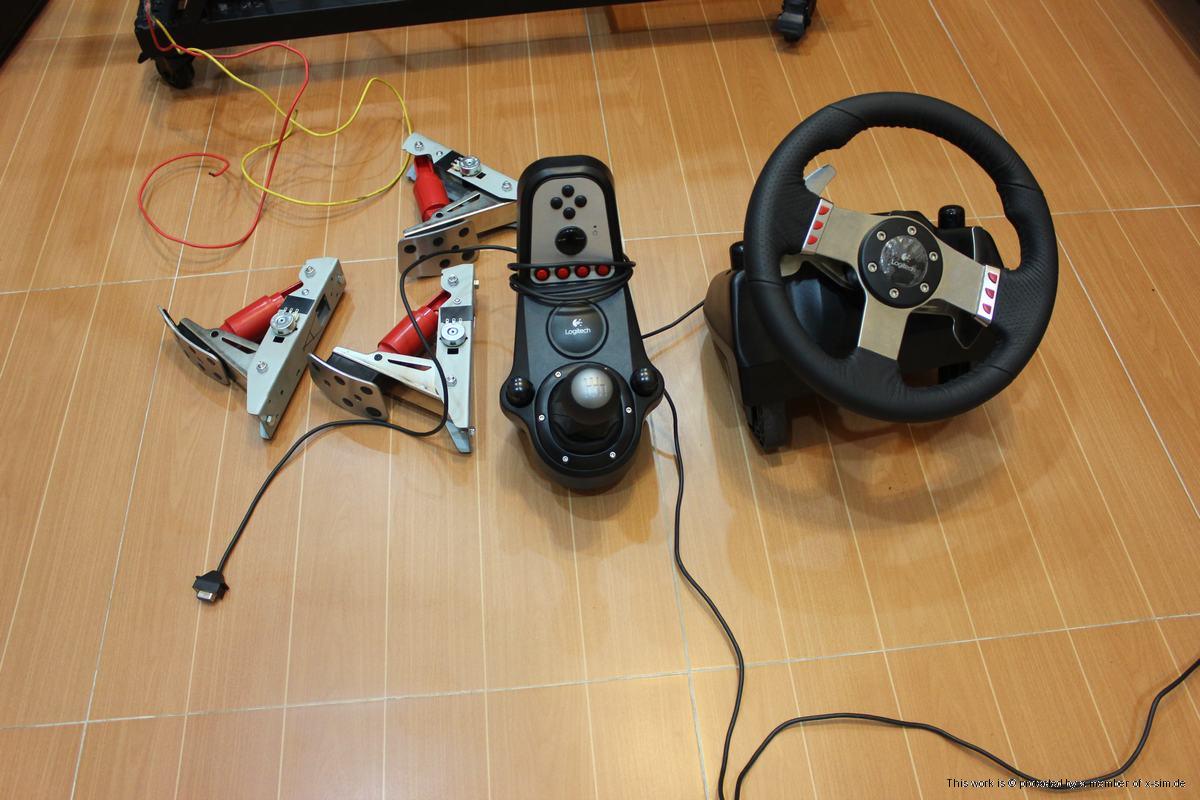

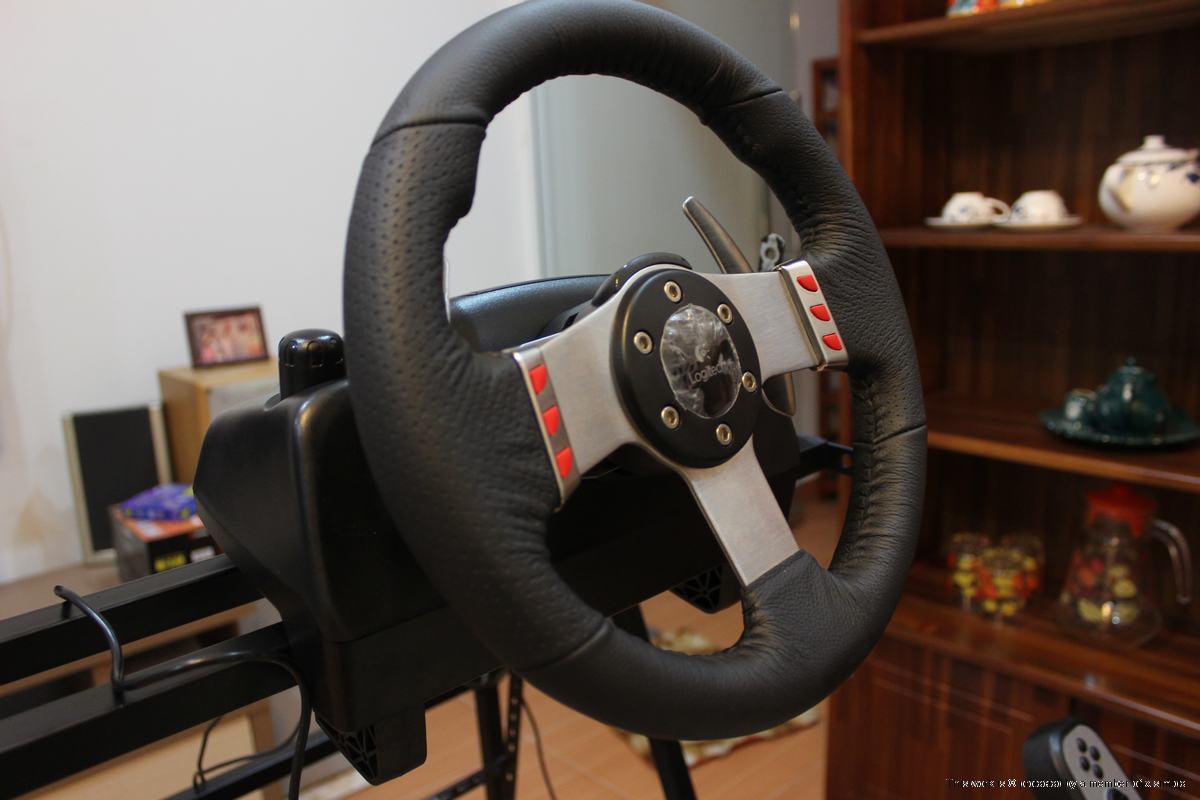

My hardware :

+ Arduino Uno R3
+ Moto Monster Shield
+ 2 wiper motor ( Toyota - used )
+ PSU 12V-30A
+ Logitech G27
+ some ...

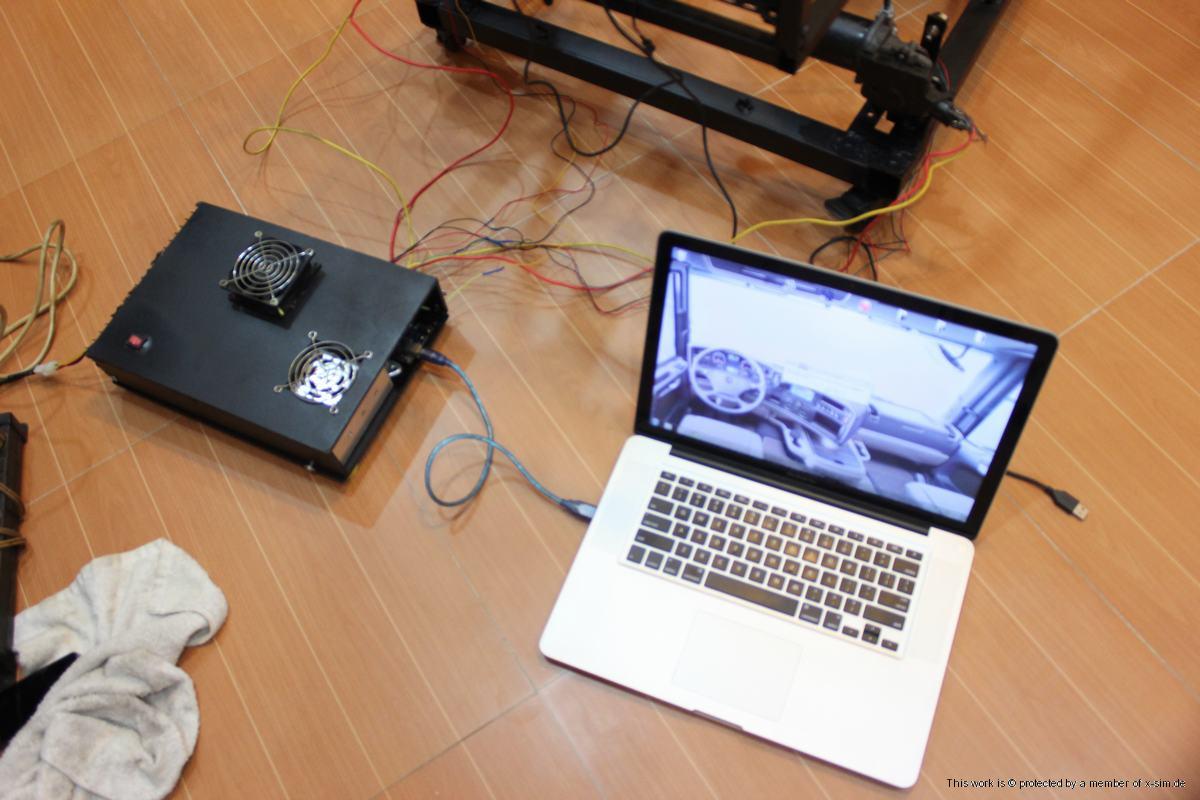

My first test : ( successfully - thank RacingMat )

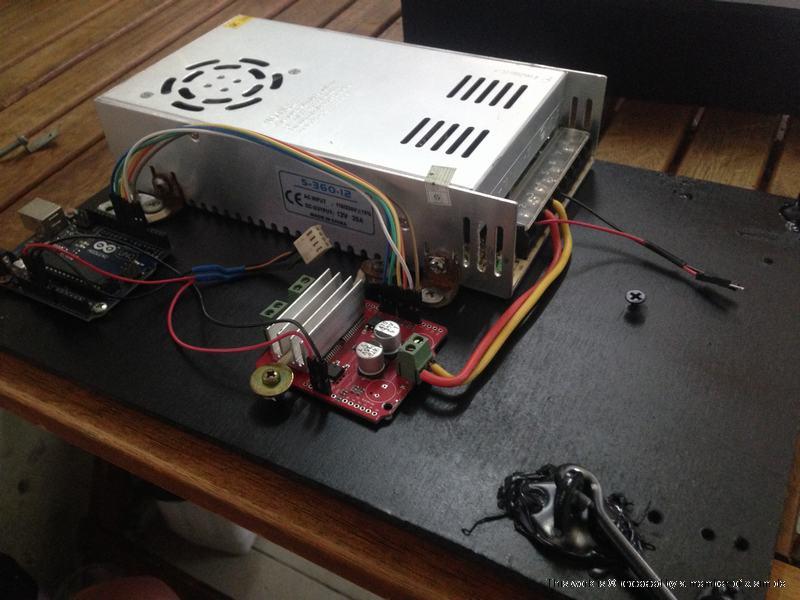

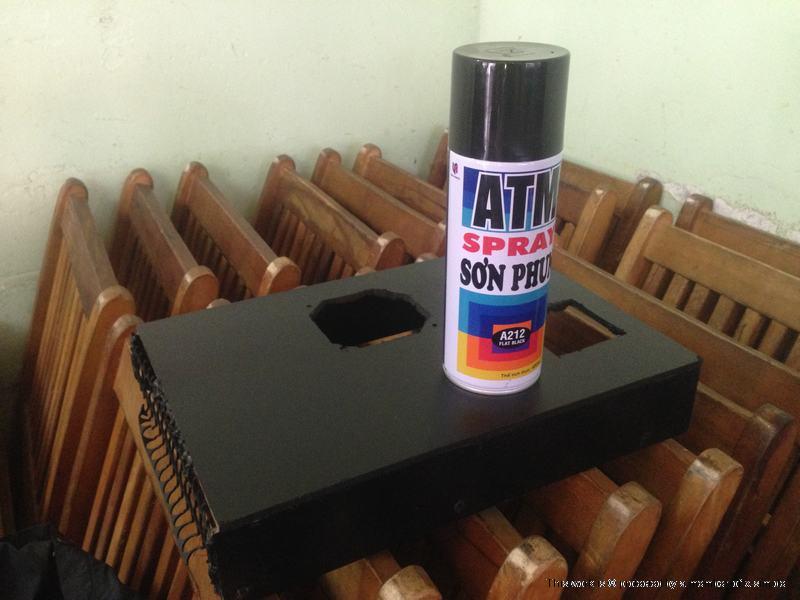

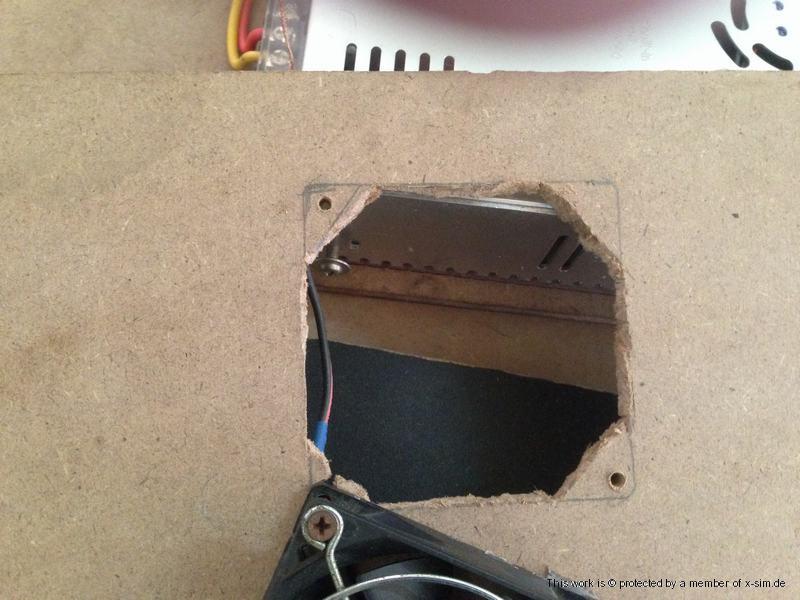

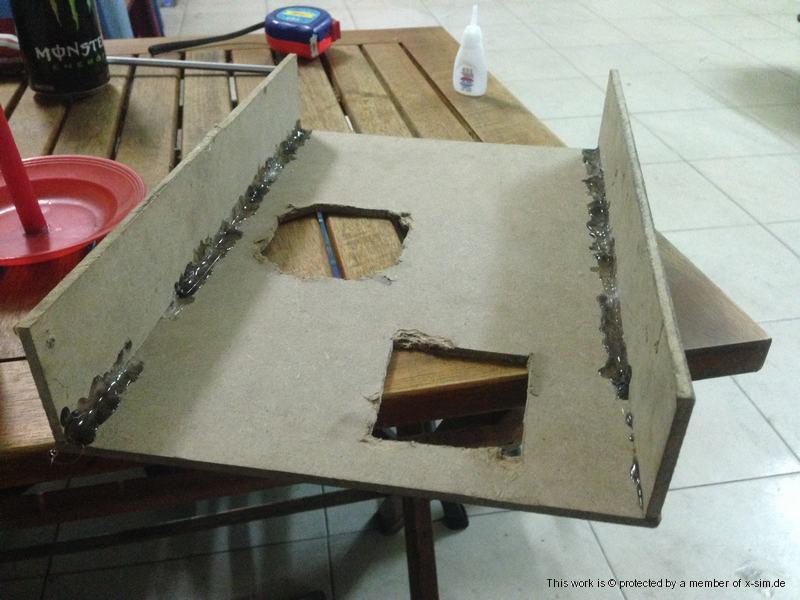

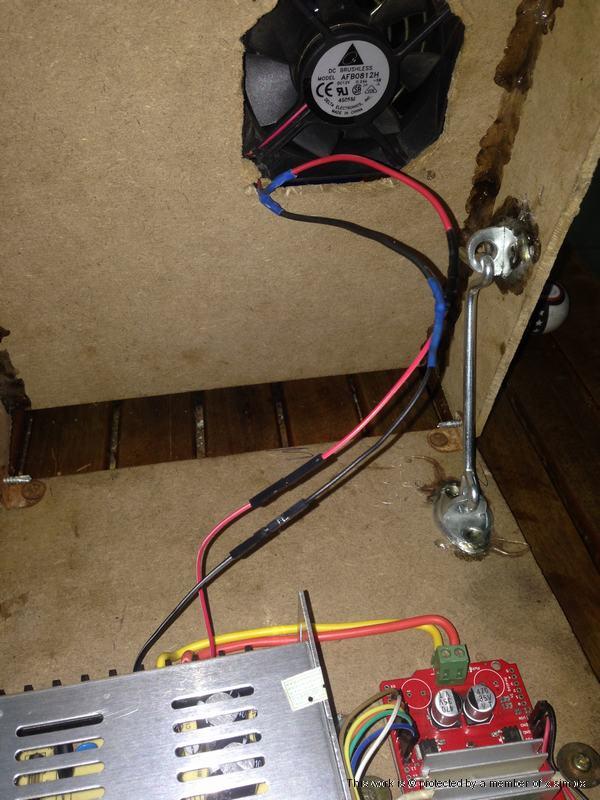

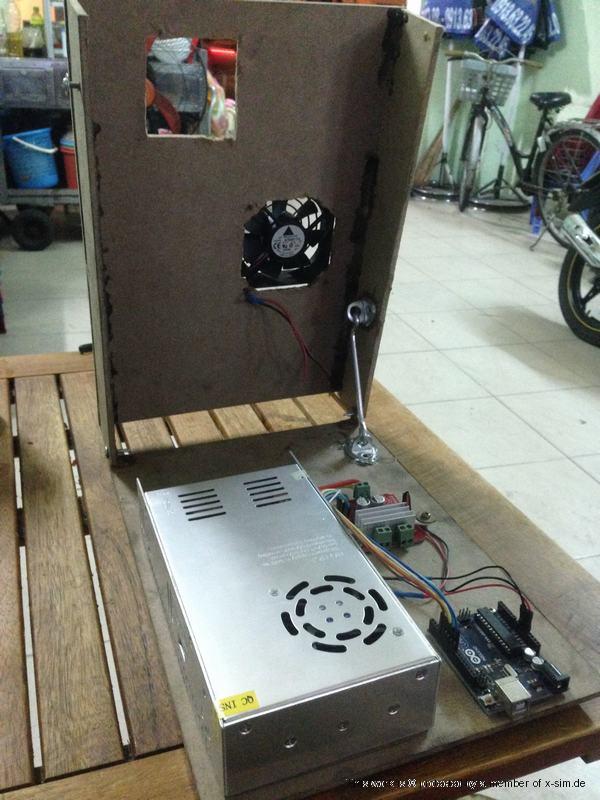

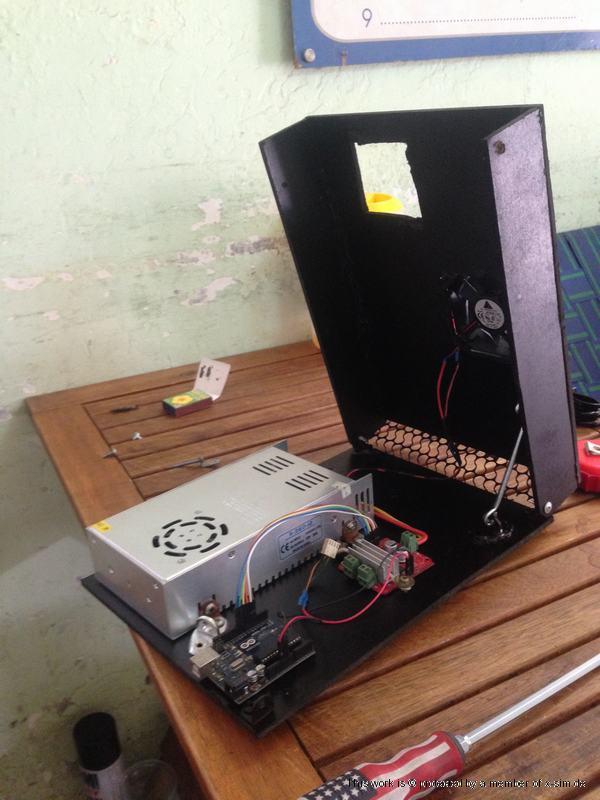

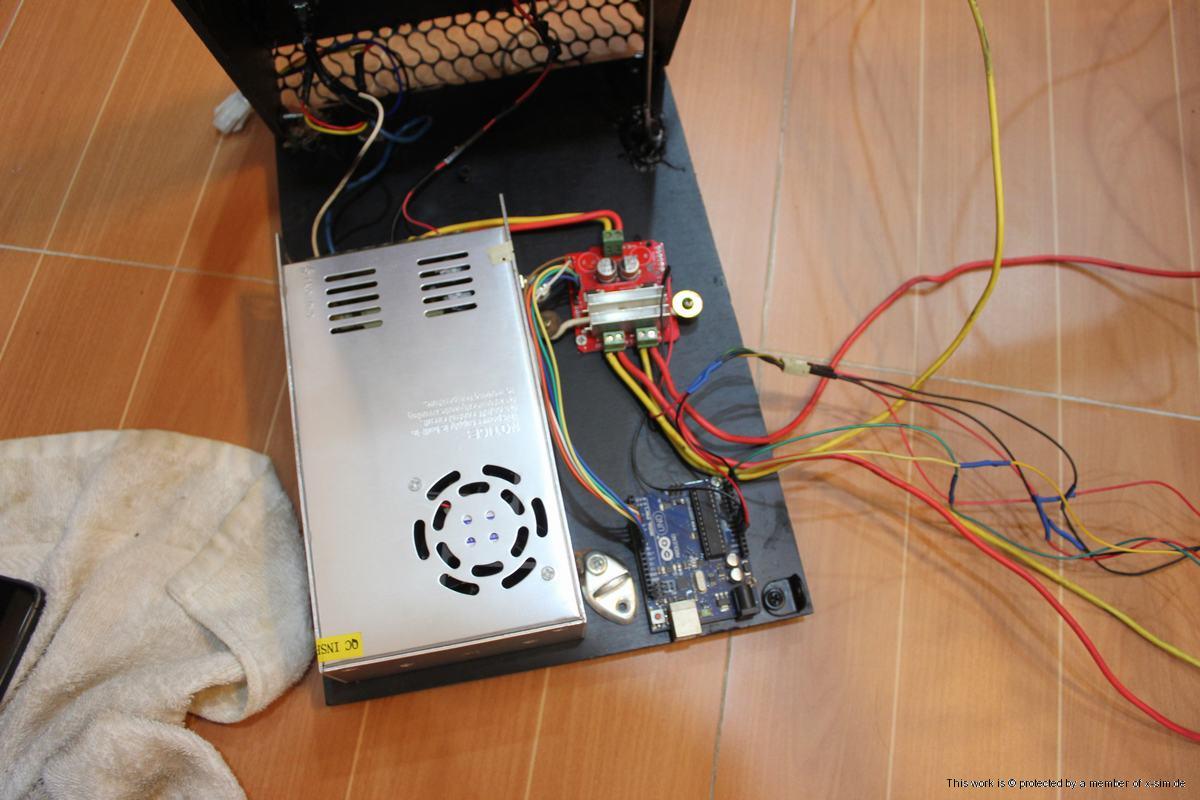

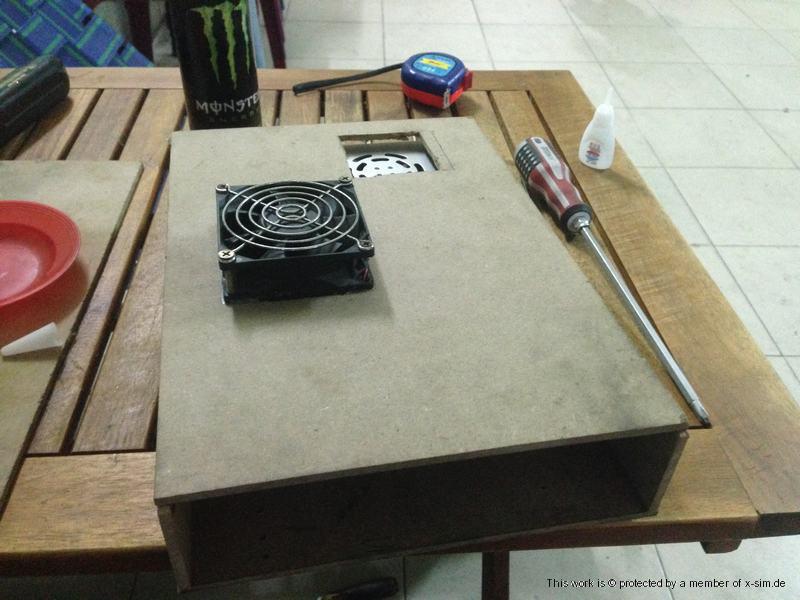

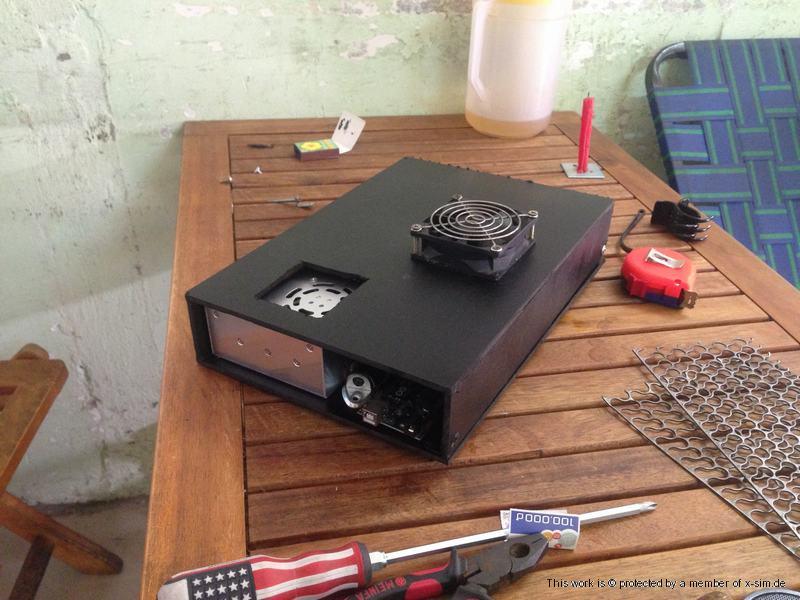

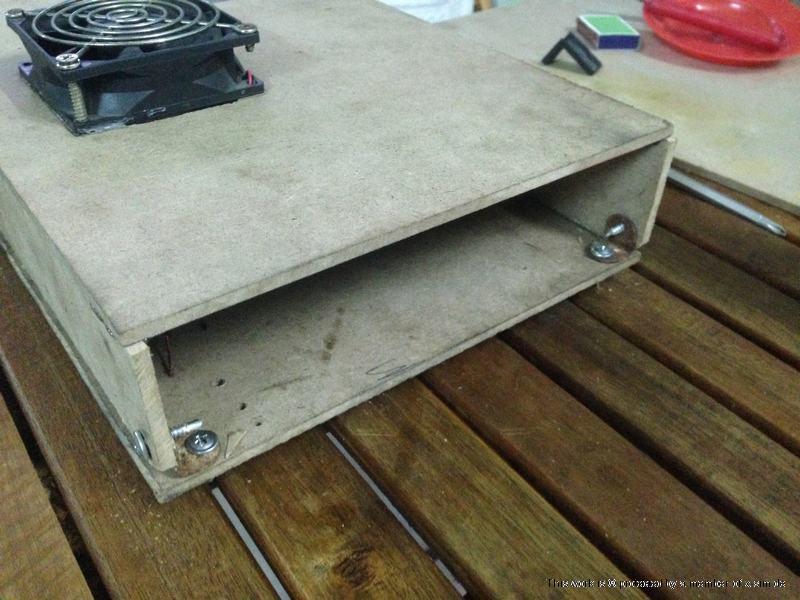

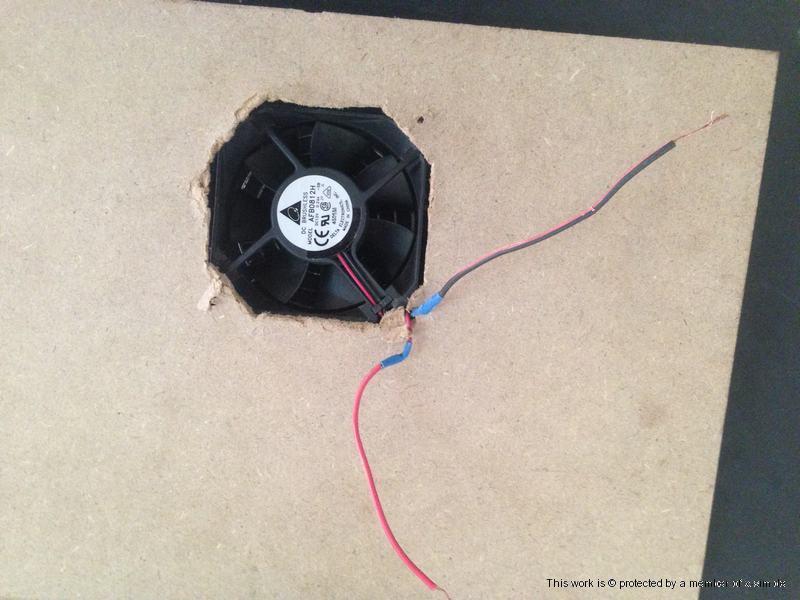

My electrical- box :

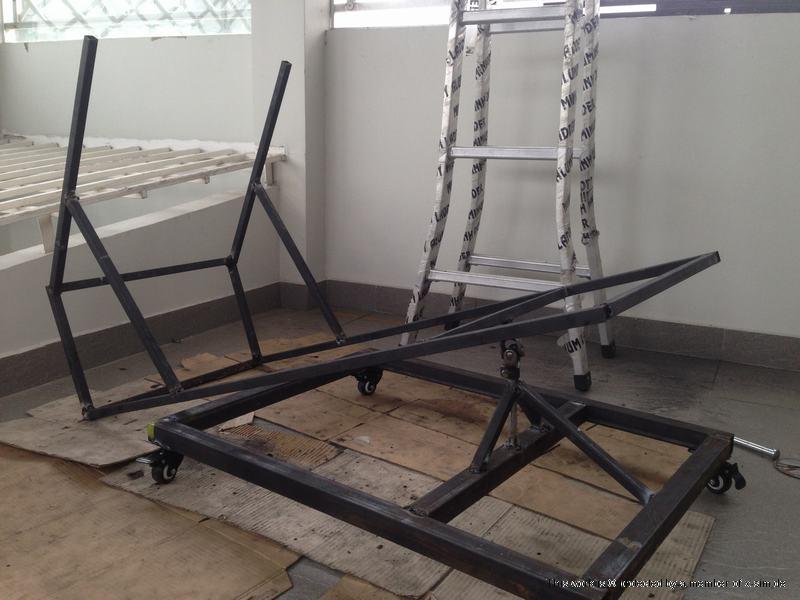

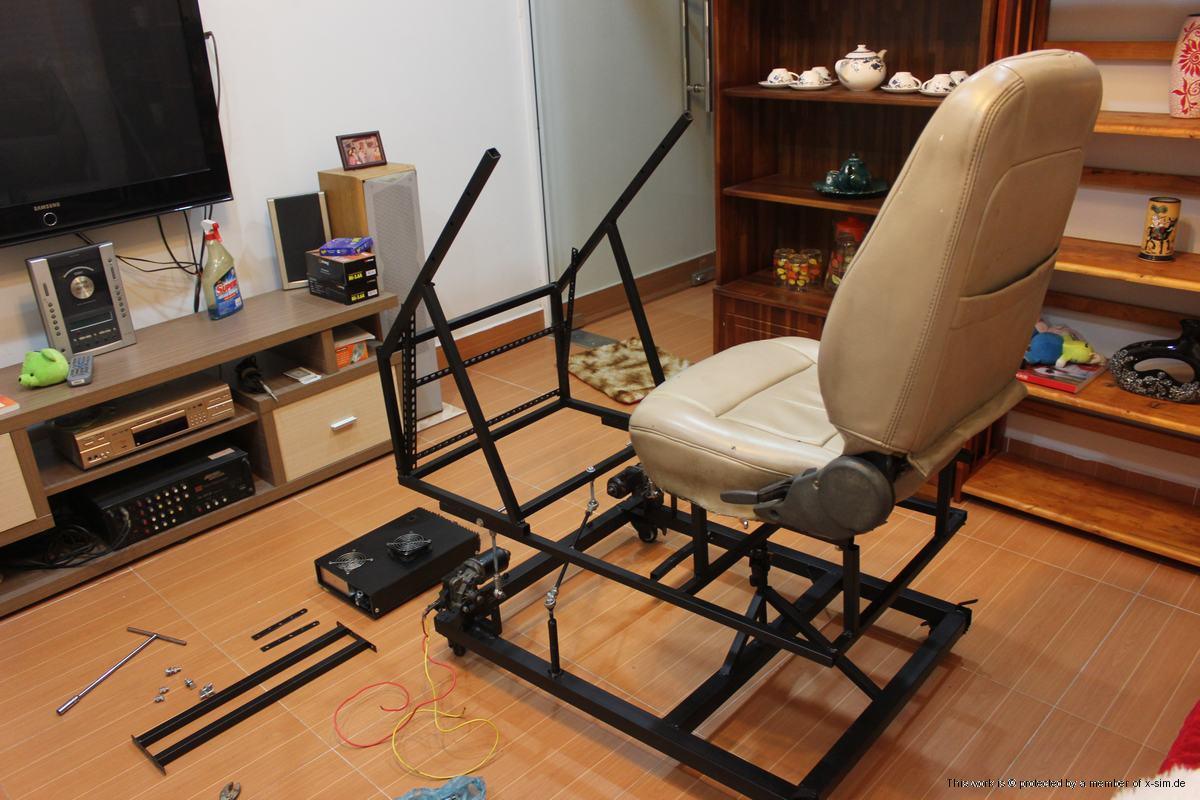

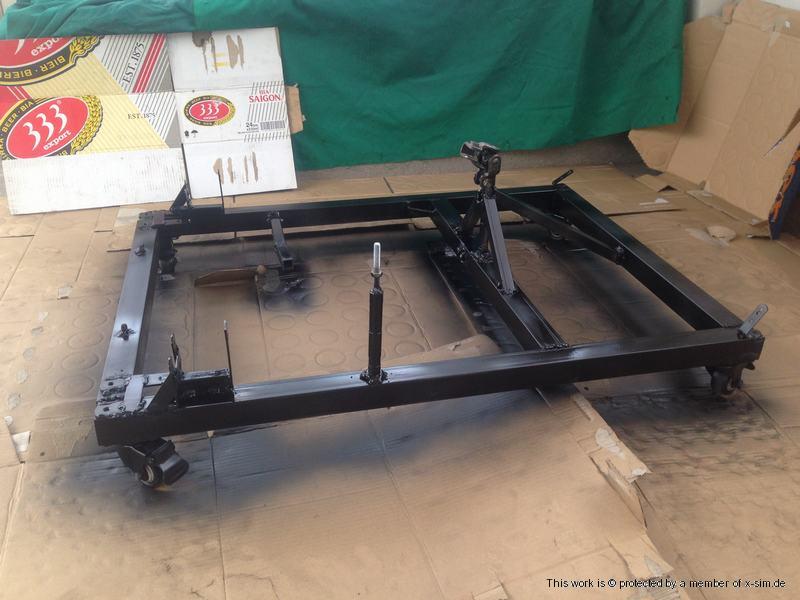

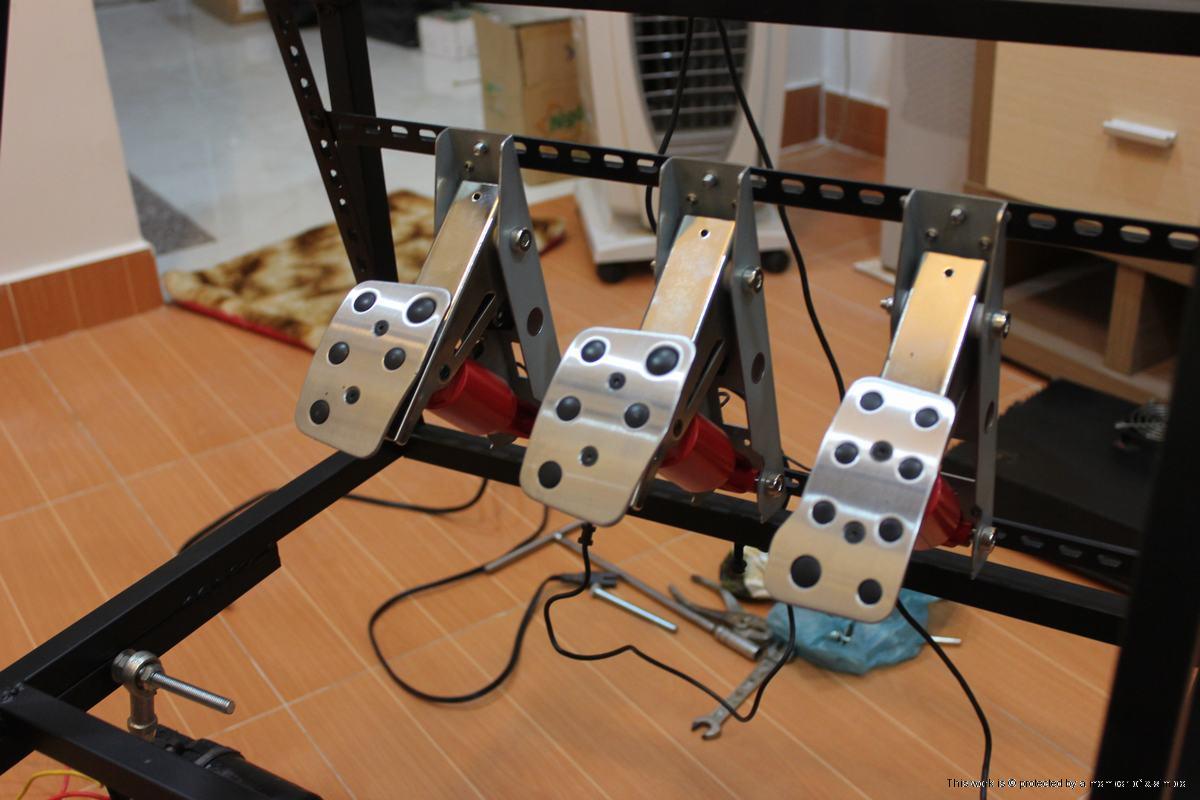

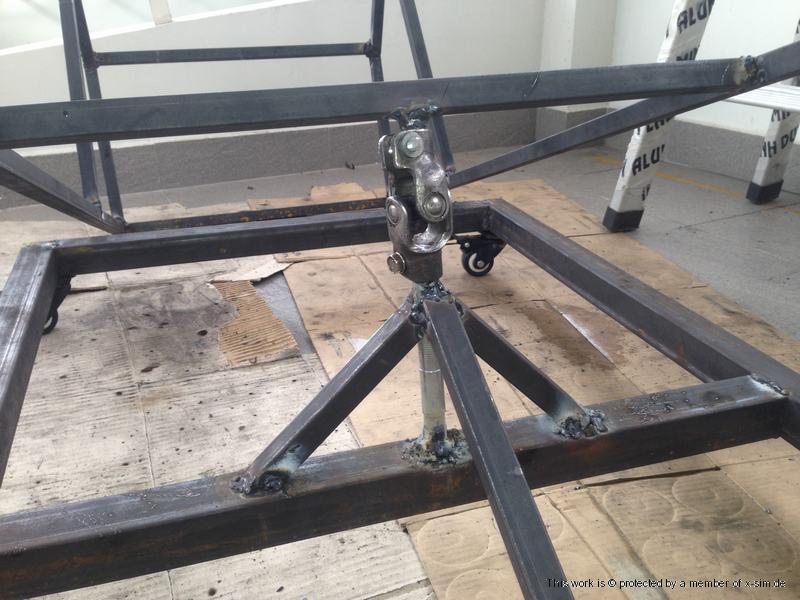

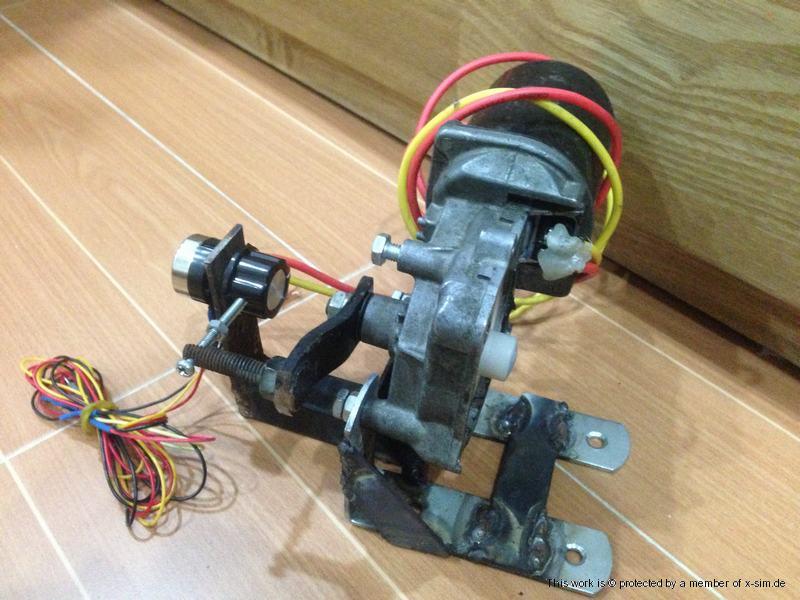

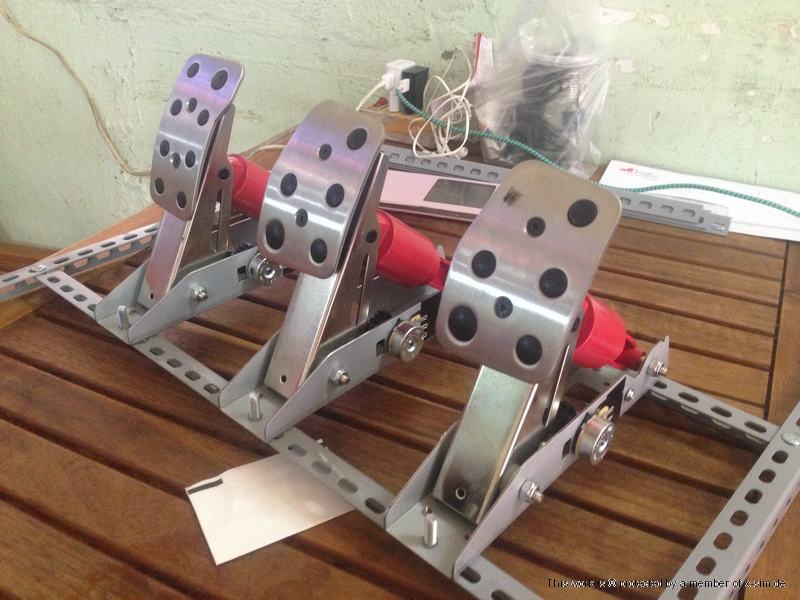

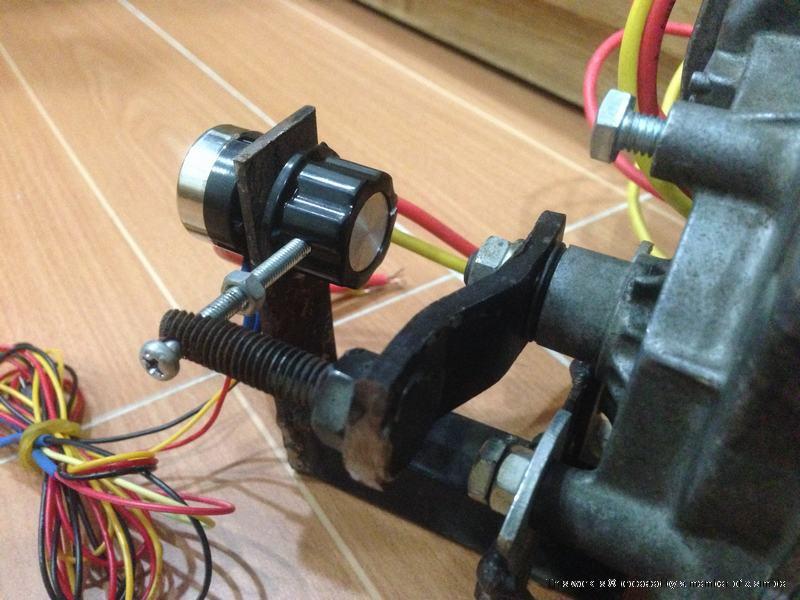

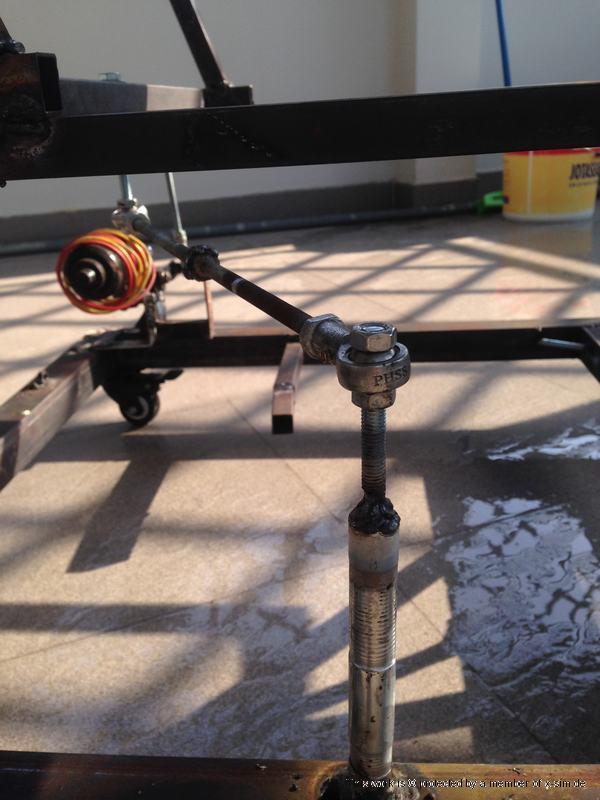

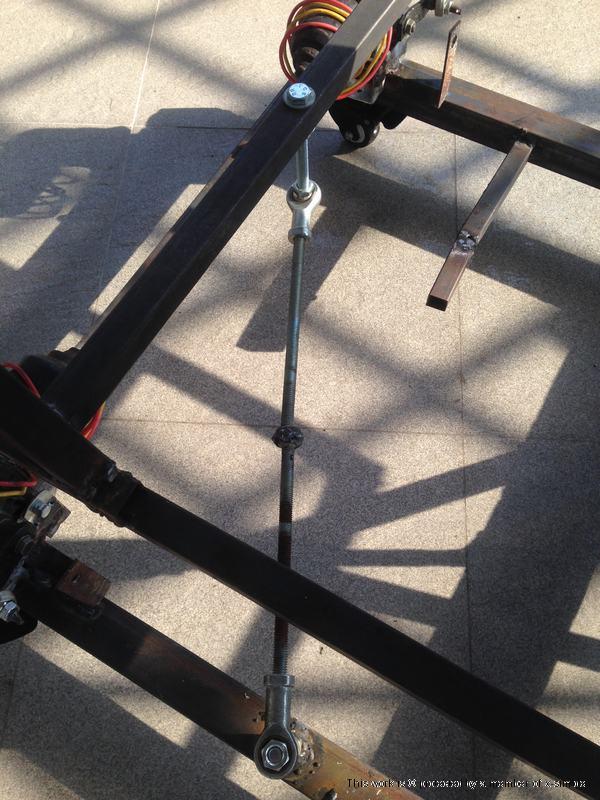

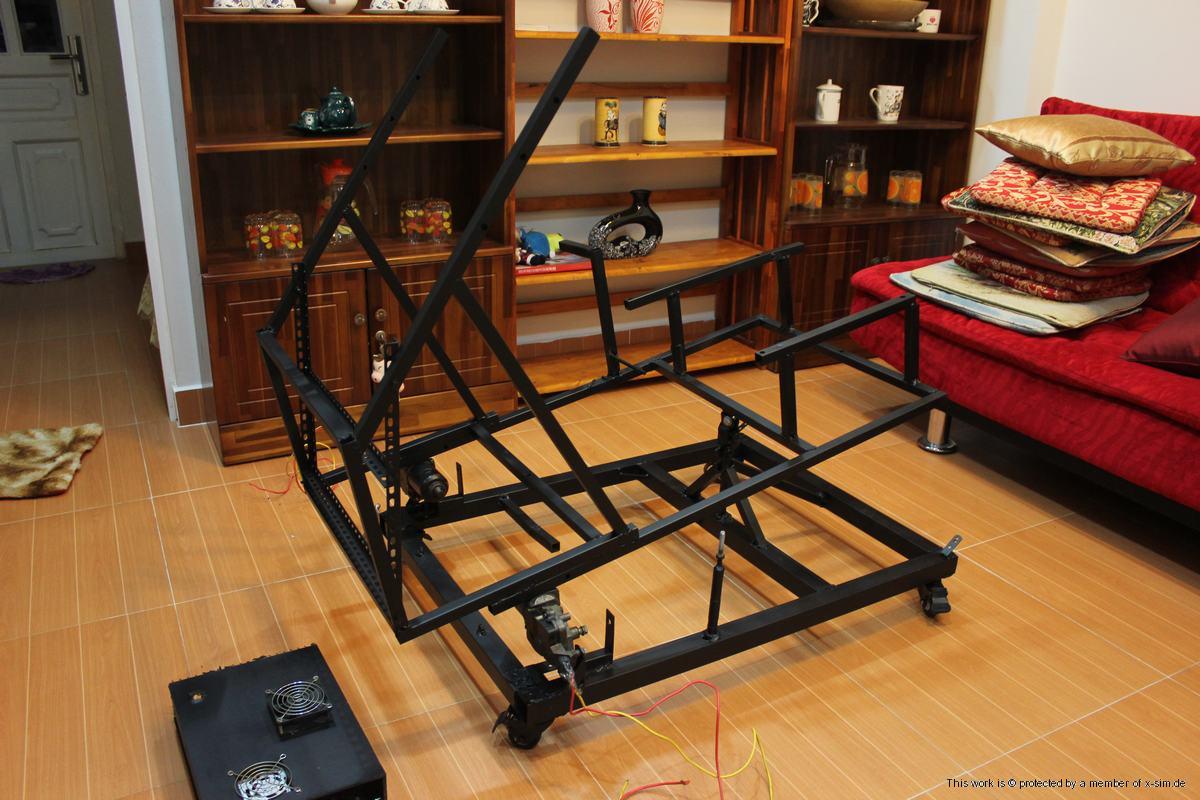

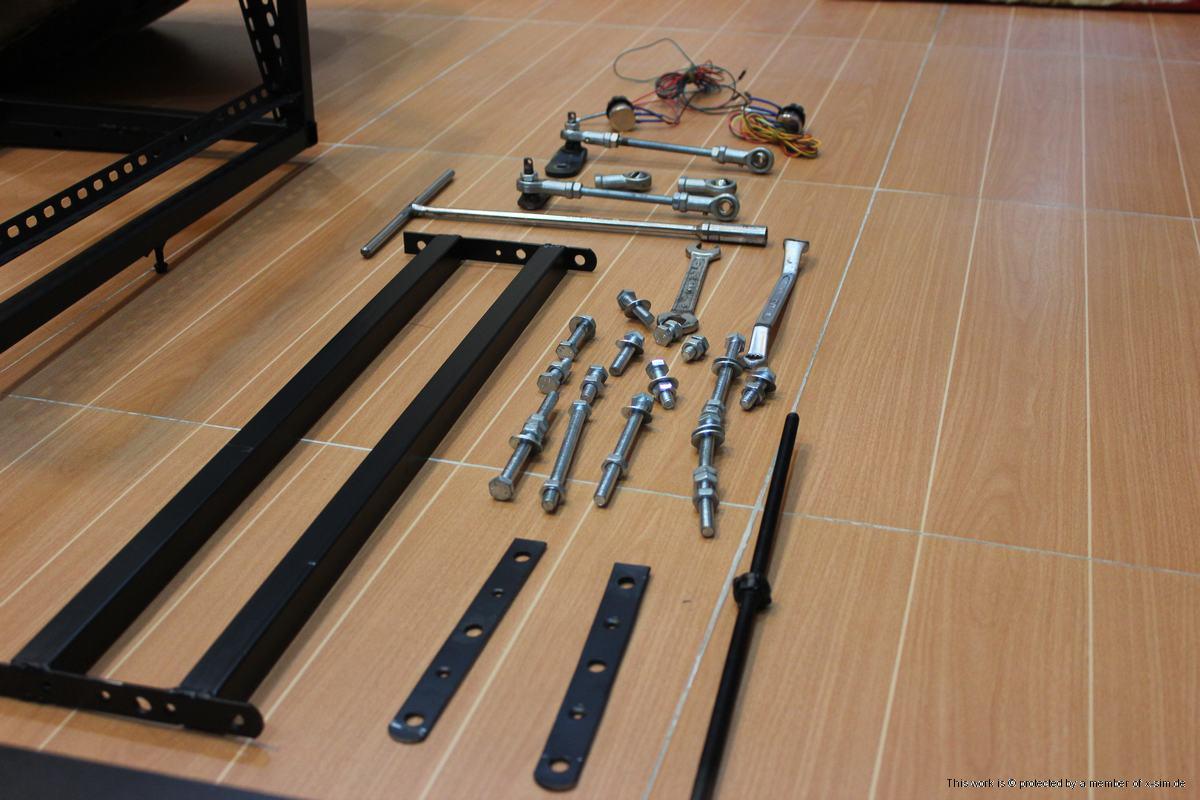

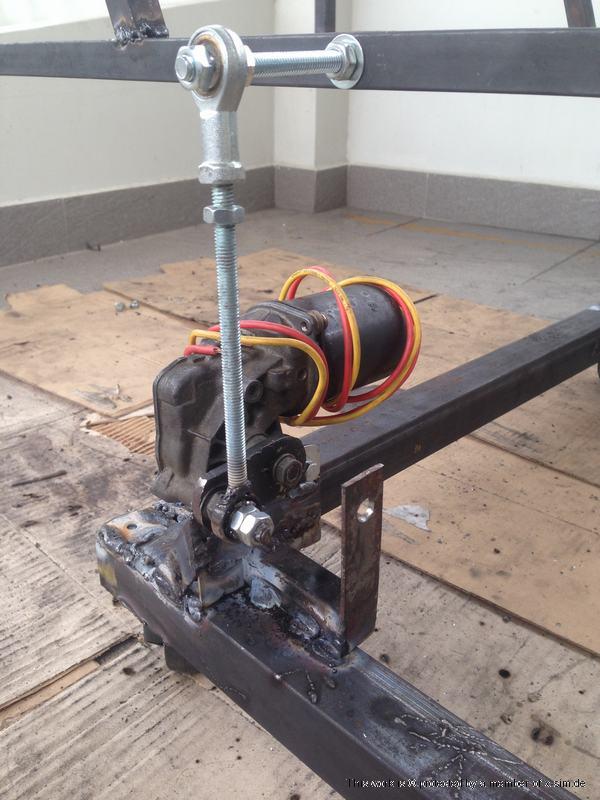

My motion platform in progress :

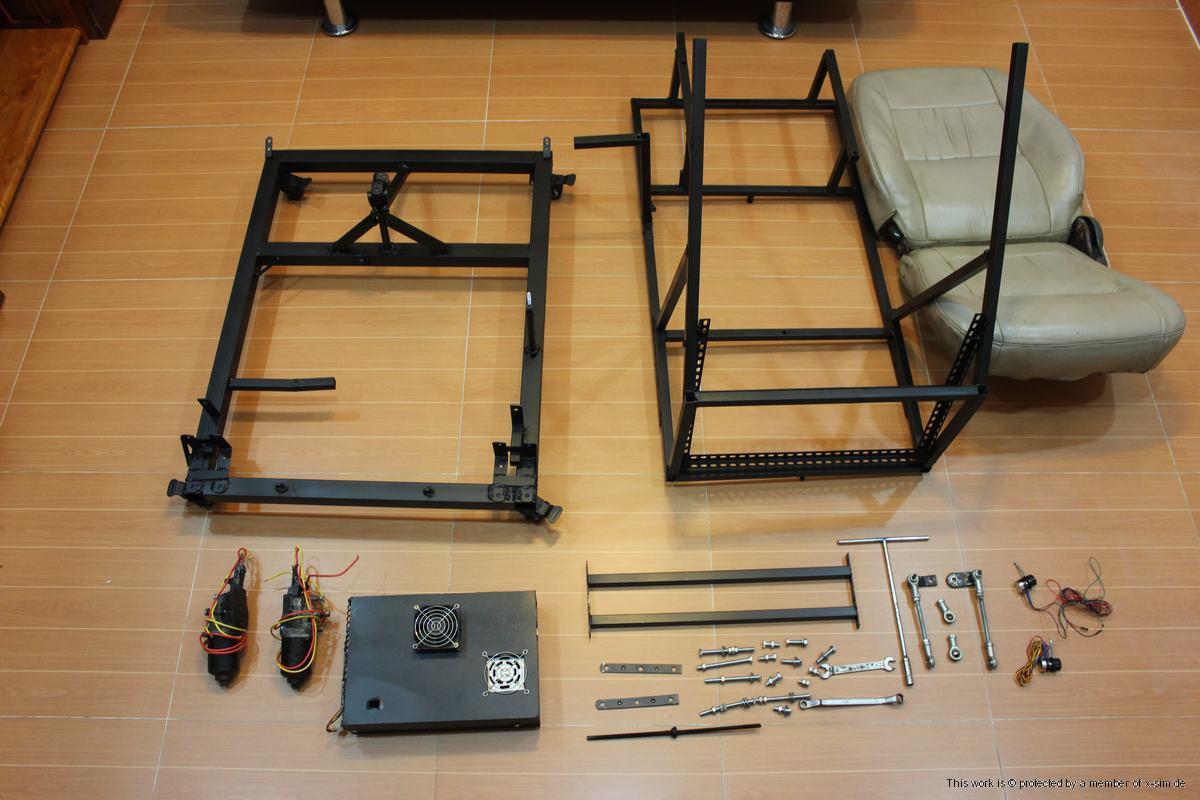

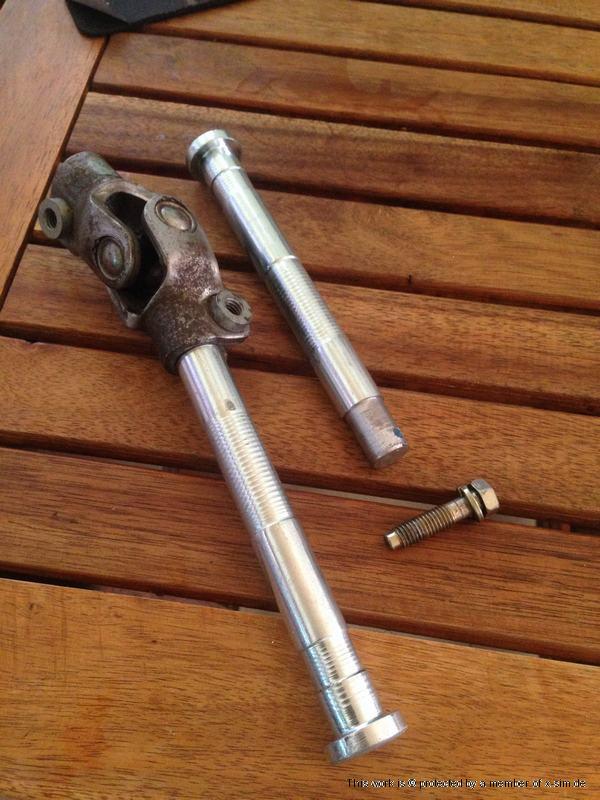

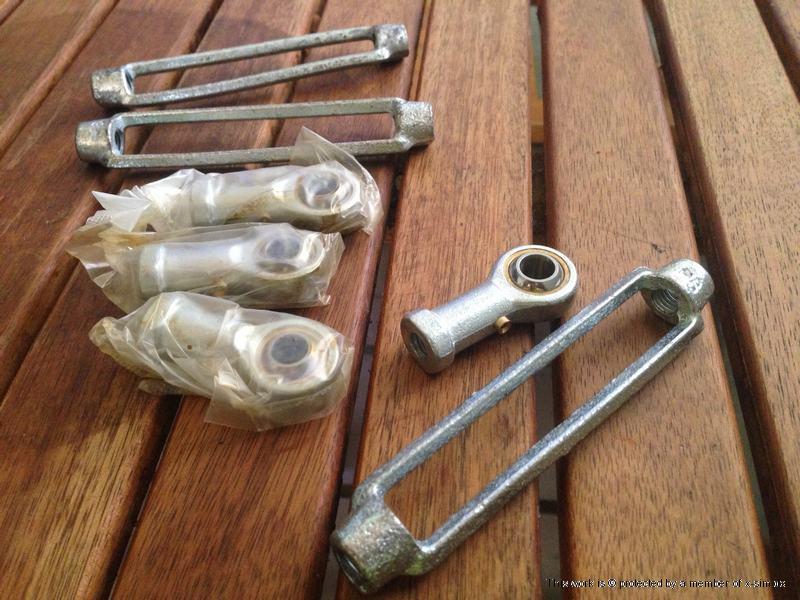

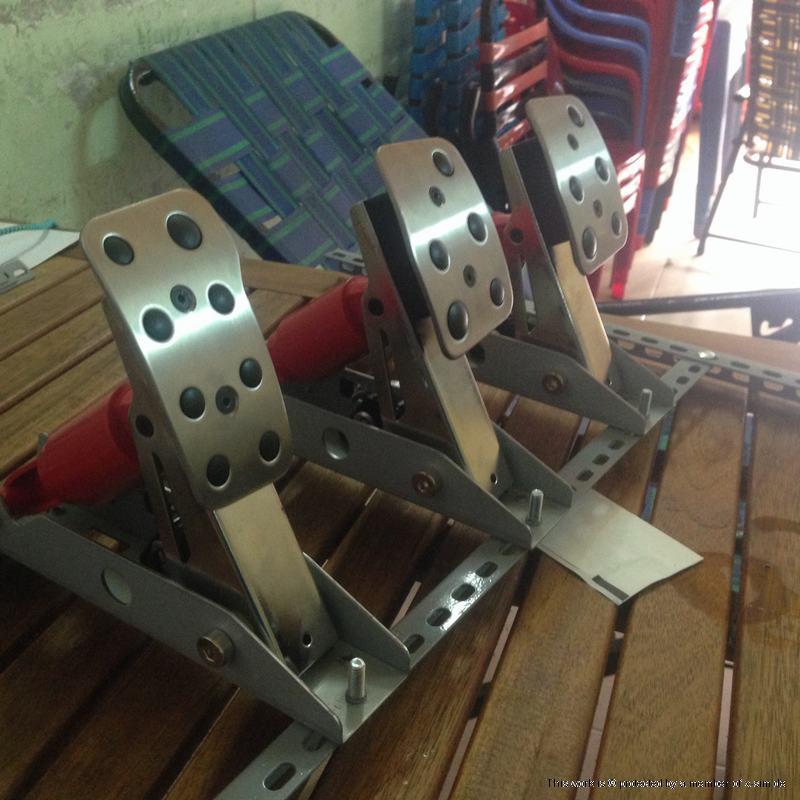

My hardware :

.

******** --------------------- ***************

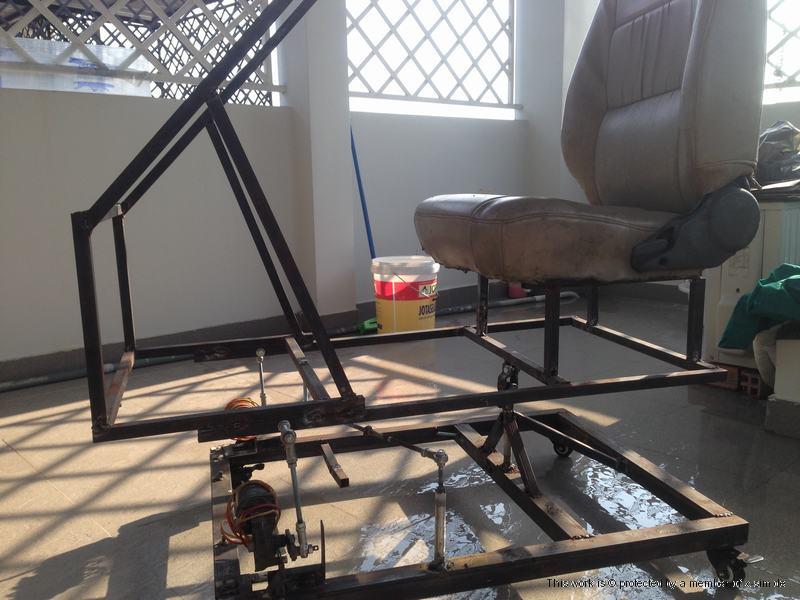

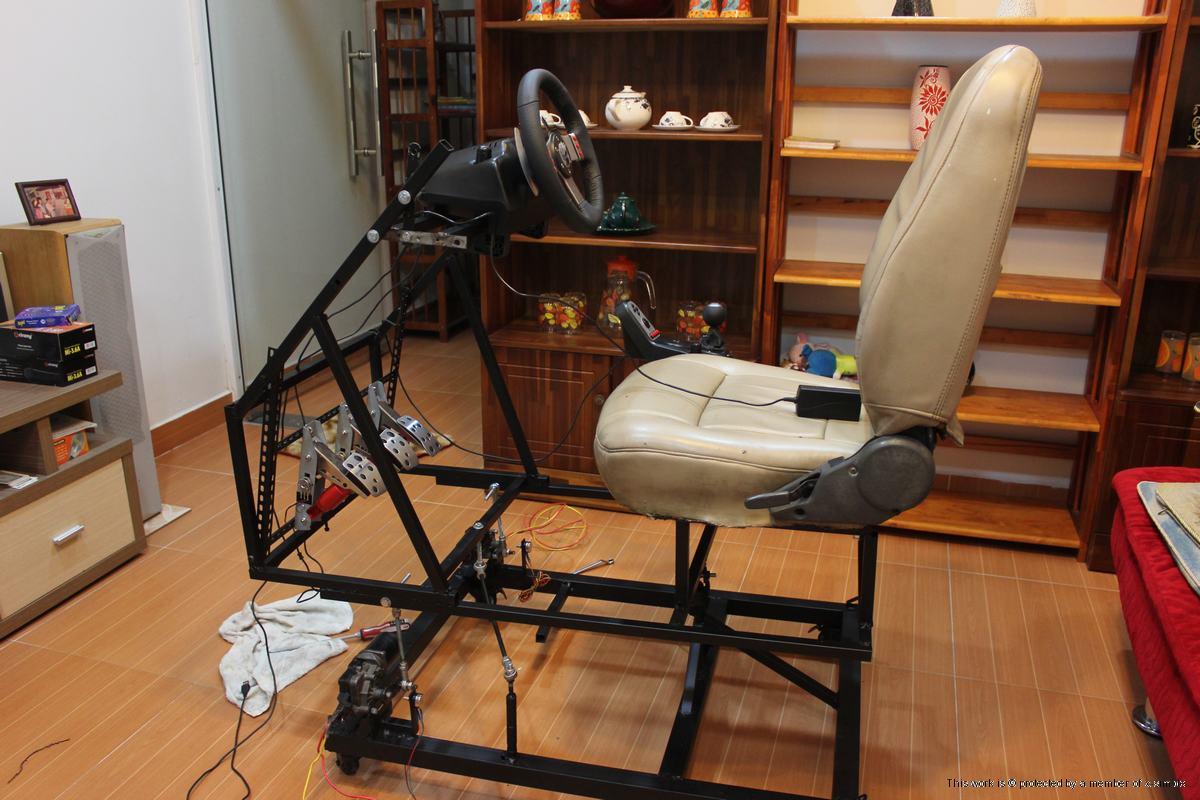

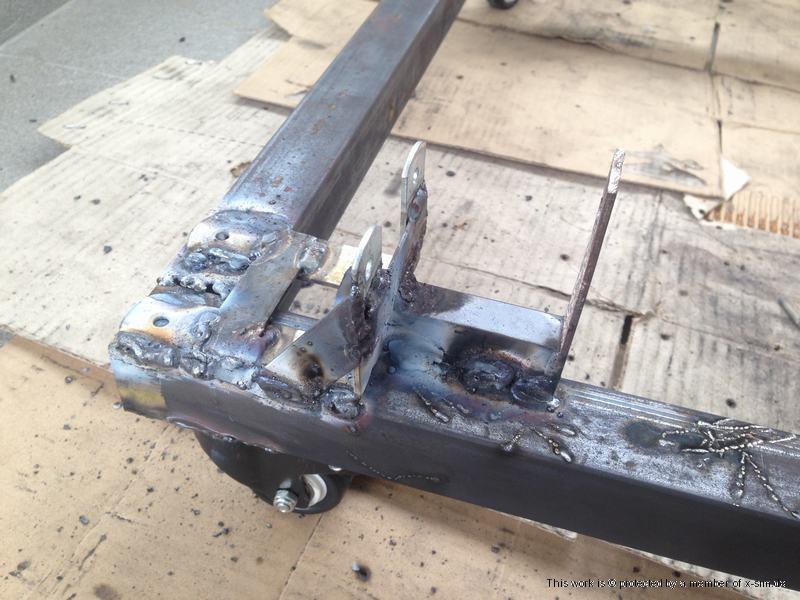

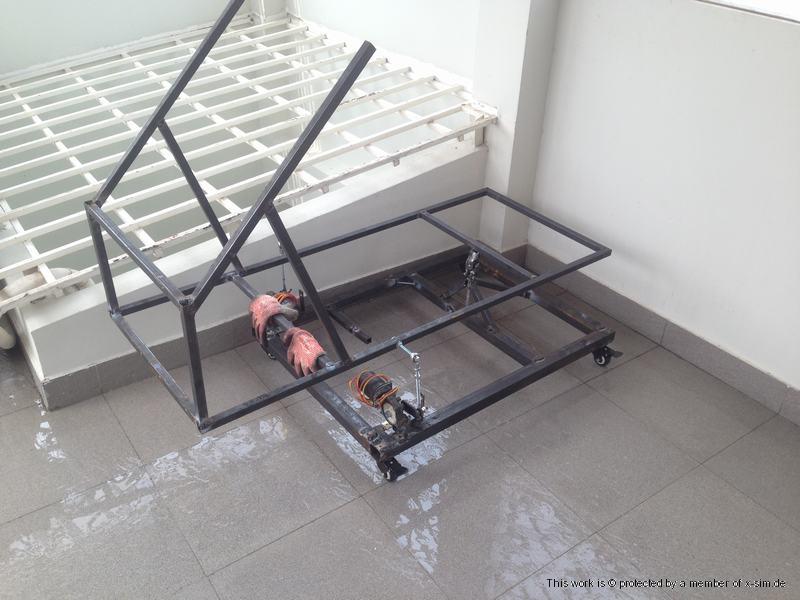

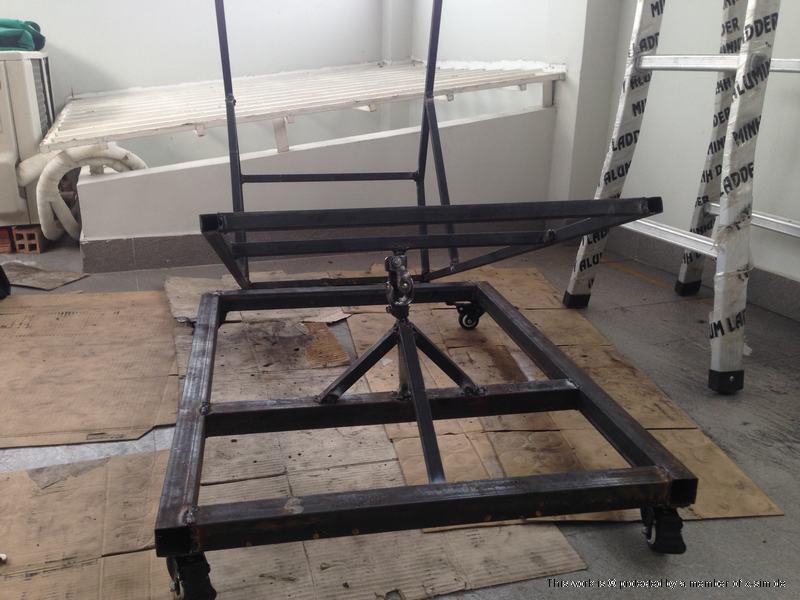

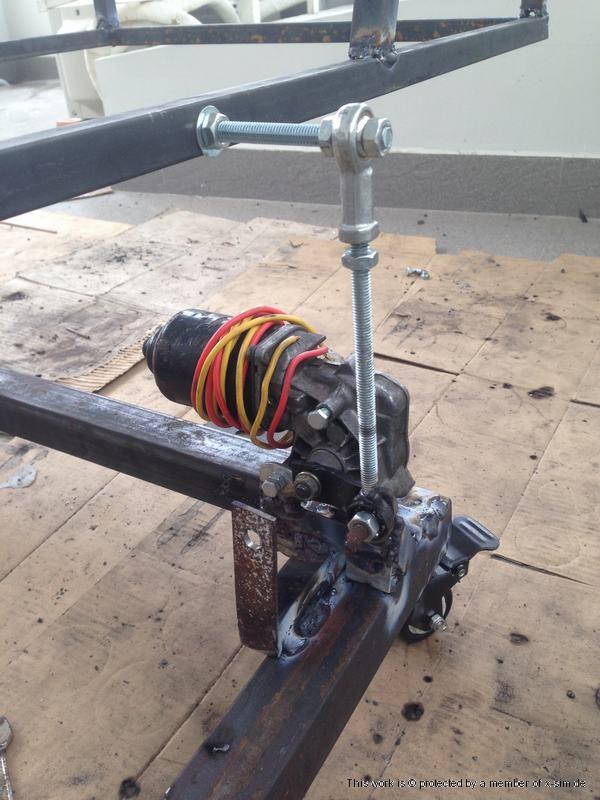

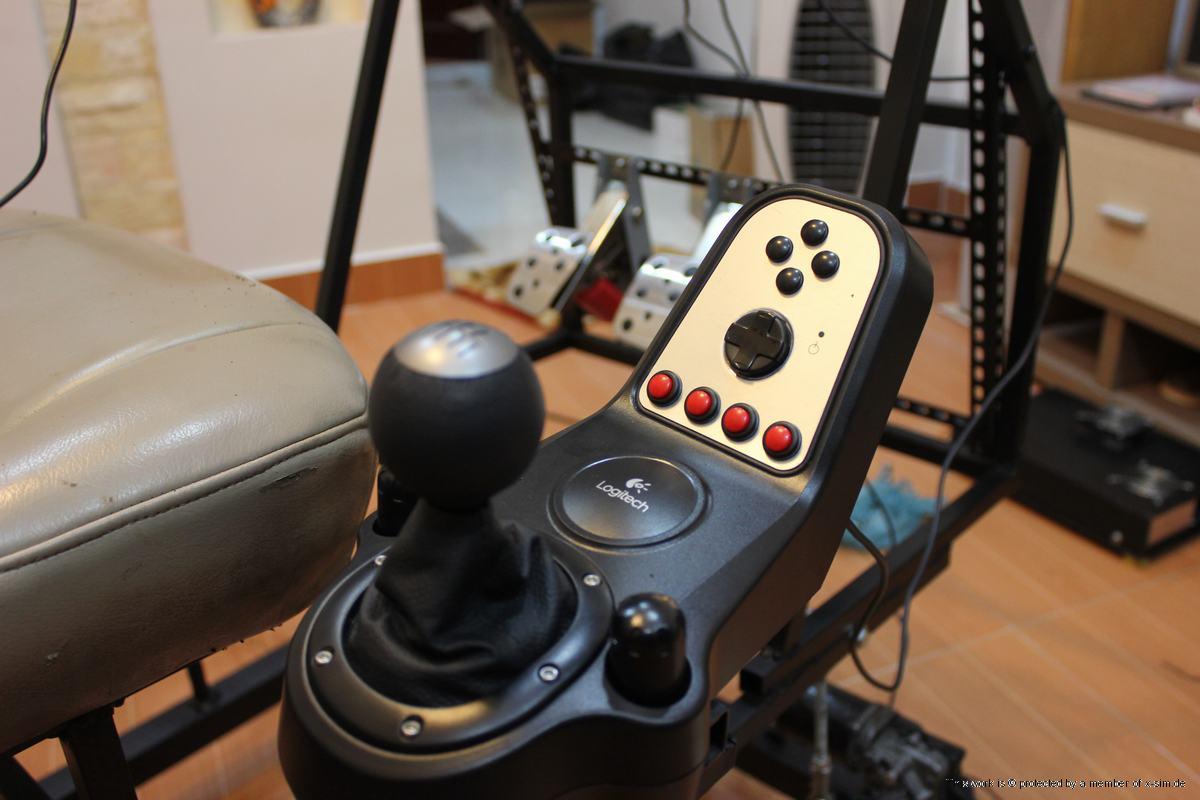

MY MOTION SIMUALTOR IN PROGGRESS :

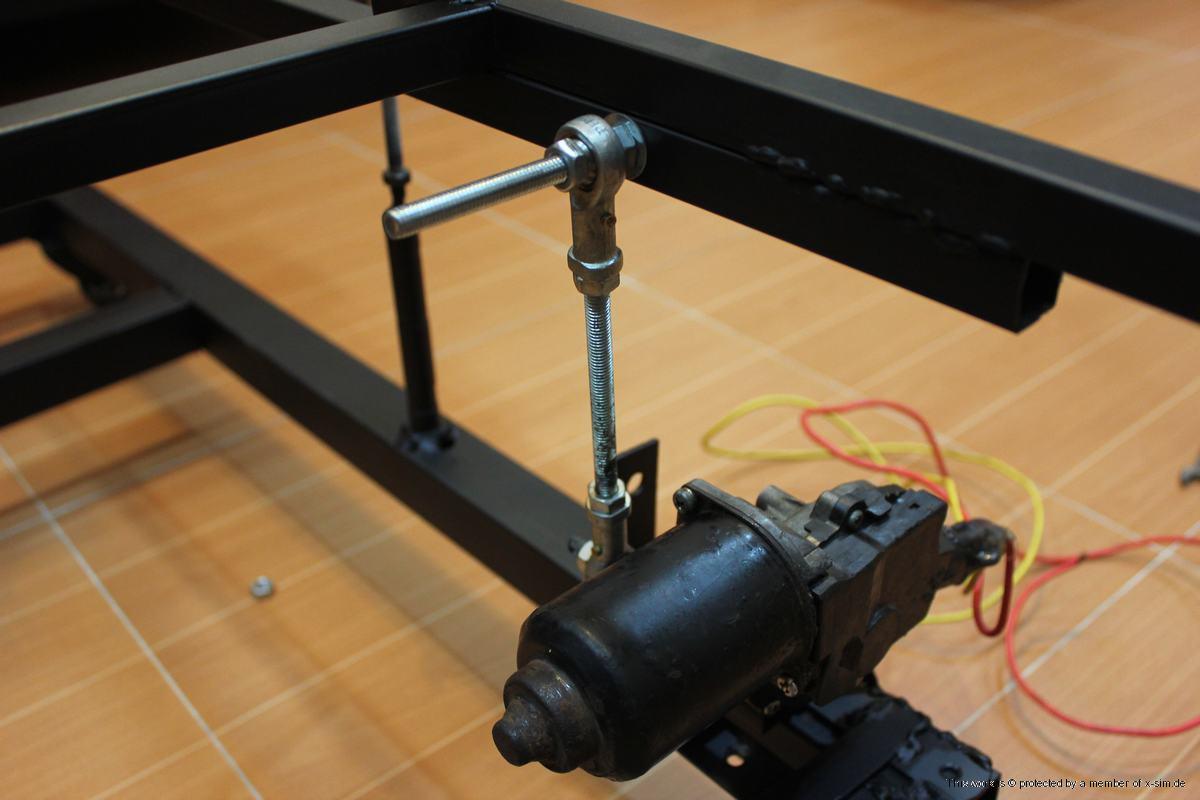

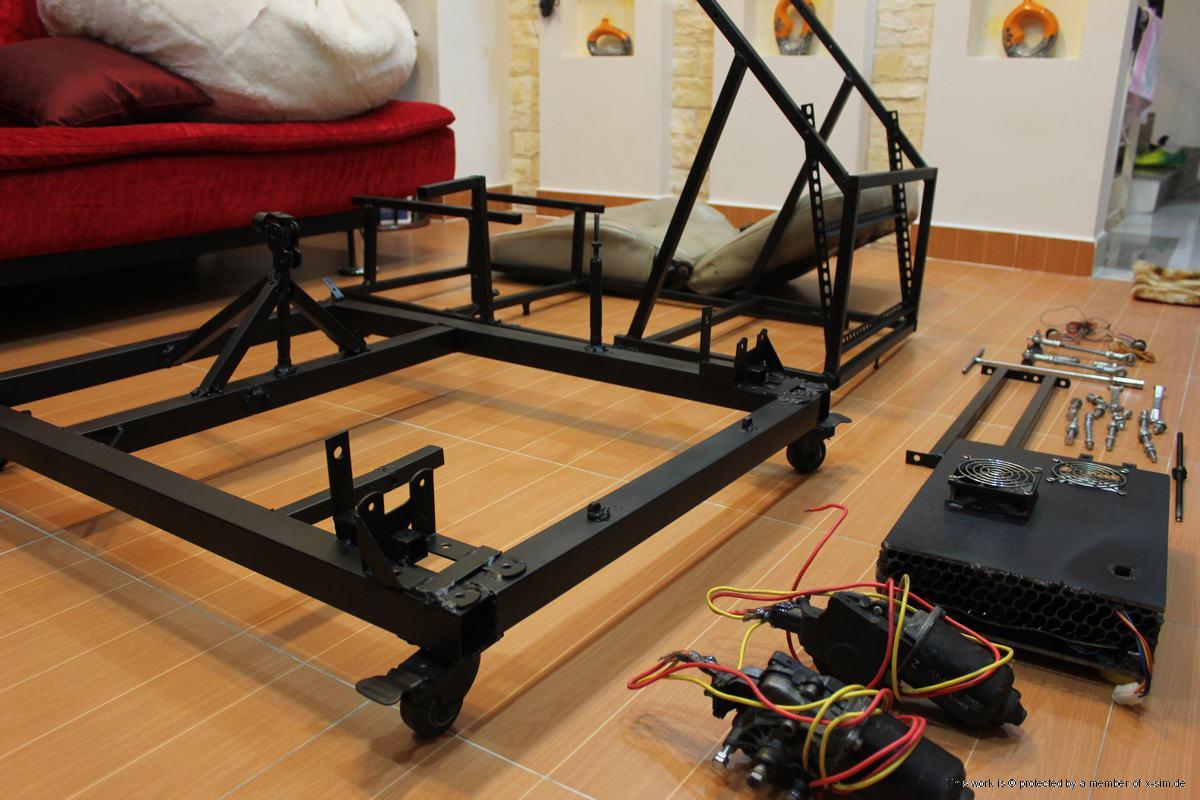

Today, I begin to building parts together, I worked until 3:00 AM , but I feel happy and exciting :



Tonight I will record my first testing, waiting .....

Update 2/4/2015 : Upload my first test video :





I do not good at writing English so I couln't show you more detail about my project, hope you feel good and excuse me .

[RacingMat]

Congratulation! Good beginning

I'm glad to know that my tutorial has been usefull to you you're living so far from France

Want to see more!

[cubizme]

Very big thanks again, RacingMat

I keep working at least 3 hours/day, I hope I can ride it as soon as

Have a nice day !

[cubizme]

update my dashboard in progress




https://www.youtube.com/watch?v=vWb7o4oUGYk

[cubizme]

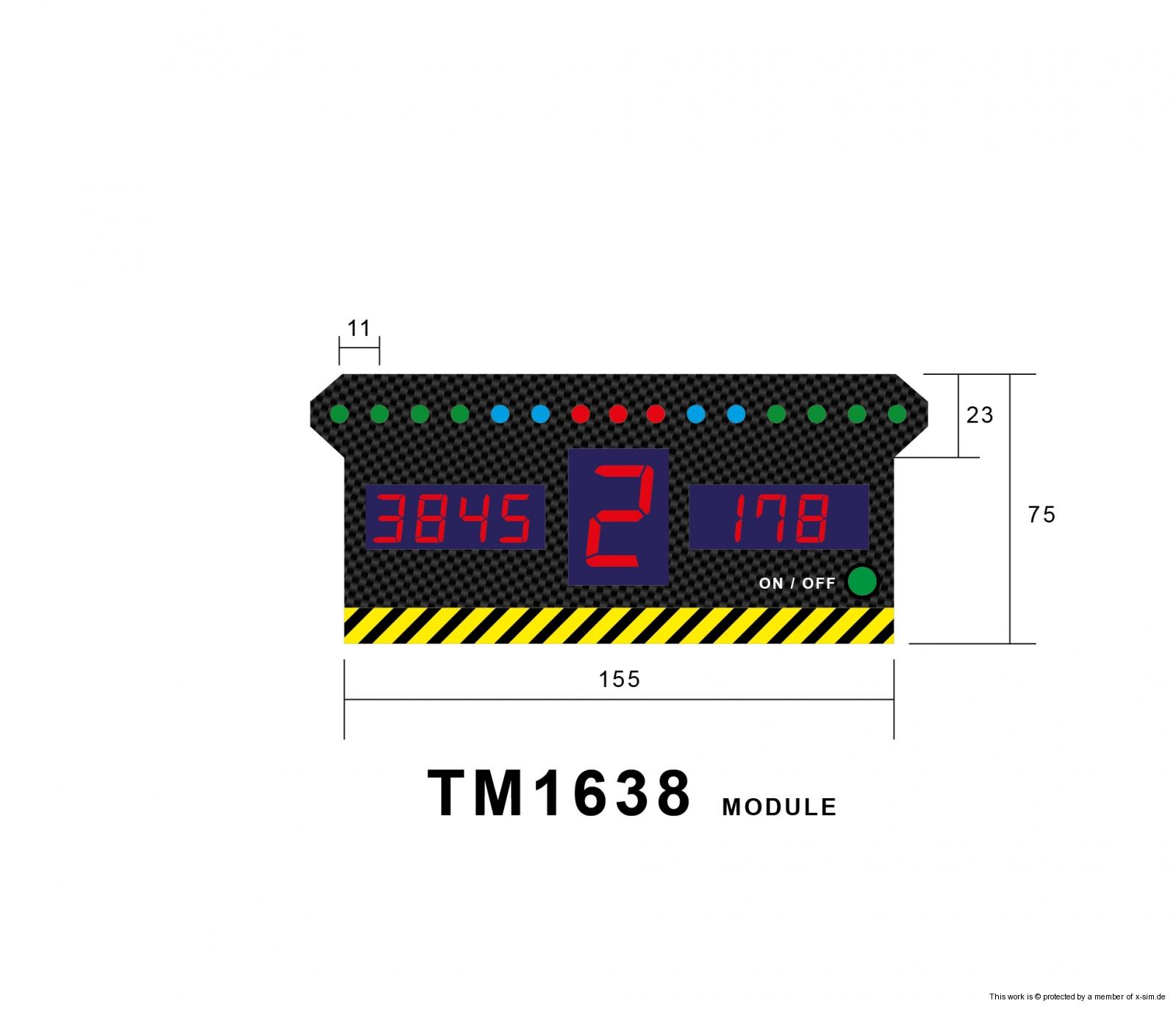

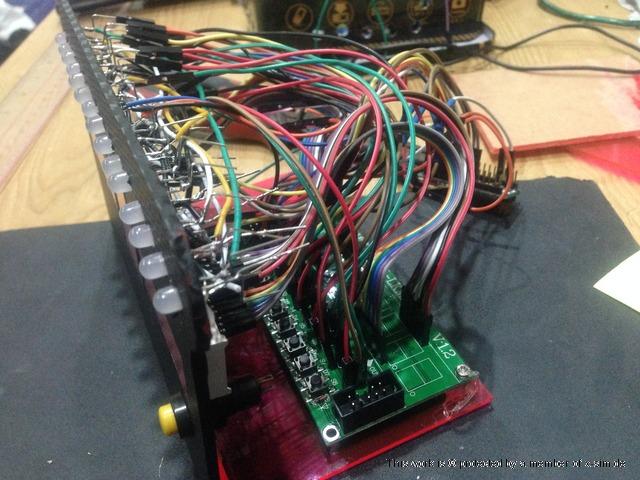

My dashboard graphic ( progressing ) :



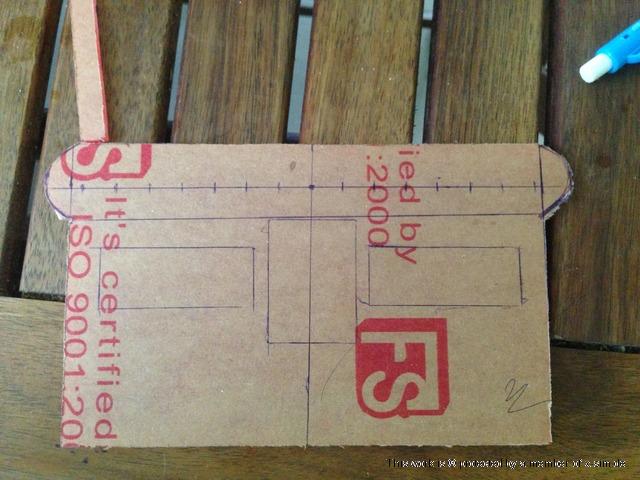

My working :

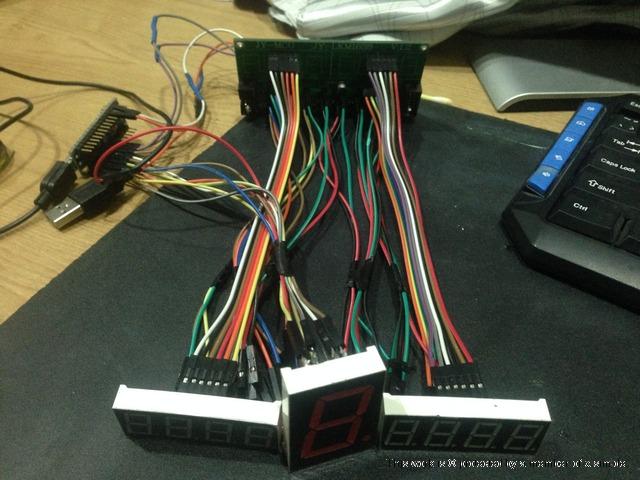

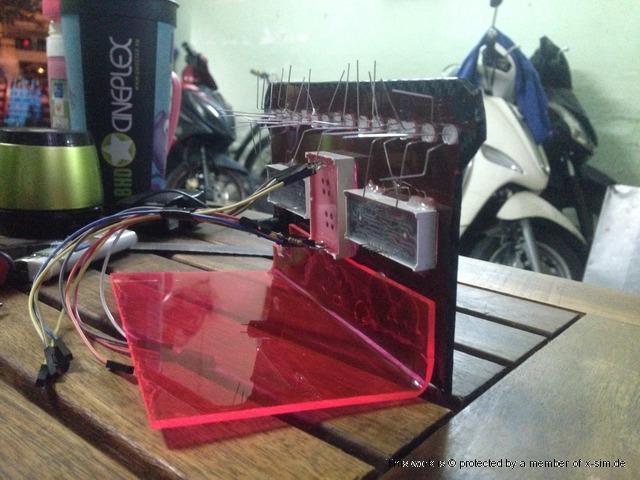

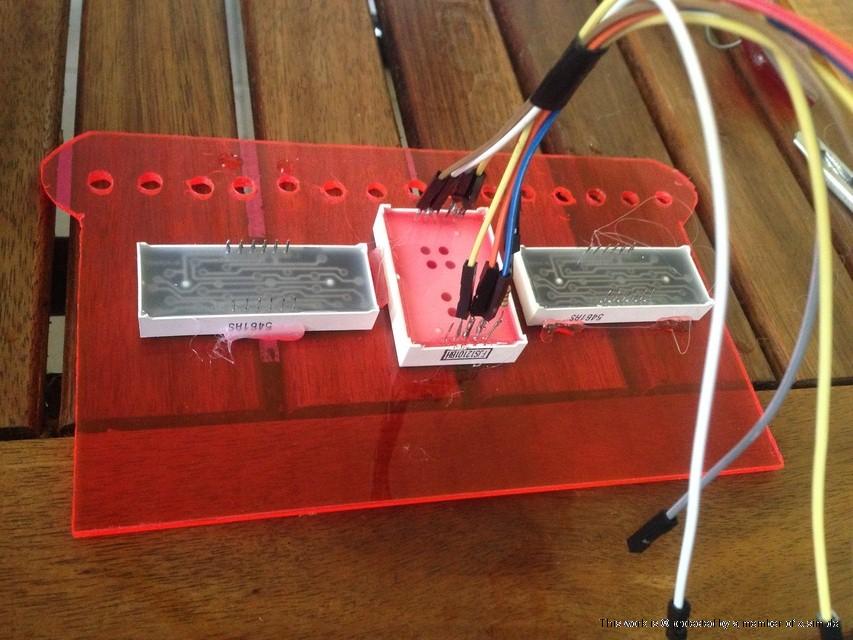

GEAR which I use pin 6,7,8,9,10,11,12 to control led 7 segment, very simple wire, simple code, no need external power supply !

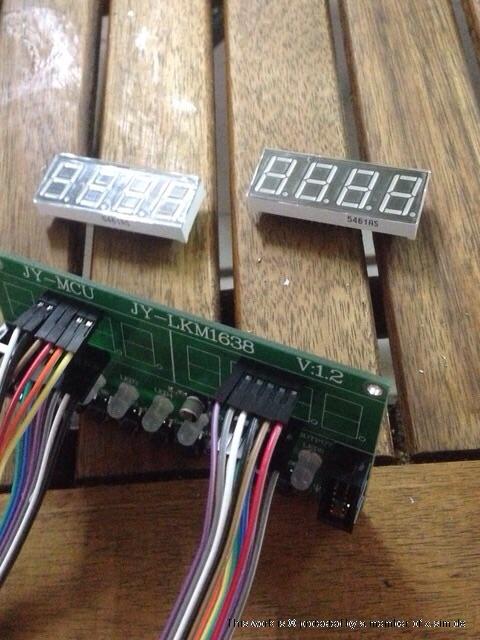

Shiftlight I replace 2 leds RG(pos 6,7) by 2 led RGB.
Total 15 leds of shiftlight ( mirror effect )

[cubizme]

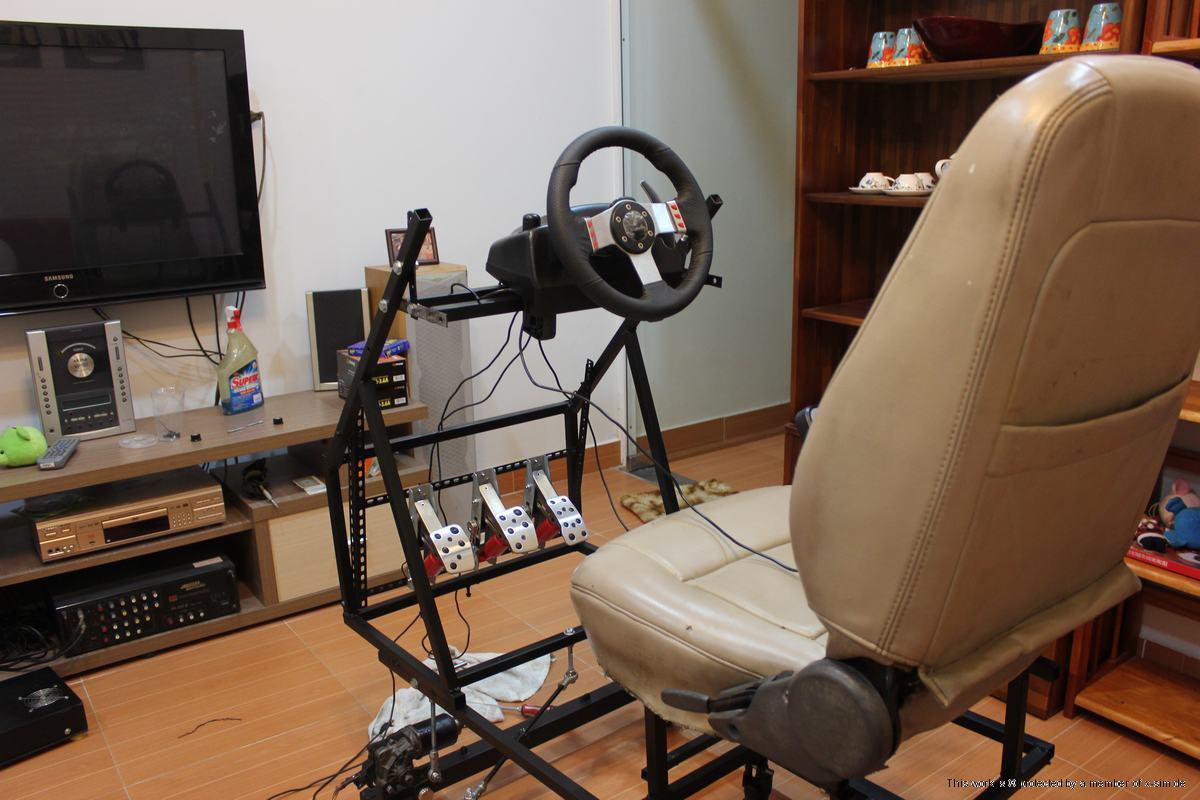

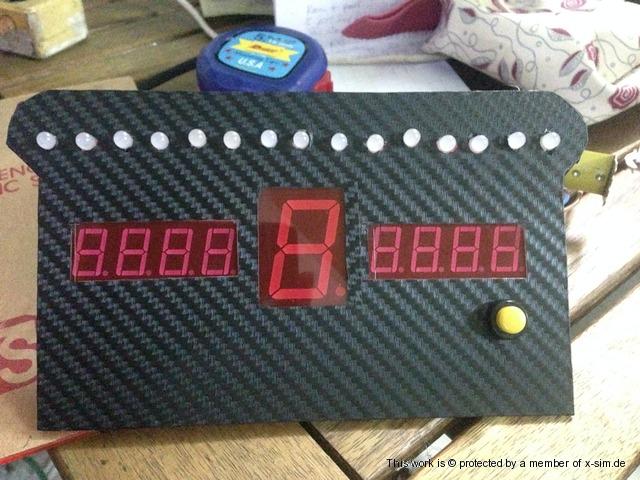

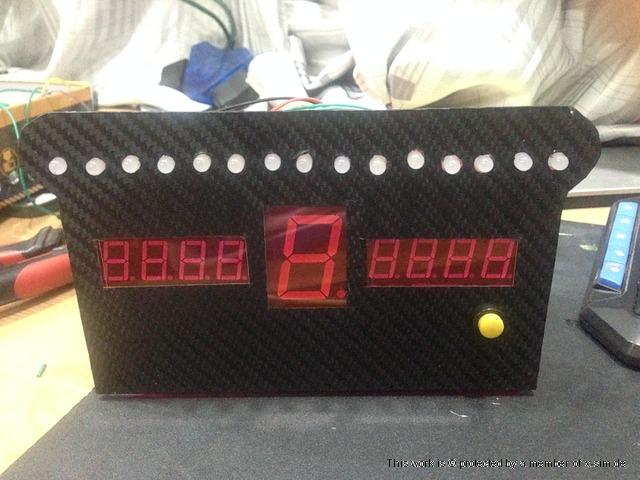

Today I almost finished my dashboard :











Here is my testing video :
https://www.youtube.com/watch?v=hadVODSMvnk

[RacingMat]

what a mess of wires!! you managed to cope with this, well done!!
