Never ending evolving project

[gigilauda]

Hi all,
this is my never ending evolving project that is started in 2010 and it went trough major improvement and modification during the last past 5 years
i will try to find a picture when i started it when i was sitting on a pathetic red camping chair with bass shaker attached..
Being Italian living in canada i was inspired by Ferrari and Canadian colors so the project it is all red and black.

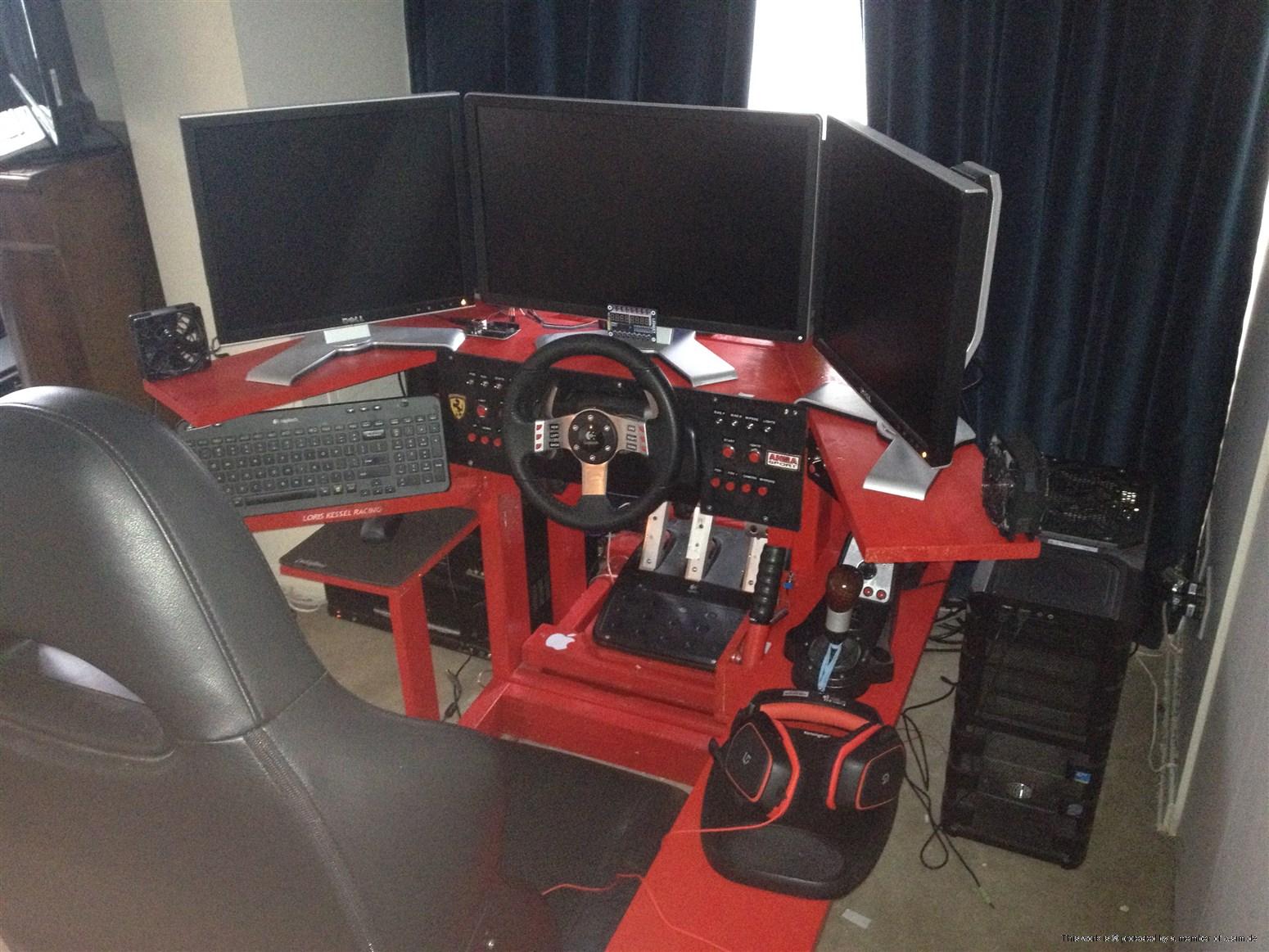

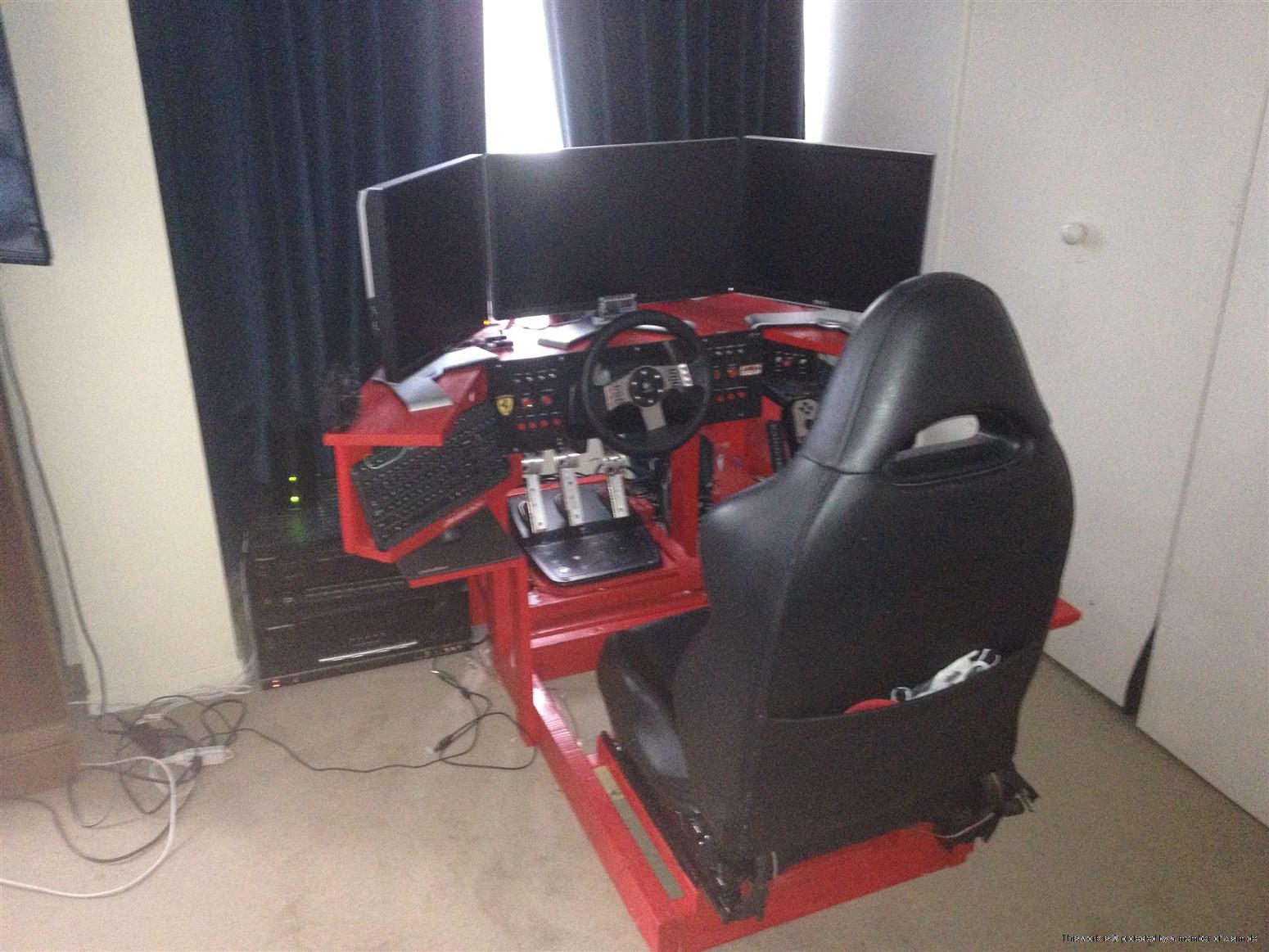

it is a very sturdy wood frame mostly 2x4 with 2 main detachable parts, Seat Base and Wheel + Monitor Base

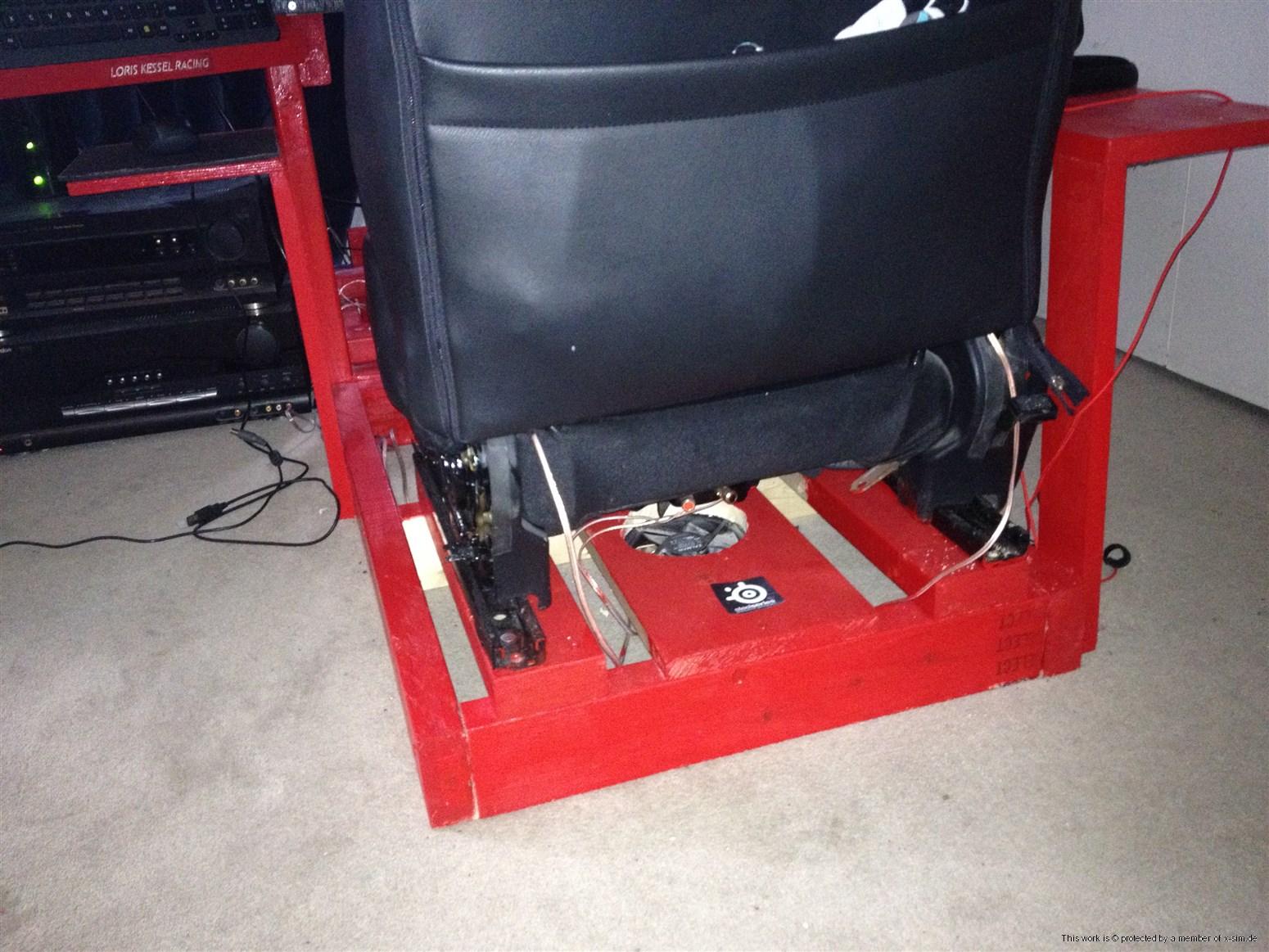

I have 6 bass shakers, 3 embedded in the car seat and 3 under the pedals the bass shaker are drive by SimCommader + 2 wi-fi receivers

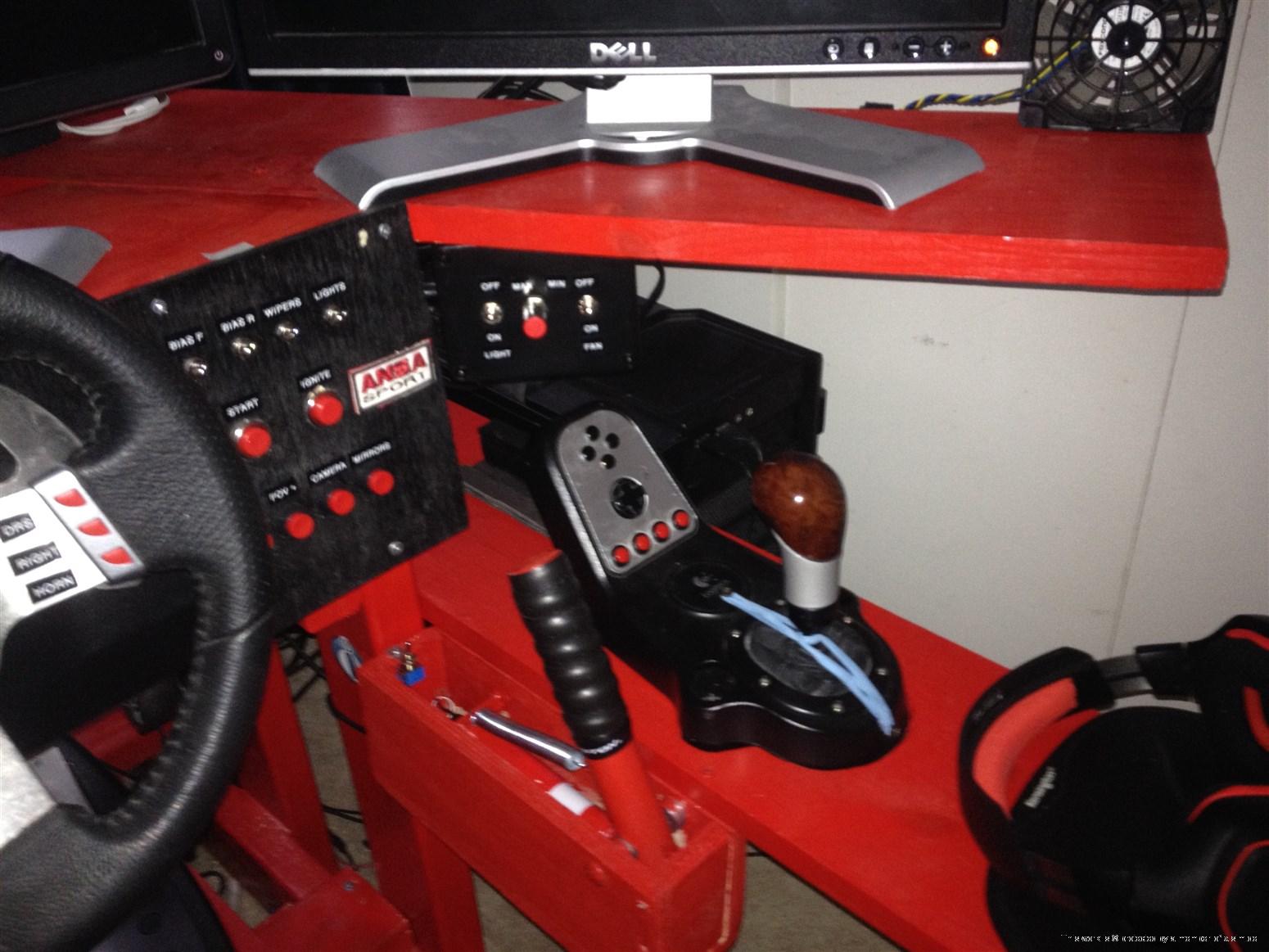

Recently i added the support for triple monitors, Keyboard and mouse support, and arm rest with embedded logitech shifter and 20 switches button box driven by arduino megajoy.
Very recently i added home made 5$ analog or digital hand brake drive by the Arduino mega , Fan and Keyboard light control box driven by a second Arduino uno , a tm1638 for speed + rpm +gear drive by my third Arduino uno.
For the TM1638 i run x-sim extractor + second pc running the converters

My Next step it is to add a seat mover driven by the third arduino or maybe mega and with 2 wiper motors, i will post some sketch with my ideas
Another improvement i would like to do are Fuel gauge + Oil Temp gauge + Water Temp gauge all driven by servo motor and arduino
I already got 2 HP servers power supply a Monster Moto Shield and the 3 mini servos but will take a while to complete the project since i am running low on cash and need to buy the motors , rods and universal joint and frame material

[gigilauda]

Here a list of material i used for the project:

motherboard:970A-g46
processor: FX6300 6 cores
RAM: 16gb
Disk: 1tb Hard Drive
Videocard: 7950 3gb ram
SoundCards: Embedded 7+1 - SB 5+1 - Generic USB 7+1
LCDs: Main 1920x1080 - left and right 1280x1024
Keyboard and Mouse: wireless
Headset: G230

OS: Win10 64bit

Steering Wheel: G27
Wheel Mods: Aluminum Pedal Raisers - Elastic Sequential Shifter

Button Box: Ard-Mega with Megajoy firmware
Home made 20 momentary switch panel

Fan Control: Ard-Uno + 2 Desktop Fan 4pin with PWM
12v DC power supply

HandBrake: Analog+digital home made Wood lever connected to Button Box

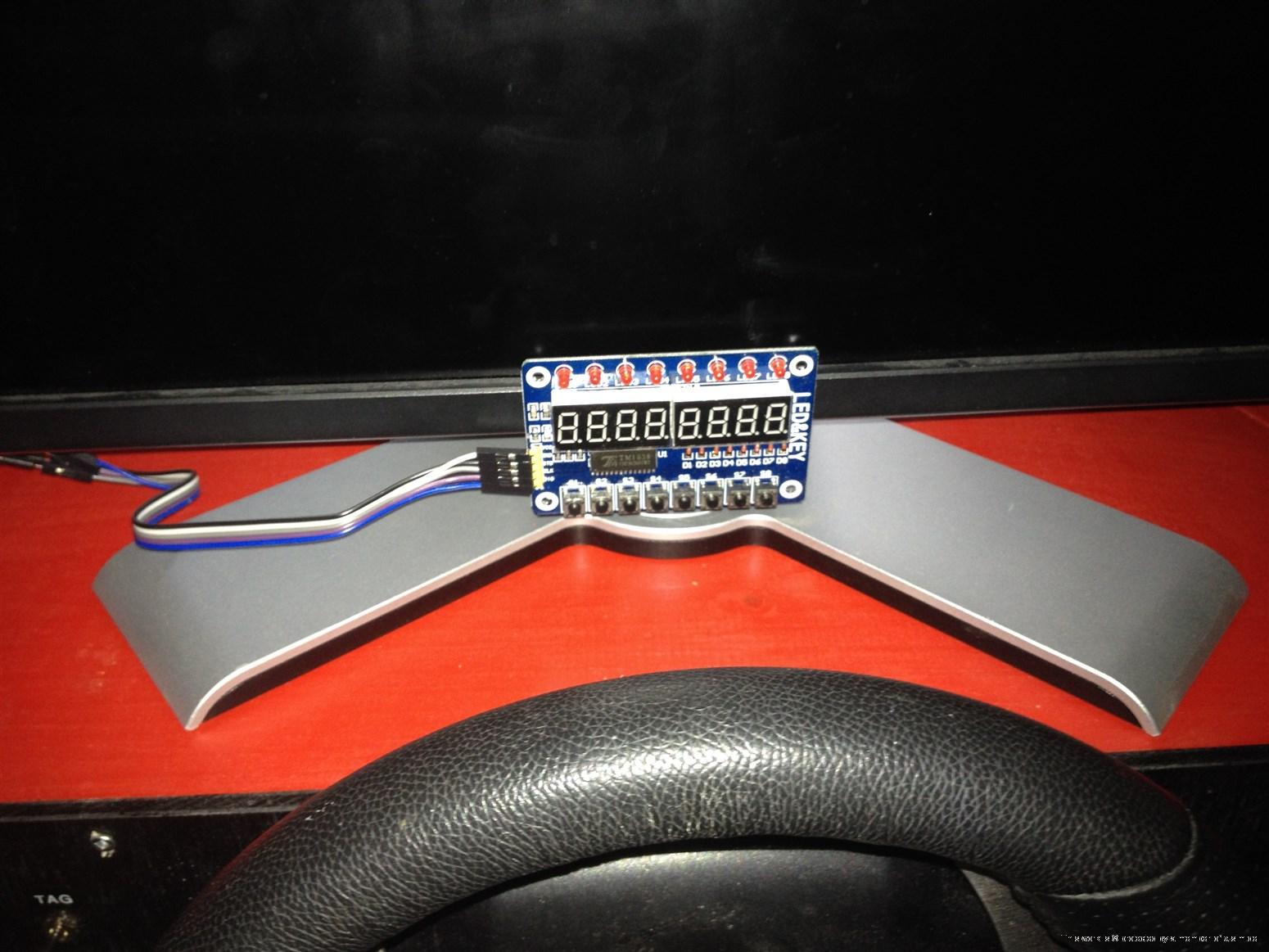

Digital Display: Ard-Uno + TM1638

Bass Shaker: 2 AST-2B4 (pedals and Seat) 4 Pucks (Chassis)

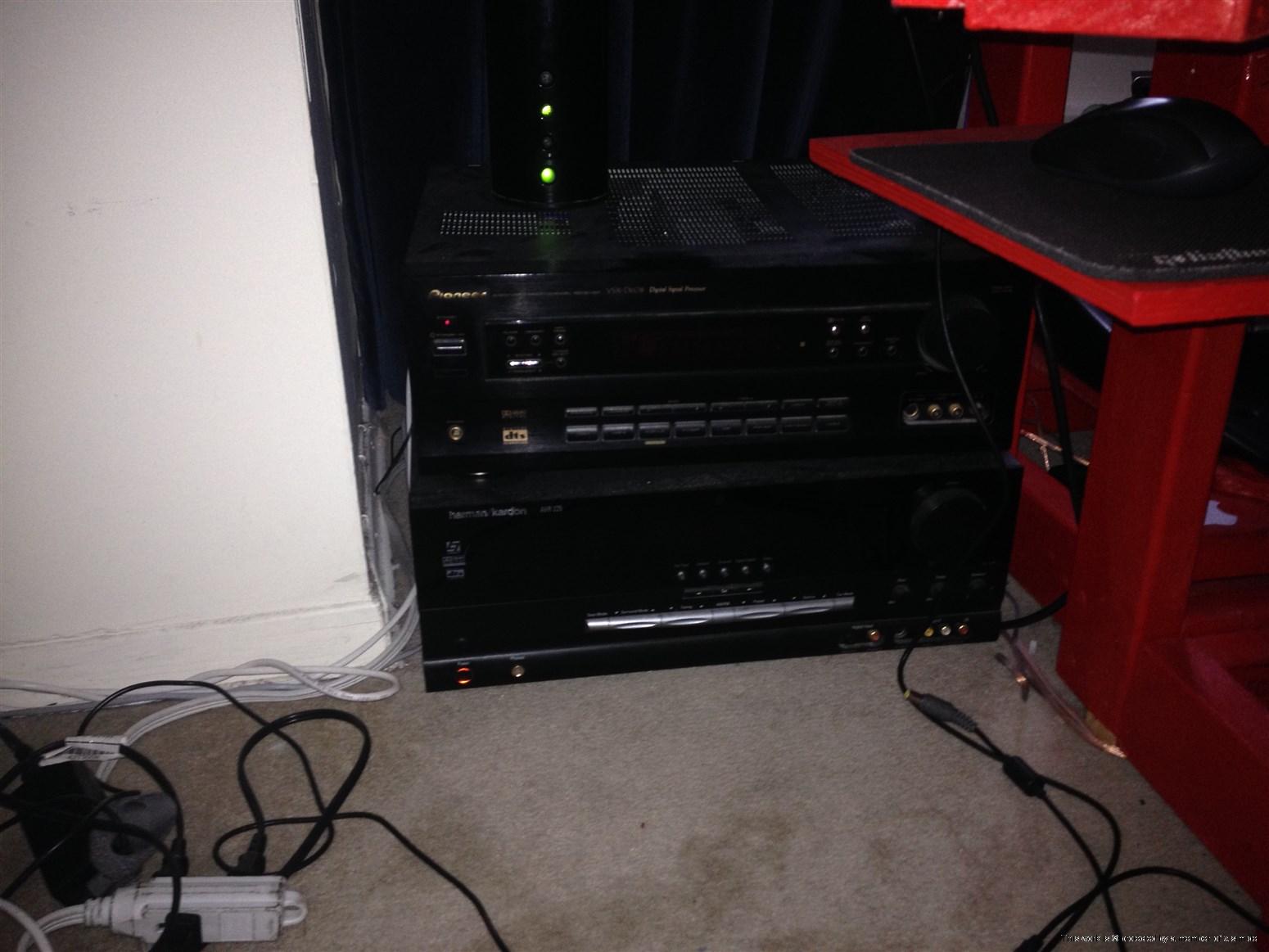

Amplifiers: 100w receivers for bass shakers

[gigilauda]

New update, a prototype sequential shifter in progress!
Since i recently start playing Dirt Rally i needed a more responsive and easy access sequential shifter.
I got inspired by Bearatis post in peripheral project and i come out with my version based on the same concept.

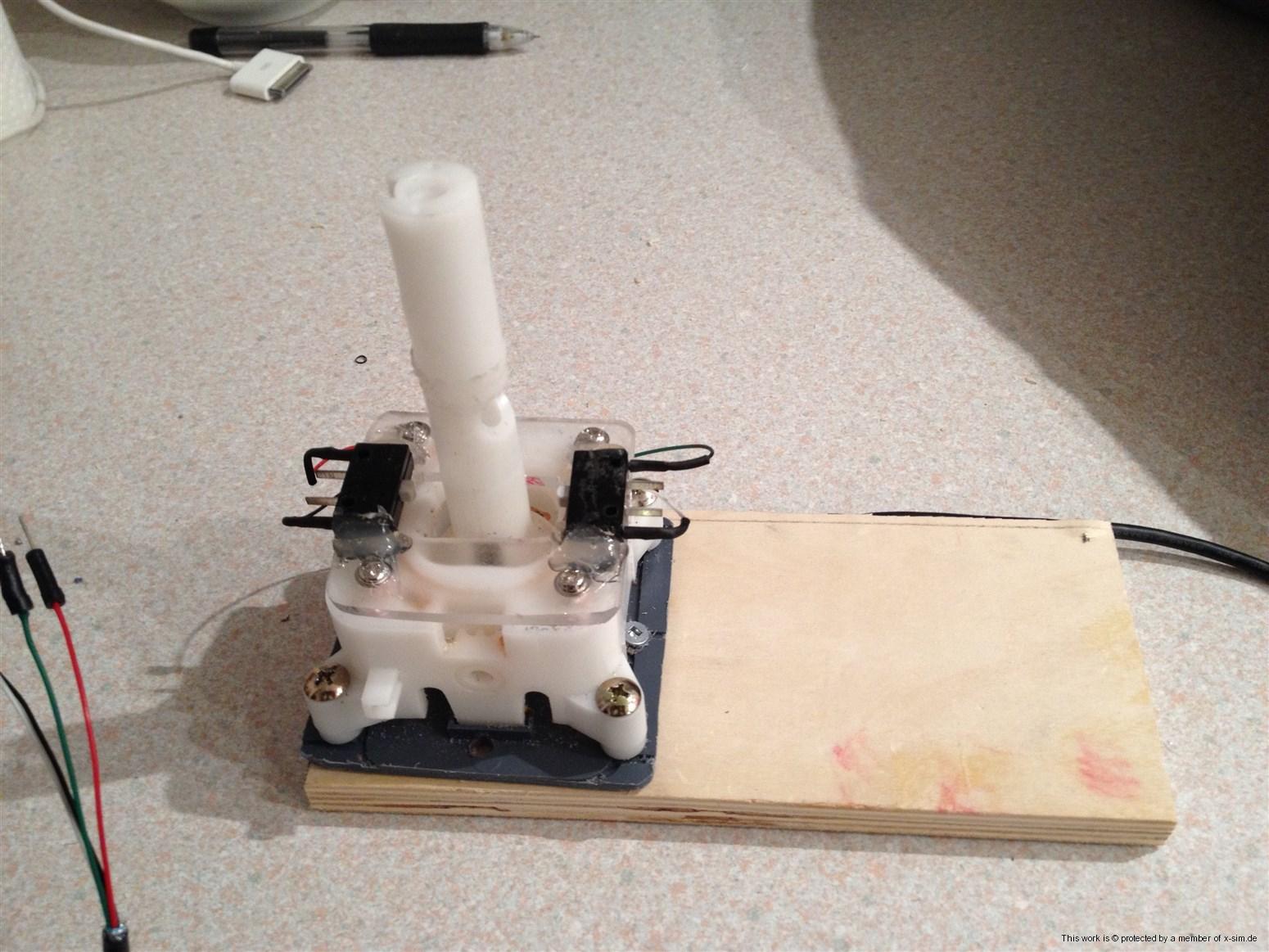

I used an old Logitech Joystick, i stripped all the potetiometers and the wiring , i cut the base keeping just the anchor point and screw it on a piece of wood

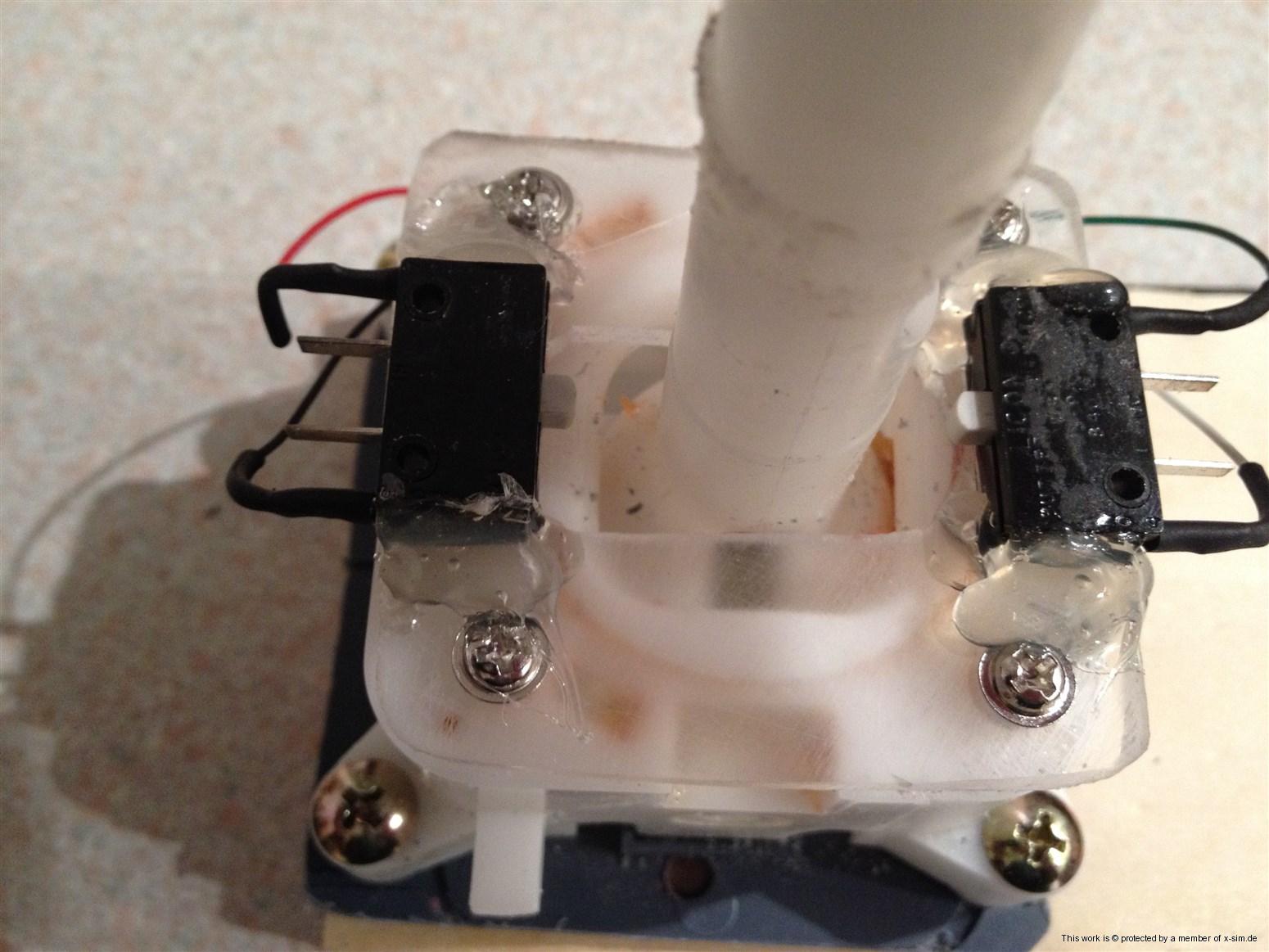

i made a "axis eliminator" in plexiglass and screw it to the base that has 4 ready holes , i glued 2 microswitches into the plexiglass that will make the switch when the stick reach them, i use and old usb printer cable for the wiring and i solder the wires to the Normally Open terminals of the switches
the wires are now connected to my Aduino Mega with MegaJoy firmware , black and white wires to ground and red wire to Digital pin12 and green wire to digital pin13.
All work like a charm and the shifter buttons are recognized by windows and in the game YAY!

Next step will be a shift knob and shifter boot that i have already some cheap ideas, install it on my rig very close to the wheel
I will post some picture of the finish product.
since i had already the joystick that i payed 15$ on craig list, i had the wiring and the plexiglass the all cost of the operation was 3$ for the switches
