by Bono » Sat 17. Sep 2016, 19:57


a lot of cables

My new Projekt: Flight simulator with motion seat 2 Axes (+/- 25°) and almost real Cessna 172 cockpit. Beginn Juni 2016.

Attachments


my inspiration, its a Flight simulator from Red Bull on the Salzburg Airport


now i work on the conection from X Plane - X-Sim - Arduino to the FU´s

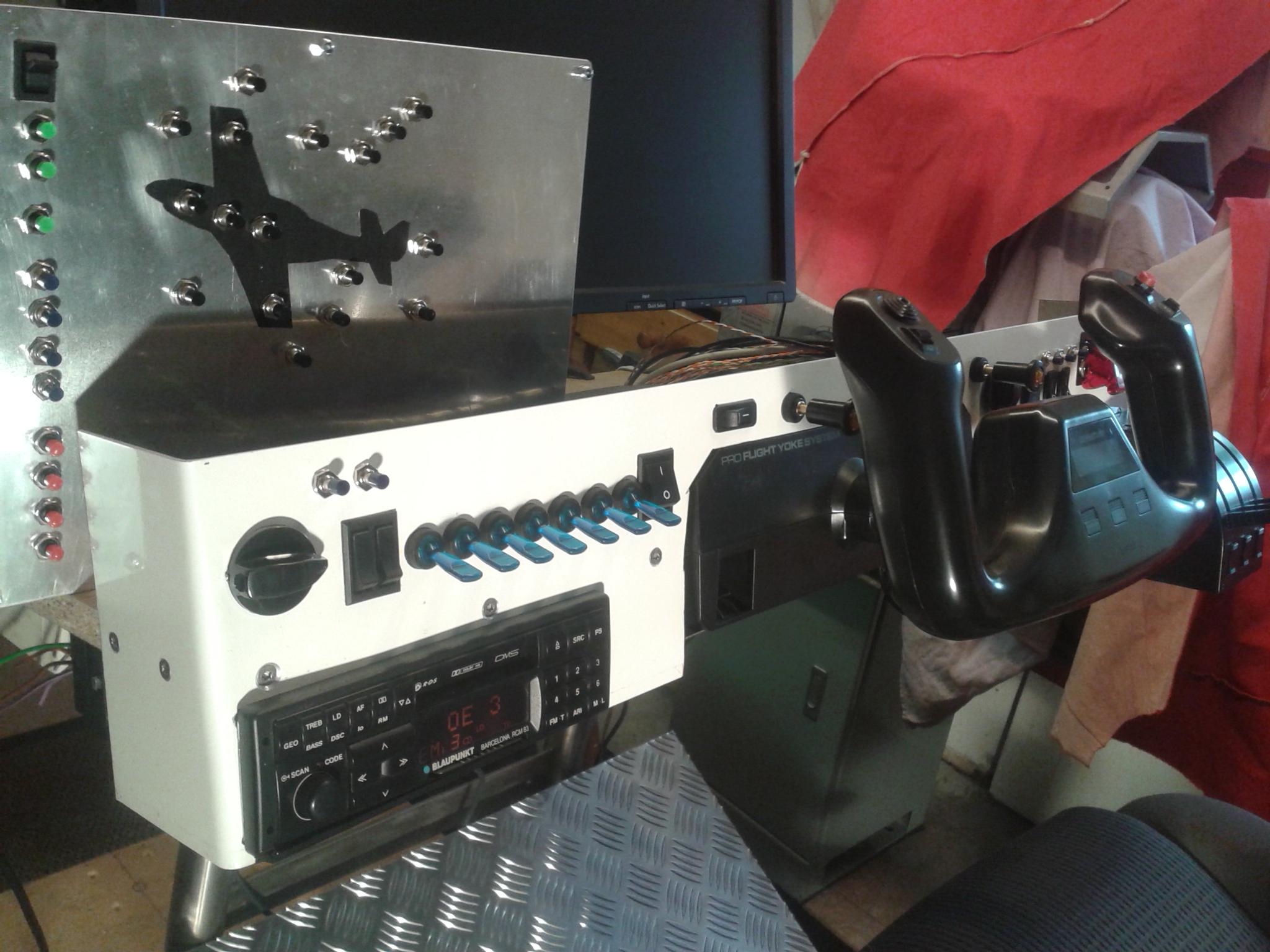

the new USB input controler for the switches


new configuration of the switches


the new montage of the motors, now working well

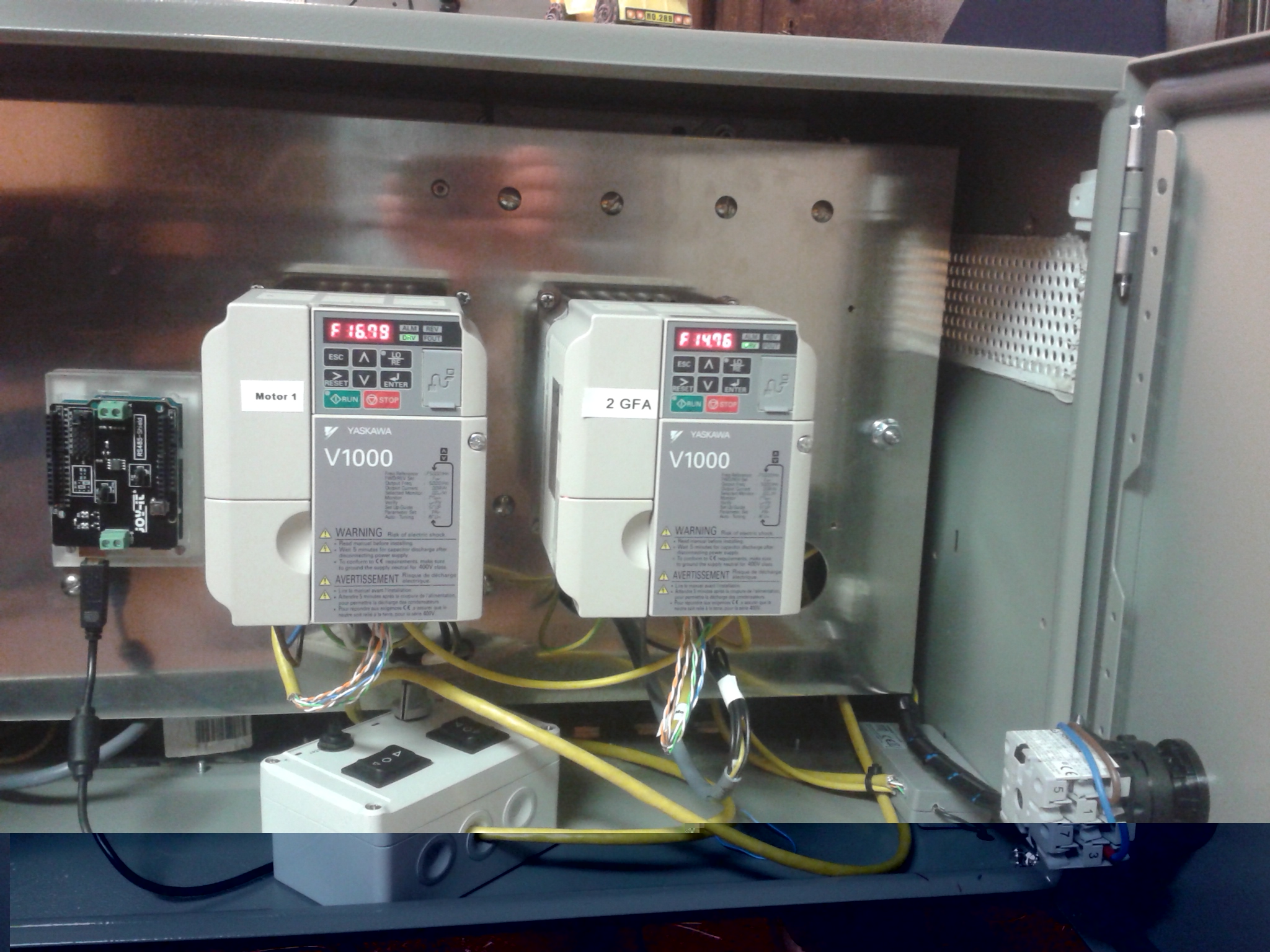

the FU´s for the motors


Arduino and Deditec I/o controler, i haven´t no ideas about this things, i not used jet


cessna 172 switches and buttons and my old car radio


2 double gear engines 0,48kW 12U/min


The base and the frame made by stainless steel
