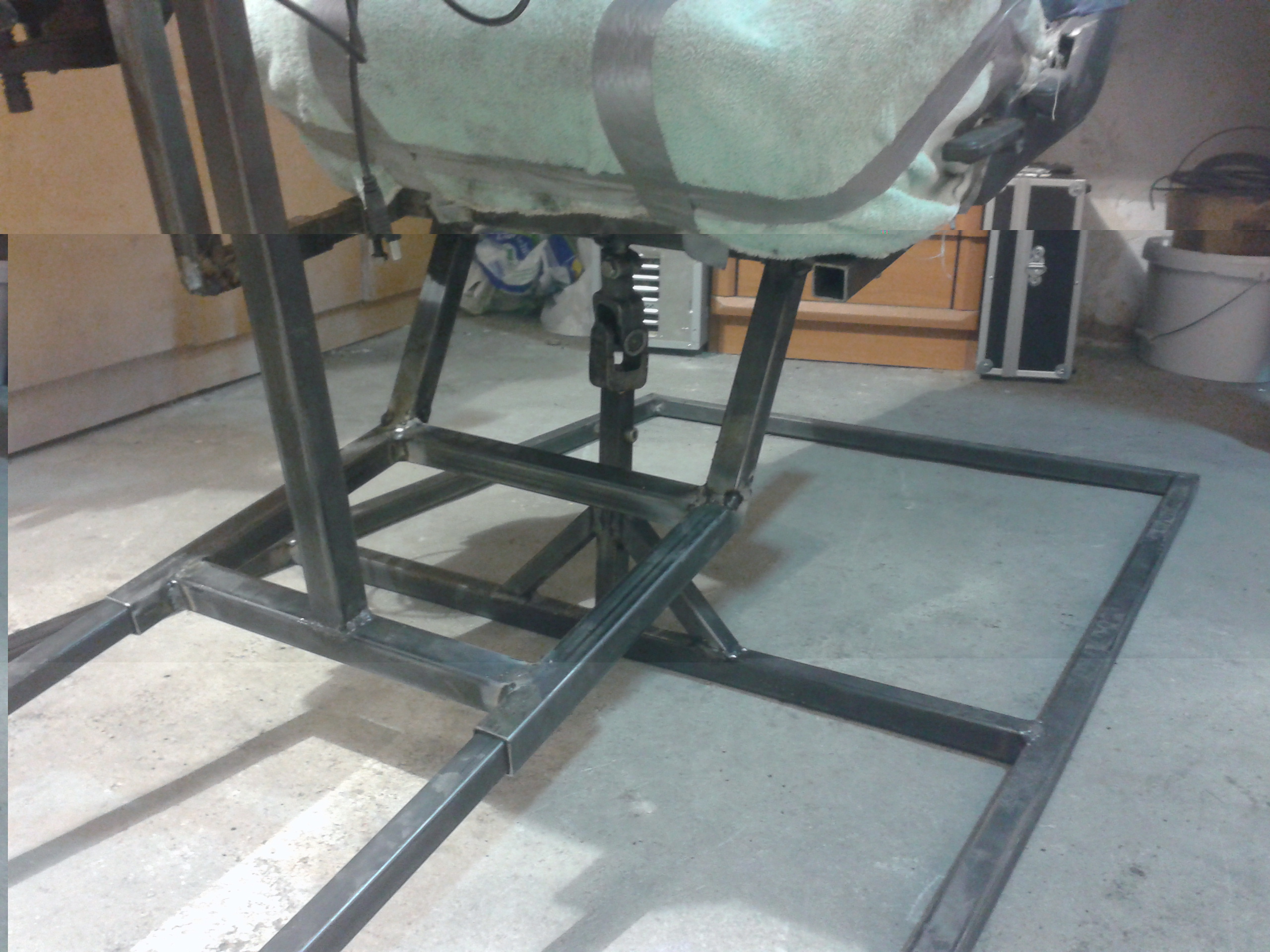

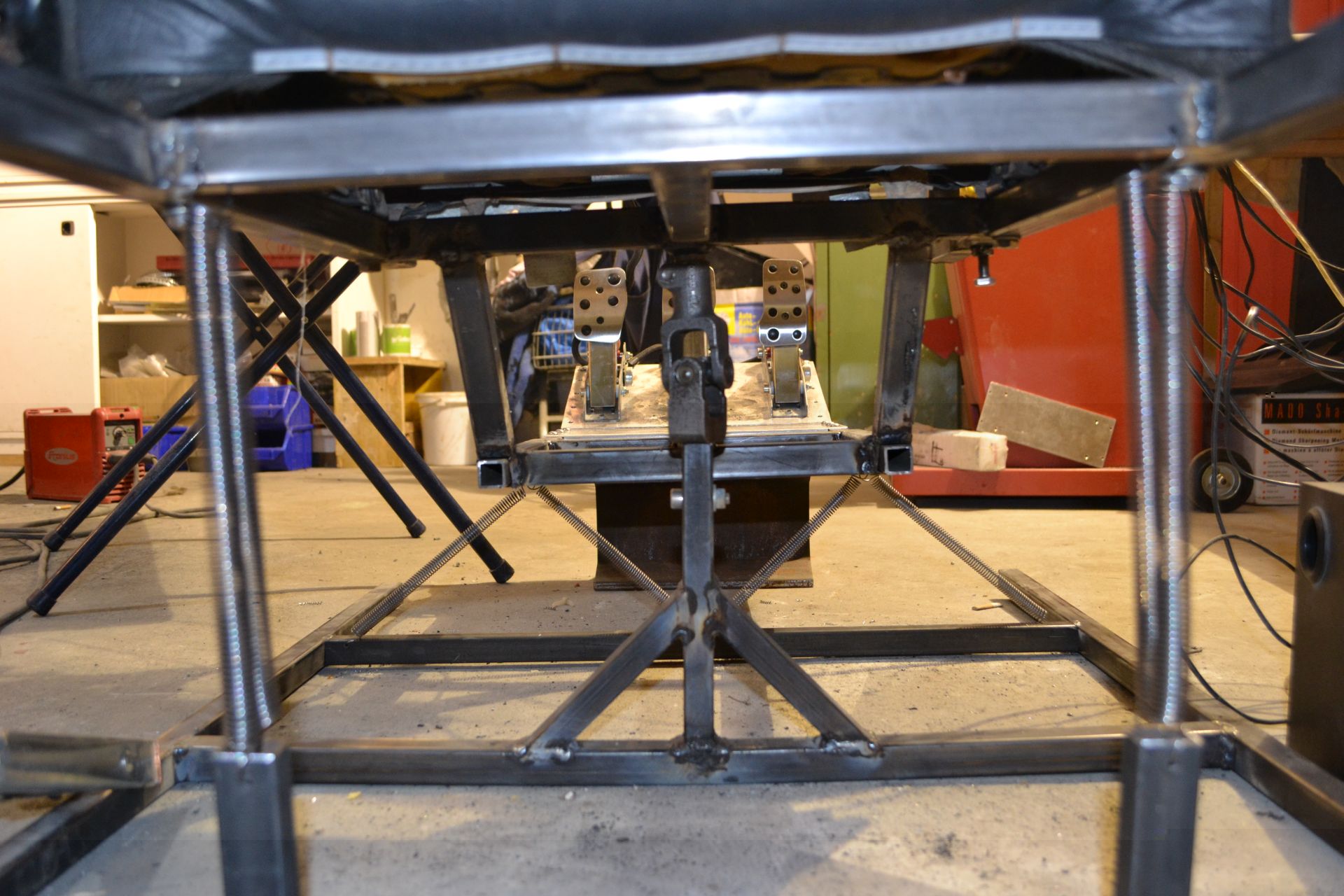

the new motors are inside, new universal joint,
........UPDATE6........08.04.2013........

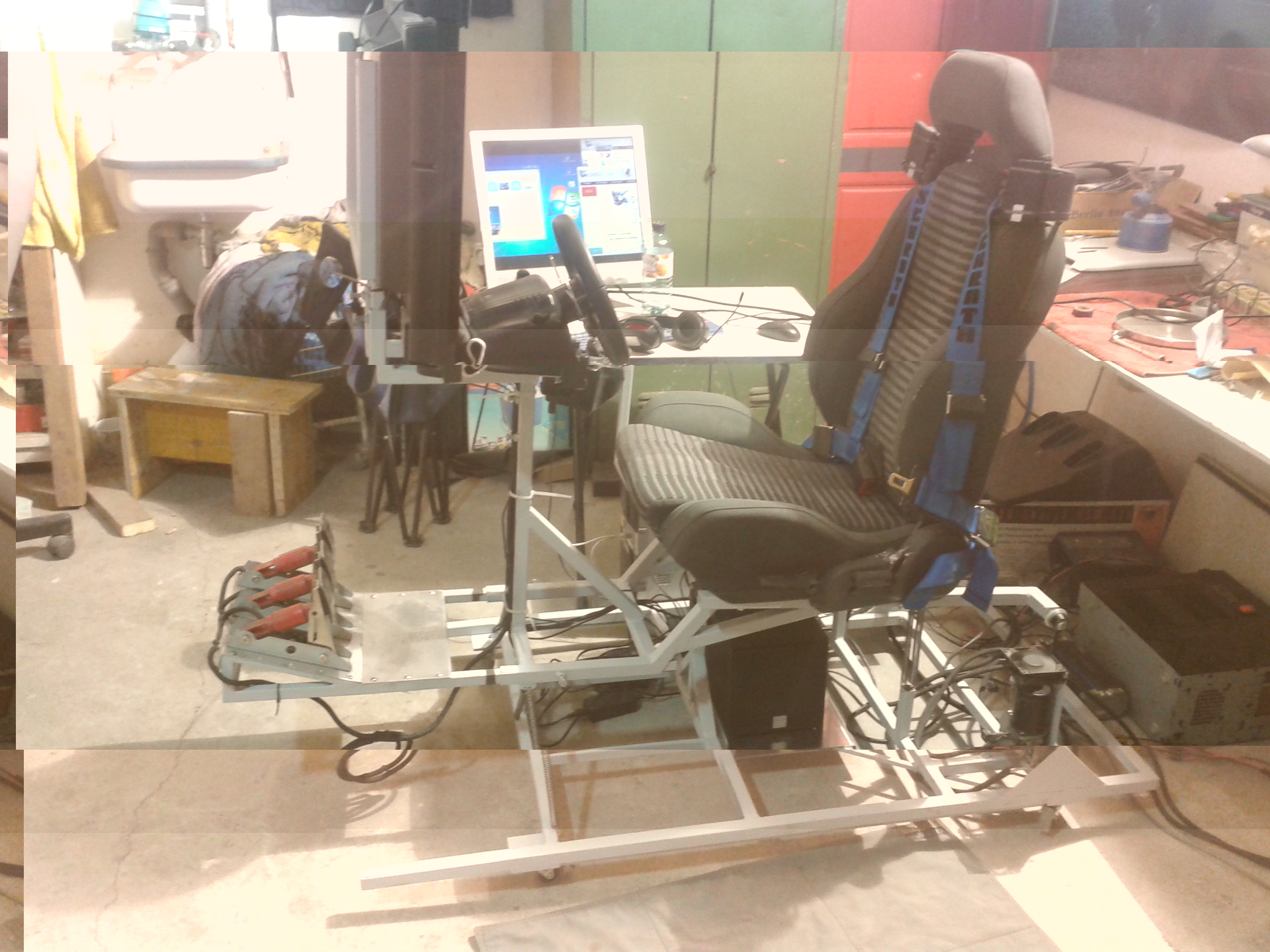

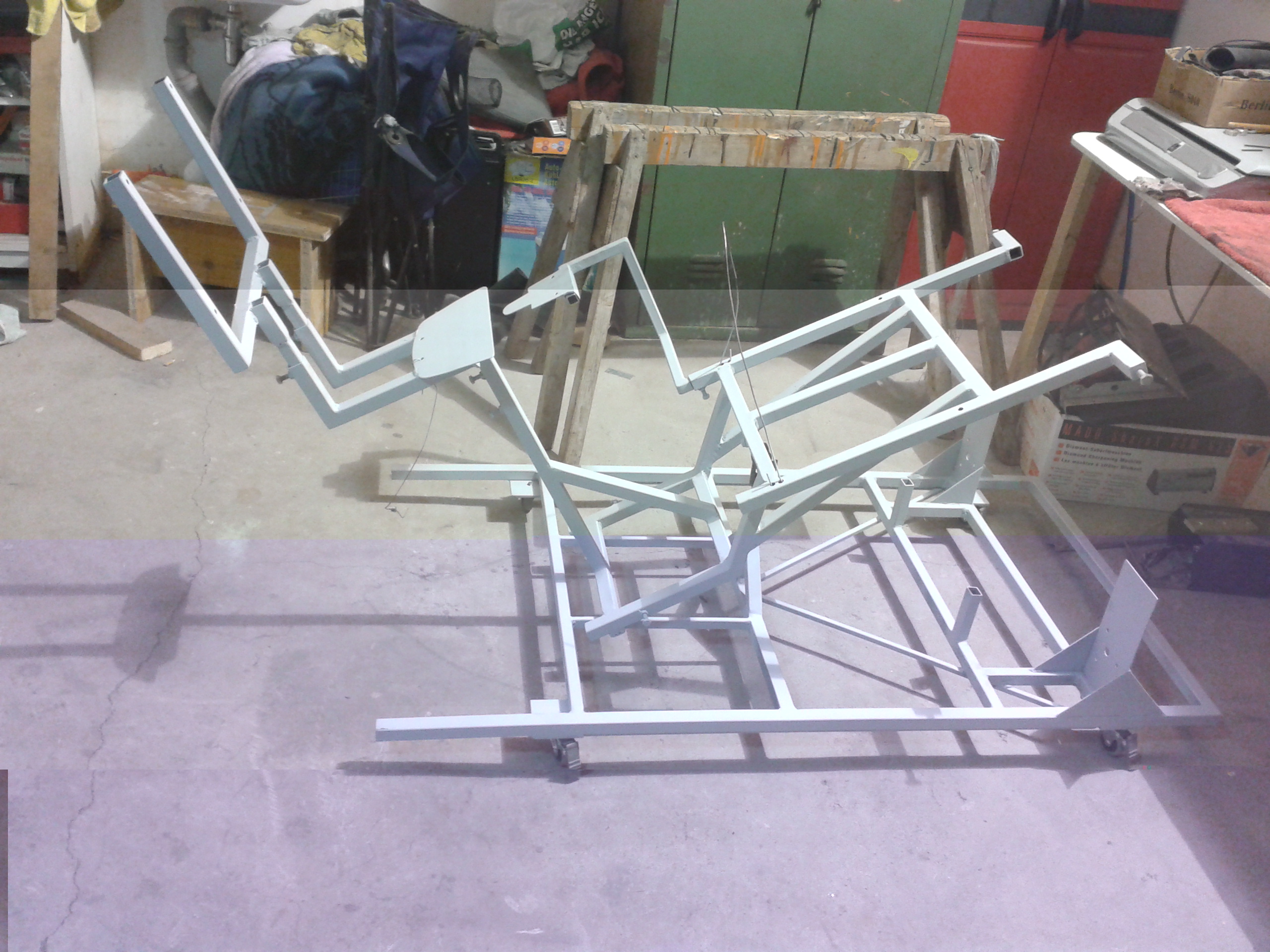

It´s painted and lighted up now!
........UPDATE5........23.02.2013........
BLUE makes happy!
my polystyrol housing is on deal, only have to scew it down, sand it and put some paint on it
........UPDATE4........31.01.2013........
PROTOTYP IS READY!
Now it´s time, to make it beautiful
* Make wheels on it
* Built a handbreak
* Some work on the balance
* clad in aluminum sheet

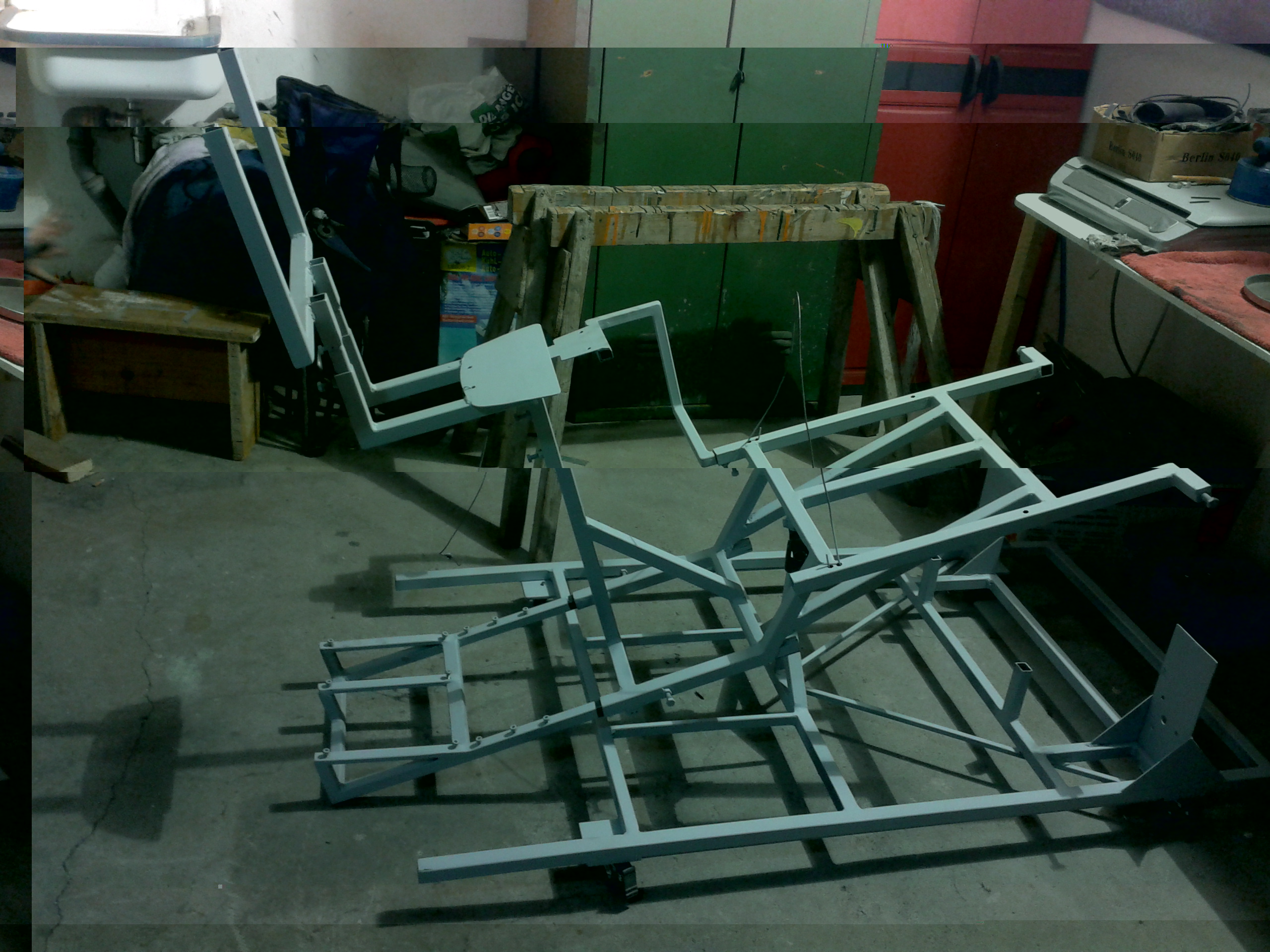

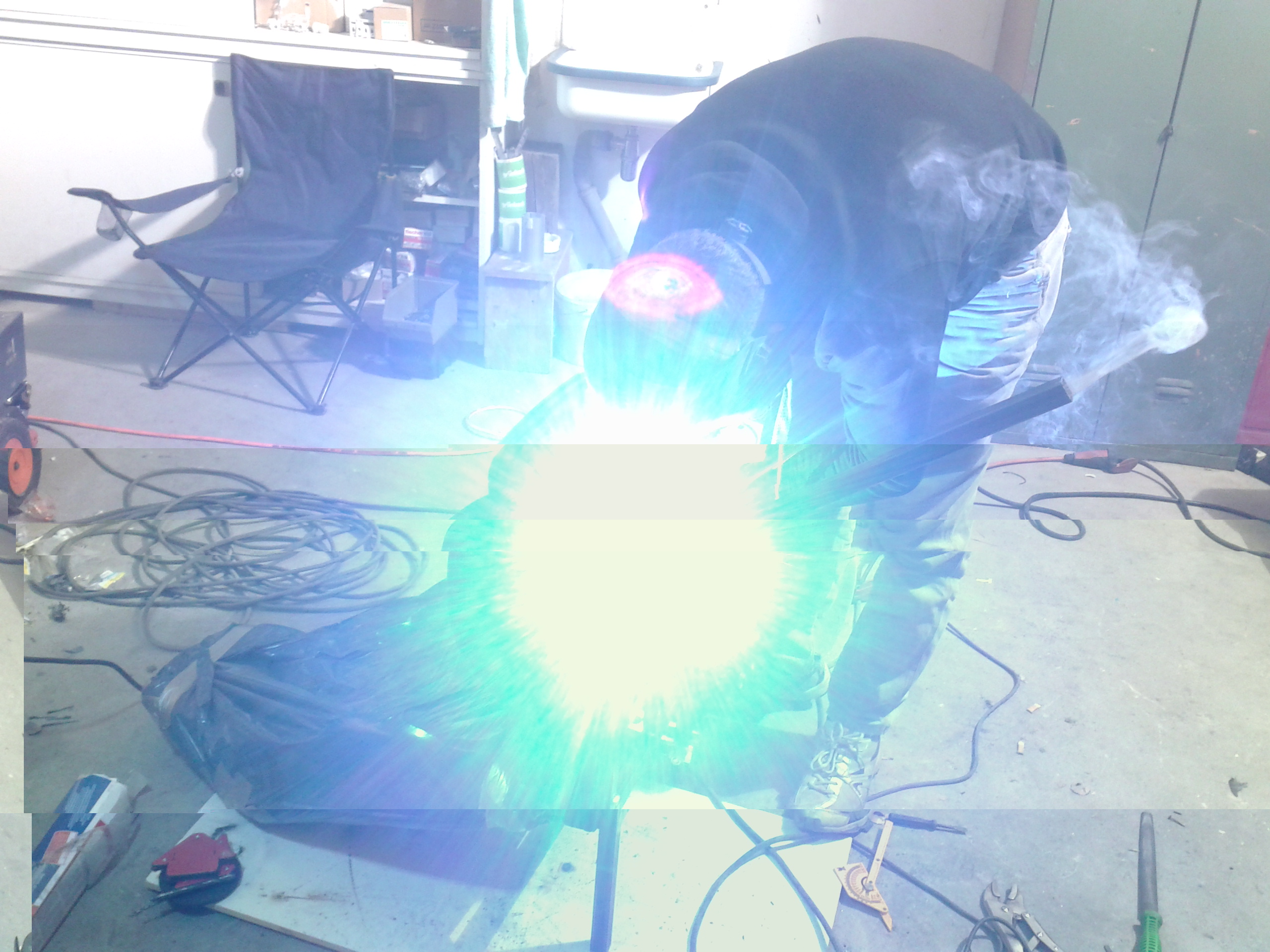

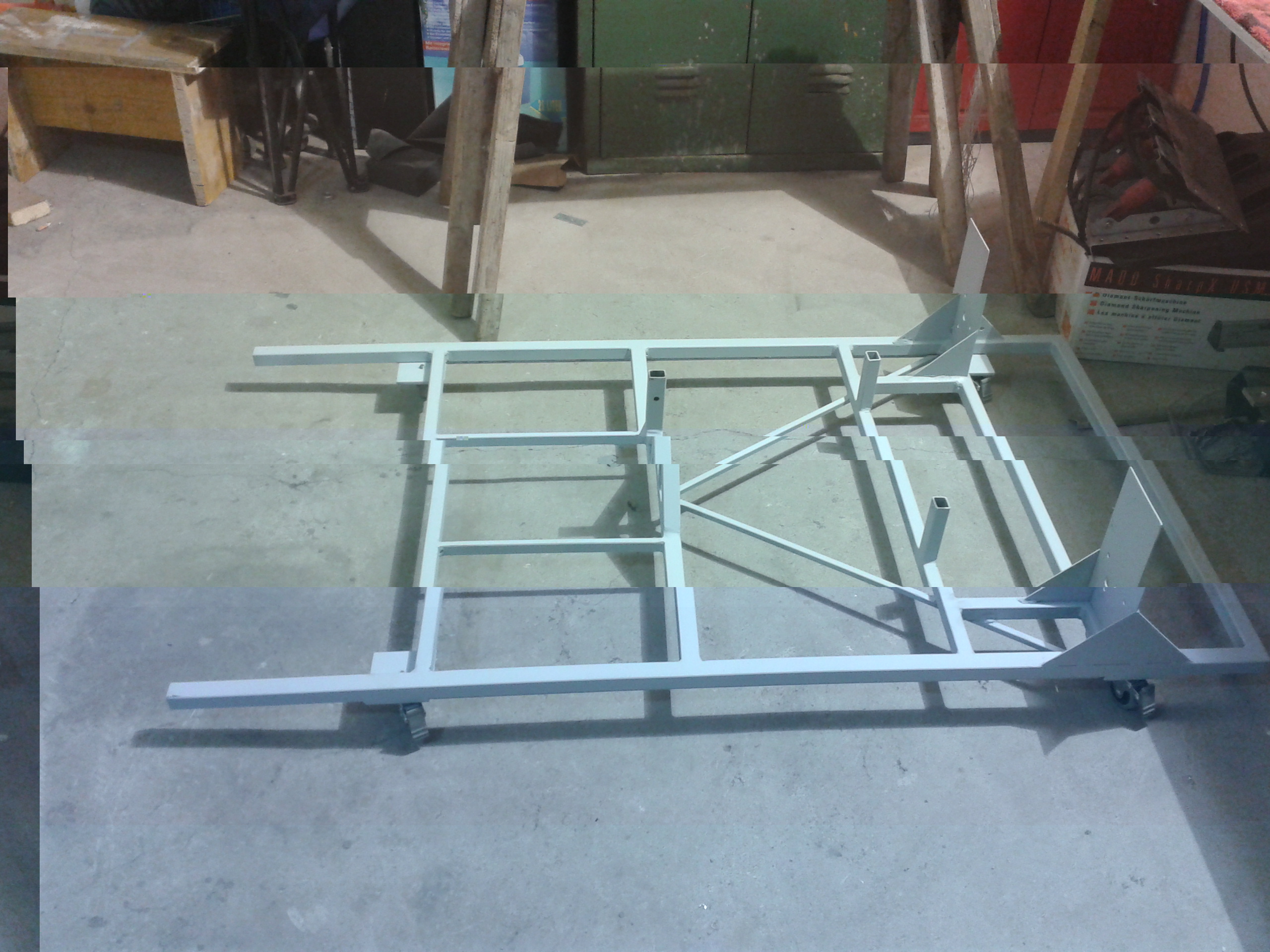

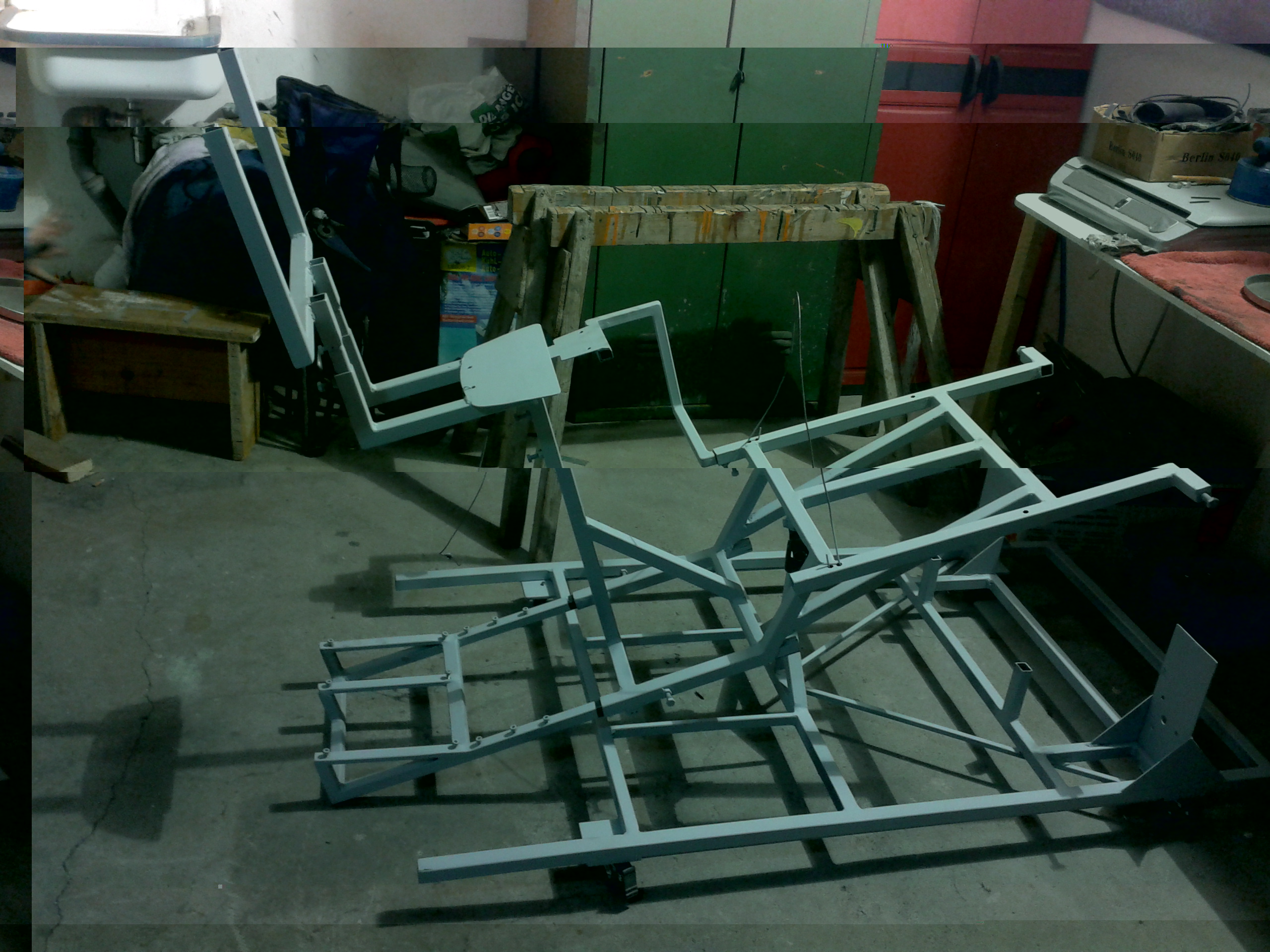

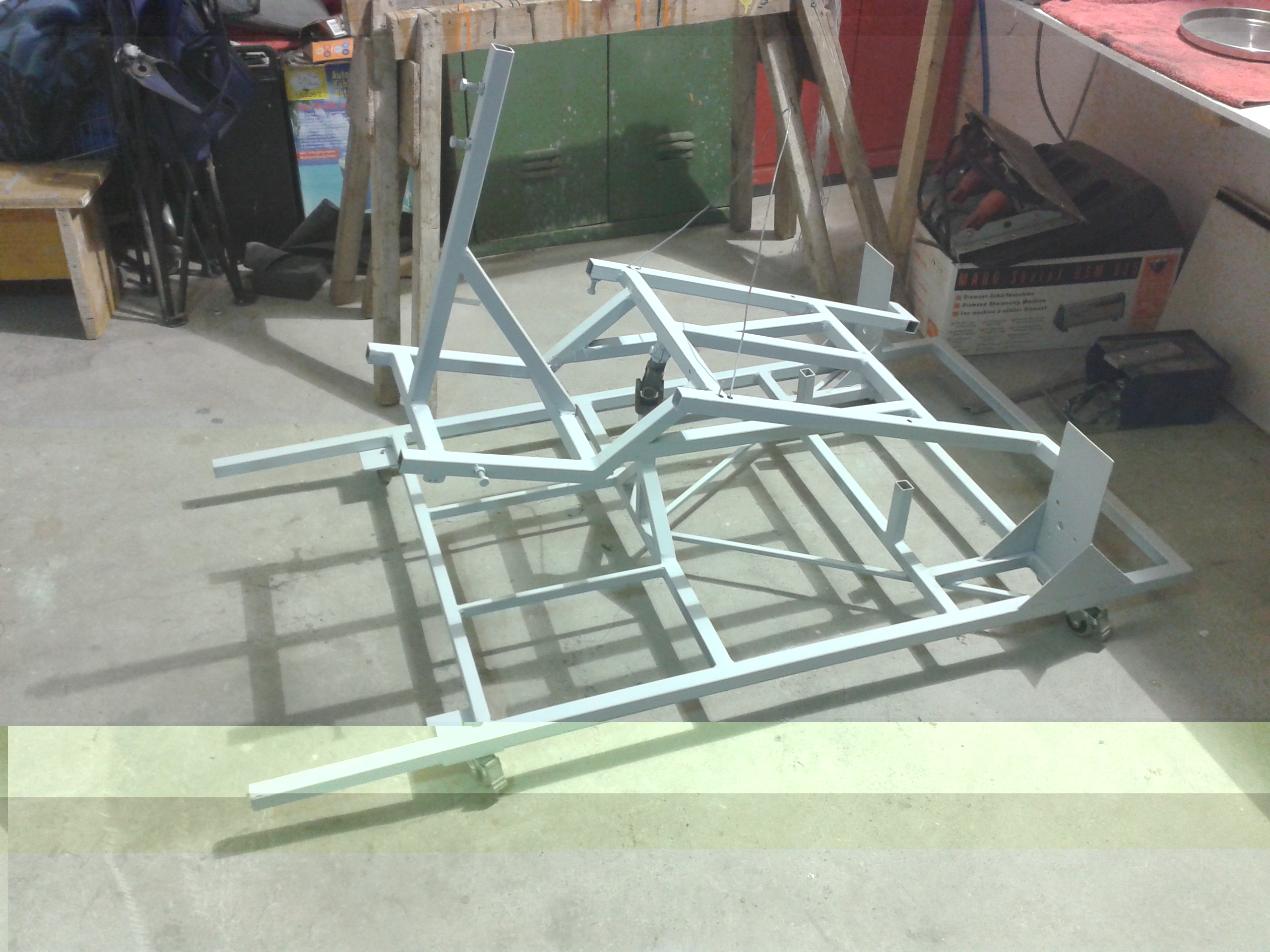

* clean weld and paint frame --> half way done, Primer is applied
* electrical cables neatly laid
* mount the PC and the controllerhousing
* mount 3x24" LED Displays
* bass-shakers
- Stage2_5
- Stage2_1
- Stage2_2
- Stage2_3
- Stage2_4

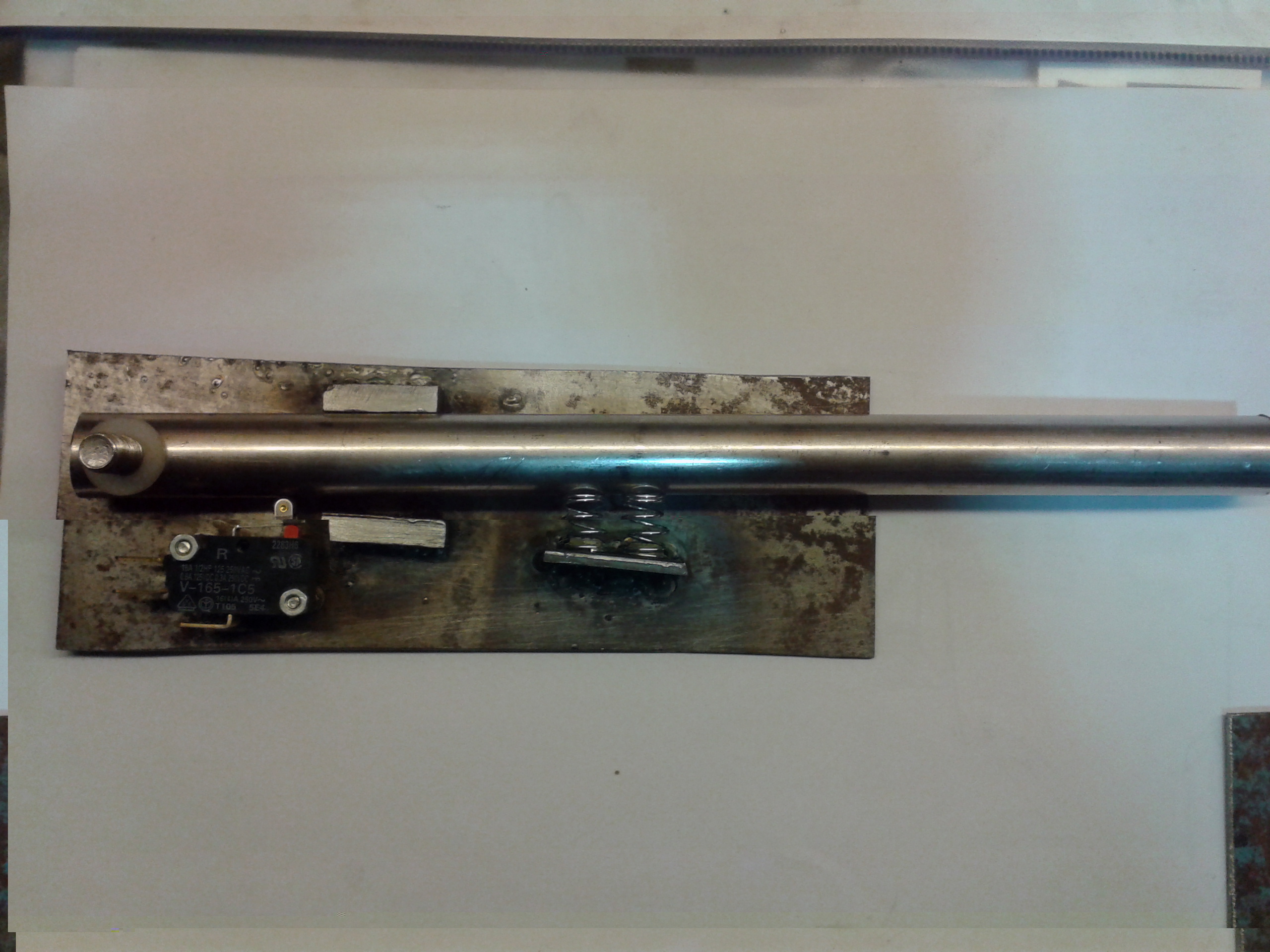

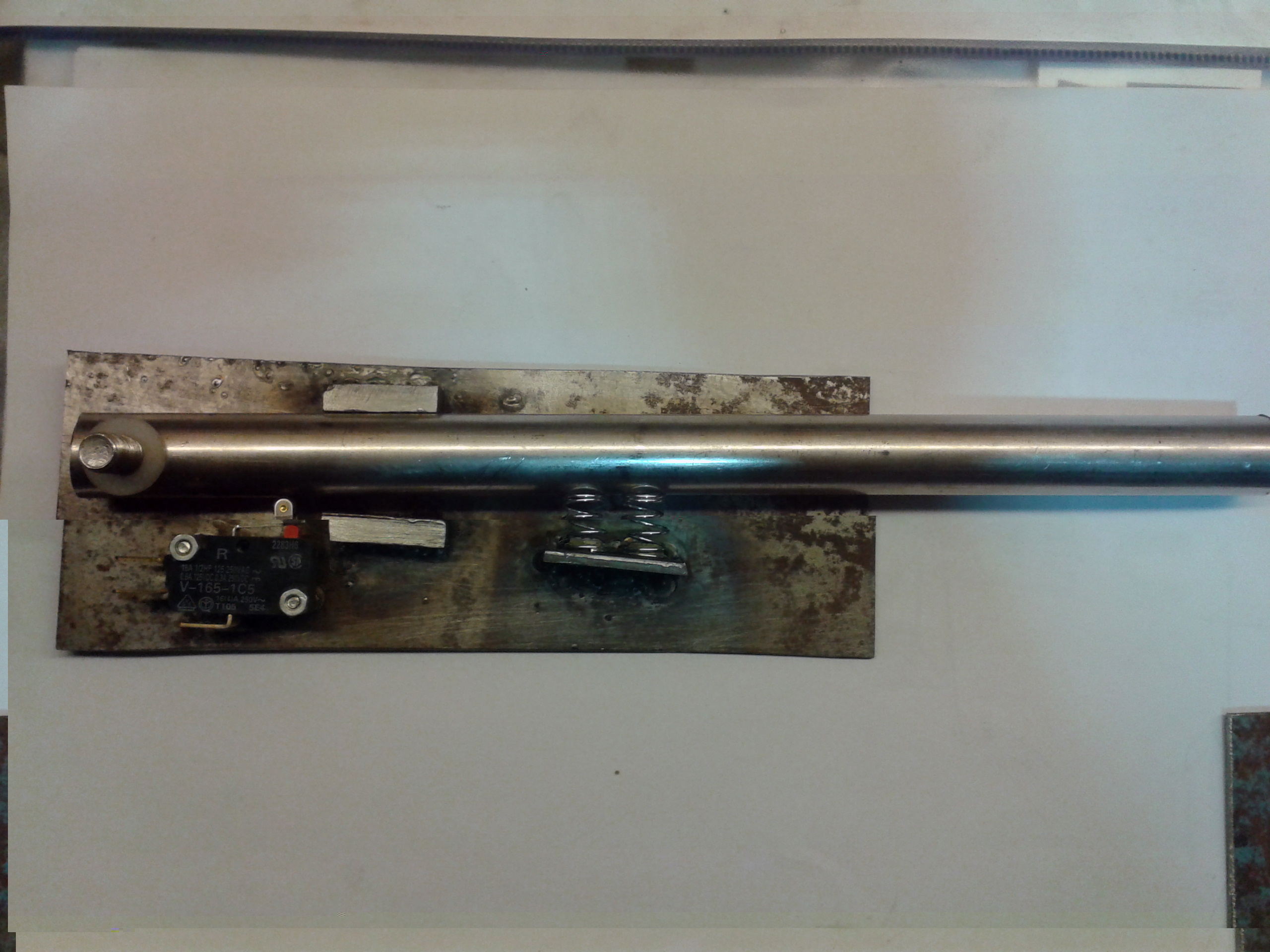

the handbreak (e-break) is a self-construction:
- handbreak_1
- handbreak_2
Here can u see the finished handbreak:
- handbreak_3

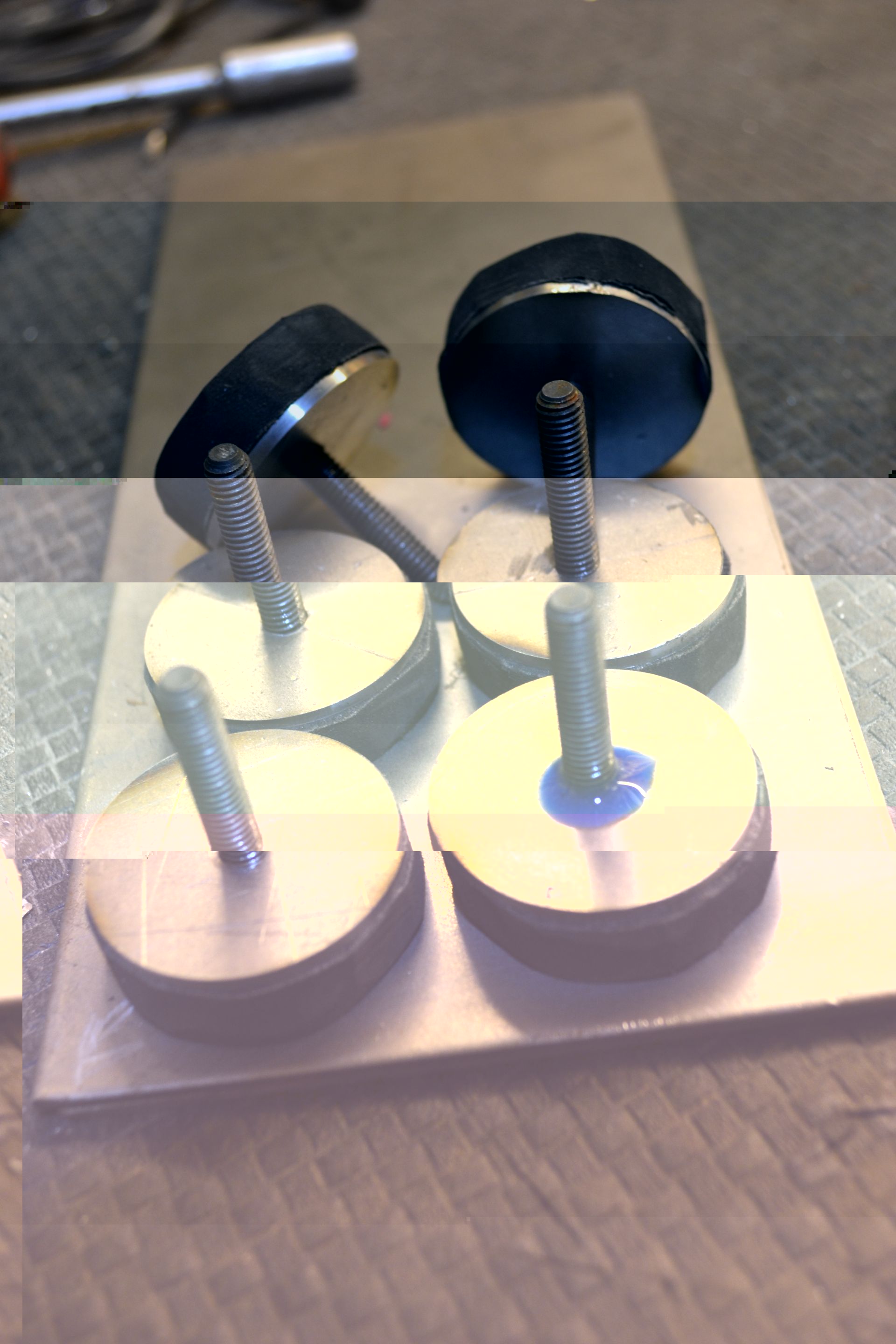

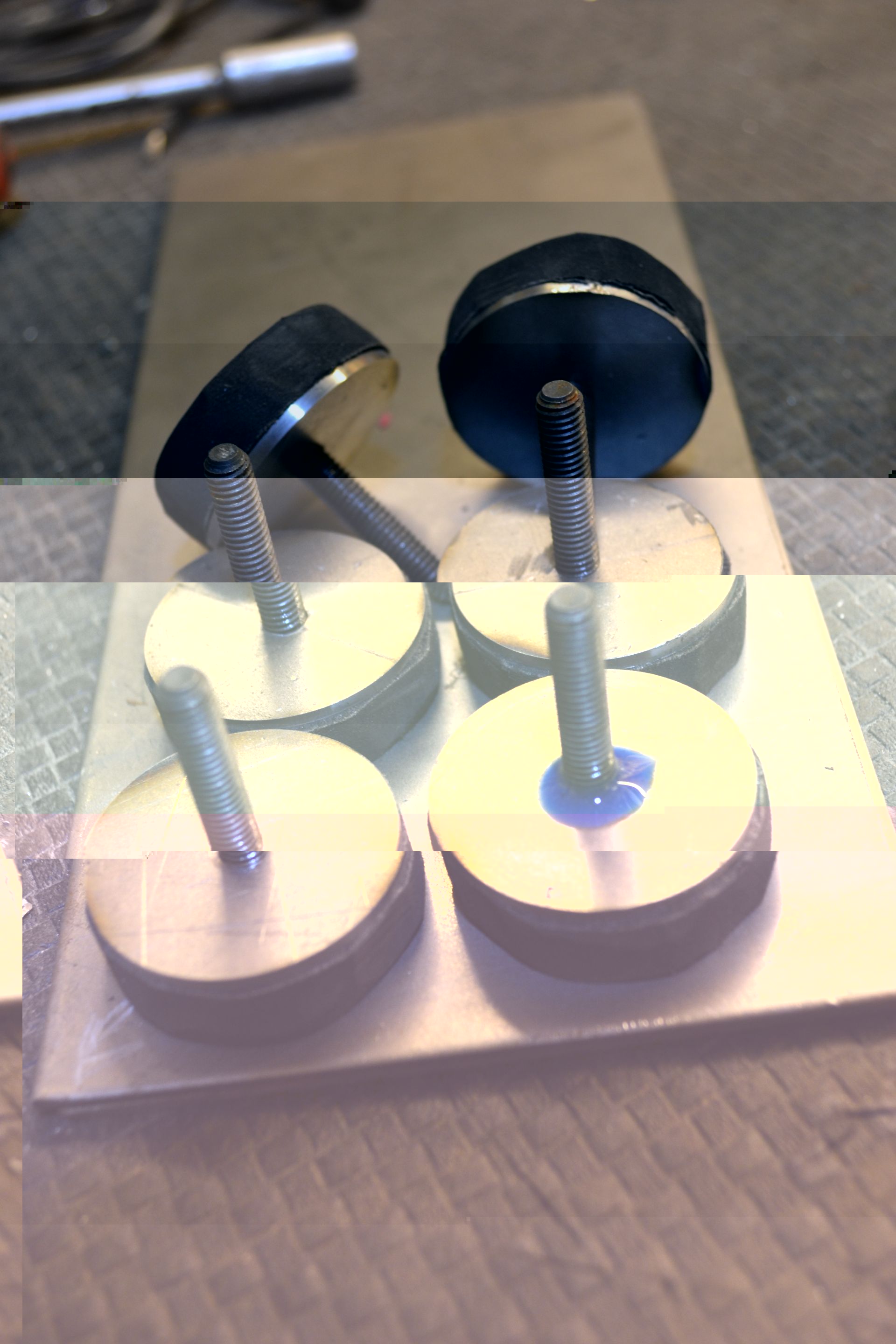

The bassshakers are also came to me. But i´ve to isolate them, because when i gave power to the shakers, my G25 breaks down.
- Bassshaker
........UPDATE3........11.01.2013........
First RUN !
Now i´m using 2 Pololu 12V12 controller, because AMC 1.6 Controller dont want to do his job. That was so easy to configure, i like this things.
i was measuring 10Ampere Peak on my wiper´s, is this in a normal area? Whats your experience with other wipers?
I´m so happy that its working, so far.
Here can you see the first testdrive-video:
i think it´s working very good, now it´s time to make it handsome
Next Steps:
* Make wheels on it
* Built a handbreak
* Some work on the balance
* clad in aluminum sheet
* clean weld and paint frame
* electrical cables neatly laid
* mount the PC and the controllerhousing
* mount 3x24" LED Displays
i hope you enjoy the progress of my Sim!
More updates coming soon
........UPDATE2........20.12.2012........
It´s going on!

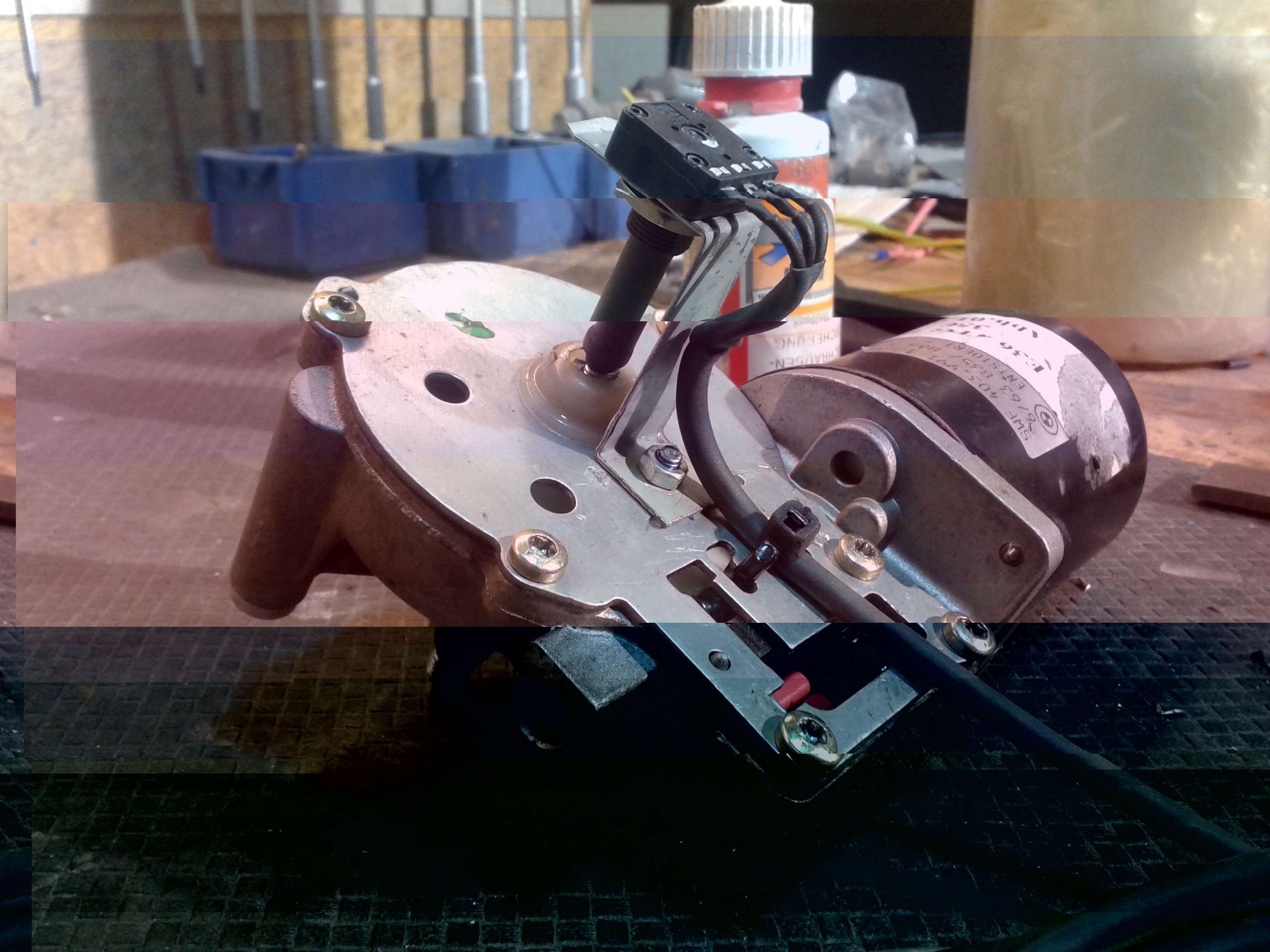

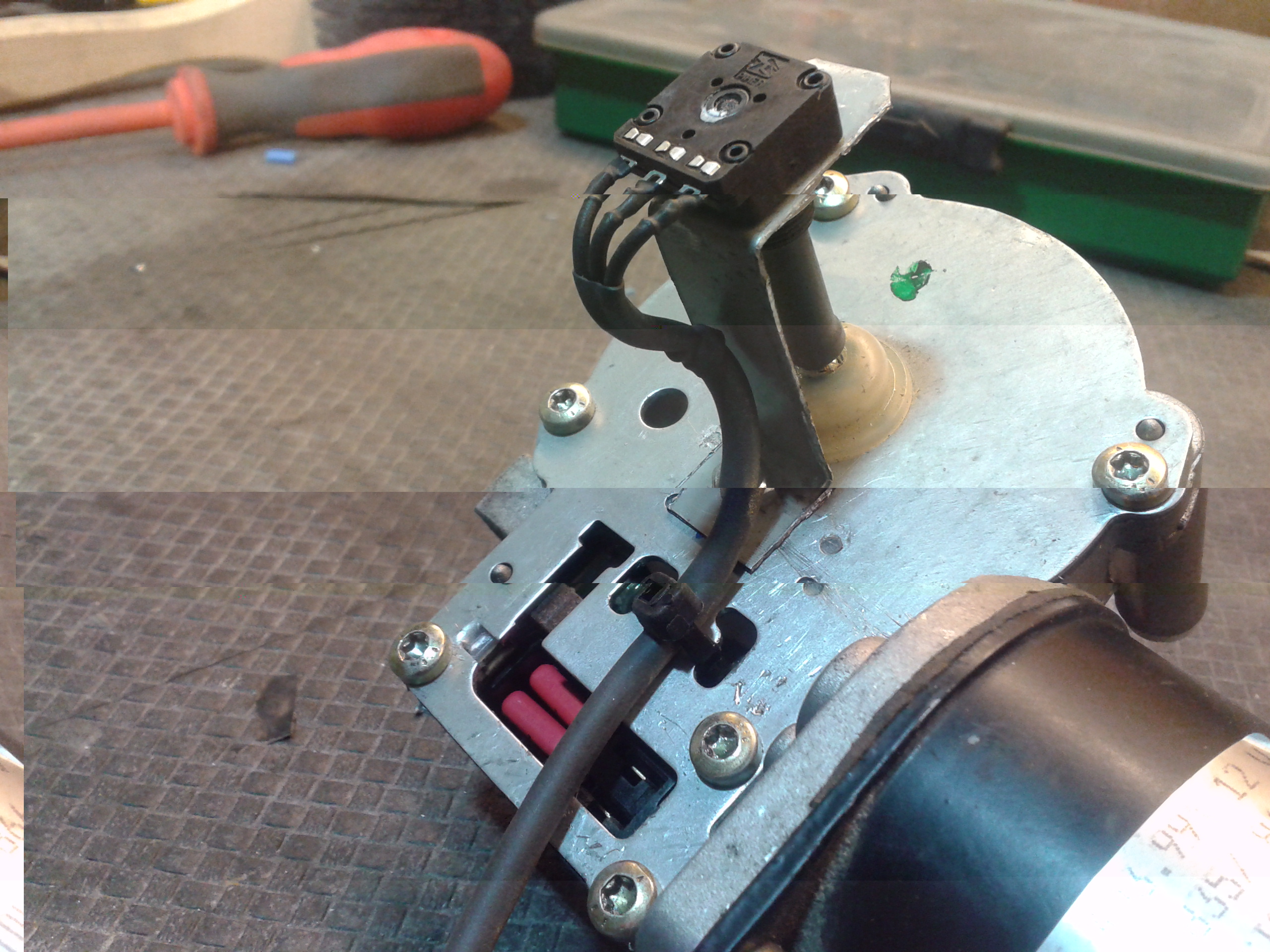

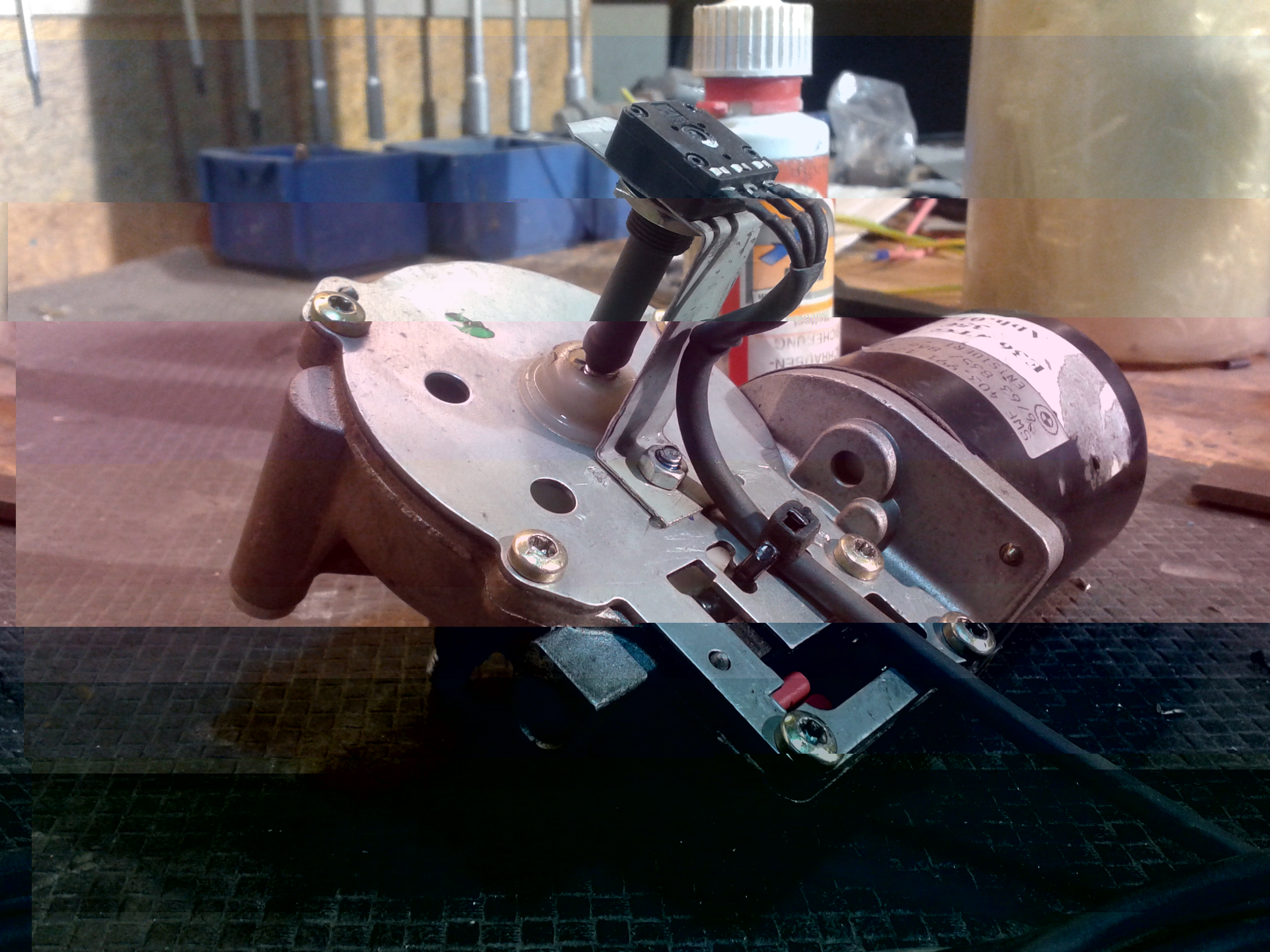

here can you see my special wiper-mod: I´m really, really proud on this Mod.

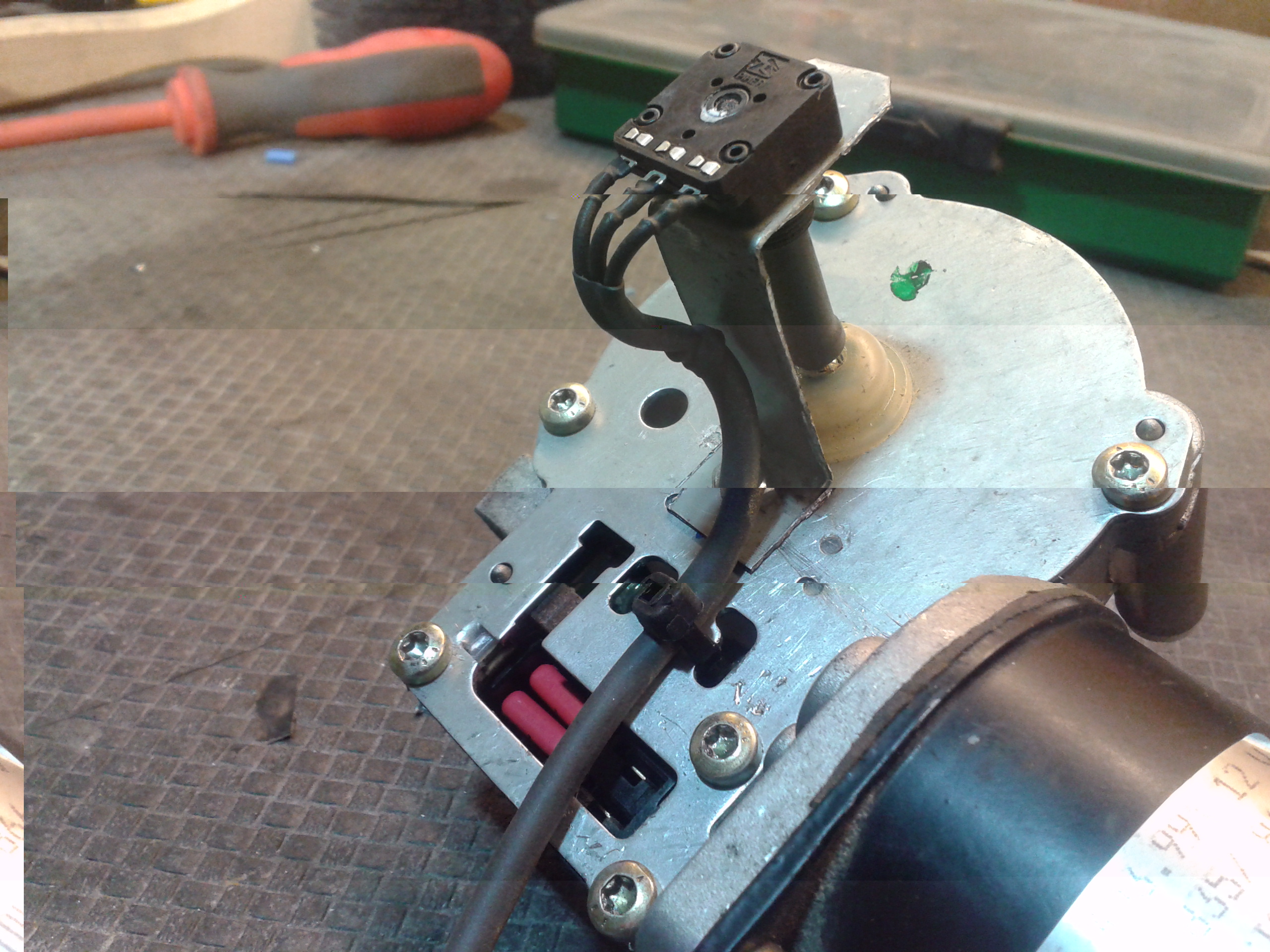

I removed the shaft and on my lathe i cutted a thread into the back. In this M3 thread, I then glued a screw, which is connected to the potentiometer. So I can now operate the pot without gears in the ratio1:1.
- Wiper Mod1
- Wiper Mod2
- Wiper Mod3
More stuff coming soon!
........UPDATE1........28.11.2012........
I will put the newer posts on the top, like floriske´s beatiful thread, to keep it clear.
Hy guy´s!
I have some updates and i want to show it to you:

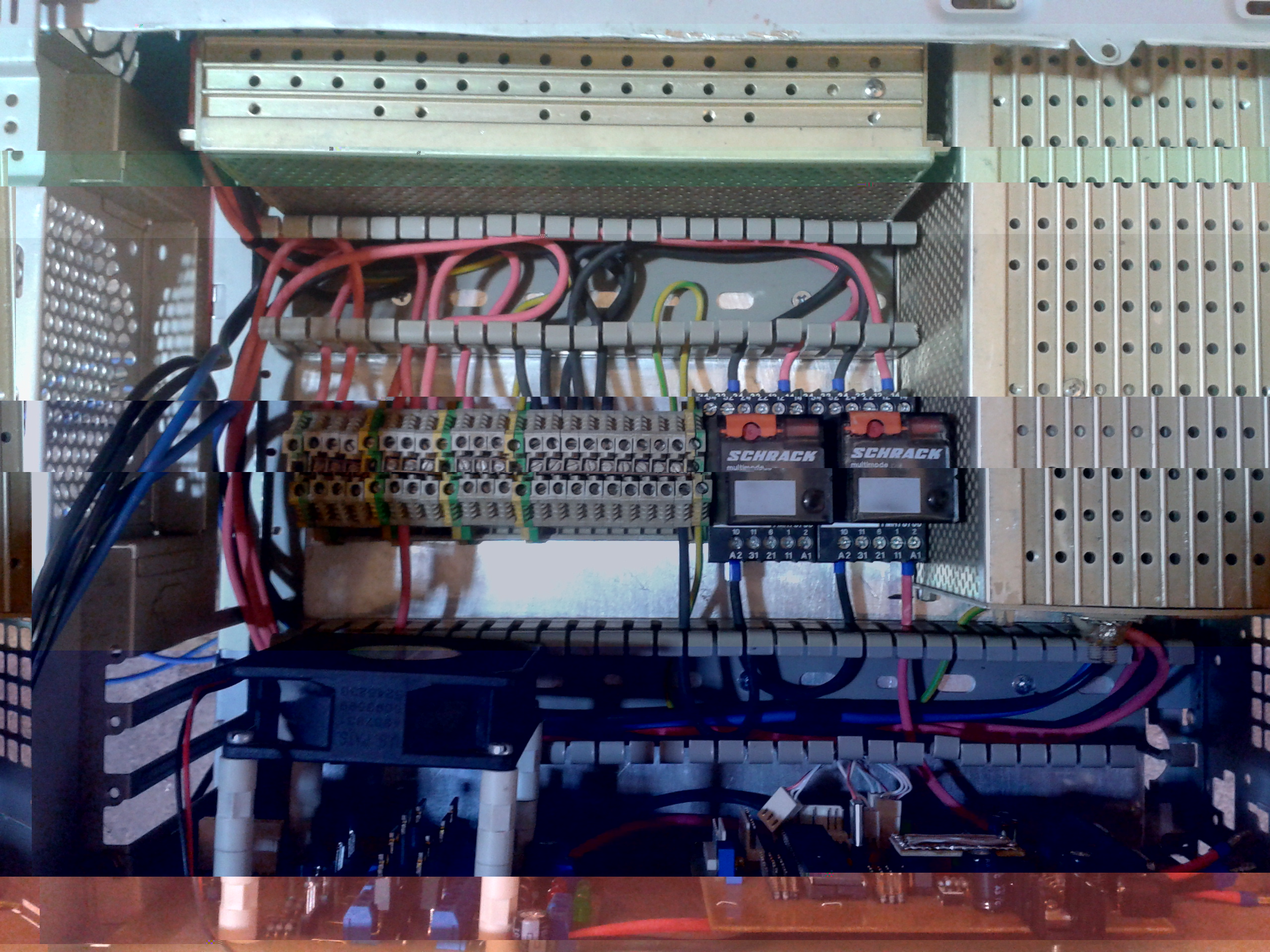

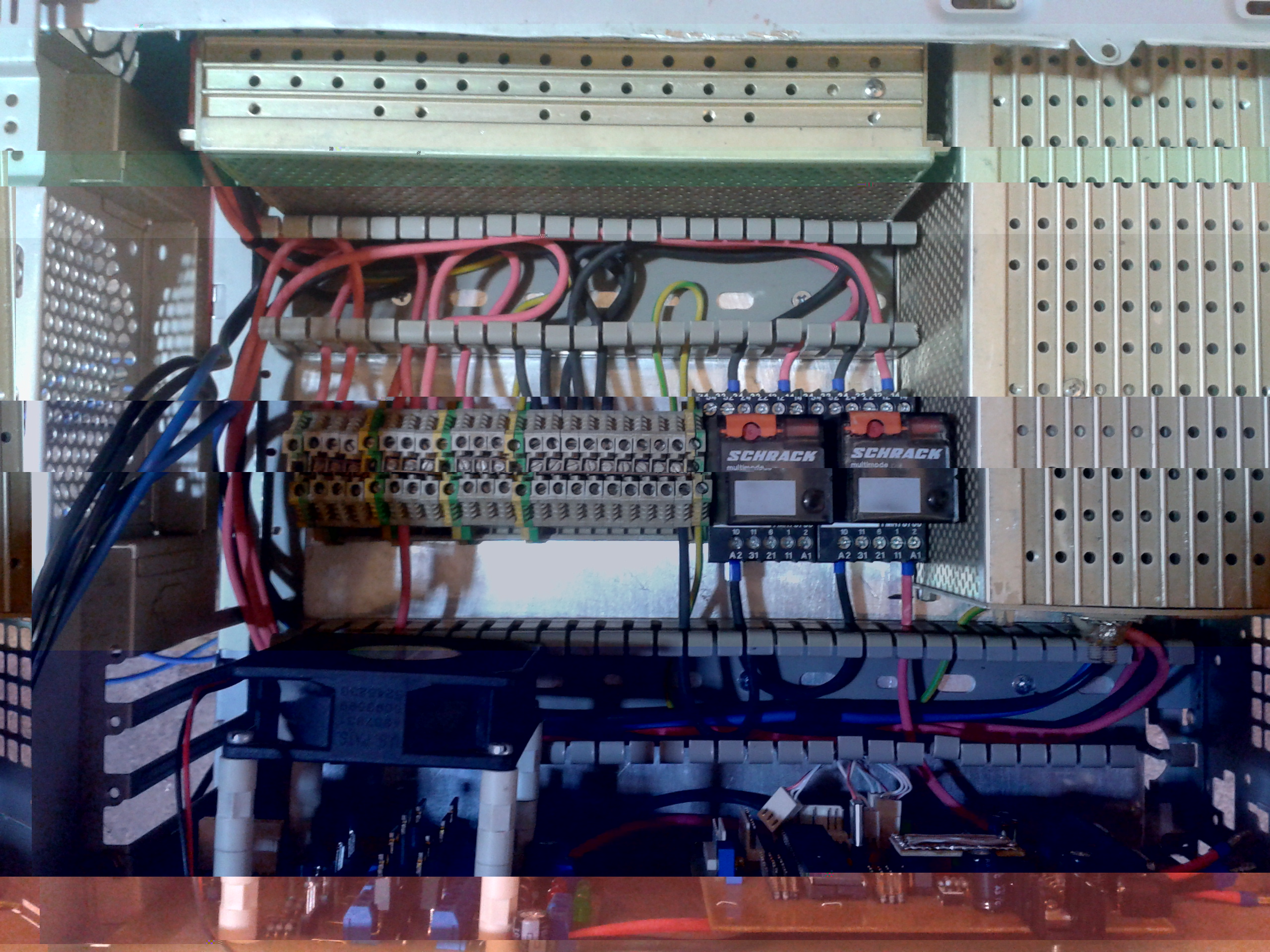

My simulator-control was built in an old PC-Case (not finished), which contains:
2 12V 125W power supplies
2 ralay 12V 10A (for safety switch)
some electrical terminals for 5VDC, 12VDC and 24VDC
1 AMC 1.6 (coming soon)
1 Simple dual h-bridge 1.2b
USB hub (not shown here)
USB creativ 7.1 soundcard (not shown here)
The main-switch and the display for the AMC-controller will be mounted on the cap of the case.
- simulator-control 1
- simulator-control 2

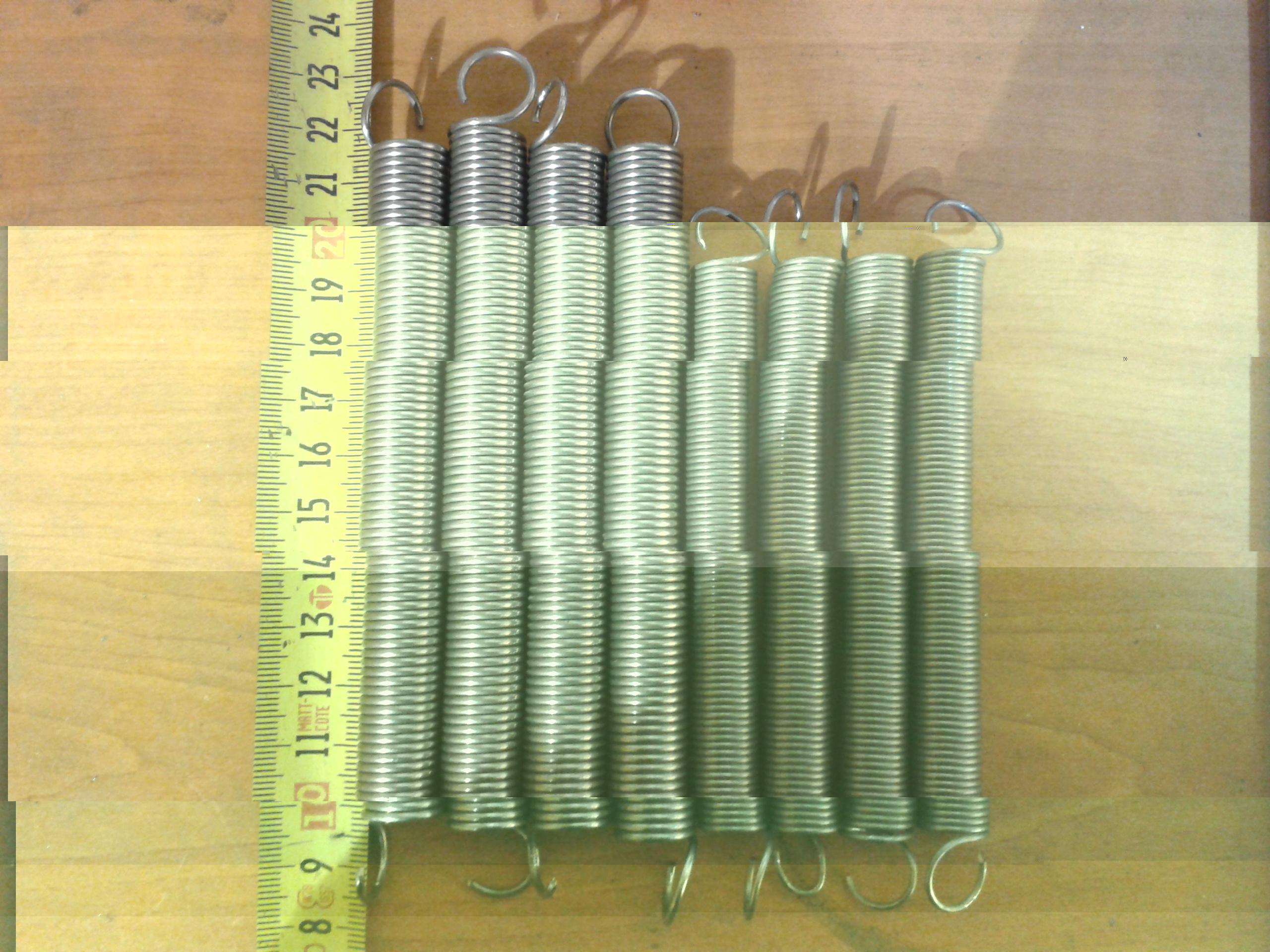

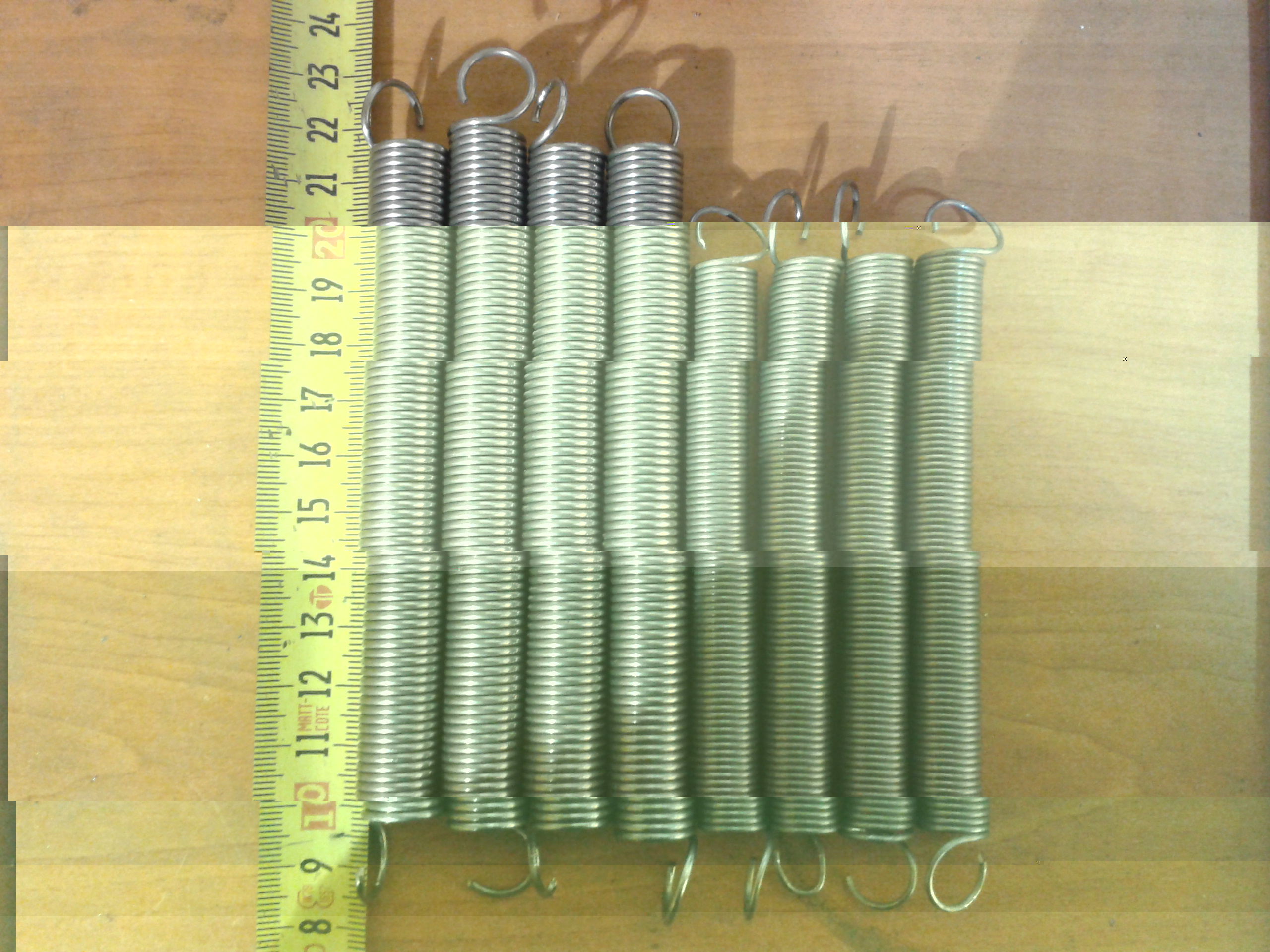

I also mounted the springs in the front and back:
- springs mounted 1
- springs mounted 2
- springs mounted 3
- springs mounted 4

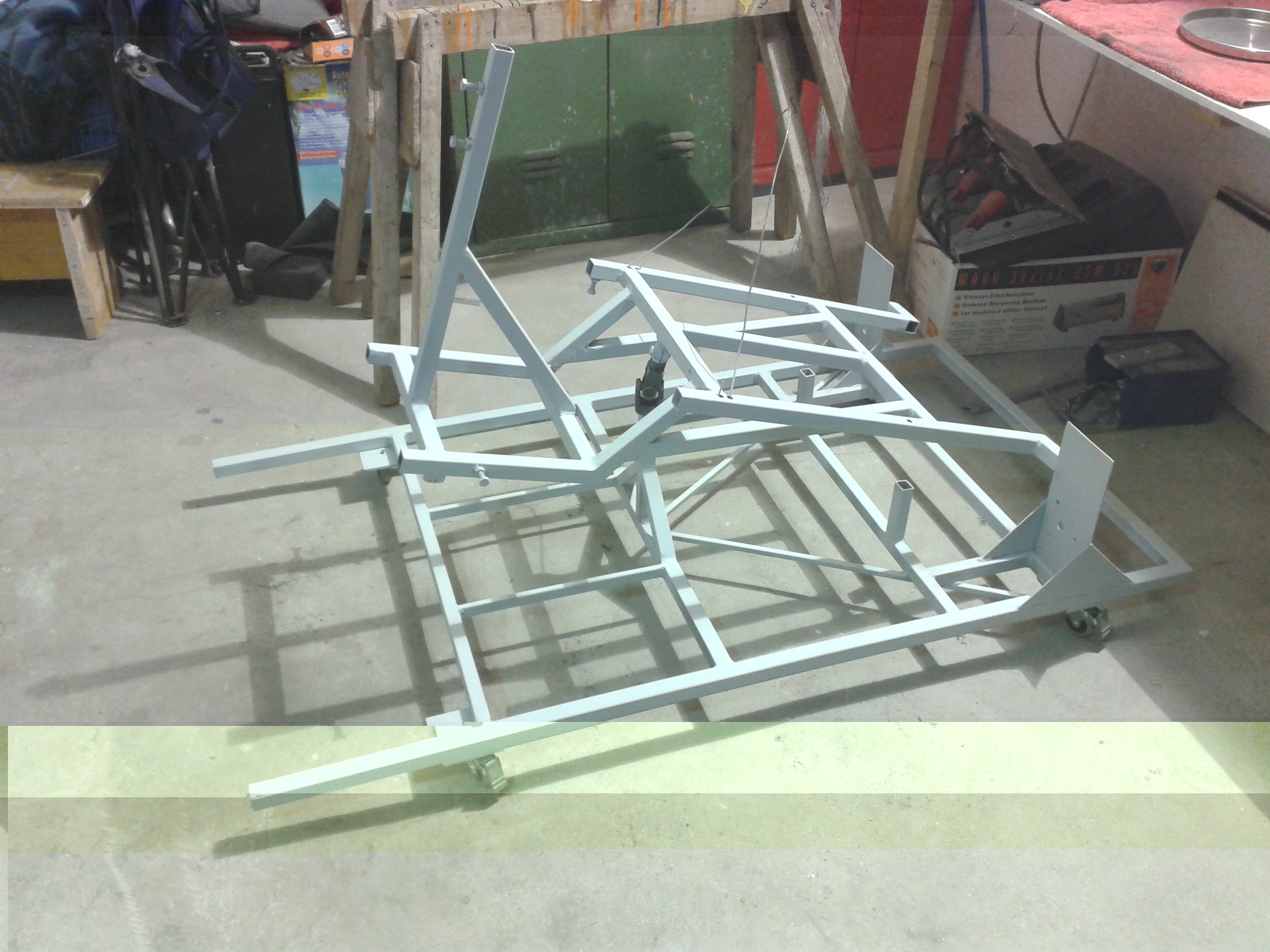

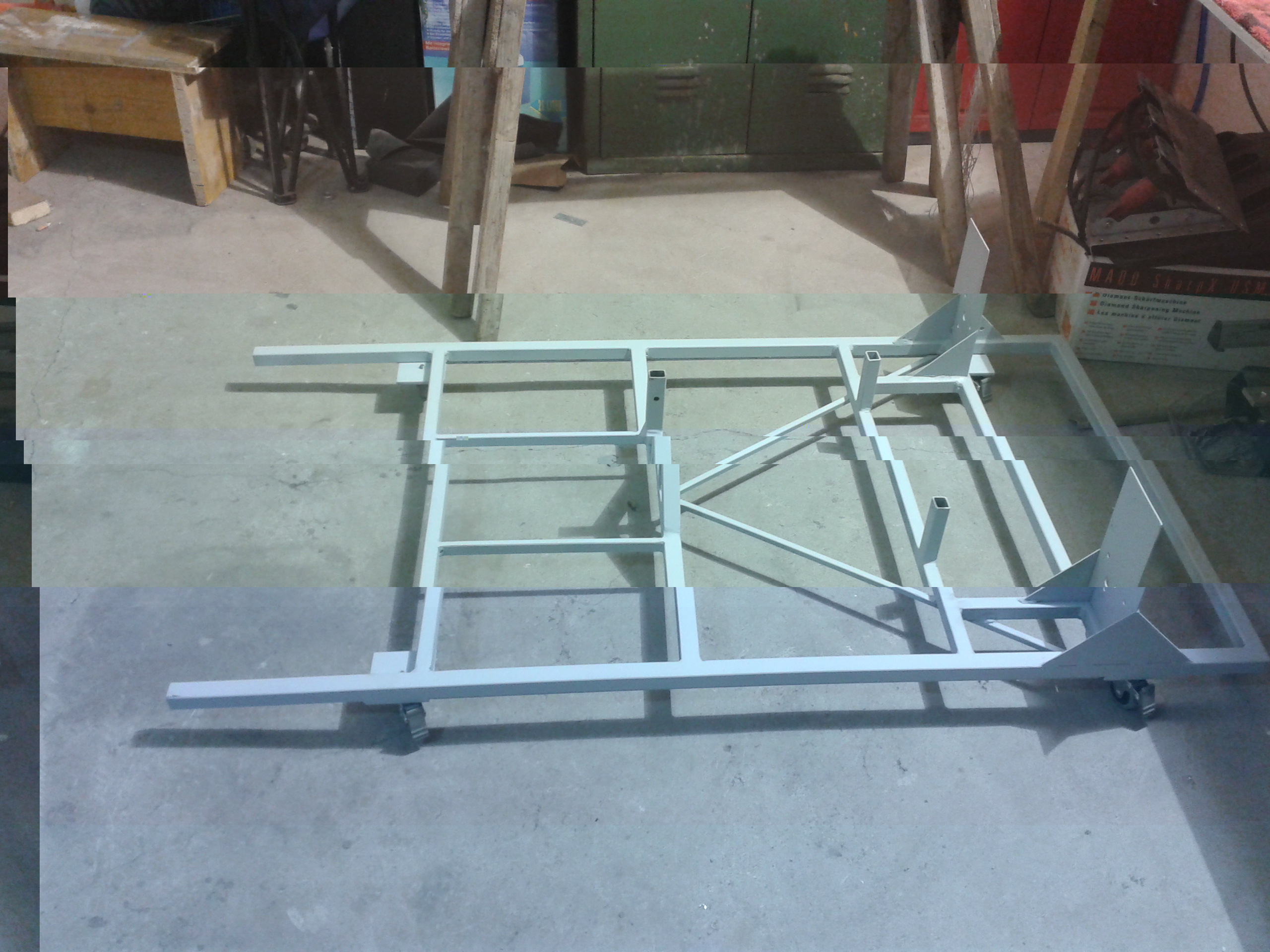

the main pillars are also prepared for montage:
- main pillar
........STANDARD........15.11.2012........
Hy!
I want to apologize right at the beginning for my bad english
here i will show you my new projekt. Well, i´m trying to build my own 2DOF racing SIM.
So, thats my setup:
software: is clear --> X-Sim 3
hardware: i´m using Vellemann K8055 in kombination with the H-bridge from Thanos, which is not aleady finished yet.

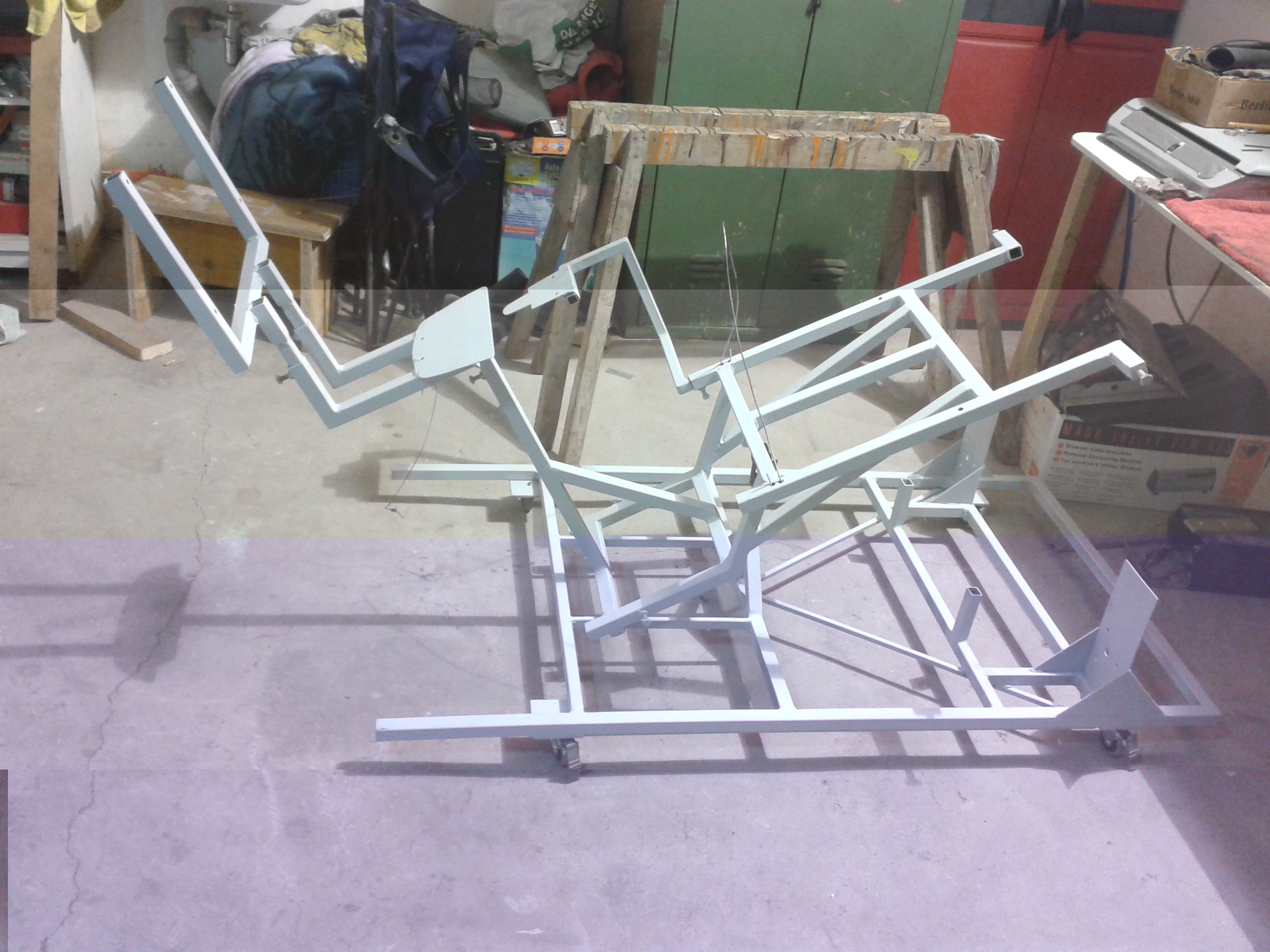

the framework is largely built with 25x25 mm pipes.
The Wiper motor´s are from a BMW E36 Limo Bj. 95
Logitech G25 for sure
So i want to show you some pic´s of the currently status:

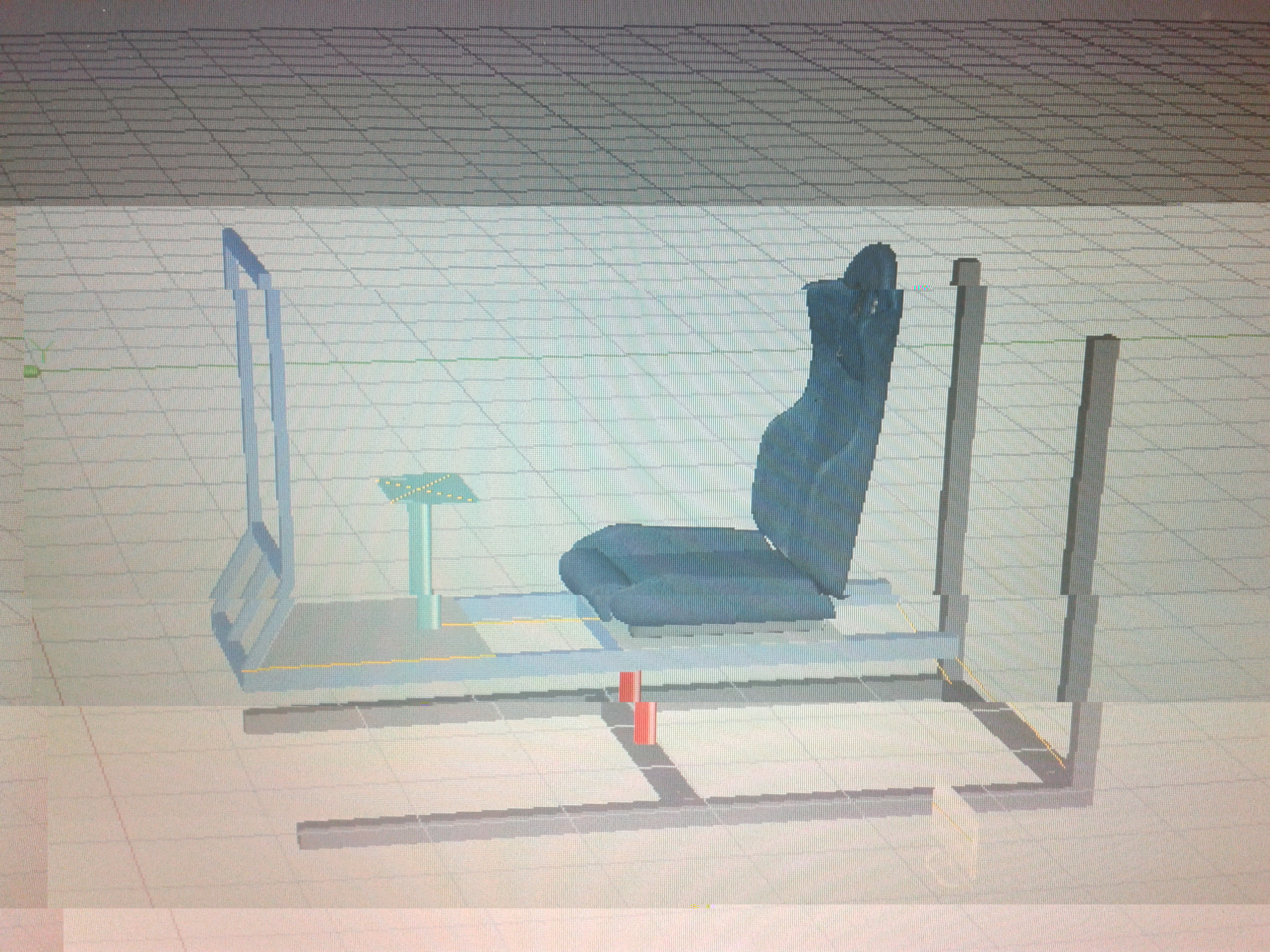

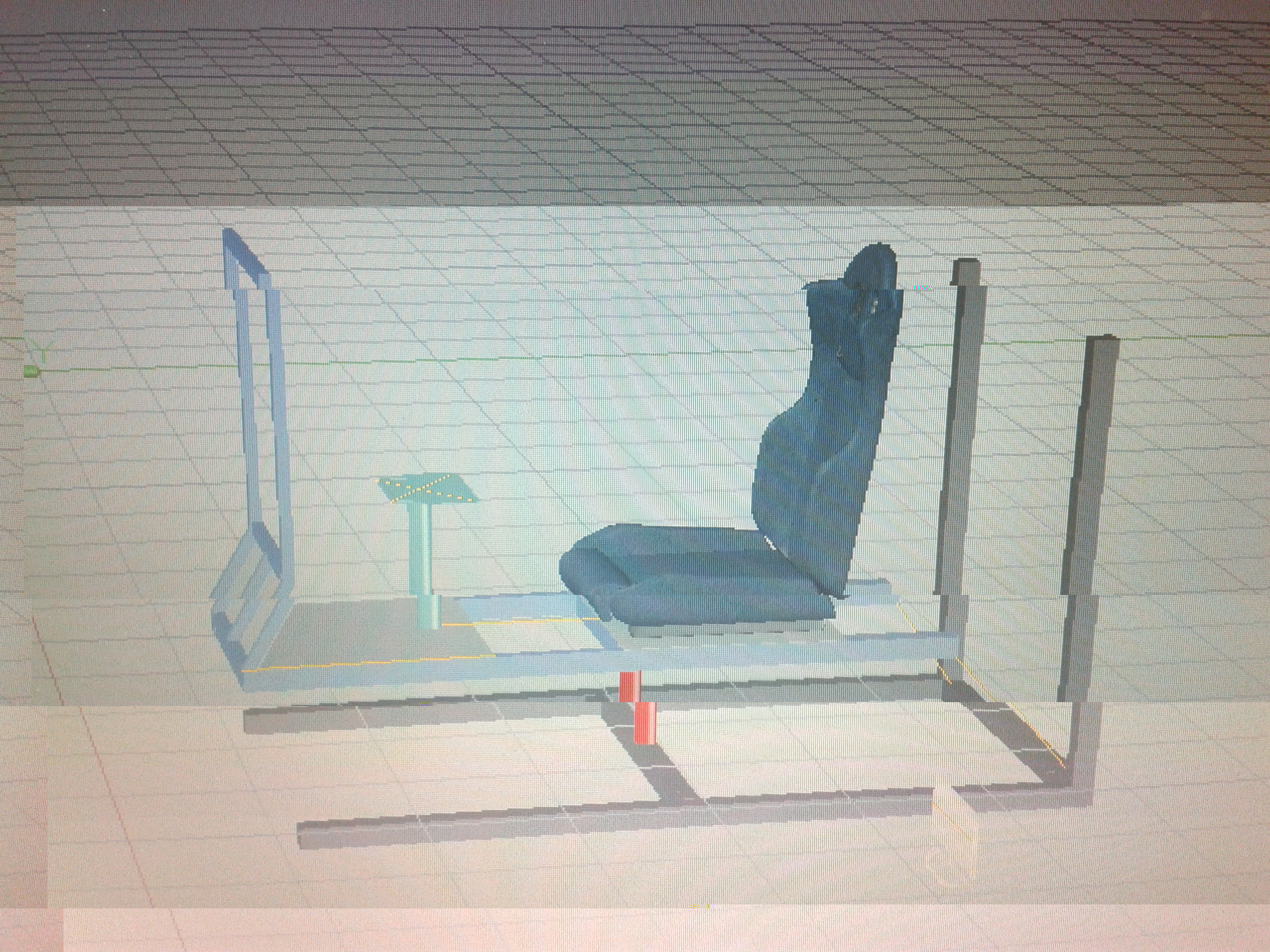

This was a useless sample drawing in ACAD.
then I realized that I should not draw, but build
Here you can see, the finished etched H-bridge

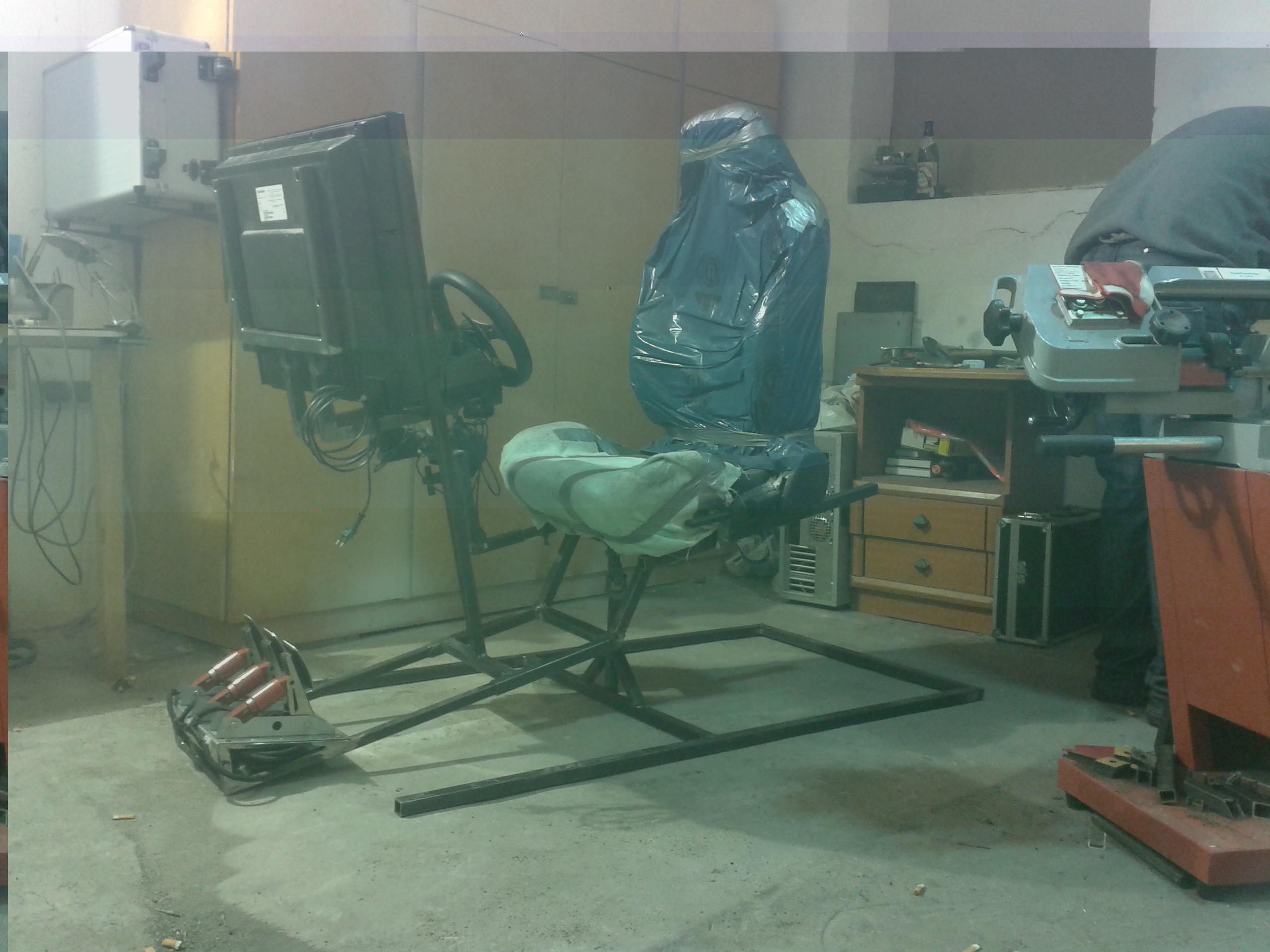

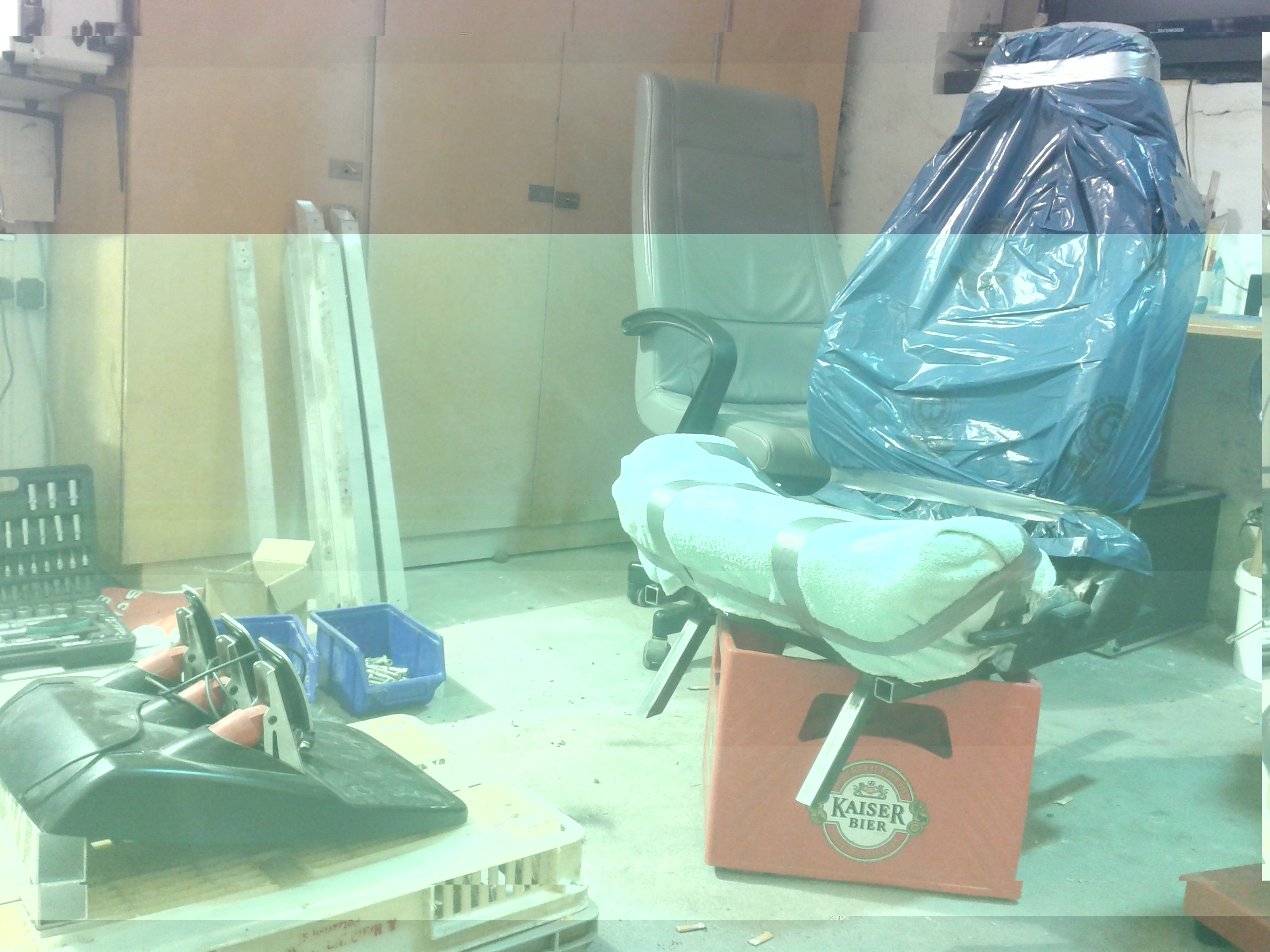

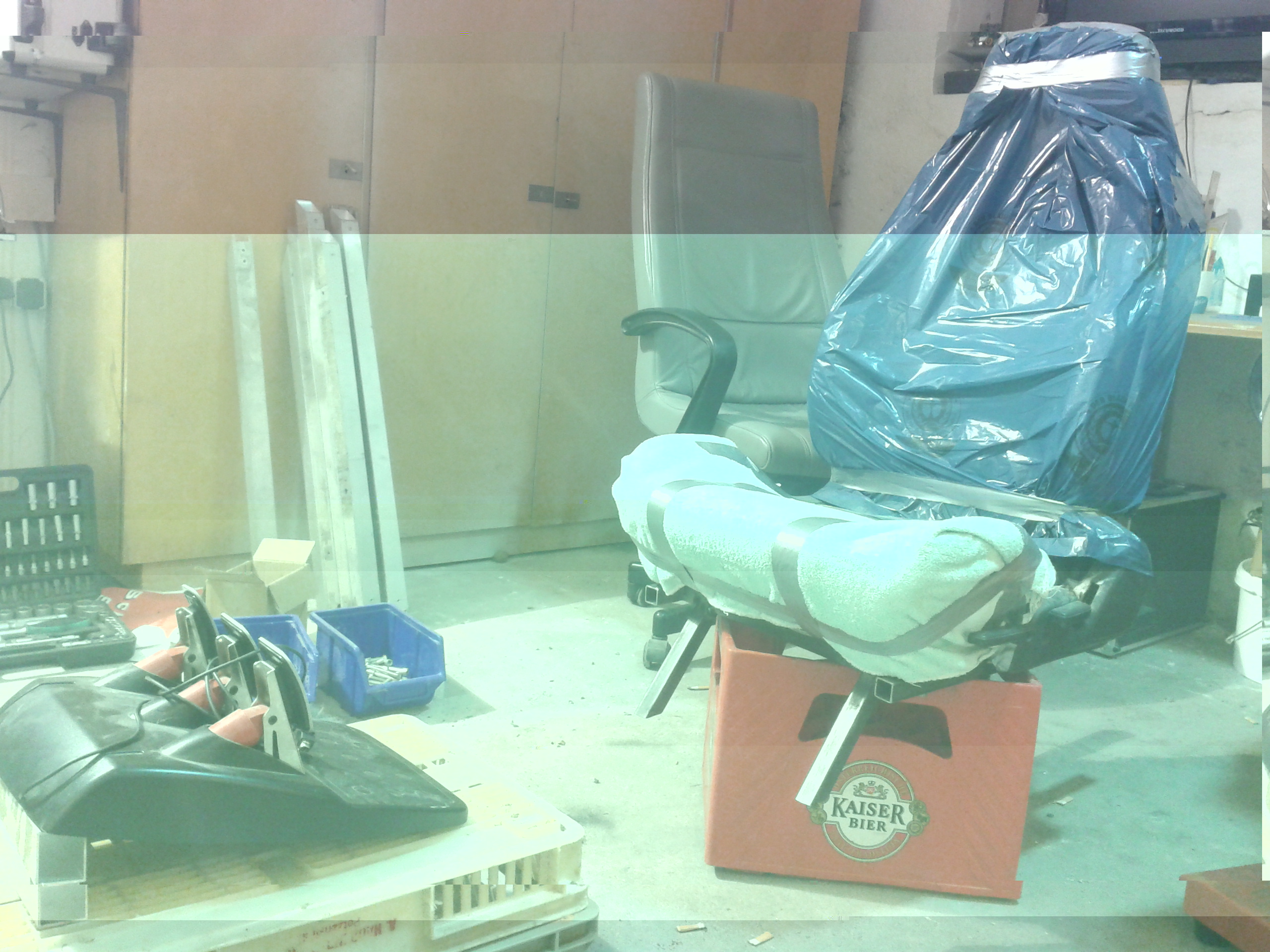

i also began to built the seat as well.
a bit try and measure

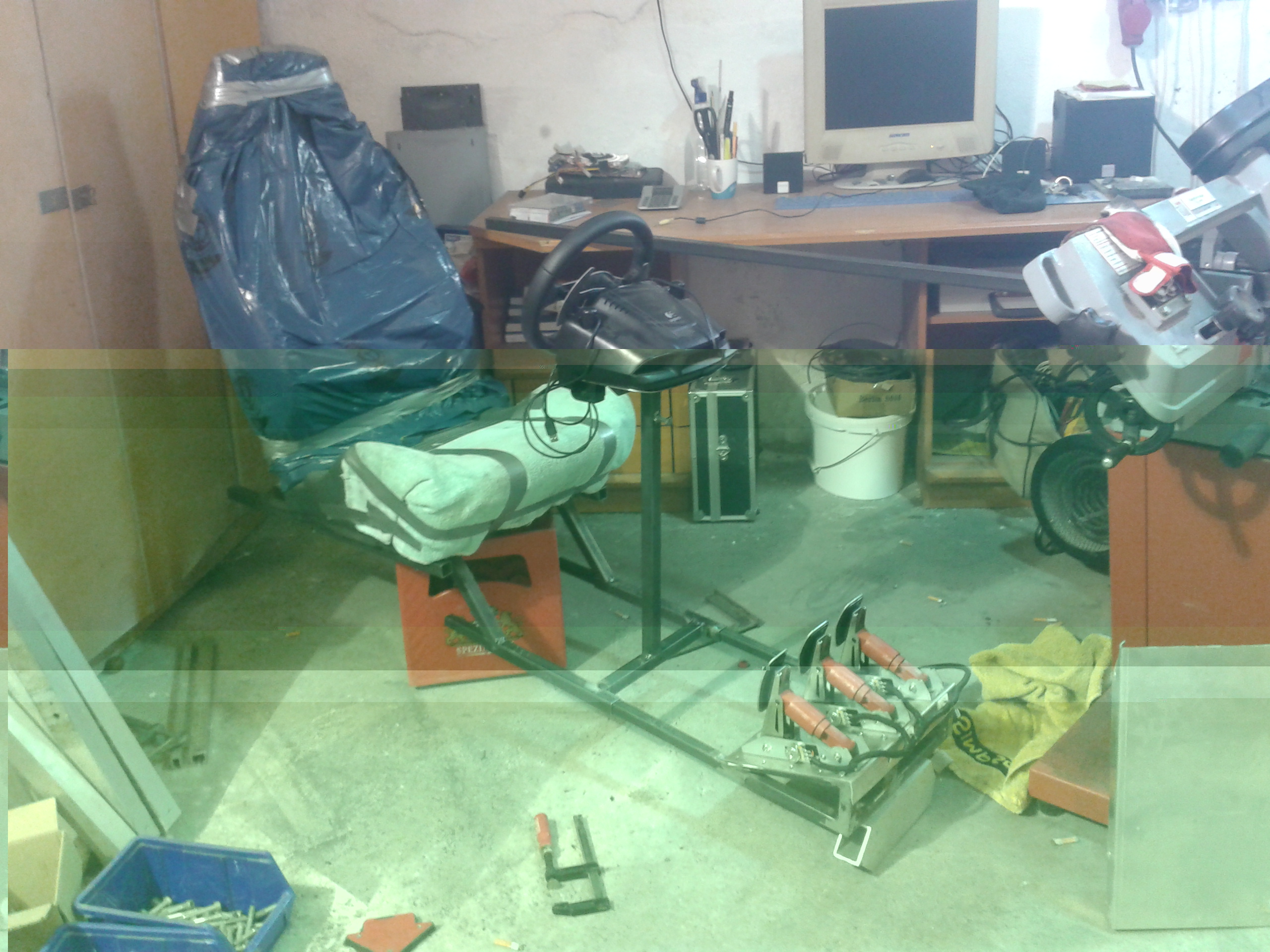

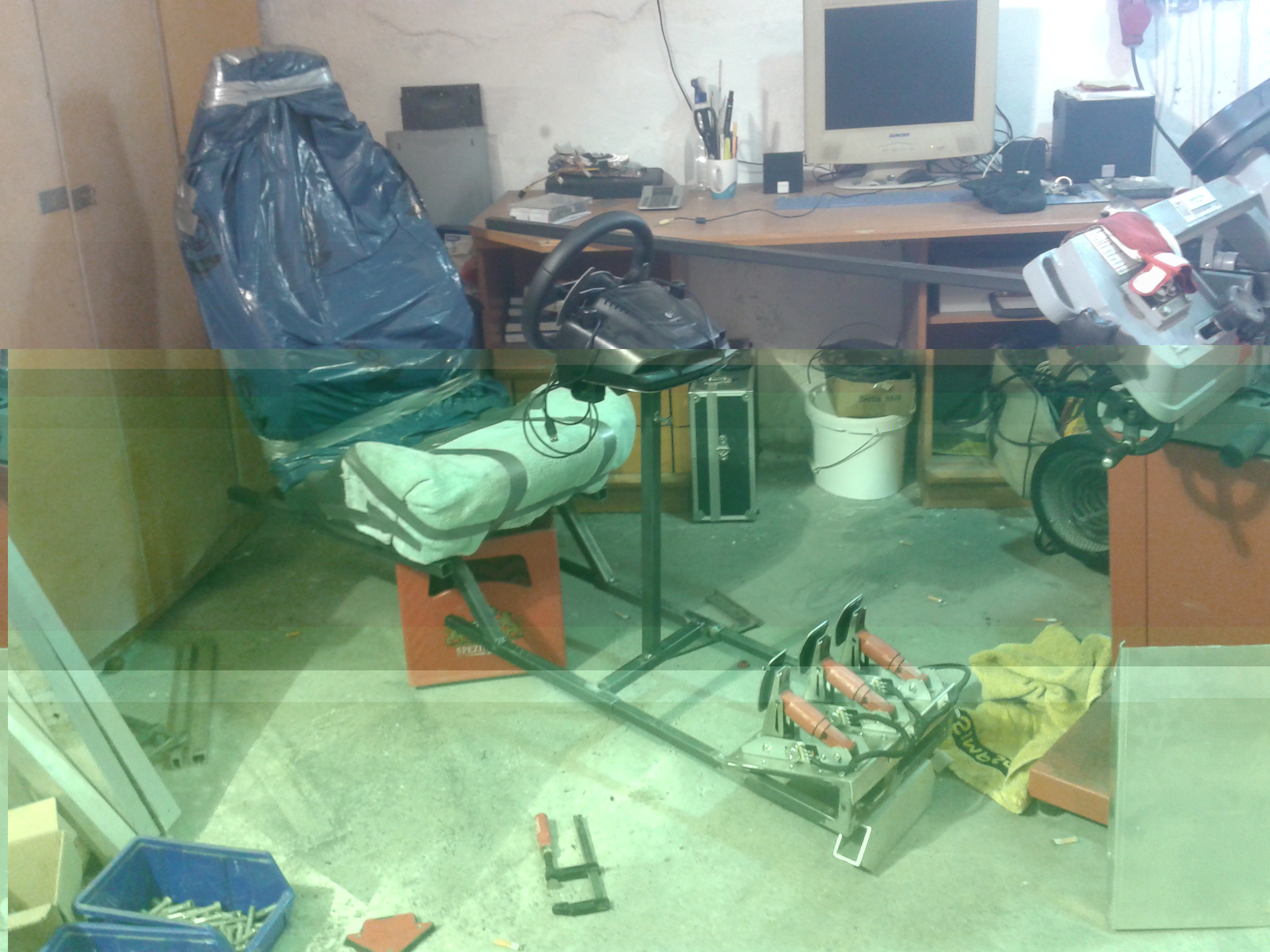

ans so it became slowly a simulator

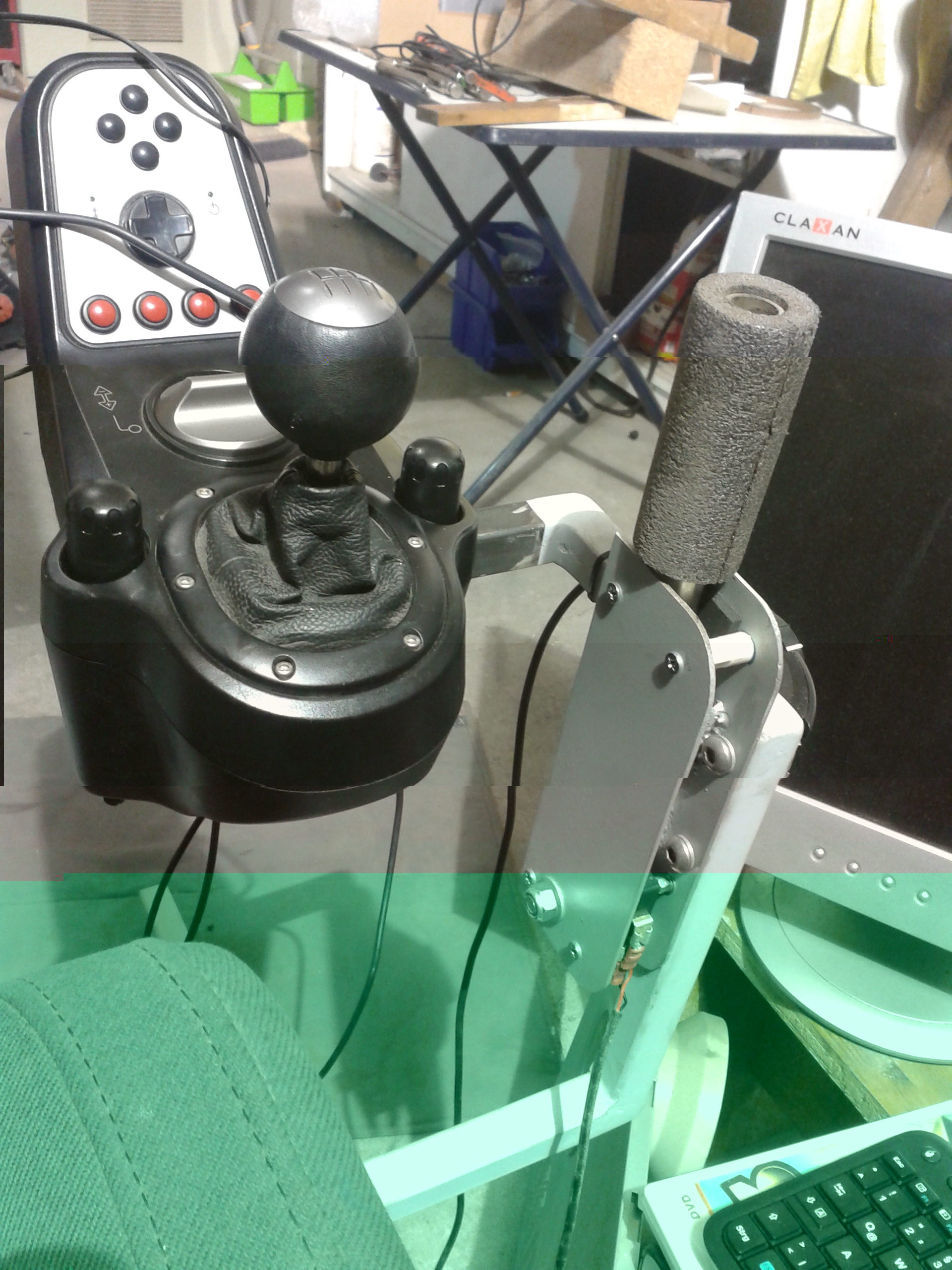

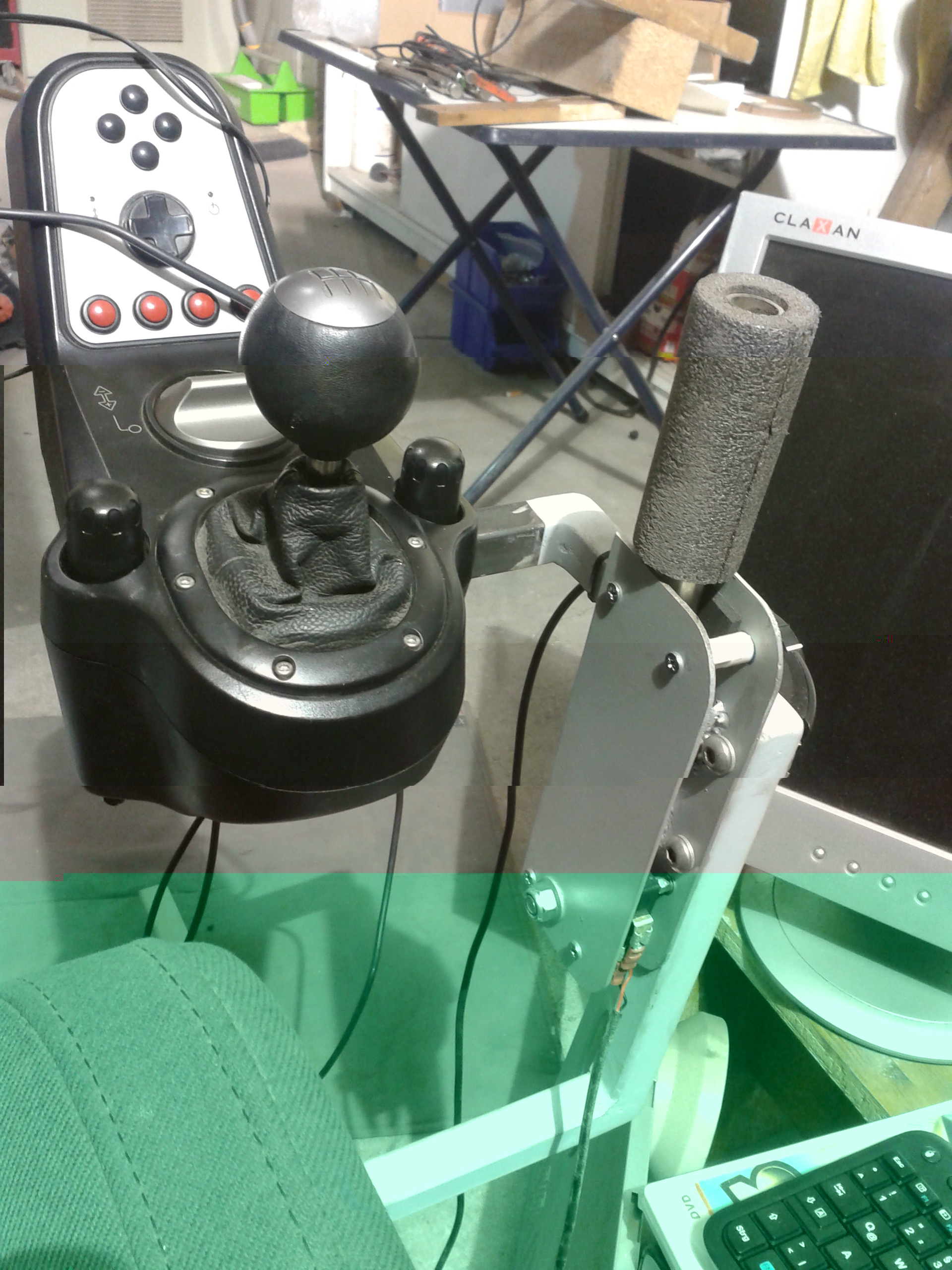

- shifter mounted

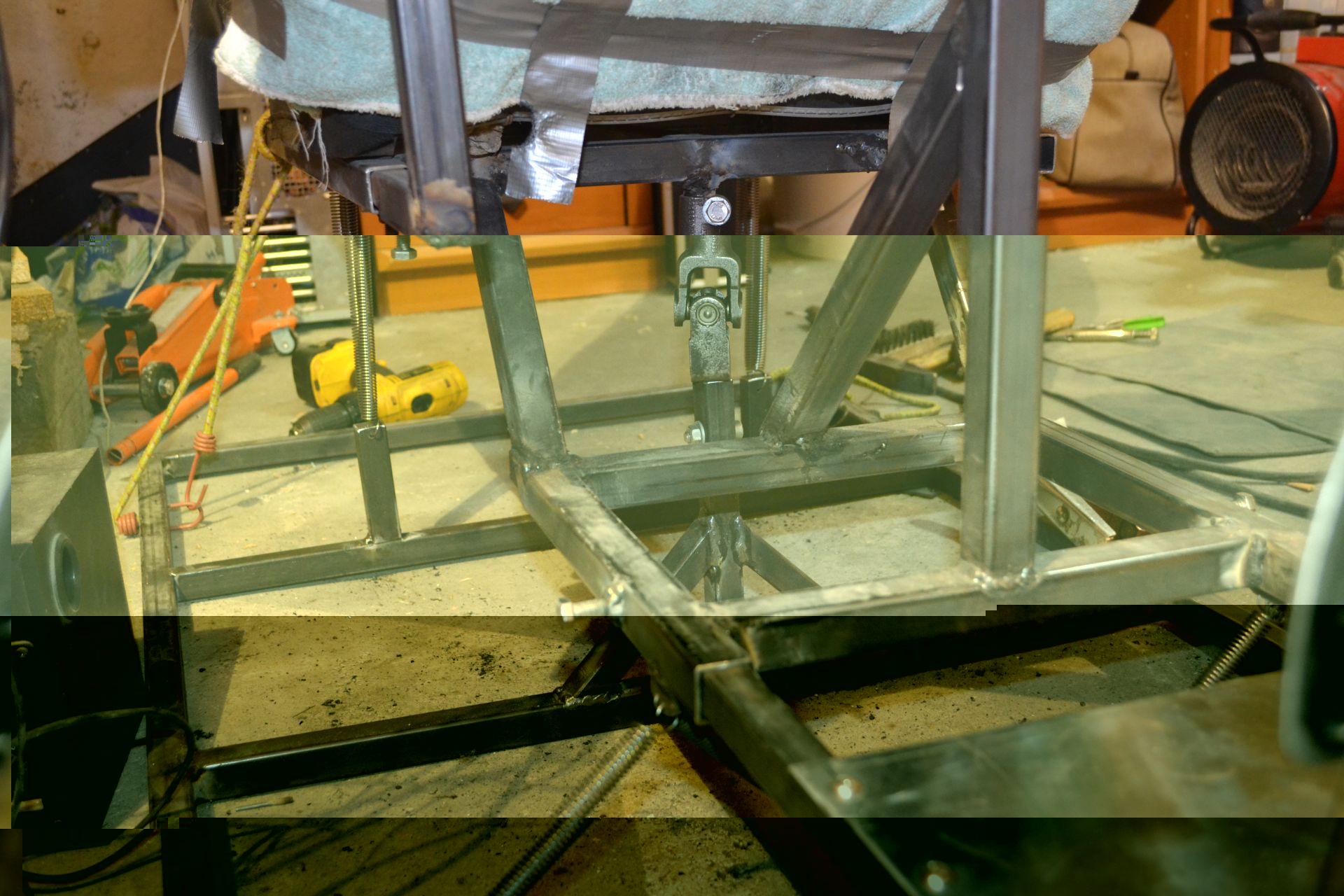

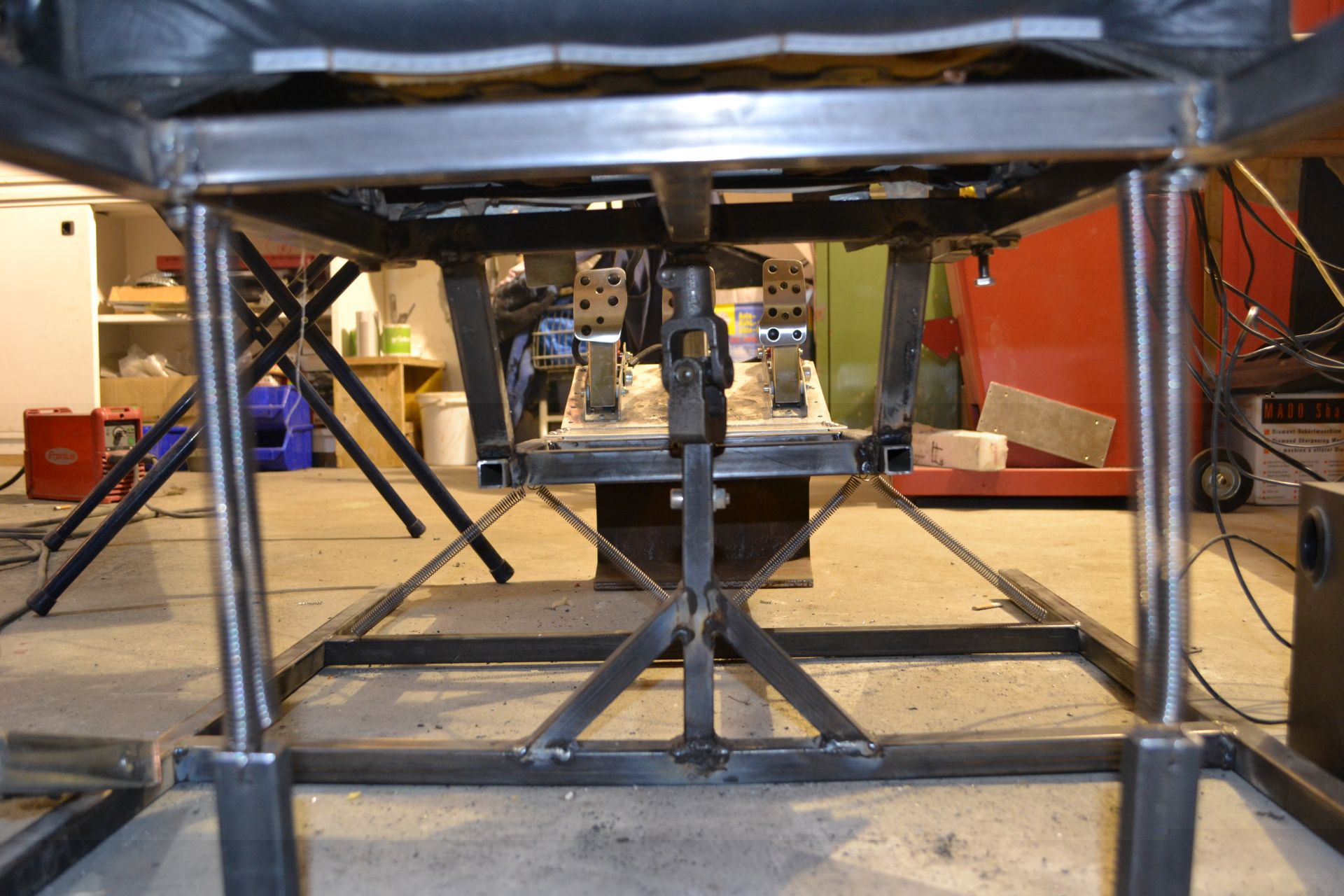

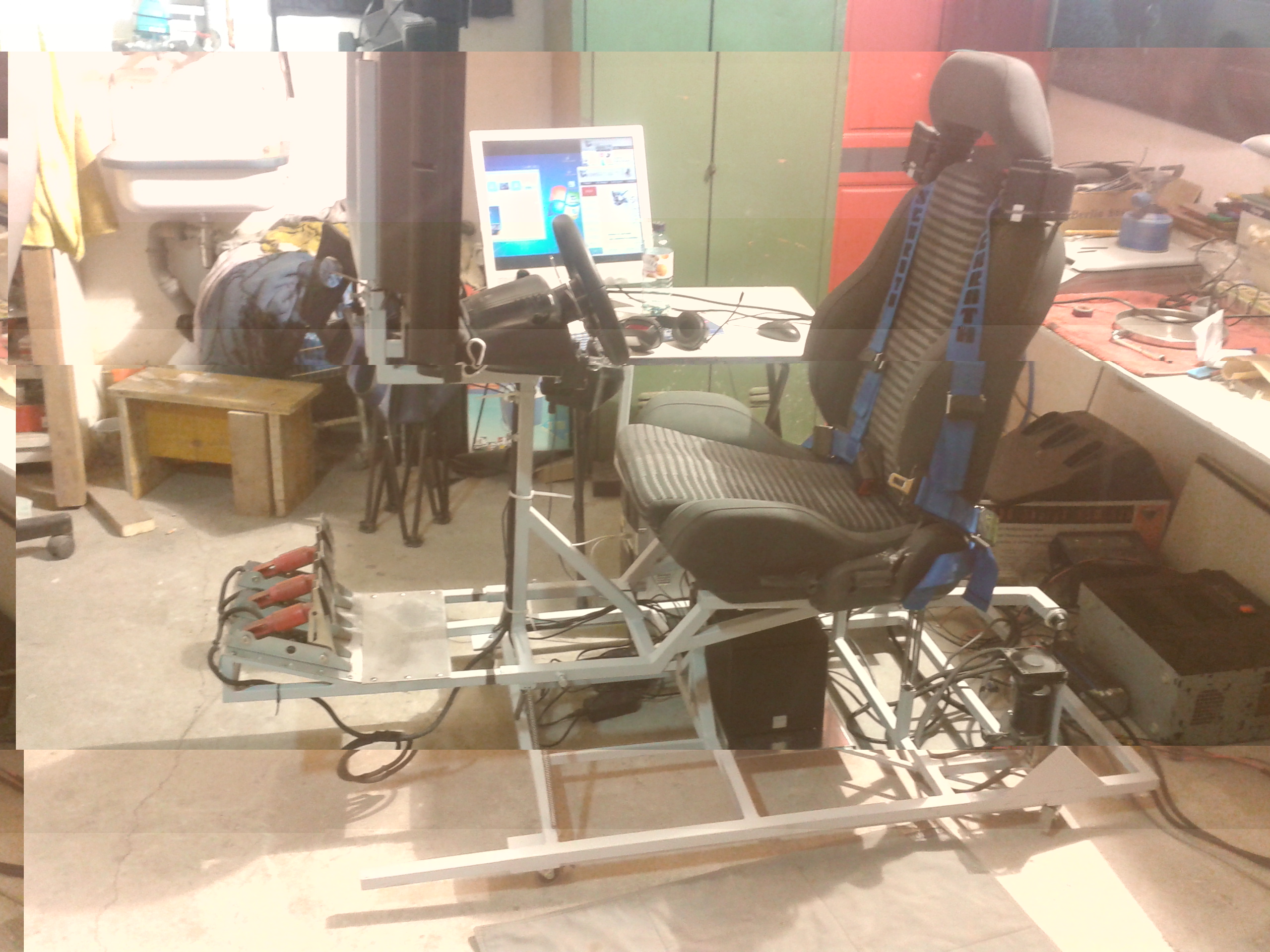

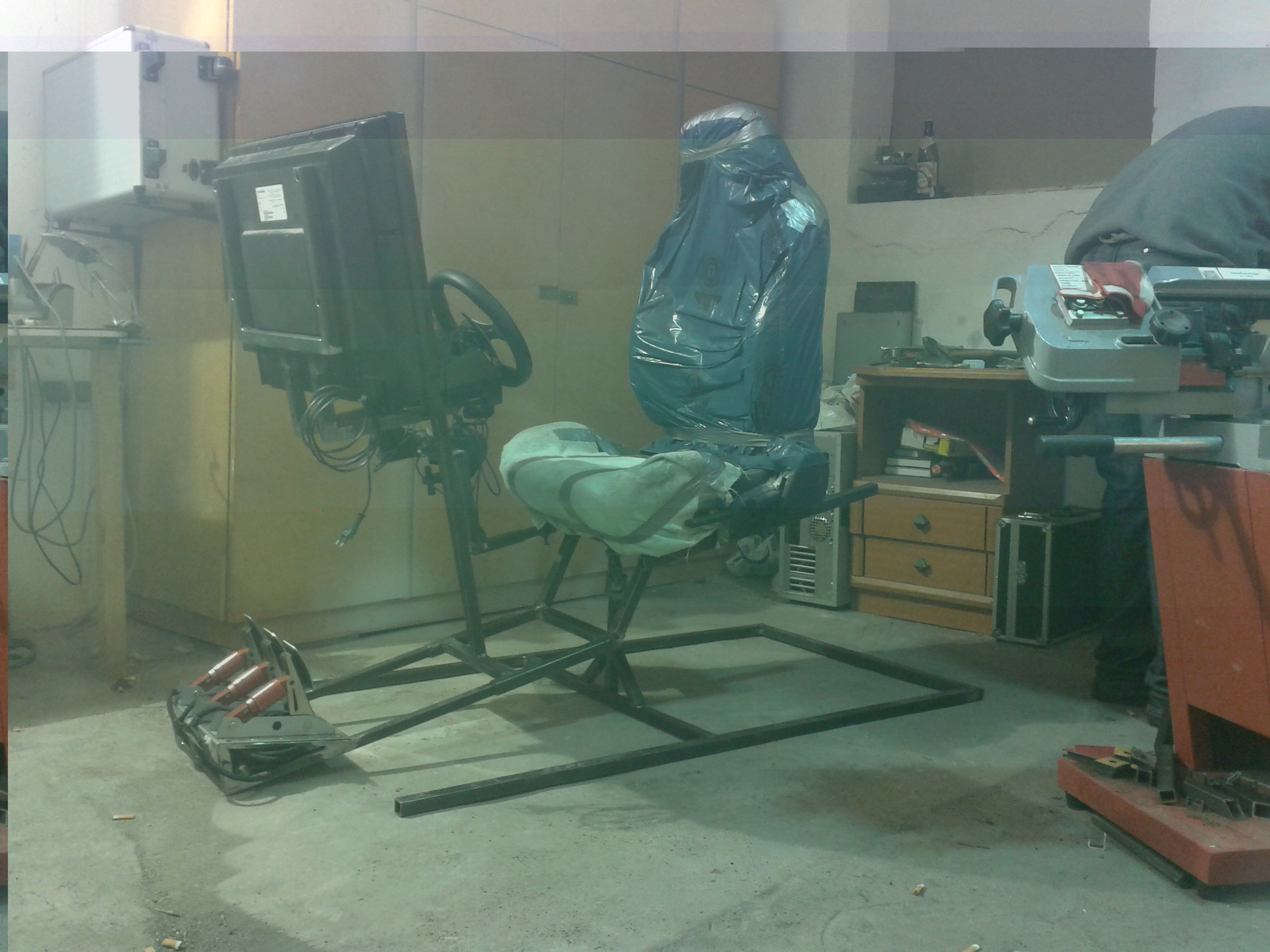

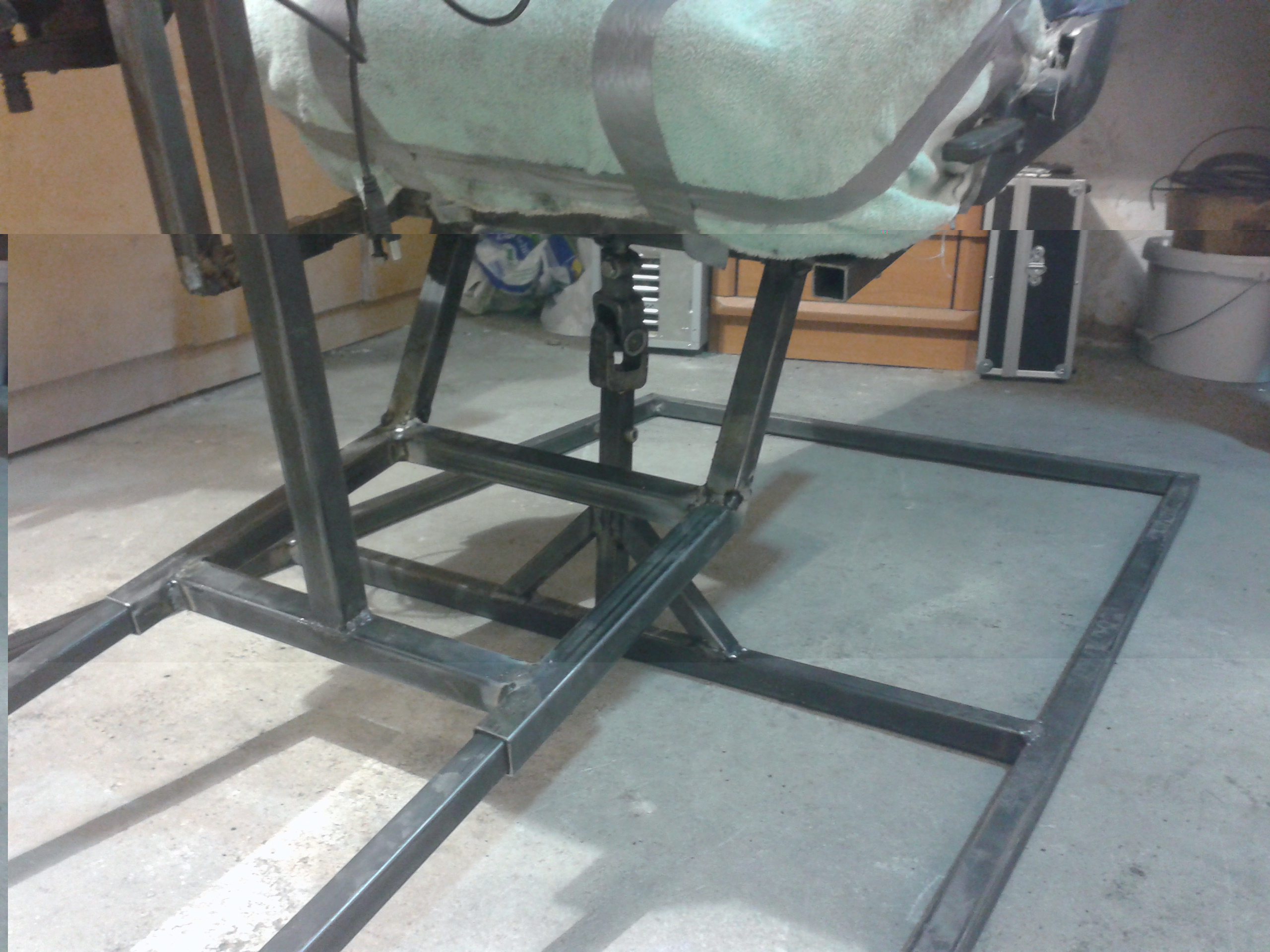

- He stands on his own feet
- the hinge
- first tests with the wiper-motor
i hope you enjoy this projekt and want to see more, i will give you some update, as soon as possible.
- so, here i´m standing on my plan
with best regards
mario
