Thanos AMC1.6 USB 2DOF Motion Controller

[vicpopo]

hi Thanos and freinds
connection as you did,finally when i connect the USB, LCD is on but i still dont have those nice black aquares
so where is my problem or mistake.
sorry for english
thank you
Hooshang

Hi Hooshang,
First if you don't try that , may be you could use the potentiometer at the bottom of the board.This potentiometer used for lcd contast or brightness .I have the same thinks and I solved it like that.
If it doesn't work you have to check the connections betwteen the board and the lcd .
Regards

[hooshang]

hi Vicpopo
it was all about that little muliiiiiiiiiiiiiiiiiiiii turn potentiometer
thank you
regards
Hooshang

[motiondave]

Hi hoosang, do you by chance have a diagram drawn up for the setup of 1.6 on breadboard?

[hooshang]

Hi hoosang, do you by chance have a diagram drawn up for the setup of 1.6 on breadboard?

thank you and No my freind

anyway as you can see i could programmed the atmega 644

2012-08-15 10.47.19.jpg (137.3 KiB) Viewed 6321 times

but still another problem
when i was adjusting the KP,as Tanos explained in the video.
start force sender and then force profiler (x-sim 2089)
and push the green start botton.LCD start to show every thing ...x-sim3 logo..kp number..
values..blub blub blub.....nonstop until i push the stop botton again and every thing goes back relax.
so what is my problem or mistake freinds
thank you & regards
Hooshang

[motiondave]

ummm..are you using 2089 or version 3006?

[hooshang]

ummm..are you using 2089 or version 3006?

i just said 2089
regards
Hooshang

[tronicgr]

2089 is outdated Beta version and there were some bugs in the USO engine sometimes.

You should try the new x-sim3 3006 and report any errors or bugs you find. Support is not provided for older versions.



Other than that you may try grounding the Crystal case in case your crystal has electric ringing due to PWM or Serial interference.

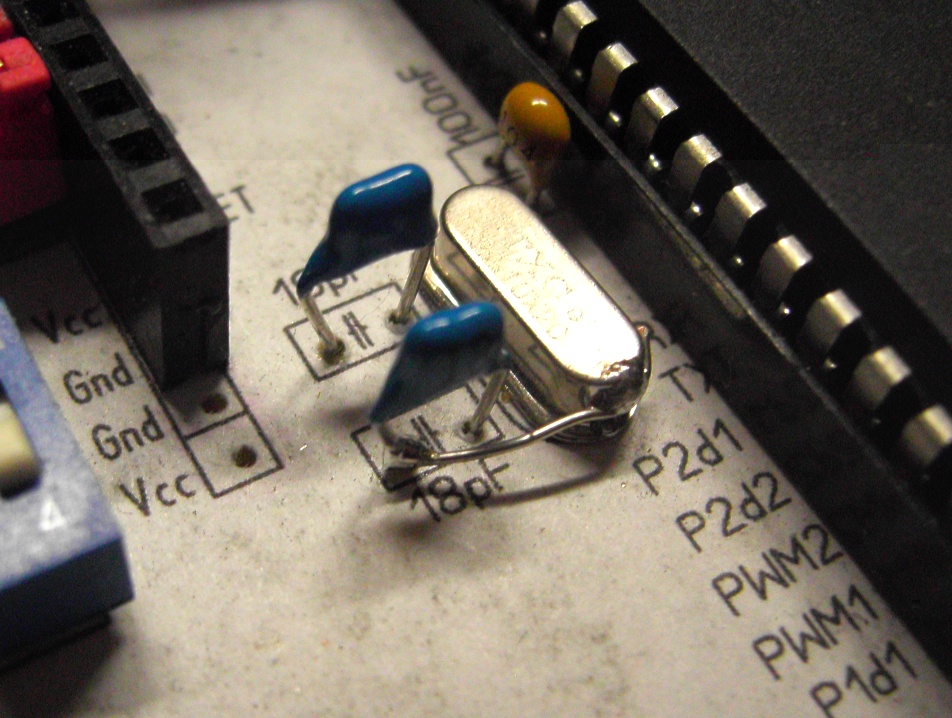

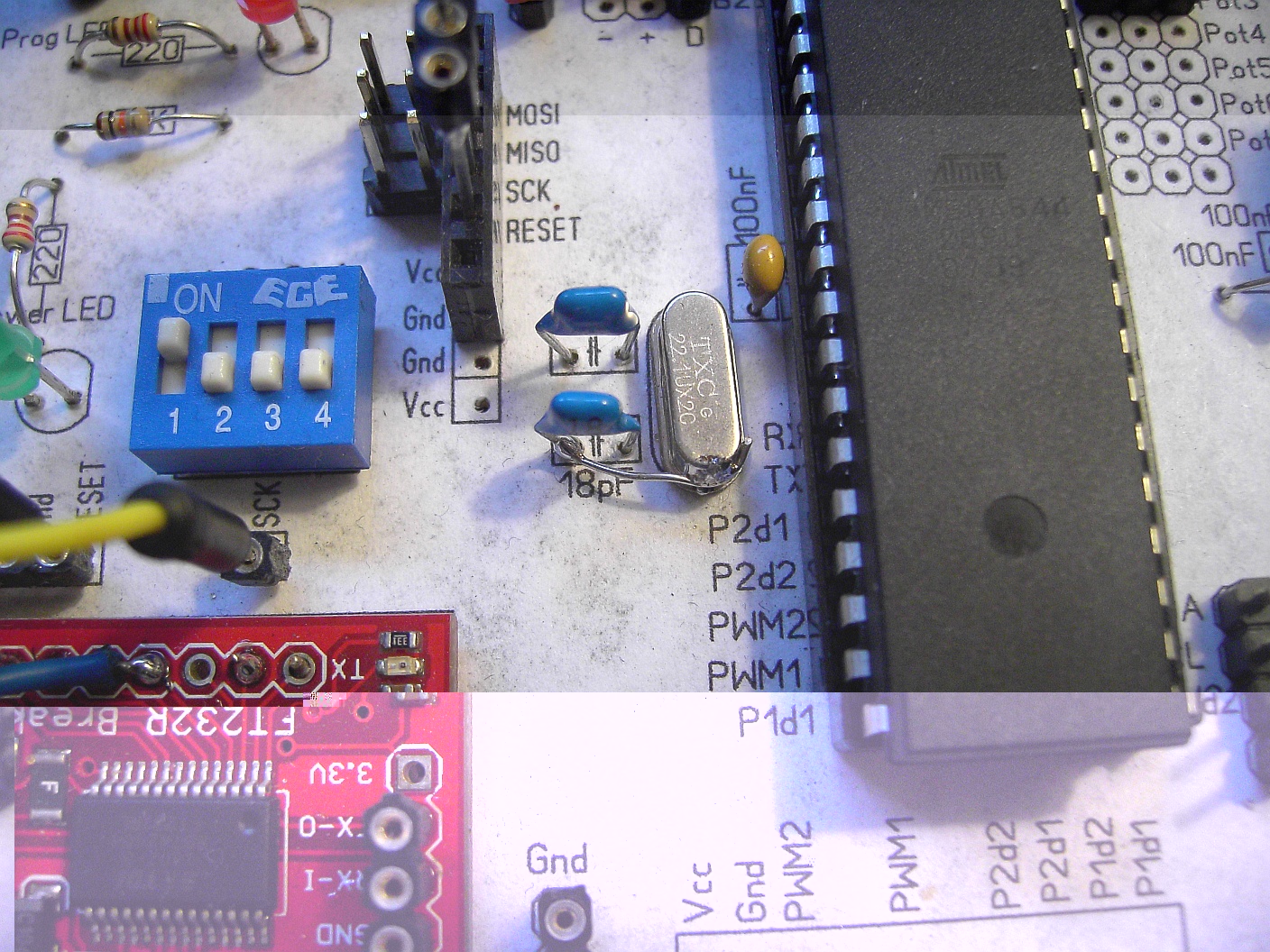

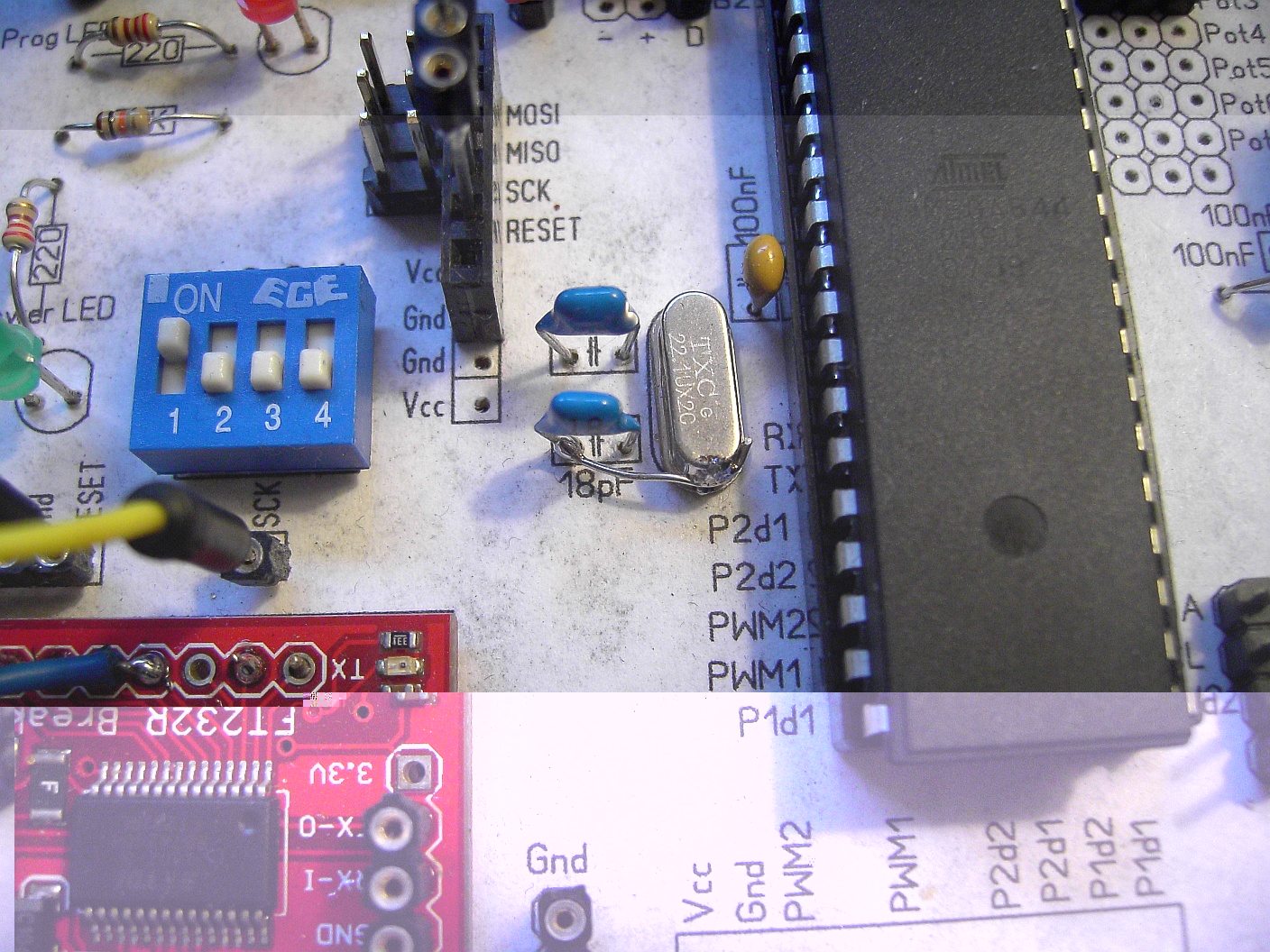

Crystal case grounding.JPG (677.14 KiB) Viewed 6315 times

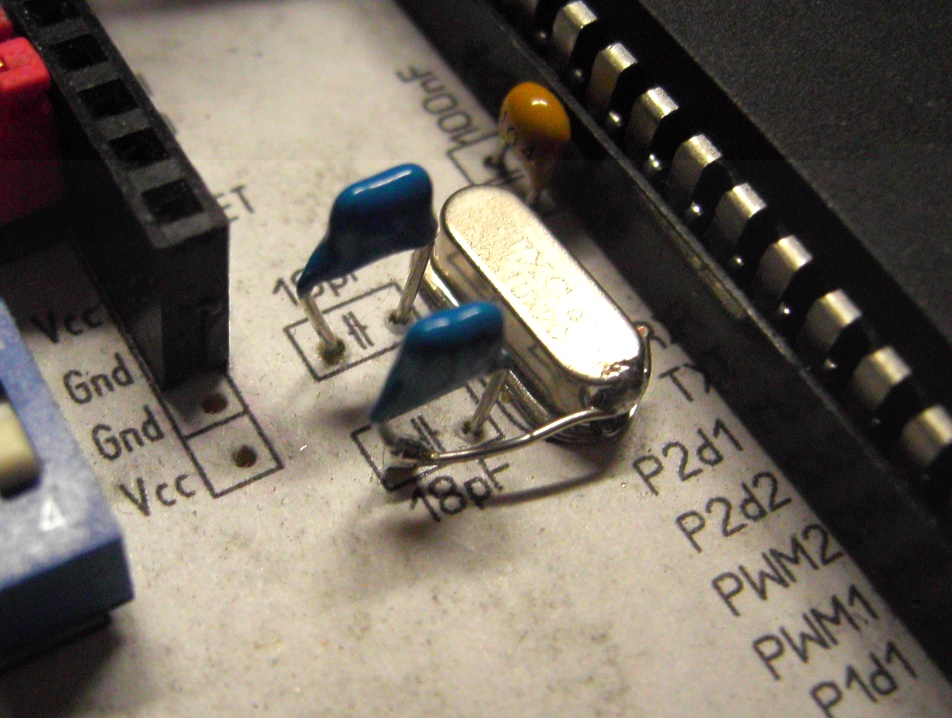

Crystal case grounding2.JPG (254.43 KiB) Viewed 6315 times

Thanos

[motiondave]

ummm..are you using 2089 or version 3006?

i just said 2089
regards
Hooshang

Sorry, I know you mention 2089 ,but you referred to x-sim3 logo. Anyway, as per Tronics instruction, best use version 3.

[hooshang]

hello & thank you freinds
grounding crystal didn't work but about x-sim version 3006,i've downloaded.
but i couldn't run it because of not finding feature key,i read somwhere
sirnoname wrote "press on top software then (terms of private usage)"

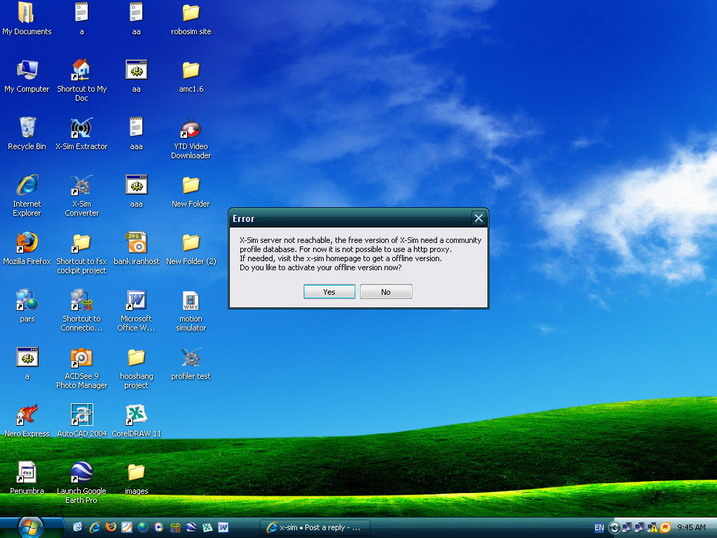

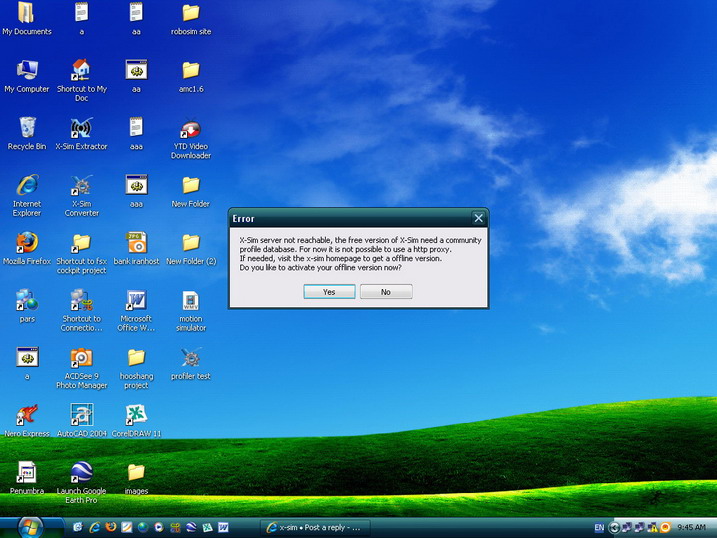

but all i have ,first is this:

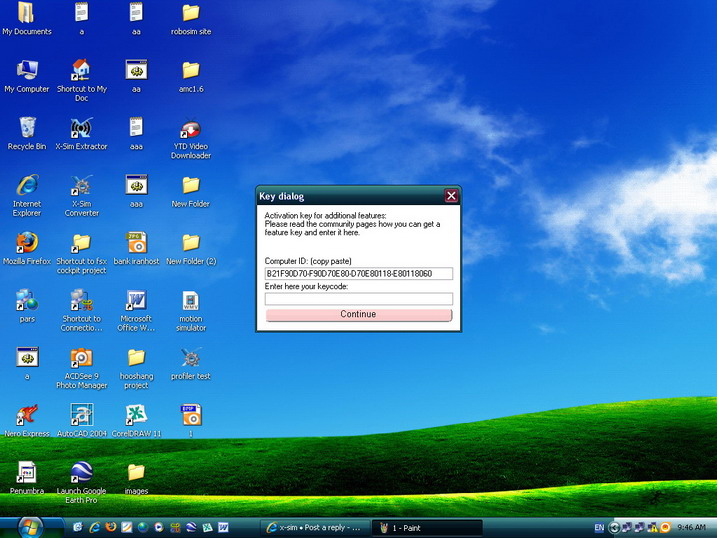

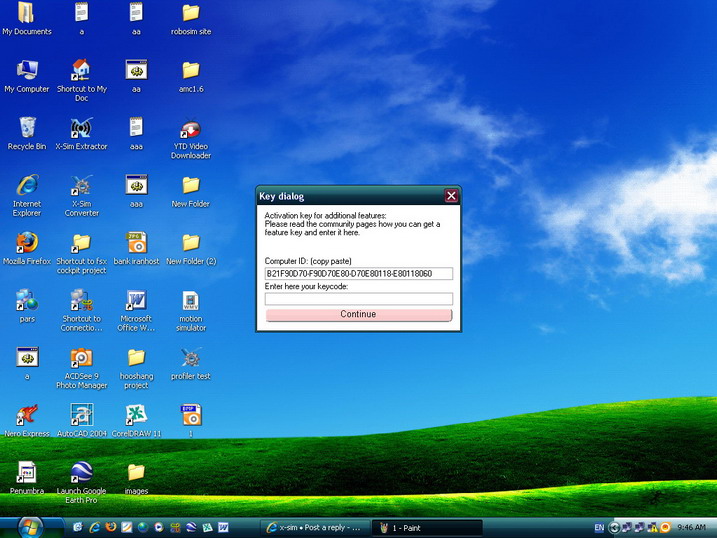

then this:


what is the procedure?
regards
Hooshang

[tronicgr]

Although it doesn't have to do anything about the AMC1.6 I'll answer your question:

You need to have the computer running the extractor connected to the internet... simple as that.


About the reset thing, you may need to clean the bottom of your board with solution to remove flux residues and then spay it with plastic protective layer to prevent rust. This is usual procedure for homemade PCBs.

Also try using bigger delay on the USO string, try with 5ms delay or 10ms. Depending on the materials you choose for the capacitors you may have a slight deflection on the crystal clock rate that is messing with the very precise uart timming.

Thanos
