Arduino Open Source X-PID firmware incl.360°option

[RafBR]

http://lojabrasilrobotics.blogspot.com. ... r7800.html
This one have the reverse pin. Its for a single motor I *
If you say it should work then im buying it:smile:

Enviado de meu A500 usando o Tapatalk 2

[sirnoname]

You must only left one pin unconnected, thats all. You can remove the not needed code if you like.
The second bridge is here at me, working good.

[Tombo]

At the first test my arduino gets broken. So i orderd a new one and it's in delivery. So i startet to reading this post again searching for my mistake. There is something i don't understand:
"For the first run you should switch both power offsets to zero (2x right for each output) and the PWM frequency to 3kHz (round buttons top right)."

Where did i find these settings?

[sirnoname]

Open the arduino plugin (does work without a arduino connected).

[RafBR]

But how it will have enough information from two potentiometers (two motors) + forward and reverse with only two pins?

Enviado de meu A500 usando o Tapatalk 2

[RacingMat]

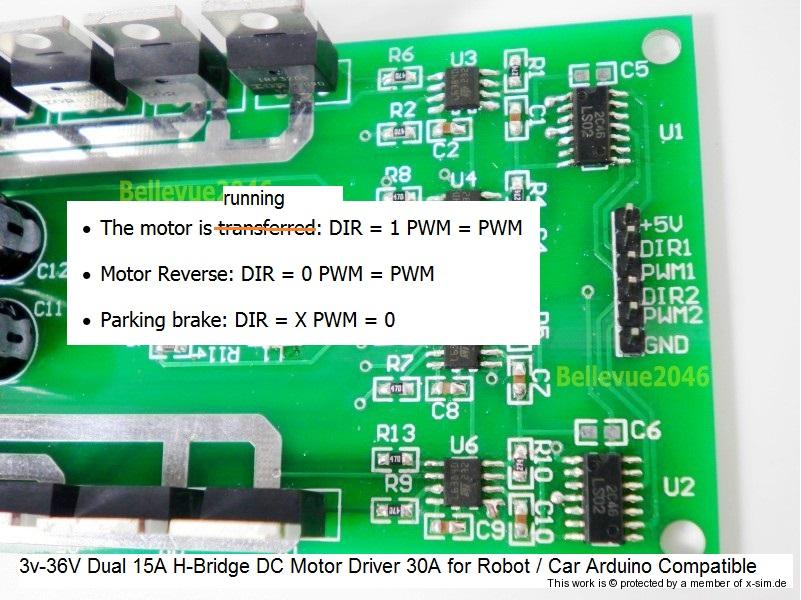

have a look on this close up view of pins :



as described on ebay http://cgi.ebay.fr/ws/eBayISAPI.dll?Vie ... 1439.l2649

The motor is runnning : DIR = 1 PWM = PWM
understand set DIR pin to high and PWN pin with a value between 1 (slow) and 255 (fast)
Motor Reverse: DIR = 0 PWM = PWM
understand set DIR pin to low and PWN pin with a value between 1 (slow) and 255 (fast)
and the motor will go reverse

Parking brake: DIR = X PWM = 0
understand whatever DIR pin is set to
if PWN pin is null = 0 then motor is braked

i'm right ? thanks for any confirmation

[sirnoname]

yes

[RafBR]

yes

Ok I understand. So dont mater if the h-bridge have one or two dir pin per motor for the available firmware?

Edit: Sorry, too silly question after re-reading whole thread again
Regards!

[Tombo]

Hi,
today i builded one test setup to test if everything works correctly. Im using wiper motors and an arduino nano with the H bridges on the first post, the 17$ ebay ones.
When i start converter and go into interface settings the pot is recognized correctly and i have setted up the min and max. position by hand. Now i power up the motors and enter a value in the set out box. My motor moves to tjis position and holds but makes a grinding noise all the time and both of the leds on h bridge for left and right are lighted. Did i have to change something in the code?

[sirnoname]

Make a screenshot of your XPID settings in X-Sim.
I think the power offset is set to non zero = always motor power for faster reactions.
