Thanos AMC1.6 USB 2DOF Motion Controller

[Senetor]

Hi Watkykj,

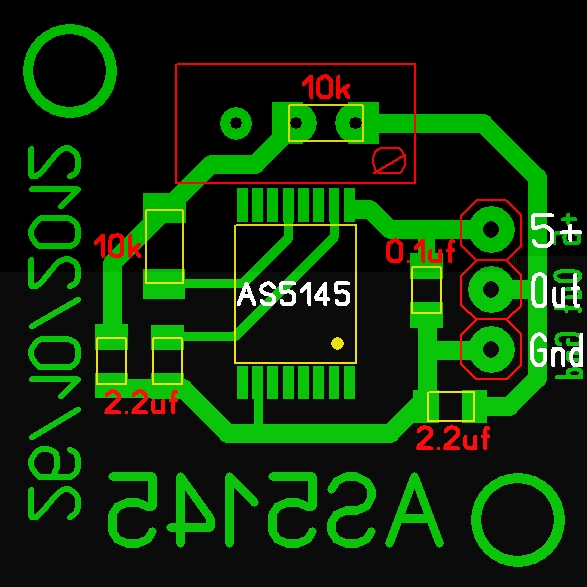

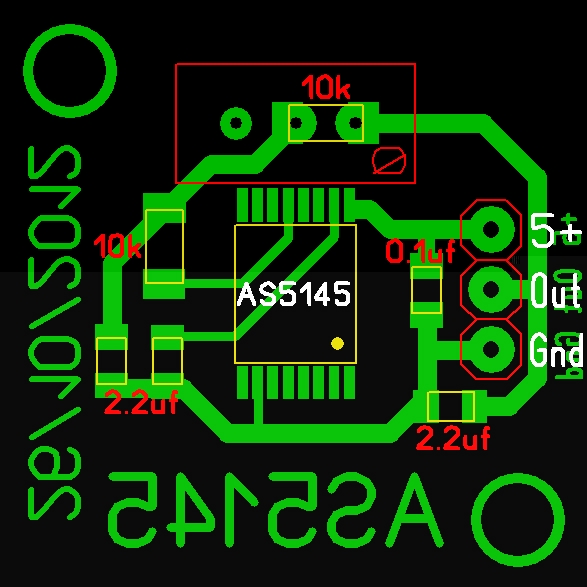

I have a pcb for the AS5145 chip, it uses 1206 smd resistors and 0805 smd capacitors. The 10k resistor can be substituted for a 10K multiturn resistor like the AMC board if you want it adjustable. The PCB is 25mm square, I also have a 20mm square version as well.
Here is the 25mm version. It is in Sprint Layout 5.0 format.


AS5145 Rotary Encoder 25mm PCB.pdf

(7.26 KiB) Downloaded 644 times

AS5145 Rotary Encoder 25mm.pdf

(456.67 KiB) Downloaded 635 times

AS5145 Rotary Encoder 25mm.rar

(8.13 KiB) Downloaded 620 times

Senetor.

[cubizme]

Hi guys !

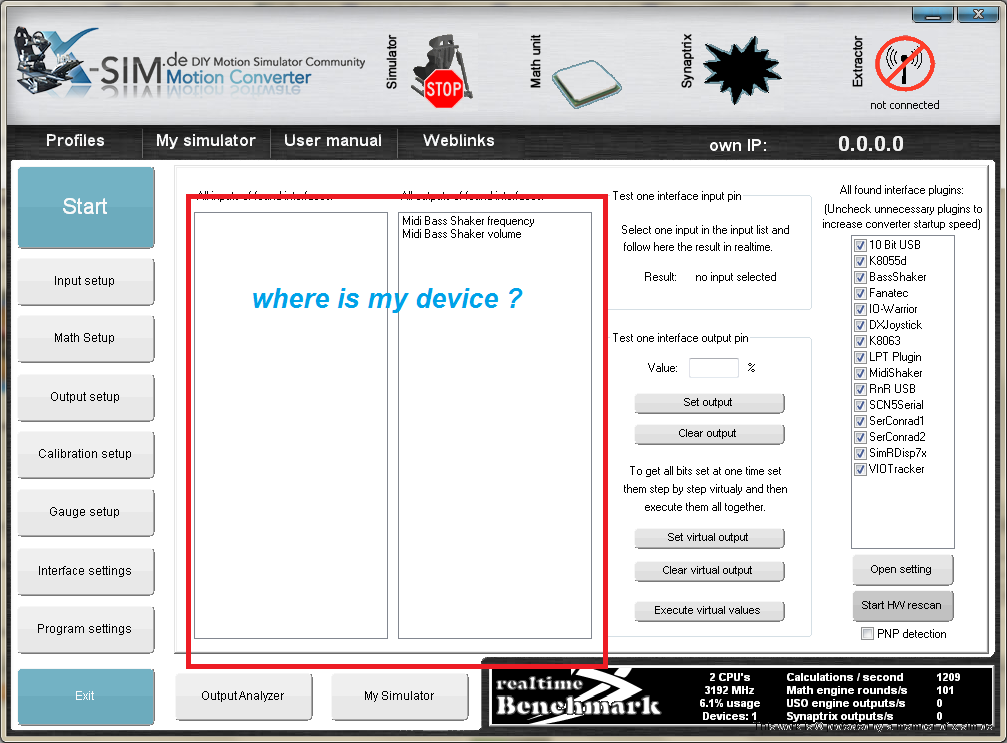

I'm Letrung and I not good about programming and electric , I have problem with AMC 1.5 ( use FT232RL ), I loaded firmware for AMC 1.5 use FT232RL, but when I connected it to PC I didn't get anything from X-Sim , " Interface settings tab" didn't display my device ???

Might you help me ?

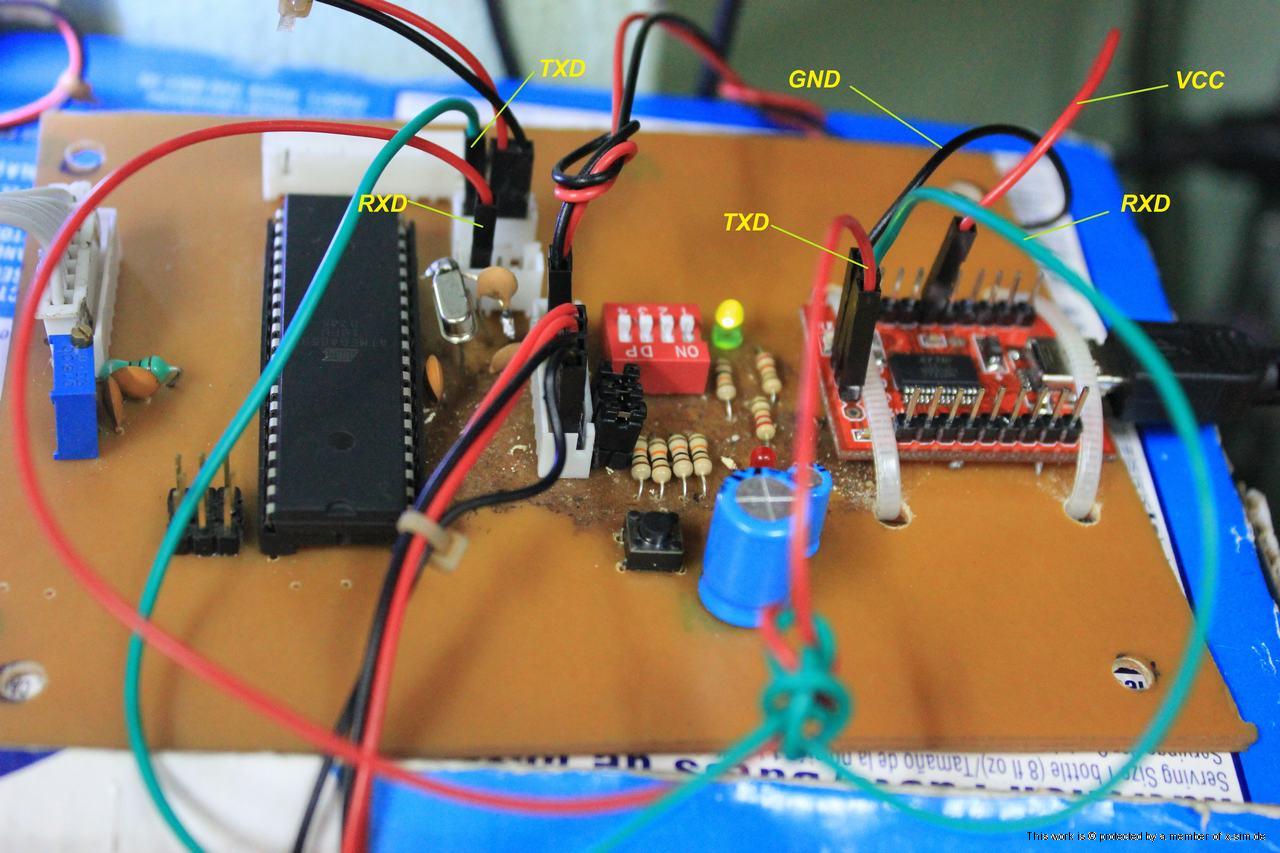

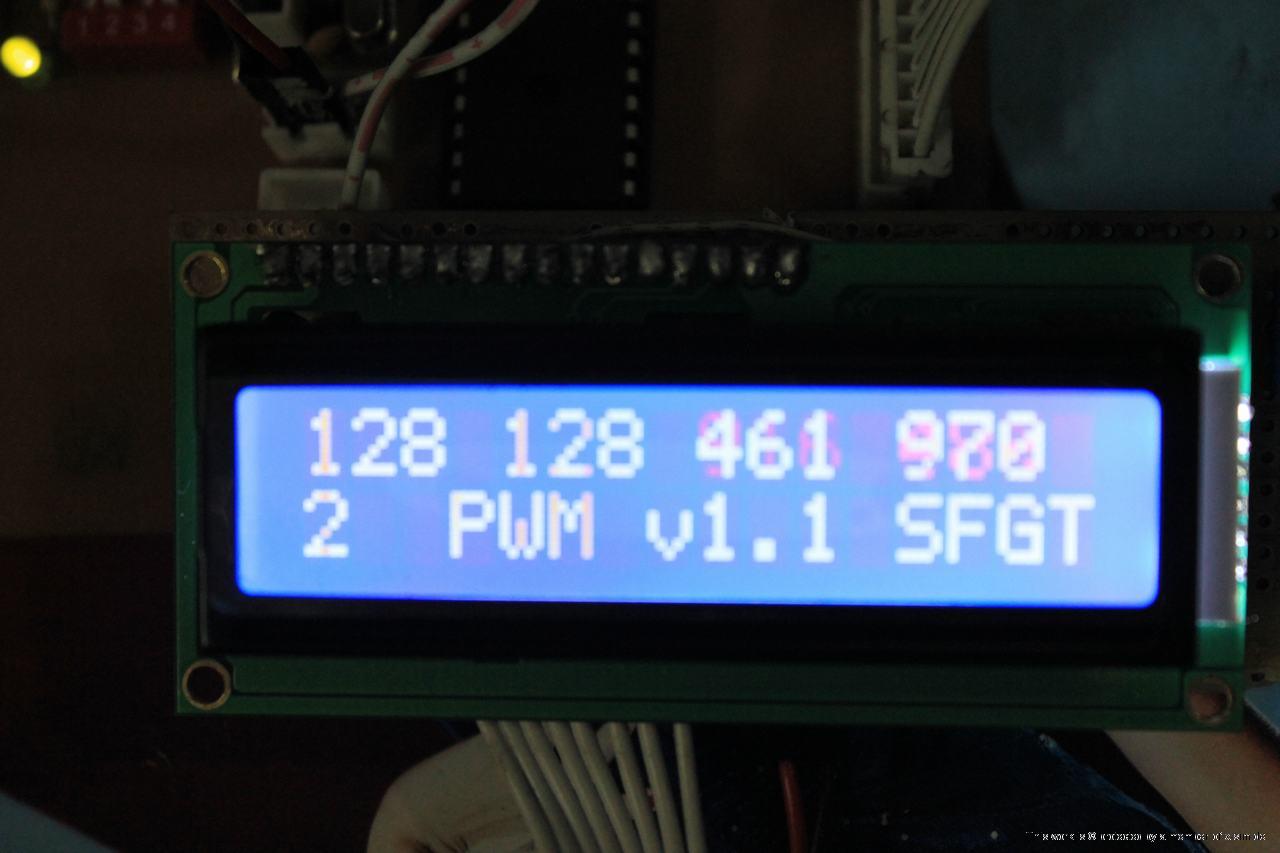

some pictures I connected FT232RL to AMC 1.5 , Did I wrong ?



sorry my bad english

Best regards,

[vicpopo]

Hi ,

You won't find your device at the place you attached the photo.You have to use the USO parser to send the data to the amc .
Look at the first page of this thread , Thanos give explaination for the string to communicate between amc and xsim.

Best Regards

[cubizme]

Hi ,

You won't find your device at the place you attached the photo.You have to use the USO parser to send the data to the amc .
Look at the first page of this thread , Thanos give explaination for the string to communicate between amc and xsim.

Best Regards

Hi,

It worked ,thanks for your tips .

Now I have a new problem, when I connected it with X-sim ( using firmware of Thanos ) , it worked for 3-4s then it restarded continously . Then I try firmware of Prilad use X-SimCTRL , It still restarded ... I using crytals 18.432Mhz for AT8535 .

Best Regards,

[vicpopo]

Hi,

I know that someone had this problem but I didn't remember how they fixed it!
Try reading previous posts in this thread or searching in x sim with keywords amc reset.

Best Regards

[cubizme]

Hi,

I know that someone had this problem but I didn't remember how they fixed it!
Try reading previous posts in this thread or searching in x sim with keywords amc reset.

Best Regards

I found that topic and I fixed , but my board still reset .
I forgot to tell you, I used 10uf/50v to replaced 10uf/16v, is it my problem ?

Best Regards

[vicpopo]

Hi ,
For the capacitor it's OK.
Did you use the last xsim release(xsim3) and not an old one(xsim2)?
Try to disabling your firewall.
Did you write the string in Uso parser exactly as Thanos written?
If someone else could help?
Best Regards

[vicpopo]

Hi Cubizme,

Open a New topic for your simulator.
In request to your questions .
How many axis did you use ? If 2 axis write the string in Uso parser as Thanos shows on the first topic page (AB-255--....)
For profile making look at the section Tutorial on xsim and the video from Motiondave.
You can have look here : http://www.x-sim.de/forum/viewtopic.php?f=83&t=305
Best Regards

[cubizme]

Hi Cubizme,

Open a New topic for your simulator.
In request to your questions .
How many axis did you use ? If 2 axis write the string in Uso parser as Thanos shows on the first topic page (AB-255--....)
For profile making look at the section Tutorial on xsim and the video from Motiondave.
You can have look here : http://www.x-sim.de/forum/viewtopic.php?f=83&t=305
Best Regards

I am very grateful to you !

Thank you, again !

Best Regards,

[Mknorr]

Hello,
I'm very new here and was wondering if anyone makes a kit or at least a pcb for this?
My apologies if this has already been answered somewhere. I could not find it.
Many thanks for any help provided.
Manfred
