Remove all comports from USO.
What is your problem?
Arduino ist detected! Does the interface setup work with setting 10%, 90% to Arduino?

Yes, the settings wokred in the interface setup.... only i think i have to invert the values because 10%
of the left motor is in the bottom and 10% of the right motor is in the top...

what i have to do after i remove all values in the uso?

Sorry for my english is that I'm using a translation program.

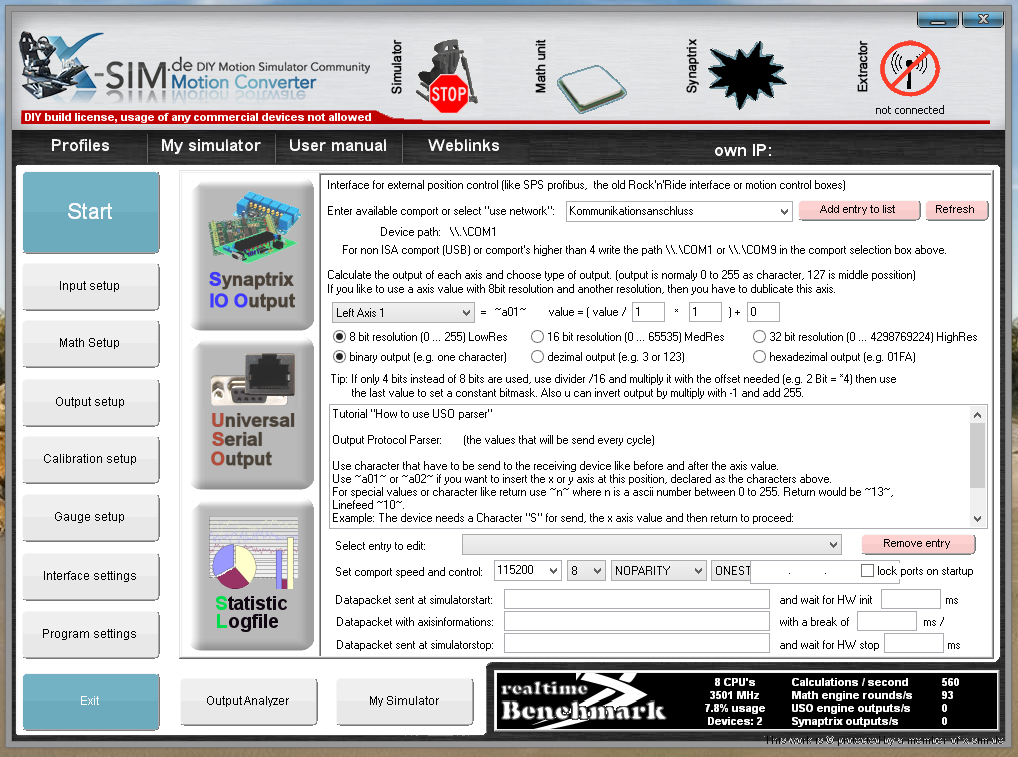

So after clearing the field configuration the "USO", do not forget the button "remove entry" you will only use the convert, the settings you have made ​​your figure as number 02 "Interface Settings" and then you go on and synaptrix assign an axis to a Xpid at least with me in converting the setup worked. After being with the settings of the "extractor" has the right to start playing.

Hope this helps

[WowaDriver]

Sorry for my english is that I'm using a translation program.

So after clearing the field configuration the "USO", do not forget the button "remove entry" you will only use the convert, the settings you have made ​​your figure as number 02 "Interface Settings" and then you go on and synaptrix assign an axis to a Xpid at least with me in converting the setup worked. After being with the settings of the "extractor" has the right to start playing.

Hope this helps

Hi, first thanks for your help!

I have cleared the fields in the USO (look at the image) and push the remove entry button... sorry, but i dont understand what to do next

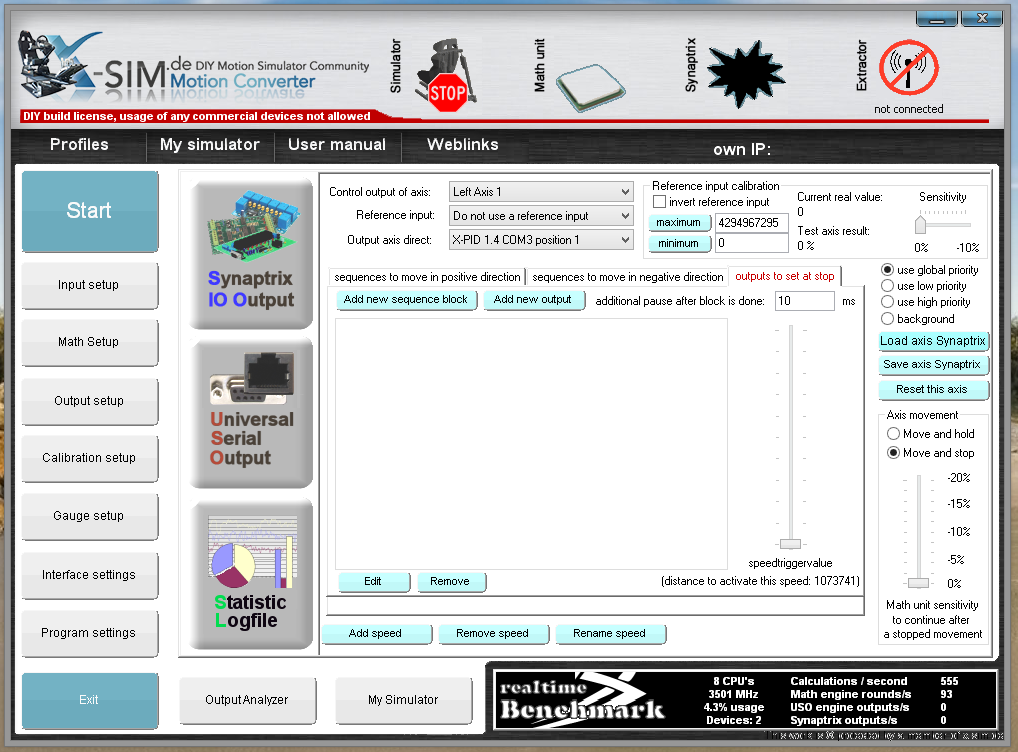

in the synaptrix... There are two axis and each of them has an "output axis direct" entry for an equal xpid position...
What are the next steps? Sorry for my kidy questions, but my experience with x-sim is at the beginning...



Big thanks for your help!

Greetz Waldemar

[WowaDriver]

hi @ all and again a big thx for all your help!

we have fixed the problem with the help of thomas mandl big thx to him!! I#m in an embarrassing situation... my blooper mistake was
that i have forgot pressing the start button in the converter
I will try to post the second part of my working log in the next days and make a video from the firt test drive!

Greetz Waldemar

[sirnoname]

again, there is no need for direct output setup. Use the setup button in the math setup and select.

This checkbox is for auto start detection, so you must not press by yourself:
http://www.x-sim.de/manual/settings.html

[sanmarcelllo]

Sirnoname, good evening!

I'm trying to build a model of a simulator 360 ° in both axes with the X-pid, but it only works with DSMHB 1.2, with the Monster Moto Shield not have any line that I should edit or add any command for the Moto Monster works with Arduino X-pid?

grateful

[sirnoname]

The code is open source, you can edit as you need.

[sanmarcelllo]

Good afternoon, friends!
I'm not able to run arduino + monster bike with x-pid, I have to make any changes in program lines?
grateful

[vallmir]

I can conect Arduino Open Source X-PID firmware incl.360 option to frequency inverter?

[brillo76]

Hello,
I have one question.
I have follow this guide, I have an arduino uno And I have put the firmware inside.
I have set the x-sim.
I don't have any motor connected to my arduino, but if I set the output value on 10% or 90% I can see the graph change.
So now, If I launch assetto corsa from x-sim extractor program it starts, but if I click button start on x-sim converter a popup appears and says "X-sim extractor not detected or not running"
The game, the arduino and the x-sim are on the same pc.
When I open the x-sim extractor It seem to connected to x-sim converter.
Sorry for my english and thanks in advance for the answers.
Brillo76.

[sirnoname]

Check if the play game button stay grey all the time you start the game.
