New!!OBD2 Com with Xsim3 and Arduino-New!!

Postby vicpopo » Thu 20. Jun 2013, 21:54

Hi Everybody,


New OBD2 code with Arduino is now available on xsim!!

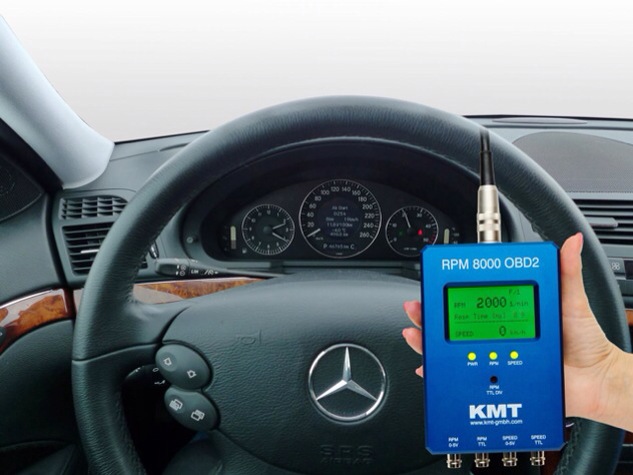

Mercedes

Small logo



Let built our dasboard using the OBD2 communication feature in Xsim3!!

Below on Youtube a video (use HD Quality) with the last code and an example on a lcd 1602 !!

it works ... and that works really great !!!




Sirnoname just finished programing the code for Arduino to use the OBD2 feature with Xsim3.

He programmed the base code for catching the data we need to display 3 infos : gear , rpm , speed (km/h).

I finished the code to display first to check the functionality with a usual lcd 16x2 lcd . With his base code and the commentaries you can choose yourself on which display you want to have informations. My goal is after to make the code to display data on tm1638 digit display like Thanos made.

Below the original code without output display.

Code: Select all
//  X-Sim Sample code for receiving OBD2 values from the extractor without using the converter
//  OBD2 is industry standard, X-Sim will additionally expand the OBD2 PID with gear and other values
//
//  Usage:
//  Arduino has to be connected to a free USB port on the computer where the extractor is running
//  Open the extractor and open the settings menu, there you have to select the OBD2 menu
//  Add now your arduino comport to the OBD2 list.
//  After closing the dialog you will see the arduino LED will be enabled which represents receiving data.
//  After closing the extractor application the LED will switch off.
//  Use this code to insert your own display code at the fitting positions
//  Copyright 2013 Martin Wiedenbauer, X-Sim.de
//
//  References:
//  http://en.wikipedia.org/wiki/OBD-II_PIDs
//  http://elmelectronics.com/DSheets/ELM327DS.pdf
//  http://www.x-sim.de


bool extractordetected=false;   //Will get updated from last positive or negative receive
int receivebuffer[20]={0};      //Receive buffer

void setup()
{
   pinMode(13, OUTPUT); //Arduino UNO LED off
   digitalWrite(13, LOW);
   Serial.begin(9600);

   //Do here stuff to init display and zero to default



}

int HexToInt(int c)
{
   if (c >= '0' && c <= '9')
   {
      return c - '0';
   }
   else if (c >= 'a' && c <= 'f')
   {
      return c - 'a' + 10;
   }
   else if (c >= 'A' && c <= 'F')
   {
      return c - 'A' + 10;
   }
   else
   {
      return -1; // getting here is bad: it means the character was invalid
   }
}

int ParseReceiveBuffer(int commandhighbyte, int commandlowbyte, int receivelength)
{
   //First character is removed of the receivebuffer string and must not be verified again
   if( receivebuffer[0]=='1' && receivebuffer[2]==commandhighbyte && receivebuffer[3]==commandlowbyte )
   {
      //Parse 2 byte values on position 5 and 6 in the buffer string
      if(receivelength==7)
      {
         int highresult=HexToInt(receivebuffer[5]);
         int lowresult =HexToInt(receivebuffer[6]);
         if(highresult==-1 || lowresult==-1){return -1;}
         return ((16*highresult) + lowresult);
      }
      //Parse 4 byte values on position 5,6,8 and 9 in the buffer string
      if(receivelength==10)
      {
         int tophighresult=HexToInt(receivebuffer[5]);
         int toplowresult =HexToInt(receivebuffer[6]);
         int highresult=HexToInt(receivebuffer[8]);
         int lowresult =HexToInt(receivebuffer[9]);
         if(tophighresult==-1 || toplowresult==-1 || highresult==-1 || lowresult==-1){return -1;}
         return ((4096*tophighresult) + (256*toplowresult) + (16*highresult) + lowresult);
      }
   }
   return -1; //Something is wrong with the returned OBD2 echo command byte
}

//This function will wait for the first character in receivetrigger and will parse the result
int ReceiveValueWithTimeout(int receivetrigger, int commandhighbyte, int commandlowbyte, int receivelength)
{
   int arduinoserialbuffer=0;
   int buffercount=-1;
   for(int z=0; z < 1500; z++) //1500ms timeout should be enough
   {
      while(Serial.available())
      {
         if(buffercount==-1)
         {
            arduinoserialbuffer = Serial.read();
            if(arduinoserialbuffer != receivetrigger) //Wait until the trigger is reached, ignore echo, first character is not in the buffer
            {
               buffercount=-1;
            }
            else
            {
               buffercount=0;
            }
         }
         else
         {
            arduinoserialbuffer = Serial.read();
            receivebuffer[buffercount]=arduinoserialbuffer;
            buffercount++;
            if(buffercount > receivelength) //buffer has now waitlen character length
            {
               return ParseReceiveBuffer(commandhighbyte, commandlowbyte, receivelength);
               buffercount=-1;
            }
         }
      }
      delay(1);
   }
   return -1;
}

void ClearReceiveBuffer()
{
    while(Serial.available())
    {
        Serial.read();
    }
}

void SendEchoDisabled() //not used here and a part of the OBD2 ELM327 specifications, as INFO
{
   //ATE0 Echo disabled
   Serial.write('A');
   Serial.write('T');
   Serial.write('E');
   Serial.write('0');
   Serial.write('\r');
}

//010c Request RPM, remember:  OBD2 RPM is ((A*256)+B)/4
int GetOBD2RpmValue()
{
   //010c
        ClearReceiveBuffer();
   Serial.write('0');
   Serial.write('1');
   Serial.write('0');
   Serial.write('c');
   Serial.write('\r');
   return ReceiveValueWithTimeout('4','0','C',10);
}

//010d Request speed in kmh
int GetOBD2SpeedValue()
{
   //010d
   ClearReceiveBuffer();
   Serial.write('0');
   Serial.write('1');
   Serial.write('0');
   Serial.write('d');
   Serial.write('\r');
   return ReceiveValueWithTimeout('4','0','D',7);
}

//01e0 Request gear number
int GetOBD2GearValue()
{
   //01e0
   ClearReceiveBuffer();
   Serial.write('0');
   Serial.write('1');
   Serial.write('e');
   Serial.write('0');
   Serial.write('\r');
   return ReceiveValueWithTimeout('4','E','0',7);
}

void loop()
{
   int speed=0;
   int rpm=0;
   int gear=GetOBD2GearValue();
   while(gear >= 0)
   {
      if(extractordetected==false)
      {
         SendEchoDisabled();   //Will cause a OK\r as answer from the extractor, ignored in this code
         extractordetected=true;
      }
      //Read all values
      gear = GetOBD2GearValue(); //Notice: offset +1 because of reverse gear
      speed= GetOBD2SpeedValue();
      rpm  = GetOBD2RpmValue();
                rpm=rpm/4 ; //remember OBD2 RPM is ((A*256)+B)/4
      if(gear!=-1 && speed!=-1 && rpm!=-1)
      {
         digitalWrite(13, HIGH); //We have connection and all values are ok, turn on the LED
         //Do here your LCD or display stuff




      }
   }
   extractordetected=false;
   digitalWrite(13, LOW); //No connection, turn off the LED

   //Do here stuff to set display to zero or default




   delay(2000); //No serial connection, poll serial port all two seconds + readtimeout until a running extractor is detected
}


The file zipped.


You will find attached the code with added code to display data on lcd 16x2.

XSimOBD2lcd16x2.zip
XSimobd2lcd16x2
(2.76 KiB) Downloaded 816 times




This is the arduino and lcd wiring schematic ( just mising the pin13 to check the data ON with the led and I connected the lcd backlight GND and 5 volts to the 2 left pin available on lcd 16x2)

Wiring diagram


EDIT 15/07/2013

Below data compiled for the dashboard showed post below with tm1638 for speed-rpm-rpmleds ,big 7 segments display for gear ,arduino nano v3

1- the components , wiring diagram are in the Thanos post ,link below:

http://www.x-sim.de/forum/viewtopic.php?f=40&t=155&start=30#p5726

Don't use the arduino code in the zip file because it 's valid for uso parser communication not obd2.

2-the code for arduino is here , post below :

http://www.x-sim.de/forum/viewtopic.php?f=40&t=1083#p9052

3-the result with this code is post below :

http://www.x-sim.de/forum/viewtopic.php?f=40&t=1083#p9022

EDIT 16/07/2013

You can find attached a new code with the avaibility to setup correctly the rpm max to fit correctly the rpmleds flashing at gear shift.

How to do this :

the rightmost button increase the rpm with 200 rpm pitch[/s]
the for for rightmost button decrease the rpm with 200 rpm pitch

edit 6/10/2013 : I changed the code with Mreiner code.When the car still at neutral pusch the throttle to the max when pushing in the same time the right most button.The new rpmmax is stored and the gear shift change blinks at rpmmax-300 rpm (you can change this value )

OBD2_TM1638_ledv12setrpm.zip
obd2setrpm
(4.2 KiB) Downloaded 547 times


Edit 29/04/2014 , I updated the code to display the speed up to 255 km/h . The pid not elm complient is E9.Below the code updated

OBD2_TM1638_ledv12setrpmxsimspeedup255.zip
speed up 255km/h
(4.28 KiB) Downloaded 585 times



The video is processing to upload on Youtube.Coming soon! ;)



Many thanks to Sirnoname to program the code and share it to the whole xsim community. ;)

Enjoy using it !!!
User avatar
vicpopo

Posts: 645
Joined: Fri 20. Apr 2012, 18:04
Location: Strasbourg France
Has thanked: 39 times
Been thanked: 79 times

Re: New!!OBD2 Com with Xsim3 and Arduino-New!!

Postby prodigy » Thu 20. Jun 2013, 22:46

User avatar
prodigy
X-Sim Supporter

Posts: 274
Images: 42
Joined: Tue 16. Oct 2012, 12:32
Location: Pula, Croatia
Has thanked: 20 times
Been thanked: 21 times

Re: New!!OBD2 Com with Xsim3 and Arduino-New!!

Postby vicpopo » Fri 12. Jul 2013, 00:45

Hi ,

After many ,many tries and hours spent I just achieved to use the digital dashboard with all features like made before with Thanos processing with uso parser.
The digital dashboard works well.I added ,when xsim extractor not launched ,the possibility to adjust the rpm with tm1638 buttons.When pushing the rightmost button that increases the nominal rpmmax (set to 10000) with 200 rpm more and the for rightmost button that decreases the rmpmax value with 200 rpm.
It's not perfect because I have to exit from the game and extractor to adjust this value , but it's a quiet better like using arduino SW to change rmpmax values .
I suppose that I could do the same when extractor launched.
For a great result I adjusted the rmpmax which drives the leds lower with 1000 rpm than the max value in the game.
Exemple : game max rpm with a car 10800 , set rmpmax in arduino program 9800 .

The video :



I made an another program just to change the gear shift with leds .I prefer this one to the one above.



I will share the code obviously !
User avatar
vicpopo

Posts: 645
Joined: Fri 20. Apr 2012, 18:04
Location: Strasbourg France
Has thanked: 39 times
Been thanked: 79 times

Re: New!!OBD2 Com with Xsim3 and Arduino-New!!

Postby vicpopo » Fri 12. Jul 2013, 23:00

Hi ,

You can find attached the code for the tm1638 display and the big 7 segments display for gear.I made the modification to display the leds for gear shift as descrided above.If you just have a TM1638 without 7 segments display this code works too.


for the complete wiring diagram you can find the file on Thanos tm1638 thread here :

http://www.x-sim.de/forum/viewtopic.php?f=40&t=155&start=30#p5726

Edit 16/07:

I removed the code because it was updated.The new one is above at the end of first topic.

Enjoy !!
User avatar
vicpopo

Posts: 645
Joined: Fri 20. Apr 2012, 18:04
Location: Strasbourg France
Has thanked: 39 times
Been thanked: 79 times

Re: New!!OBD2 Com with Xsim3 and Arduino-New!!

Postby tronicgr » Fri 12. Jul 2013, 23:15

Very good Gilles!!! Well done! 8-)

What is the refresh speed of the data? It looks kind slow but I assume that is because of the OBDII interface. I get almost the same slow refresh rates from my car to my smartphone (torque).

I mean maybe we can change the ODB protocol used to get faster updates...
ISO 14230 KWP2000 / ISO 9141-2 = serial data rate of 10.4 kBaud
SAE J1850 VPW / SAE J1850 PWM = serial data rate of 41.6 kB/sec

http://en.wikipedia.org/wiki/On-board_diagnostics


Thanos
User avatar
tronicgr

Posts: 624
Images: 11
Joined: Tue 20. Mar 2012, 22:10
Location: San Diego, CA
Has thanked: 130 times
Been thanked: 50 times

Re: New!!OBD2 Com with Xsim3 and Arduino-New!!

Postby vicpopo » Fri 12. Jul 2013, 23:21

Hi Thanos ,

Thanks for your comments and thanks !!

The port com rate is 9600 . I don't know if Sirnoname could step up this to 115200.If he goes trough here may be he can answer.

Nice talking to you . ;)

Gilles
User avatar
vicpopo

Posts: 645
Joined: Fri 20. Apr 2012, 18:04
Location: Strasbourg France
Has thanked: 39 times
Been thanked: 79 times

Re: New!!OBD2 Com with Xsim3 and Arduino-New!!

Postby tronicgr » Fri 12. Jul 2013, 23:23

I'm not talking about the serial speed from pc to arduino... That could be faster indeed. Try 125000 bps!!! Its a nice even speed for arduino crystal, it will work error free, instead of the 115200 bps.

I'm talking for the internal speed of the x-sim simulating the ELM327 chip communications... ;) Sirnoname???


Thanos
User avatar
tronicgr

Posts: 624
Images: 11
Joined: Tue 20. Mar 2012, 22:10
Location: San Diego, CA
Has thanked: 130 times
Been thanked: 50 times

Re: New!!OBD2 Com with Xsim3 and Arduino-New!!

Postby vicpopo » Fri 12. Jul 2013, 23:31

Ok ,I understood , waiting for Sirnoname answer.

In fact i had a lot of pain using the same code as yours for blinking leds.The speed and rpm were quiet good but for leds anything worked properly .Latence and delay when leds were blinking.

I spent hours (I'm not an c Code expert) to find a good solution.

I will try a higher refresh rate for comport.I believe I made once a try without positive issue , will try again.

edit : tested with 115200 seems to work .
User avatar
vicpopo

Posts: 645
Joined: Fri 20. Apr 2012, 18:04
Location: Strasbourg France
Has thanked: 39 times
Been thanked: 79 times

Re: New!!OBD2 Com with Xsim3 and Arduino-New!!

Postby sirnoname » Sat 13. Jul 2013, 00:03

ELM standard is 9600, the extractor can setup higher rates. There is no technical delay and the values are read as they are in the game.
OBD2 serial speed is auto handled by the ELM, after the ELM (our connection) we have standard RS232.
Is a LCD liquid slower?

Will add now the new values to OBD2 ...
If a answer is correct or did help you for a solution, please use the solve button.
User avatar
sirnoname
Site Admin

Posts: 1739
Images: 45
Joined: Thu 1. Sep 2011, 22:02
Location: Munich, Germany
Has thanked: 35 times
Been thanked: 122 times

Re: New!!OBD2 Com with Xsim3 and Arduino-New!!

Postby vicpopo » Sat 13. Jul 2013, 10:54

sirnoname wrote:ELM standard is 9600, the extractor can setup higher rates. There is no technical delay and the values are read as they are in the game.
OBD2 serial speed is auto handled by the ELM, after the ELM (our connection) we have standard RS232.
Is a LCD liquid slower?

Will add now the new values to OBD2 ...


Yes ,lcd a little bit slower,thanks for new values! ;)
User avatar
vicpopo

Posts: 645
Joined: Fri 20. Apr 2012, 18:04
Location: Strasbourg France
Has thanked: 39 times
Been thanked: 79 times

Next

Return to Peripheral Projects

Who is online

Users browsing this forum: No registered users and 2 guests
