Simple Gear Box with PIC18F or Arduino

Postby kooky74 » Sun 25. Jan 2015, 15:20

Here is a tutorial to create a simple H gear box for your simulator.

The presentation is done with a PIC18F but can be adapted simply for any arduino board (If you need, ask me and I will help for this).

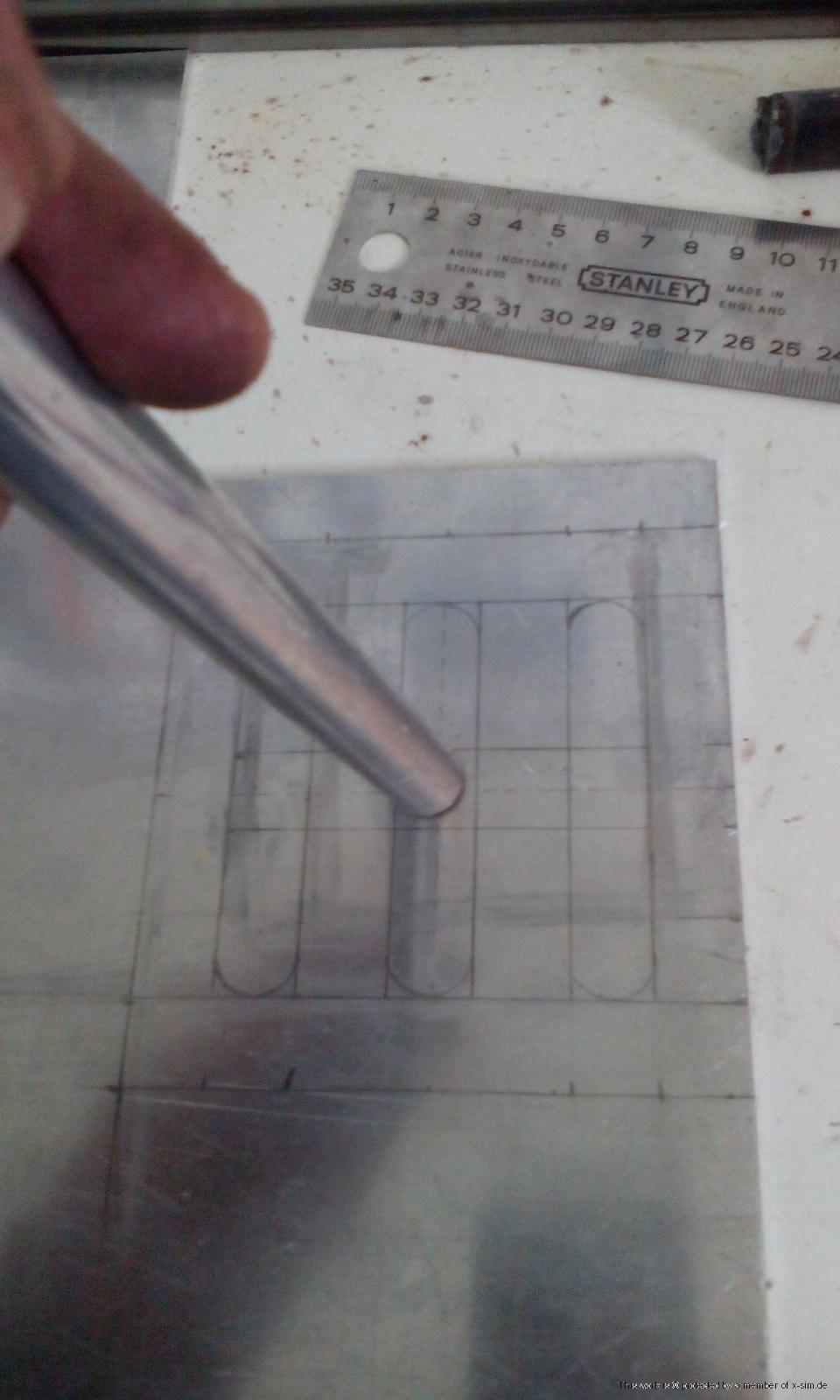

Step 1 : designing the top H with aluminium.
3573

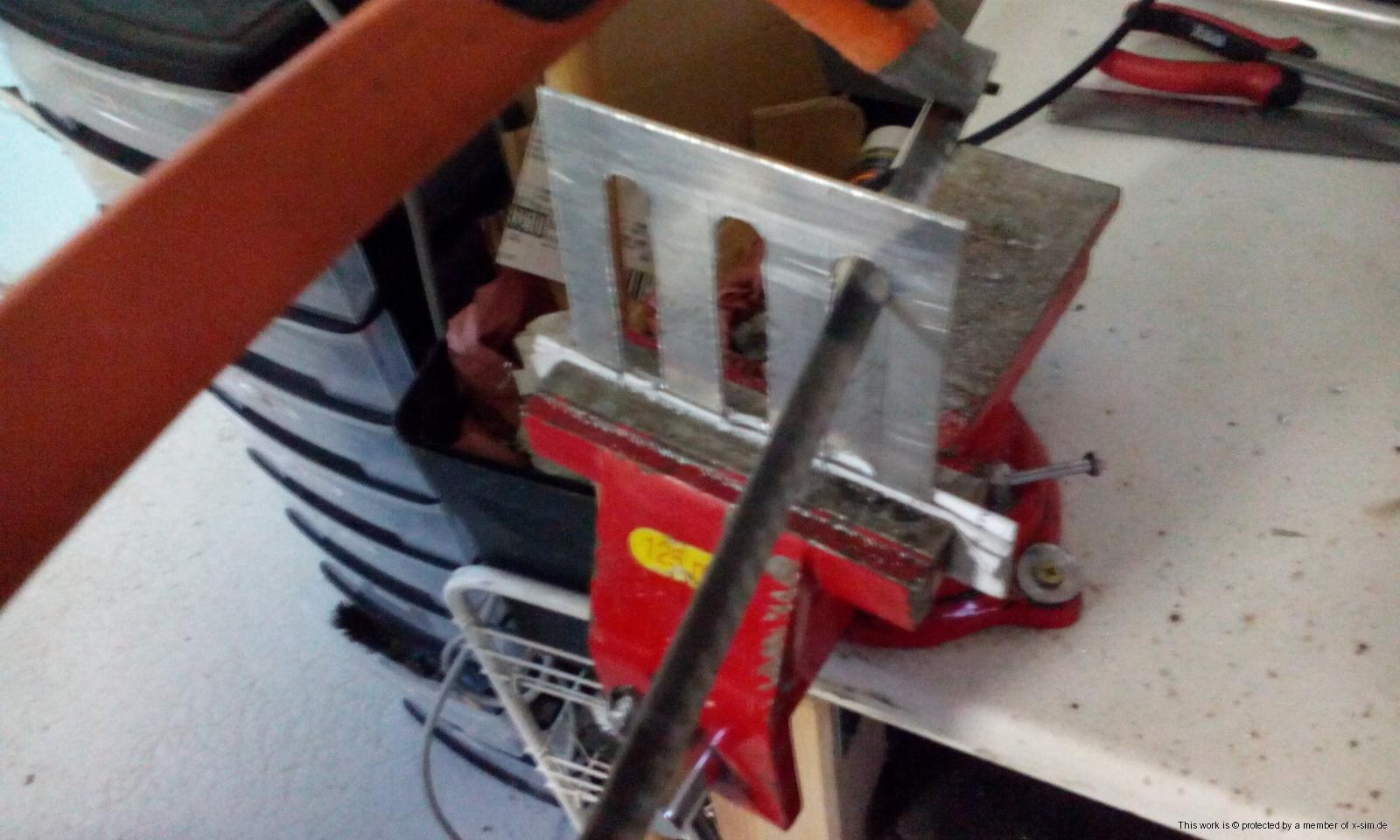

Step 2 : first make the 6 top holes and join them by cutting with a saw.
3574

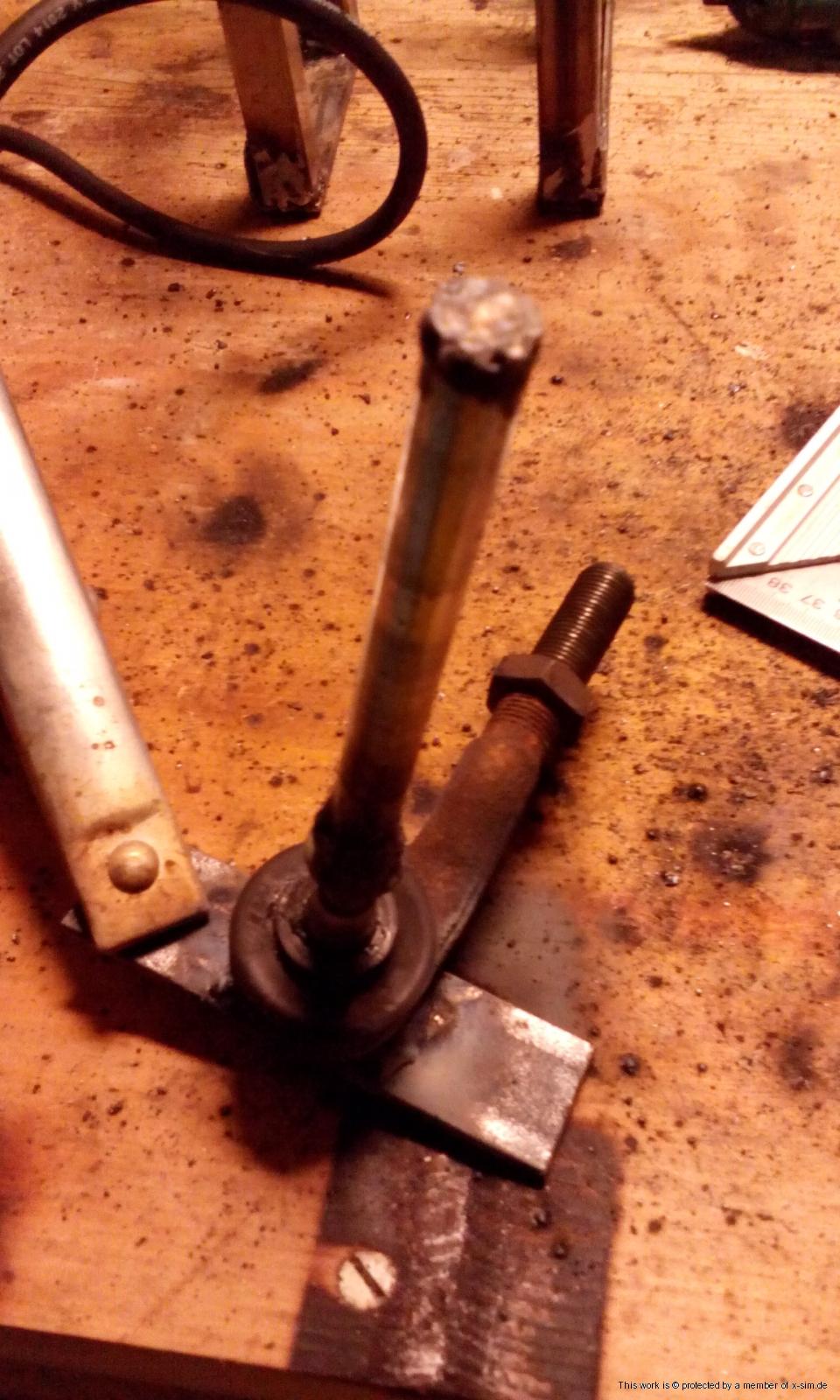

Step 3 : Weld a patella on a steel bar.
3575

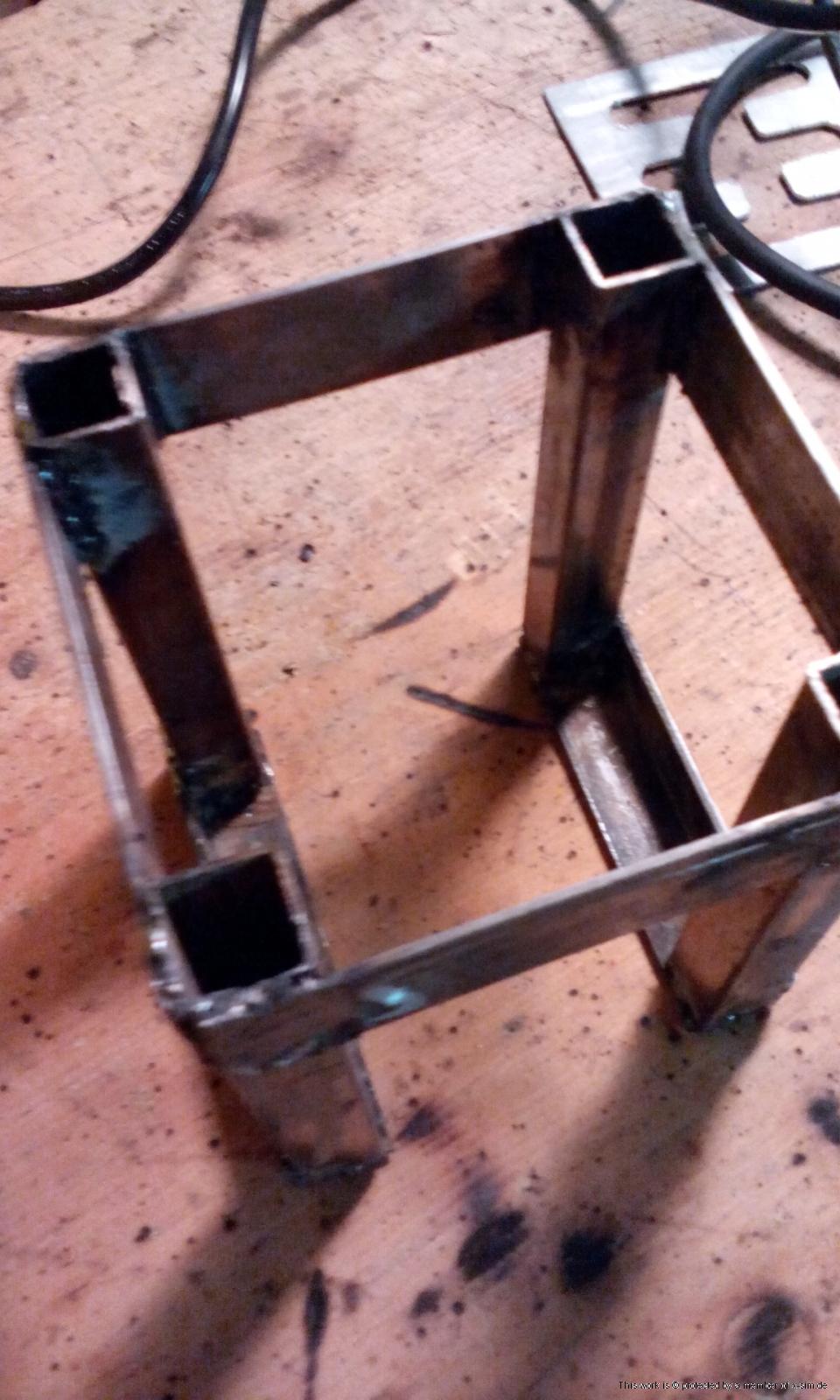

Step 4 : Create a box that will be the structure of the gearbox. Do not hesitate to make it STRONG...
3576

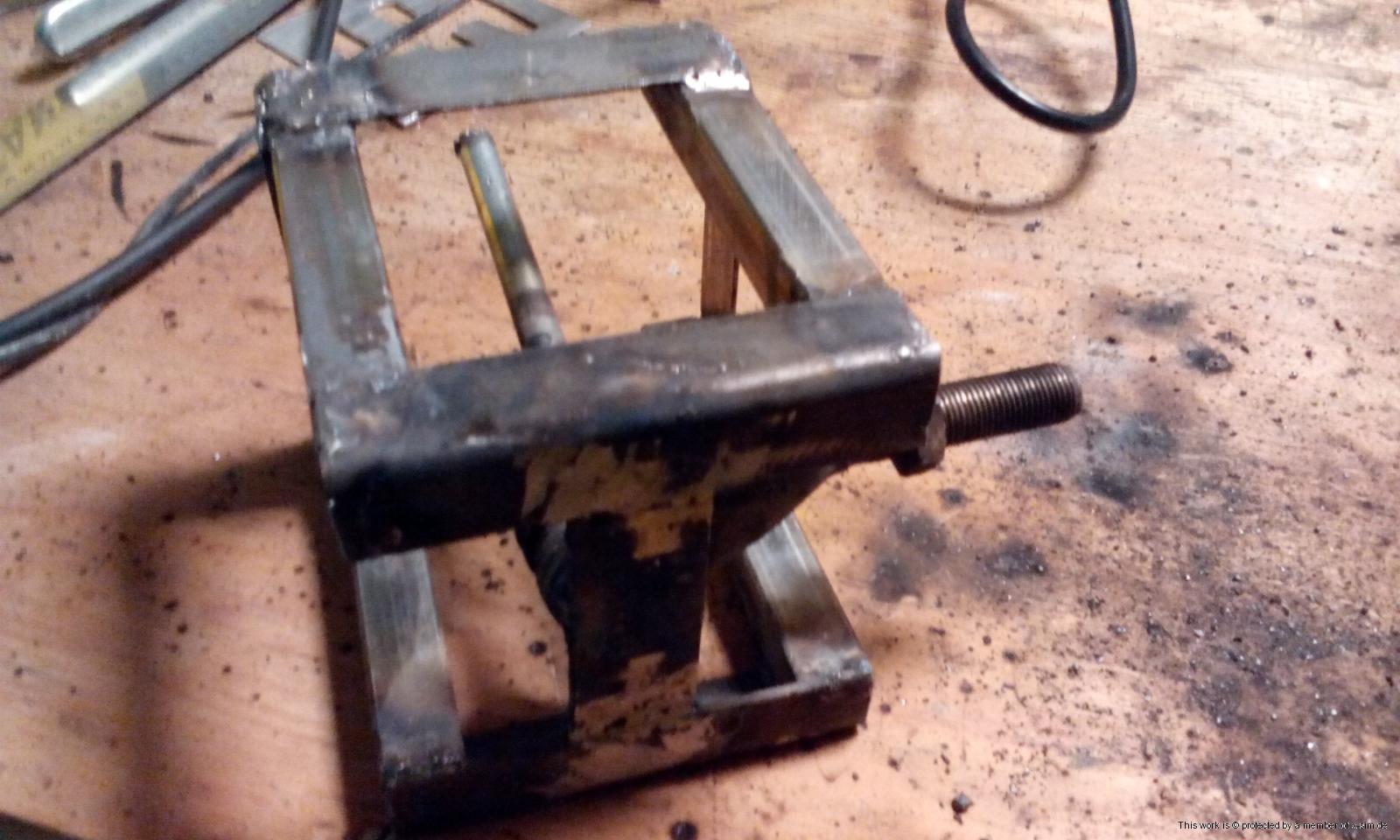

Step 5 : Weld the bottom steel bar on the box.
3577

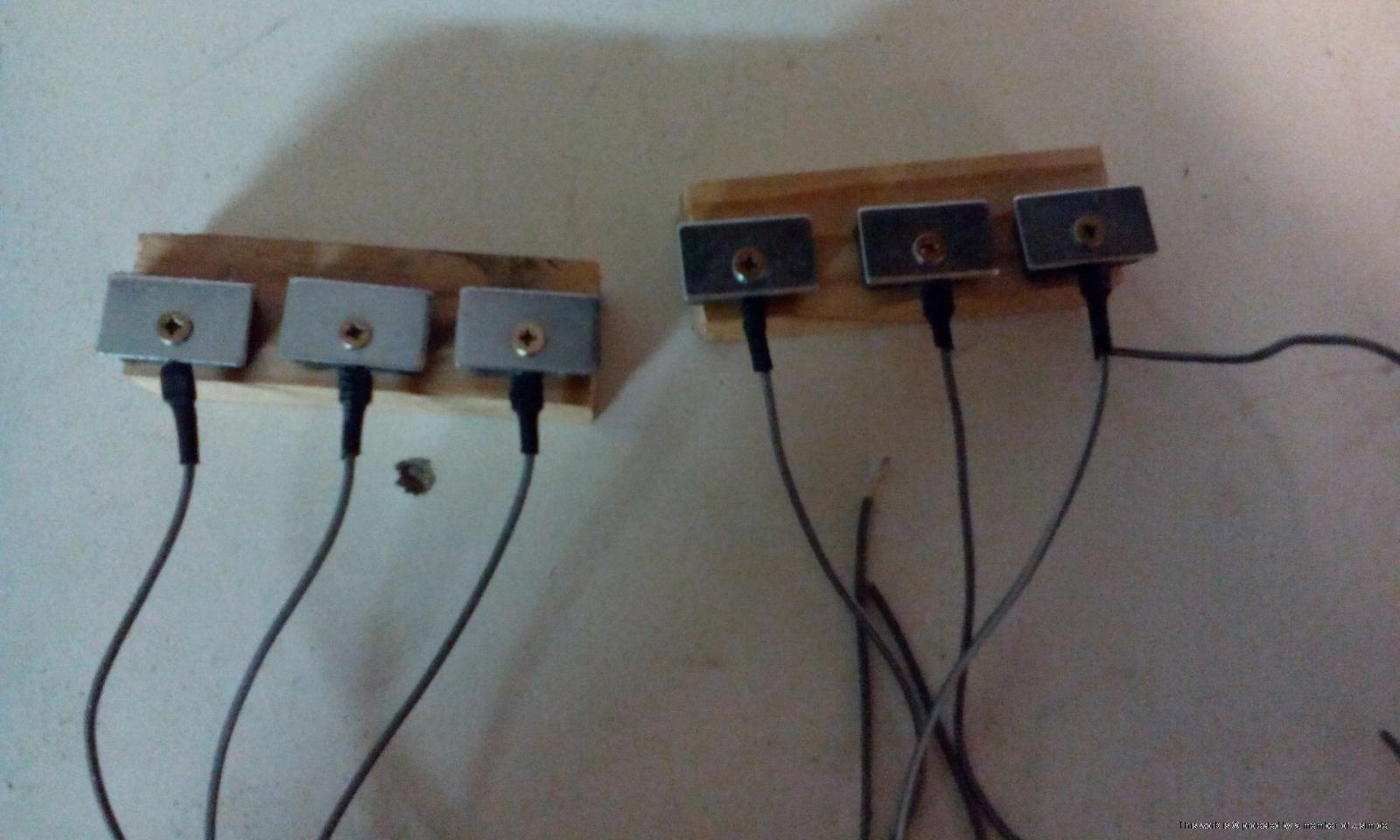

Step 6 : Create a wood (or plastic) support for the 6 contacts that will receive the lever. My contacts are done with a magnet where a wire is weld.
3578

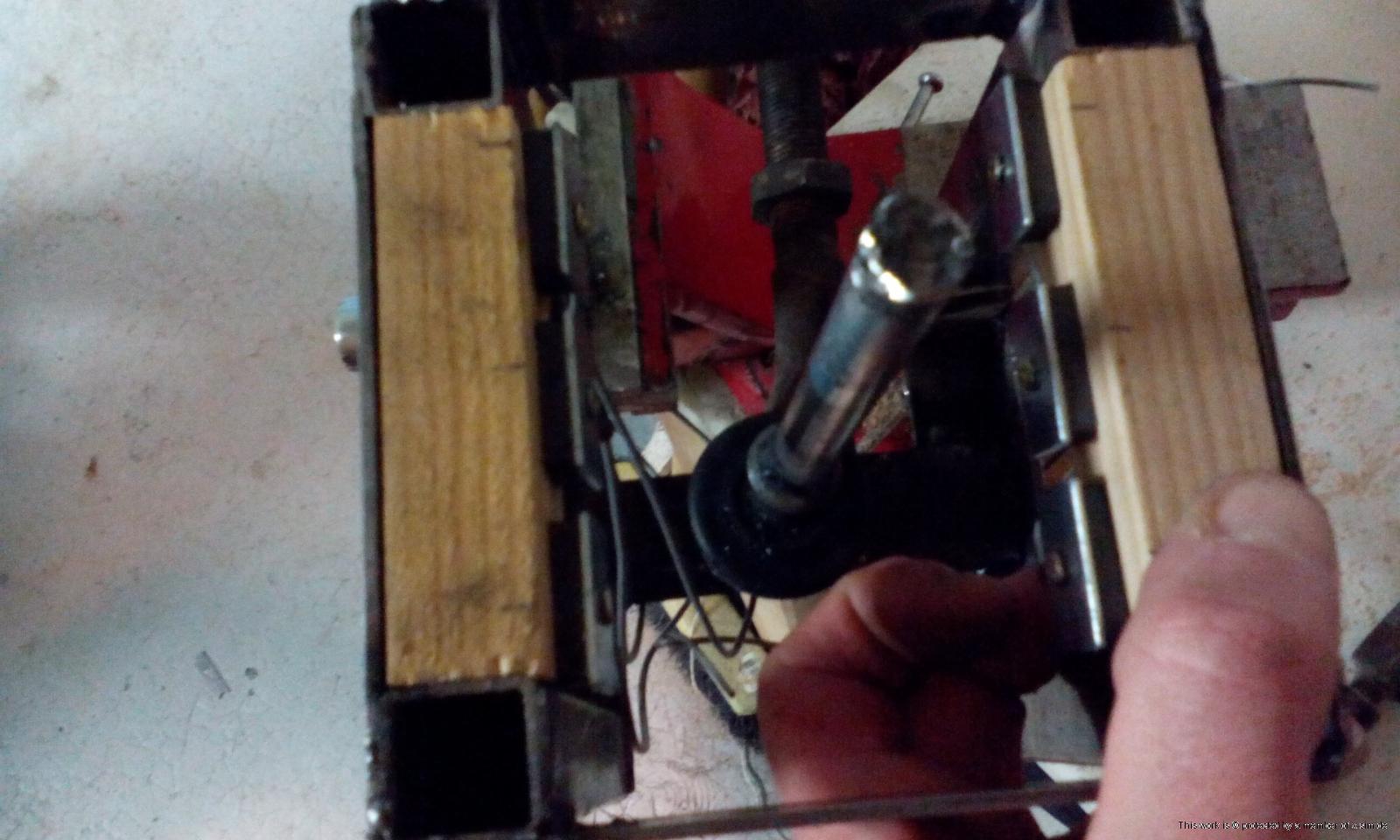

Step 7 : Screw the wood support inside the box.
3579

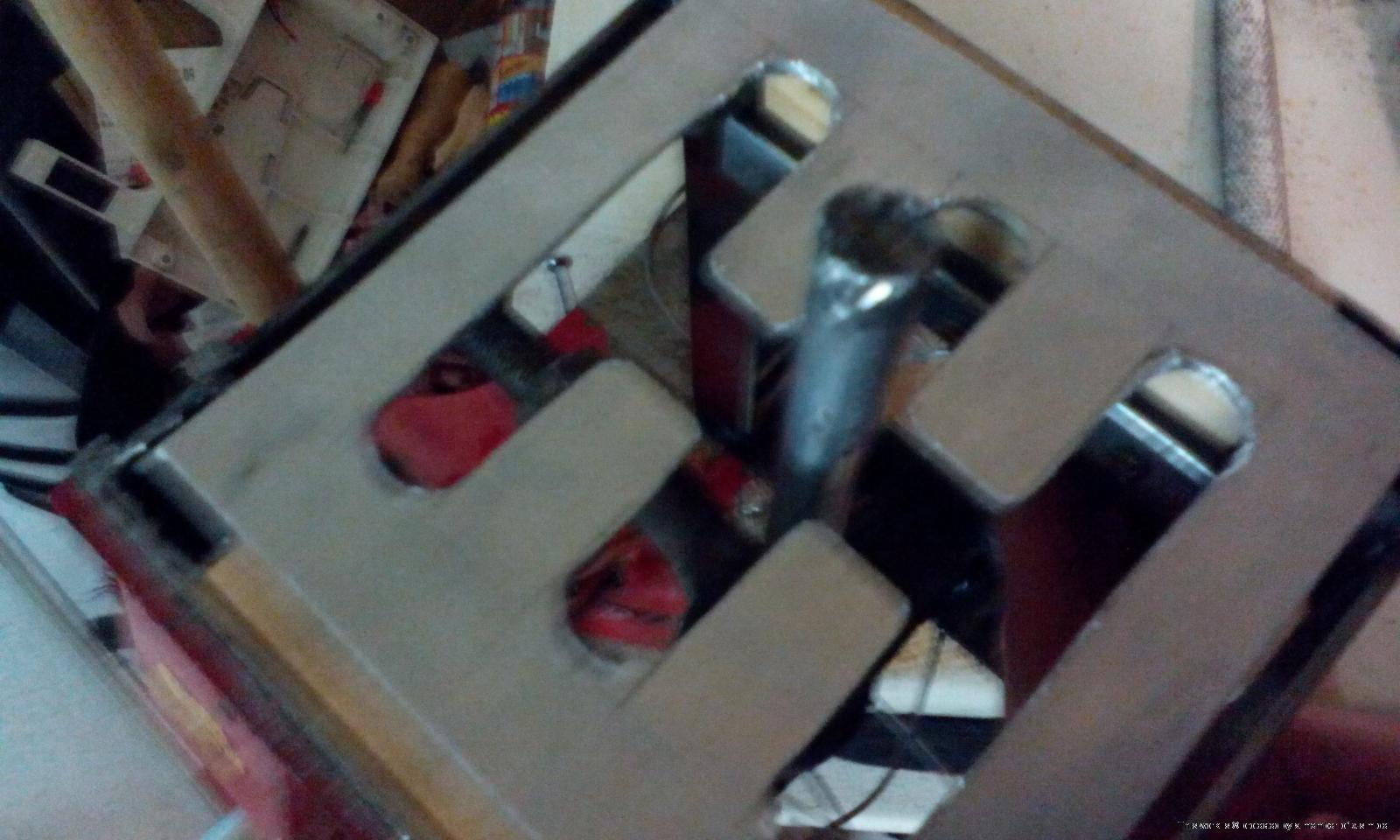

Step 8 : Place the top aluminium and prepare to screw it on the box.
3580

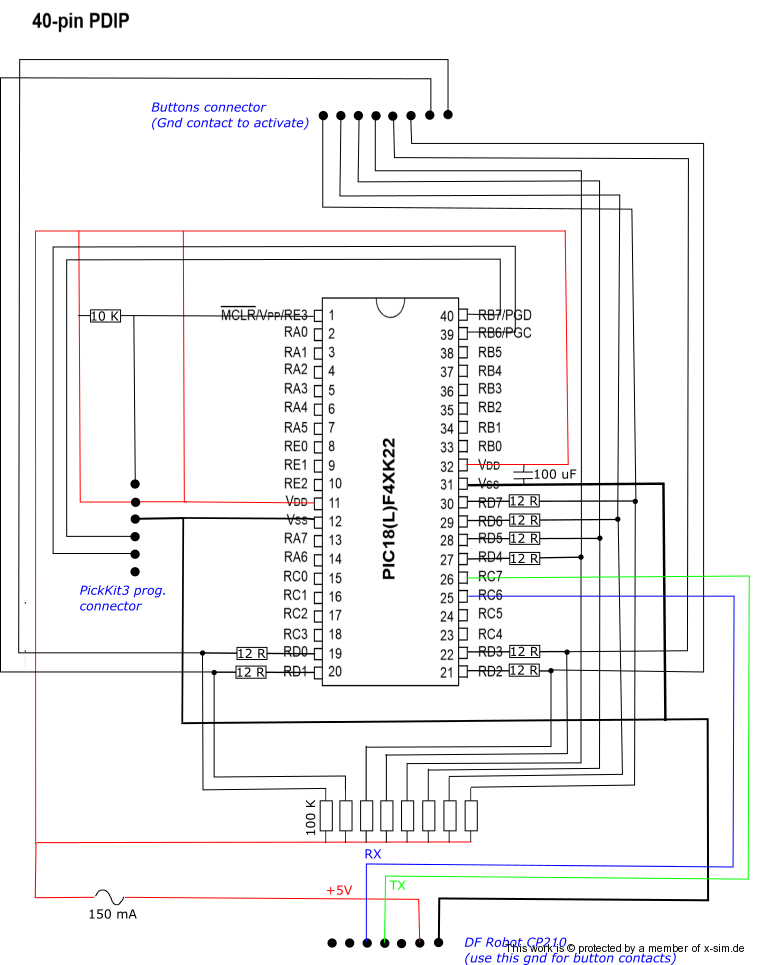

Step 9 : Beginning of electronic part.
3581


The principle is quite simple :
    -In a main loop of the firmware, I am reading the status of the 8 pins of a port.
    -Theses 8 booleans are then translate into ASCII code "1" for true and "0" for false.
    -I then create a String containing the result and add a cariage return.
    -This method is slower than simply sending the byte corresponding to the 8 bits directly but it is easyer to debug.
    -Finnaly I get the entire string and send it throught an UART.
    -I add a TTL / Serial port converter that get the UART signal and transform it to a virtual USB serial port to the PC.
    -The PC will receive for example : "00010000\r" when the gear 4 is ON.

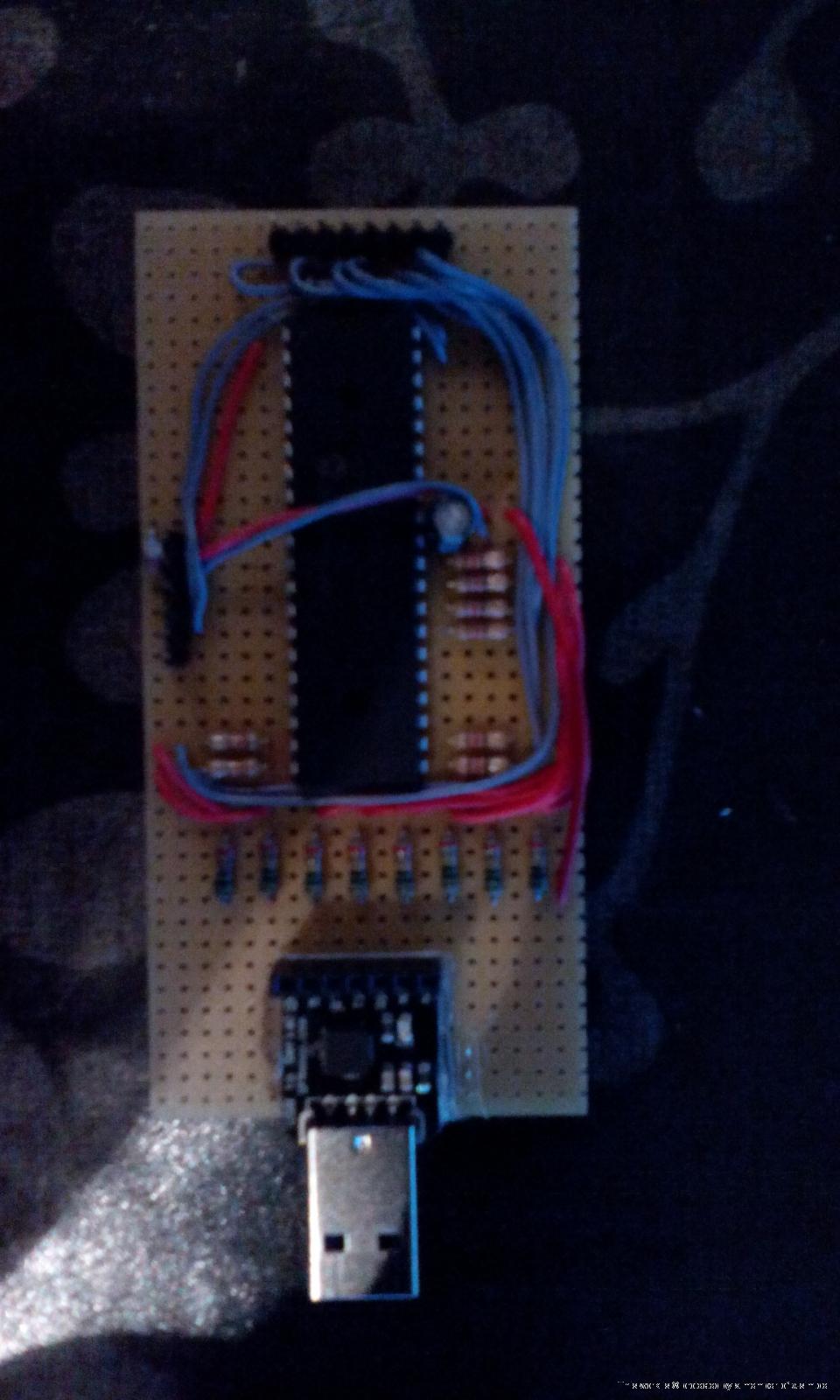

Step 10 : Creating the board.
3582

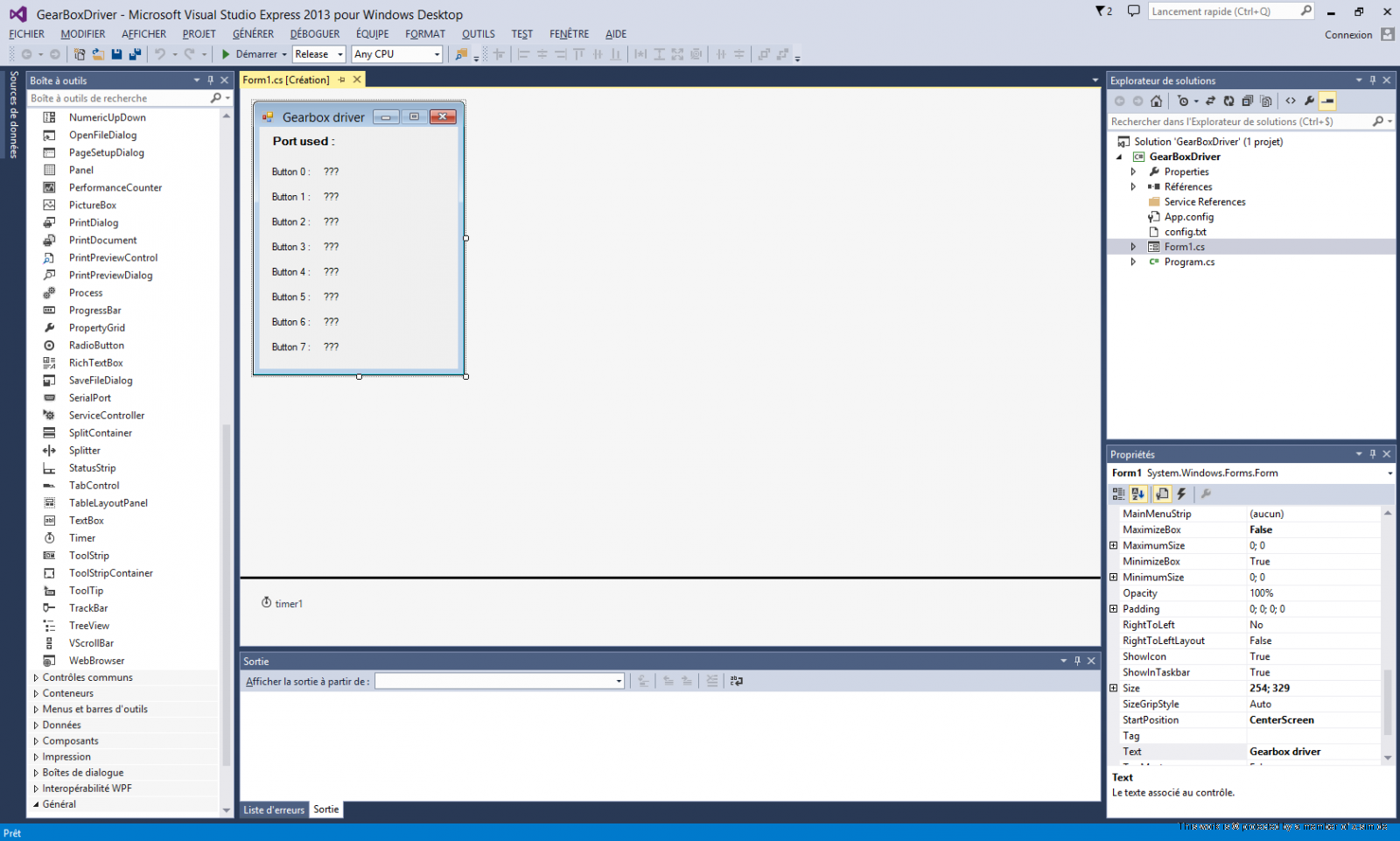

Step 11 : Developping a USB serial port converter to Keyboard mapper. This solution is simple and easy to do. When the driver see the status of a gear changing, it sends equivalent keyboard key to the system.
3583

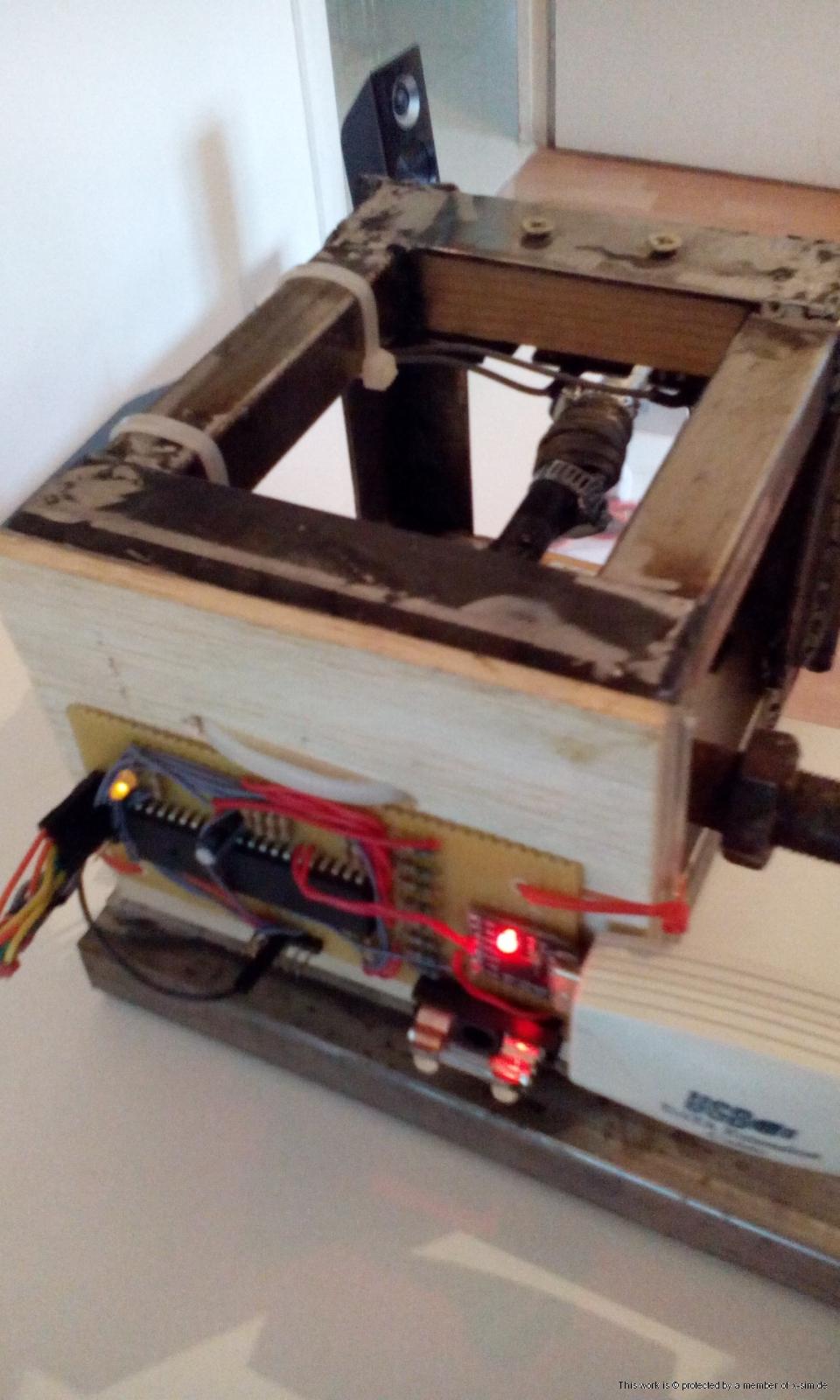

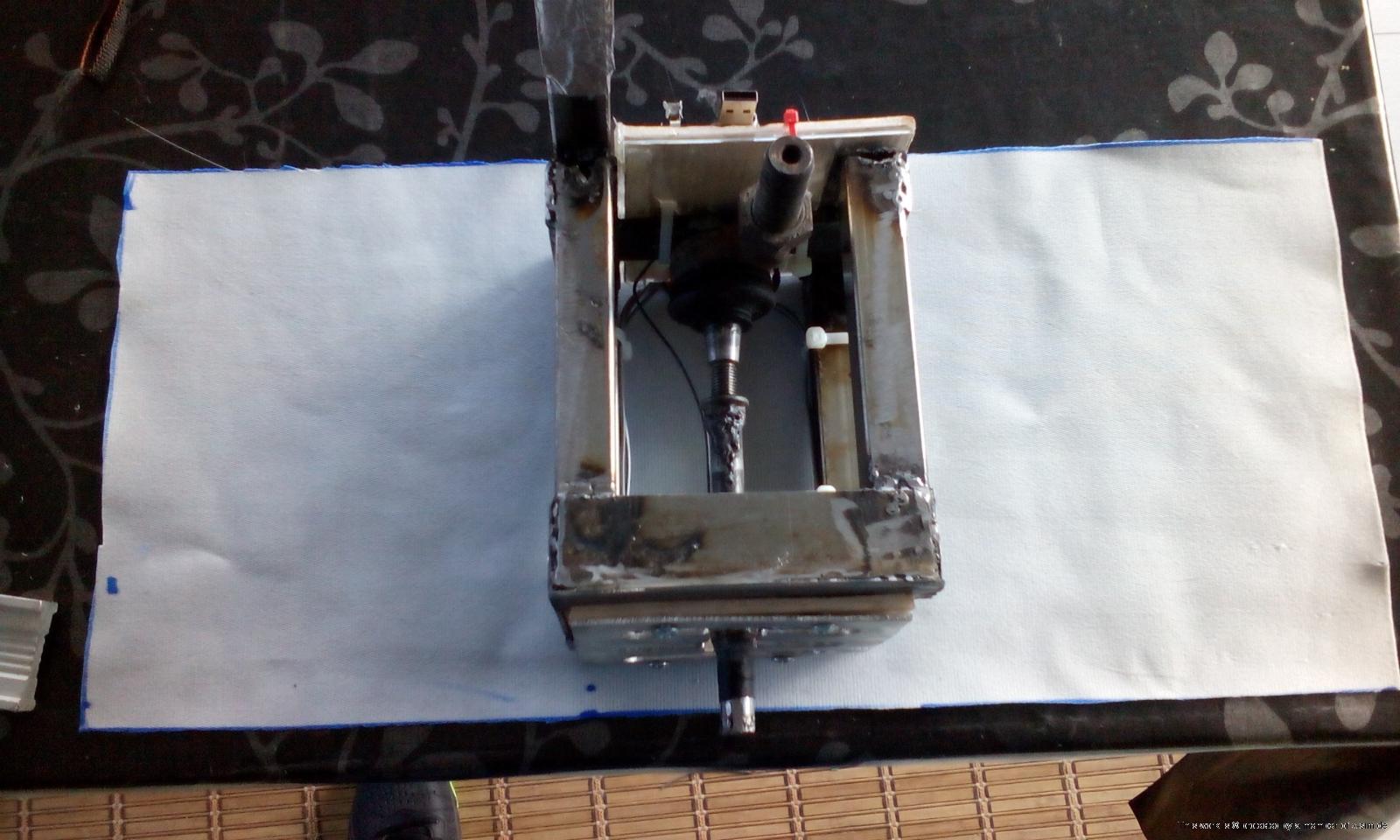

Step 12 : Attaching the card on the bottom of the box.
3584

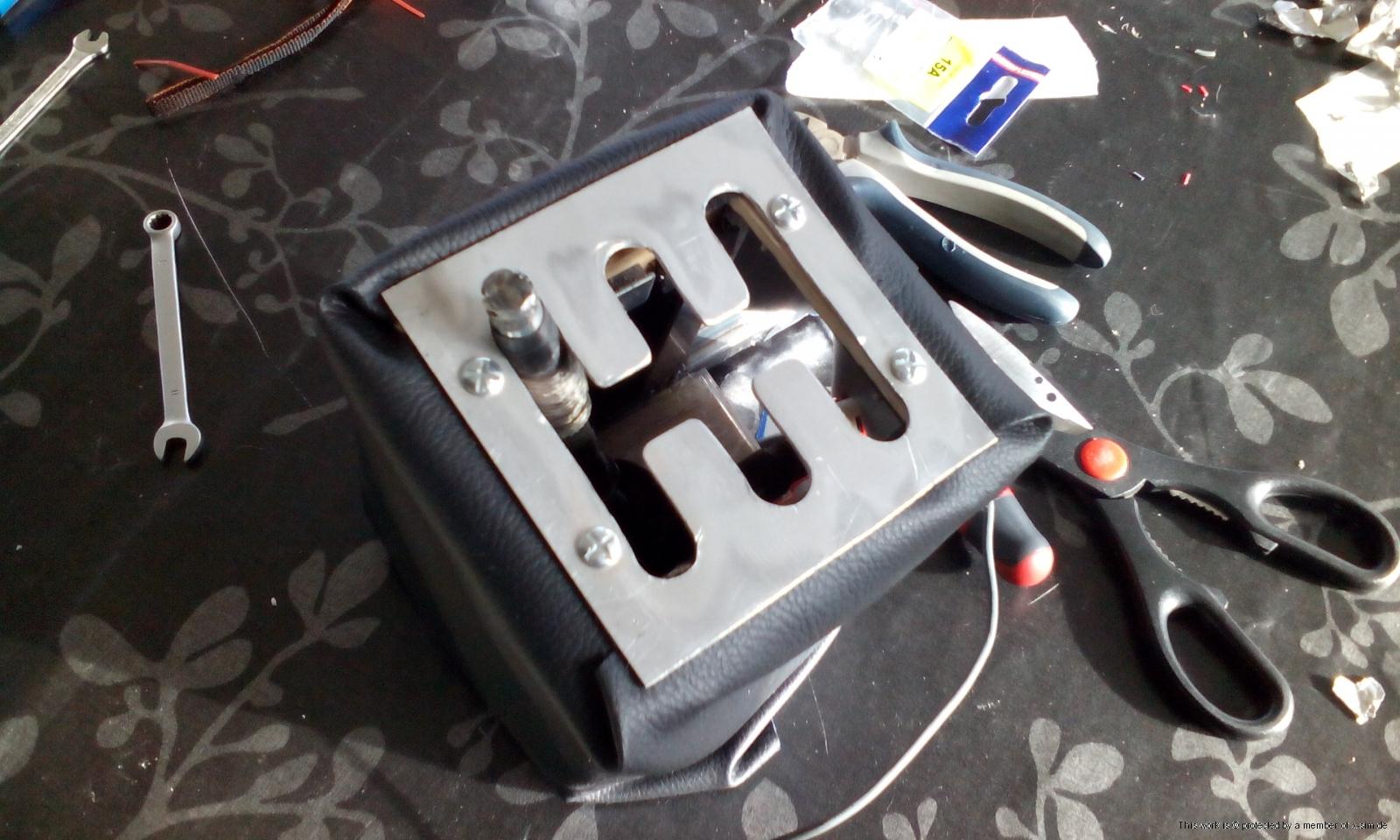

Step 13 : Make a simple leather covering that will stay in place with the top aluminium screws.
3585

Step 14 : This is how you want. When the system is finish you can buy a biutifull "head speed" or do like me : simply place a wood ball and place it on the main gear tube...
3586

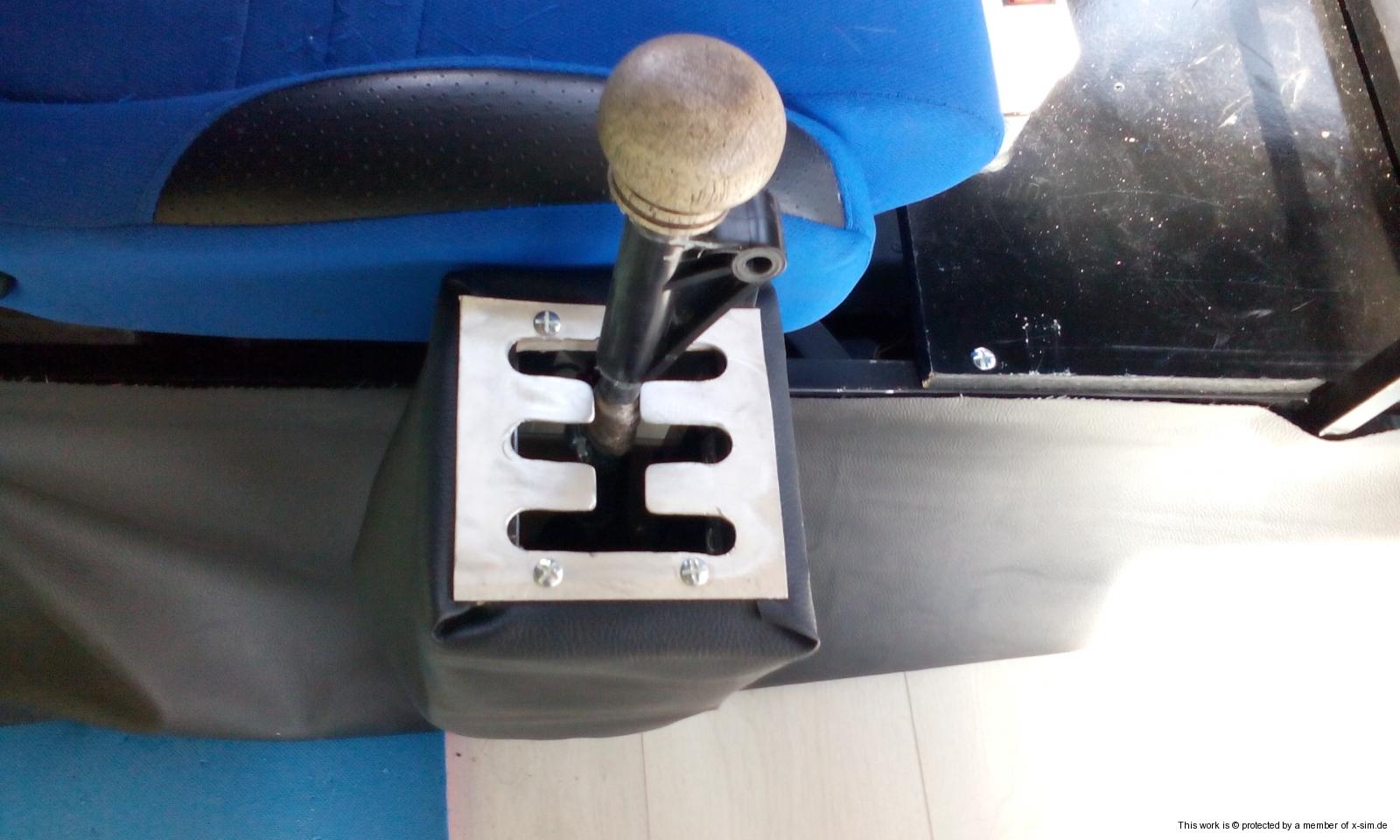

Step 15 : Installing the gearbox on your simulator and enjoy!
3587

Notes :
Final product is about 1.8kg.
The driver is added at the windows startup. You can also "write" with your shifter because it sends keyboard keys :D
kooky74

Posts: 3
Images: 15
Joined: Sun 16. Nov 2014, 12:26
Has thanked: 0 time
Been thanked: 0 time

Re: Simple Gear Box with PIC18F or Arduino

Postby dalantaibaatar » Mon 26. Jan 2015, 13:13

Very nice, do you have more schem
dalantaibaatar

Posts: 4
Joined: Mon 9. Dec 2013, 15:53
Has thanked: 0 time
Been thanked: 0 time

Re: Simple Gear Box with PIC18F or Arduino

Postby dennisnojack » Thu 26. Feb 2015, 17:38

Wow. Great work....
