SCN5 / SCN6 Hardware Thread

[sniegavirs]

Maybe www.farnell.com can help you with this.

Prices are good and shipping is fast!

[seppel]

thx sniegavris for useful link, but i need to know the exact classification of the plugs.

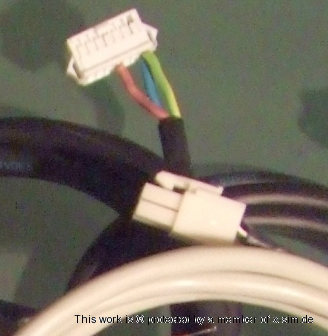

here is a closeup pic of the plugs

[seppel]

thx for your detailed investigation.
i will check your links and report the progress in this case

thx for great research

best regards
seppel

[sirnoname]

Updated the first page with connector informations.

[Hmaia]

I have access to a couple of used SCN5's. They look to be in very good shape. Anyone with experience with used SCN5's? What should I look for in order to avoid a lemon>?

[sirnoname]

Nearly undestroyable. Somtimes the pin from the motor axis get broken but it can be demounted and exchanged.

[Hmaia]

Thank you sirnoname, for the prompt response. I have ordered both, will be here this week.

[Hmaia]

Would this usb to rs485 work for SCN5?
http://dx.com/p/usb-2-0-to-rs485-422-converter-201897
Thank you again

[sirnoname]

It seems to be a full duplex adapter.
This is dangerous because I cannot read how it work with half duplex. Most of the full duplex adapter make bridges and have a echo on the datalines.
So better not use this adapter.

[Hmaia]

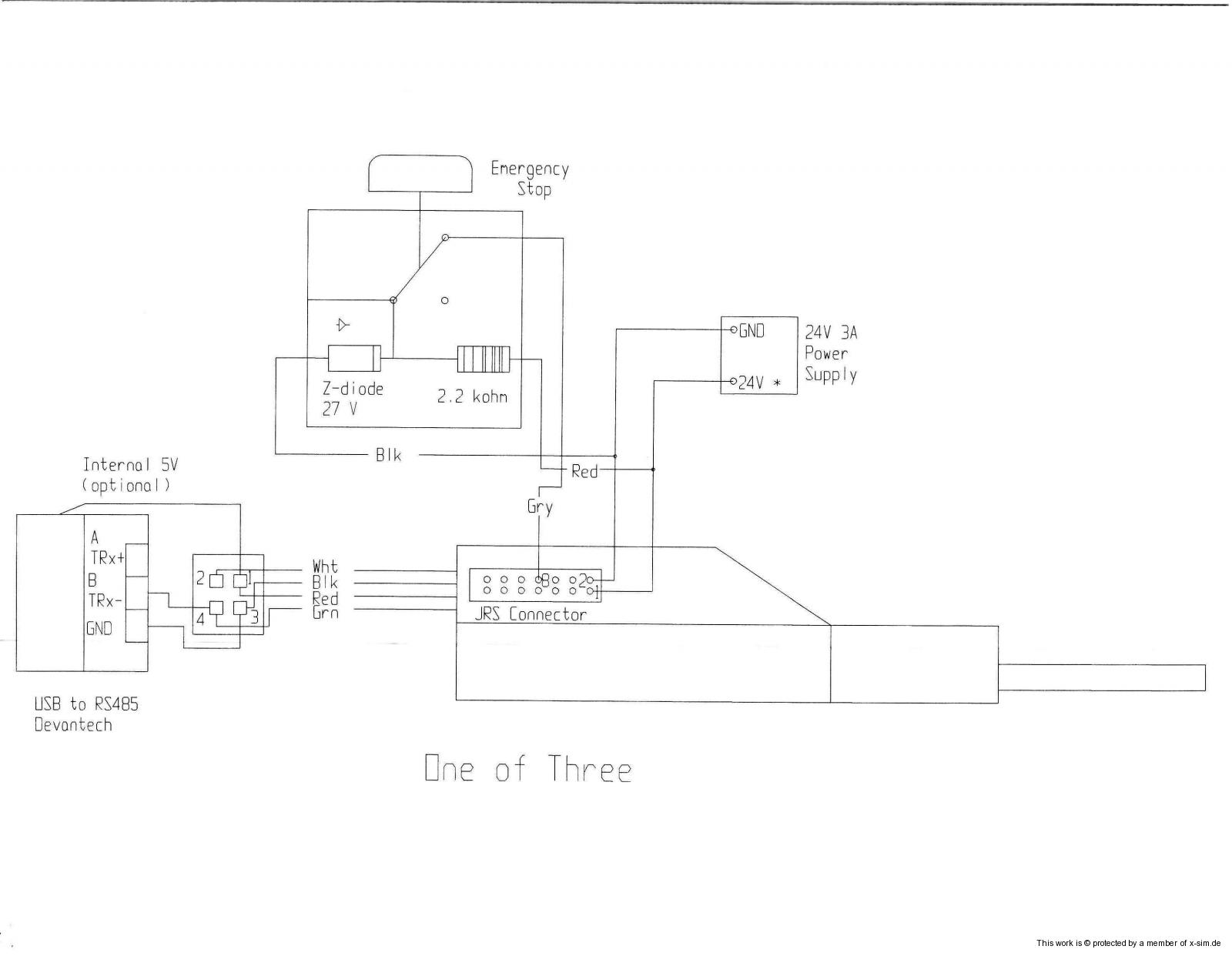

I have a schematic for connection of the SCN5's.
I am planning on using three independent circuits, one for each actuator, using the following 24V 3A power supply and Devantech USB to RS485 converters. Each circuit will have its own kill switch.
http://www.ebay.com/itm/DC-24V-3A-Switc ... 3f0c11d587.
I would greatly appreciate any comments/suggestions, as I want to have a nice clean build.
How many watts for the Zener diode?
