Hi all, I am building a 2dof mainly with wood including the ujoint.

Hi,
After watching all your great creations, I decided to build one too.
For starters it will be 2 DOF and as an inspiration I used the post of RacingMat.
Thank you RacingMat.

https://www.x-sim.de/forum/viewtopic.php?t=943

I will be grateful for your advice and ideas - comments and criticism.

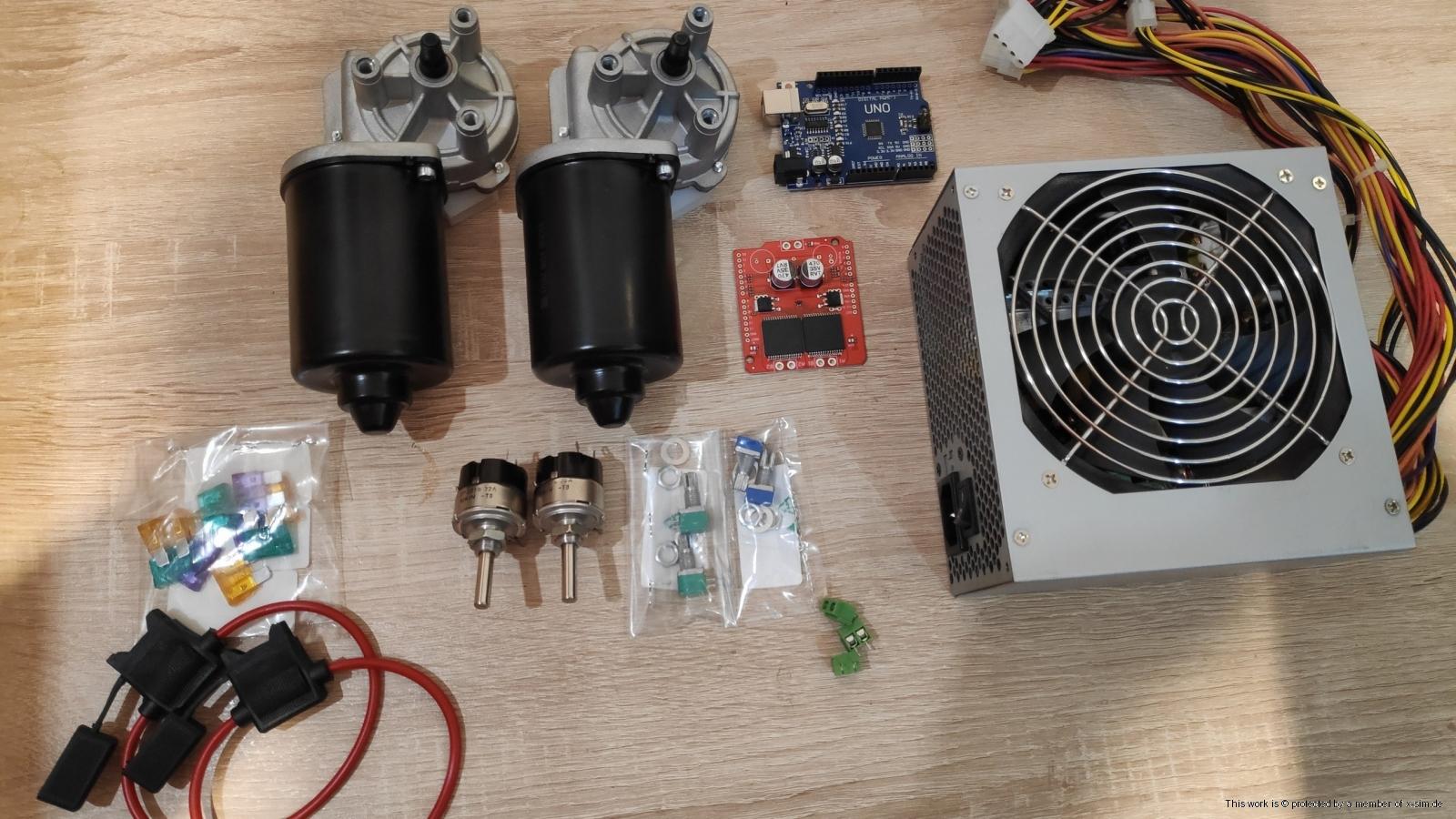

So for starters, I got the basic hardware:




And a demonstration of what I already have at home, I think it deserves to be improved. ...

Hi,
here some brief infos on my sim-project:
I started with a sketchup, to checkout if the dimensions are fitting. Actually, the upper section of the overhead needs to be cutted... but it seems to fit.


Next Step is to get the SW tested: For this I've built up a "demonstrator" to check out the input devices, the sim-SW and the output devices - vision and the power actuators control-input. ...

About 80% complete. Thinking about offering it as a kit. Let me know what you think.


Original idea: Wanegain a French guy and Leo Burton (SimuKIT) from youtube. Cheers!

An abandon 20mm chipboard was uses for this project. Once the various pieces were cut, I proceeded with drawing lines for joining them together. Then drilled holes for the wood screws (3-4mm by 50mm).
After that, I put some wood glue on the appropriate edges of the boards and screw them together. As with the lines, I made sure that each board ...

Presentación del proyecto de un simulador de vuelo con 360 grados en Pitch Roll y Yaw y asiento de gravedad para los otros tres grados de libertad.


Hi,

i have started my 2dof project.

Here are my starting parts:

1 x Arduino R3 Uno
2 x IBT - 2
1 x 12v 29 A Output Power Supply

I welded the chair holder and assembled the universal joint on the front.

I was lucky to get 2 of the universal joints for 25 Euro incl. shiping.

I have 2 wippermotors from ebay for together 40 Euro. Grounded them
already and put a construction ...

Hi. I am building a 2 DOF simulator. Why do potentiometers have more travel to one side than to the other side? I have the potentiometers in the center, so the motors are stopped up to here everything correct. From the center if I turn the potentiometer counterclockwise it goes towards 0Kom, the motor turns but it stops very fast because I have very little travel on the potentiometer but if from the center of ...

Hi,

I present my DIY G-Seat simulator.

It based on G-Seat system. The purpose is to generate G-force on pilote with almost no movement.
The bucket seat is slice in 3 parts. The backrest is a the only fixed part, seat and the top of the seat (behind the shoulder) are mobile parts.

Bottom of seat transcribe longitudinal G-force, top of the seat combine longitudinal/lateral G-force.

The system is actuated by 3 DC motors of ...

Dear All,

I Start my project.

I Will post the progress here.

Layout:
